Engine Assembly Remove For Access - Vehicles With: Manual Transmission (G2Z19824): Part(S)

Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the hydraulic jib crane, remove the engine assembly from the engine stand.

Special Tool(s): JLR-303-1673  , JLR-303-1633

General Equipment: Hydraulic jib crane

General Equipment: Engine stand

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special service tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the engine mount bracket and tighten the bolts to the correct torque.

Torque: 63 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

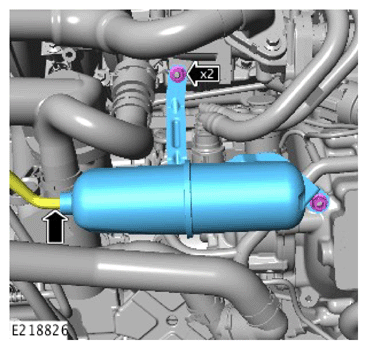

• Install the vacuum reservoir and tighten the retaining nuts to the correct torque.

  Torque: 10 Nm

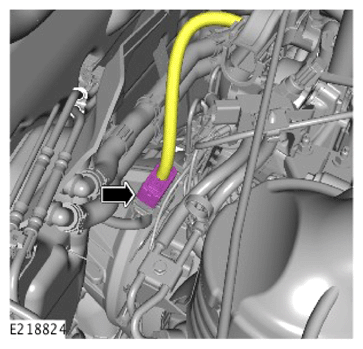

• Install the vacuum hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

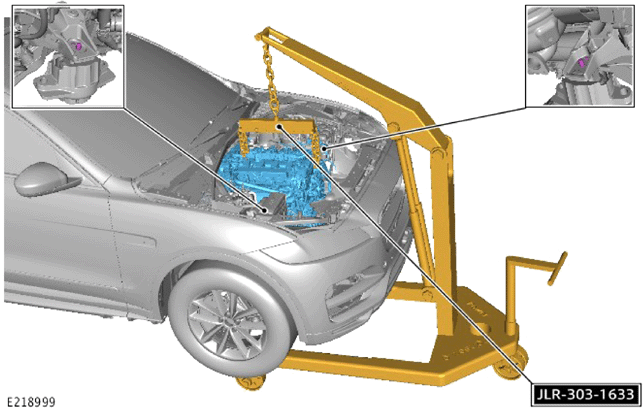

Install the engine into the vehicle. Make sure care is taken when aligning the transmission dowels and engine mounting studs.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

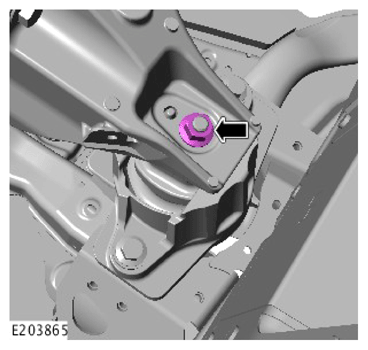

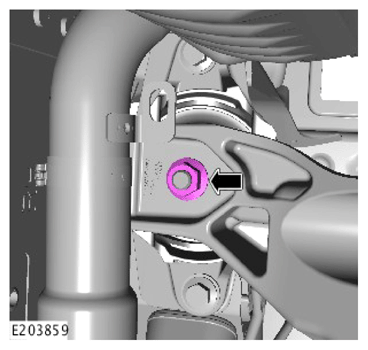

Install the right side engine mount nut and tighten to the correct torque.

Torque: 50 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the left side engine mount nut and tighten to the correct torque.

Torque: 50 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts and tighten to the correct torque.

Torque: 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

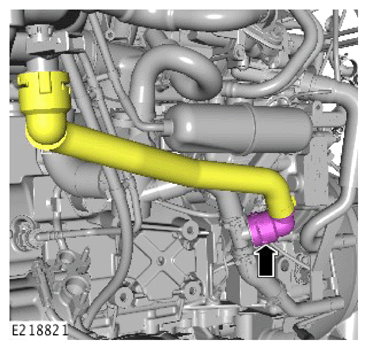

Connect the vacuum hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

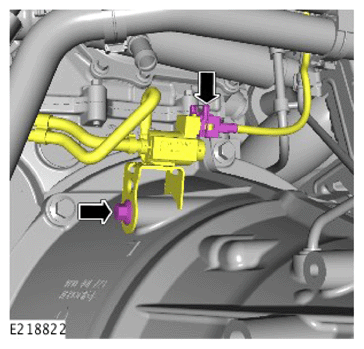

• Install the solenoid and the bracket retaining bolt and tighten to the correct torque.

  Torque: 10 Nm

• Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

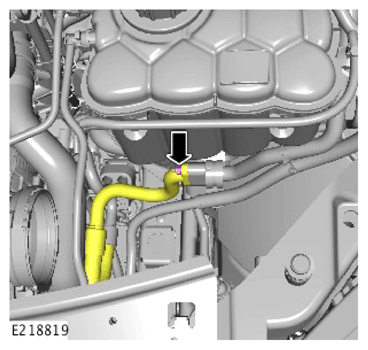

Connect the expansion tank coolant hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

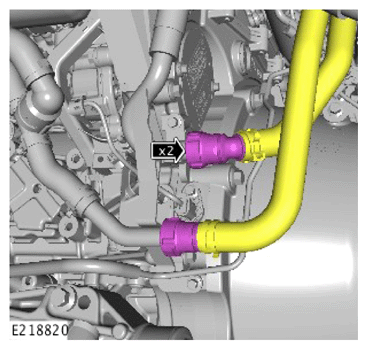

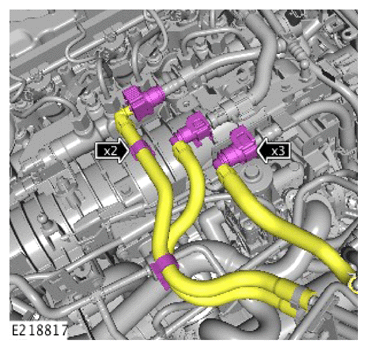

Connect the coolant hoses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install new O-ring seals and connect the air conditioning pipe.

Renew Part: Air conditioning pipe O-ring seal(s) Quantity: 2  .

Torque: 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel pipes and secure in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

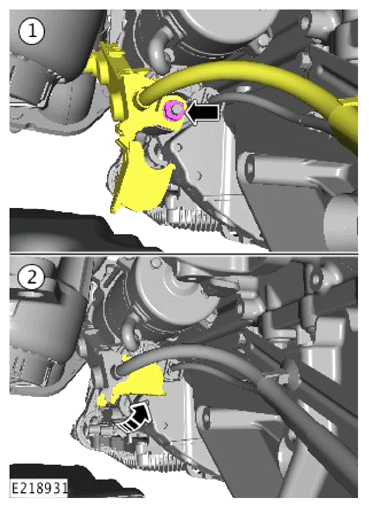

Install the ground cable.

Torque: 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the electrical connectors and secure in the correct position.

Torque: 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

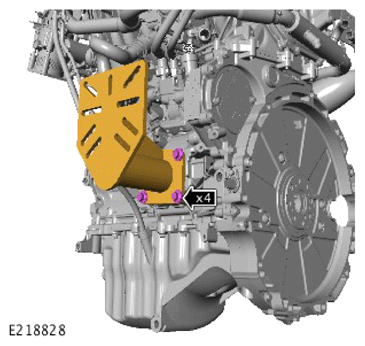

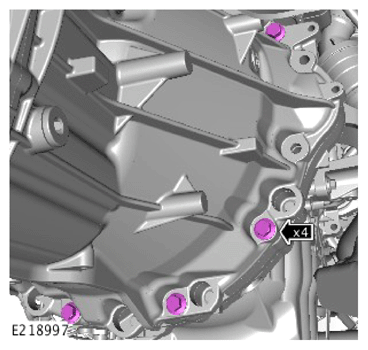

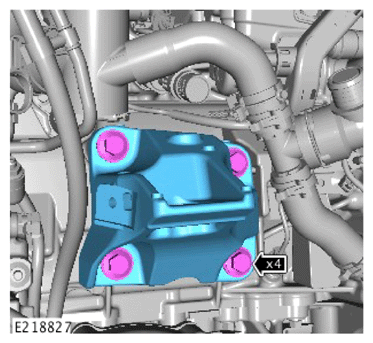

Install the 4 bolts and tighten to the correct torque.

Torque: 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

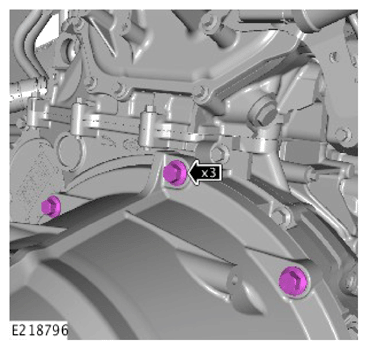

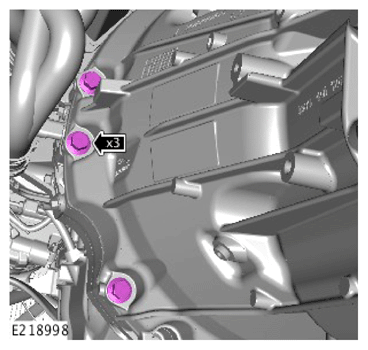

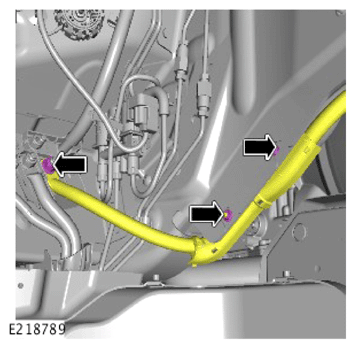

Install the 3 bolts and tighten to the correct torque.

Torque: 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

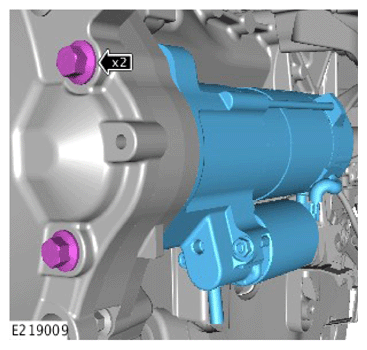

Install the starter motor and tighten to the correct torque.

Torque: 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the starter motor electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

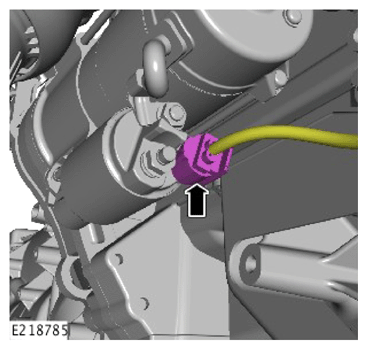

• Connect the starter motor cable.

  Torque: 12 Nm

• Secure the cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

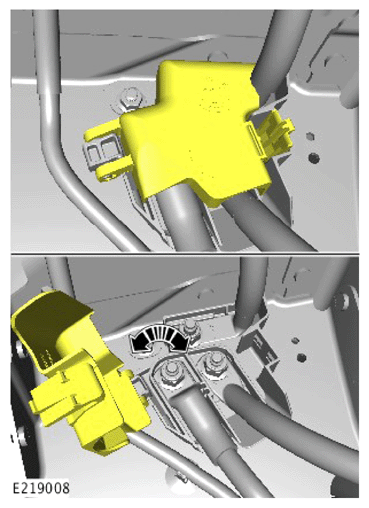

• Install the cable mounting nut.

  Torque: 8 Nm

• Secure the plastic fixing.
• Connect the cable.

  Torque: 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Reposition the junction box cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

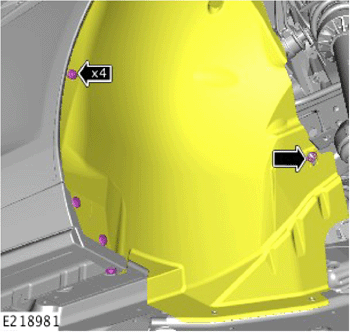

• position the left side front fender splash shield.
• Install the 5 fixings.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the Diesel Particulate Filter (DPF).
• Only tighten the upper DPF bracket nuts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

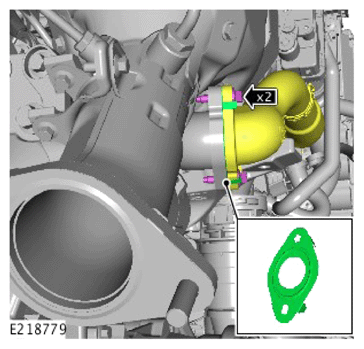

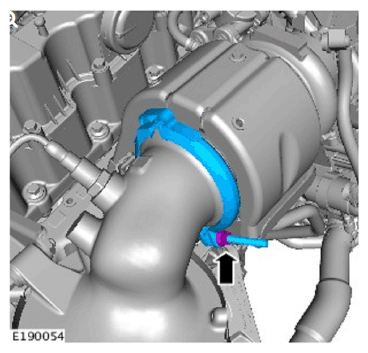

Install the diesel particulate filter to turbocharger clamp. Install a new gasket.

Renew Part: Catalytic converter to turbocharger gasket Quantity: 1  .

Torque: 11 Nm

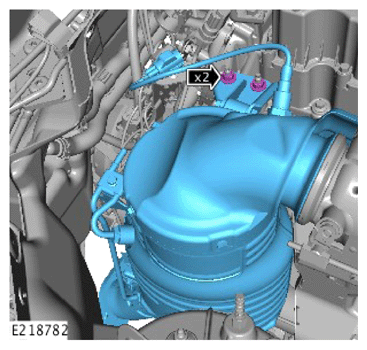

Tighten the upper DPF bracket fixing nuts to the correct torque.

Torque: 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

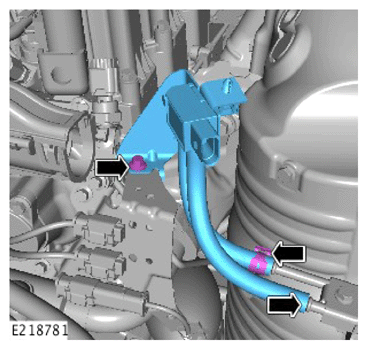

• Install the DPF differential pressure sensor hoses.
• Install the High pressure hose clamp.
• Install the DPF diesel particulate filter retaining bracket bolt and tighten to the correct torque.

  Torque: 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

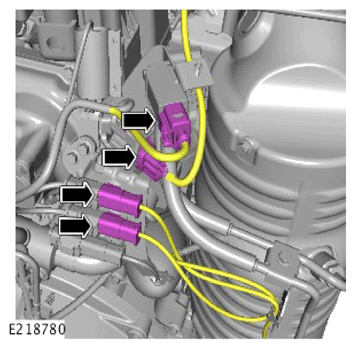

Connect electrical connectors.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

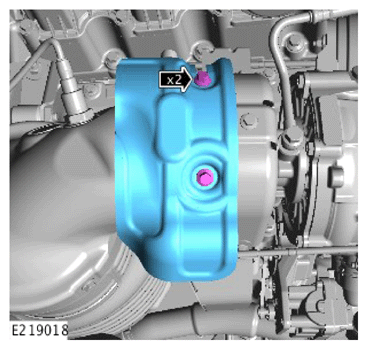

• Install the heatshield fixing bolts and tighten to the correct torque.

  Torque: 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

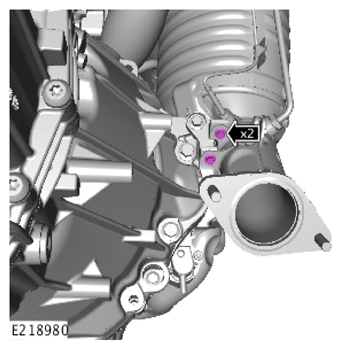

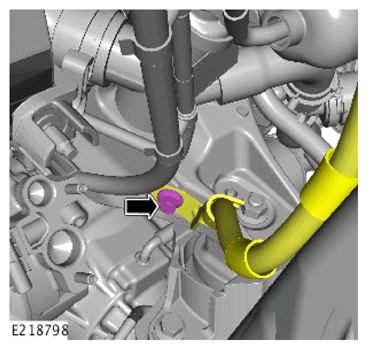

Tighten bolts to the correct torque.

Renew Part: Exhaust gas recirculation pipe gasket Quantity: 1  .

Torque: 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the lower DPF bolts and tighten to the correct torque.

Torque: 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

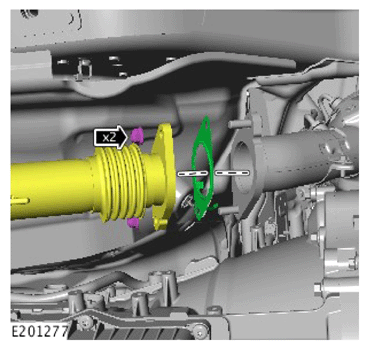

Connect the exhaust system to the (DPF) and tighten the nuts to the correct torque.

Renew Part: Right exhaust downpipe to DPF gasket Quantity: 1  .

Renew Part: Right exhaust downpipe to Diesel Particulate Filter (DPF) nut(s) Quantity: 2  .

Torque: 40 Nm
