Lower Timing Chain: Removal

WARNING: This page is about a different car, the 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Remove the lower timing cover.
Refer to: LOWER TIMING COVER
CAUTION: Make sure the camshaft timing marks are positioned as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the special crankshaft pulley tool, rotate the crankshaft until the camshaft locking tool can be installed.
- Special Tool(s): JLR-303-1630
- Special Tools: JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Rotate the crankshaft counter-clockwise.
  Special Tool(s): JLR-303-1630
- Install the 2 bolts.
NOTE: The timing chain will not be under tension in the positions illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Special Tool(s): JLR-303-1631
- Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the hydraulic timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

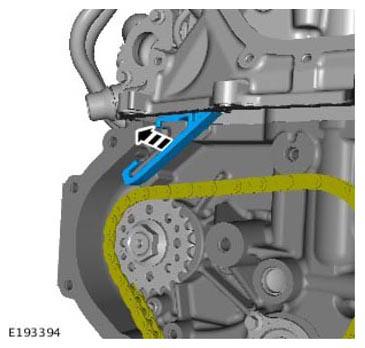

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

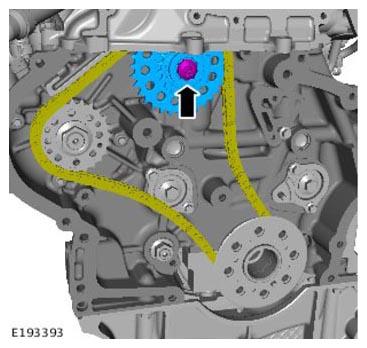

- Remove the camshaft sprocket.
- Discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

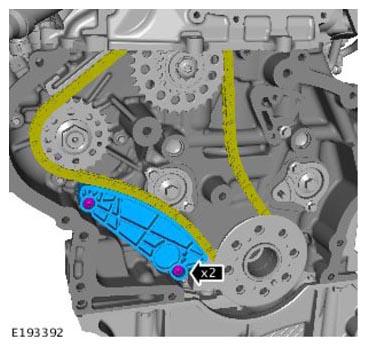

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the timing chain.

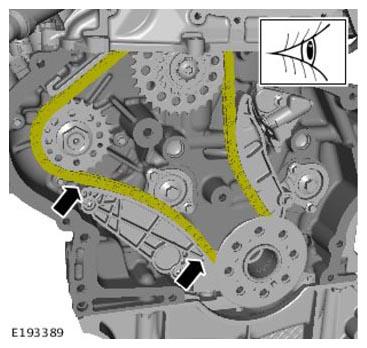

NOTE: The timing chain will not be under tension in the positions illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

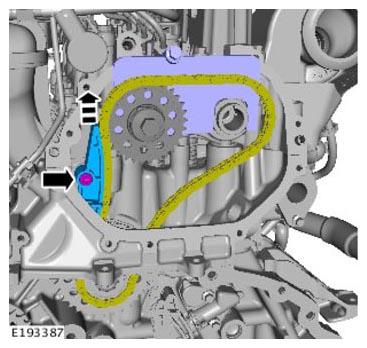

Remove and discard the hydraulic timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

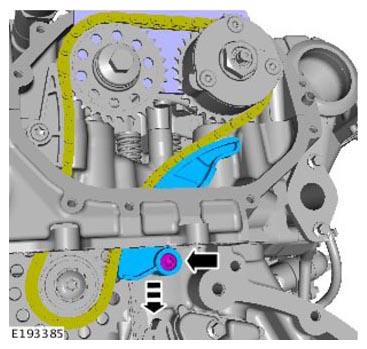

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

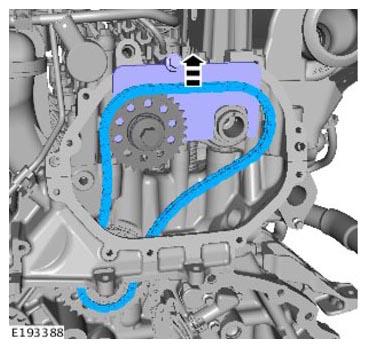

Remove the timing chain.
