Upper Timing Cover: Installation

WARNING: This page is about a different car, the 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure a new gasket is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

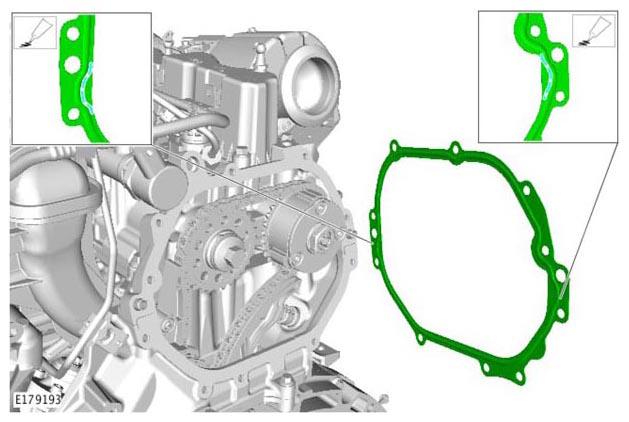

Apply a 3 mm diameter bead of RTV sealant (Loctite 5970) to the Upper timing chain cover gasket in the position shown.

Renew Part: Timing chain cover gasket Quantity: 1 .

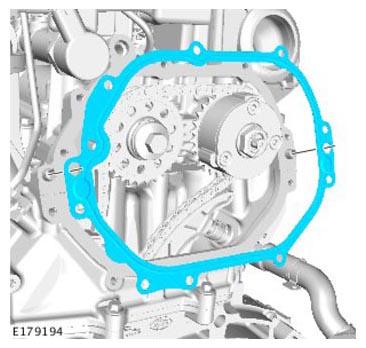

NOTE: Take care when installing the Upper timing chain cover gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Install the component in the sequence shown.

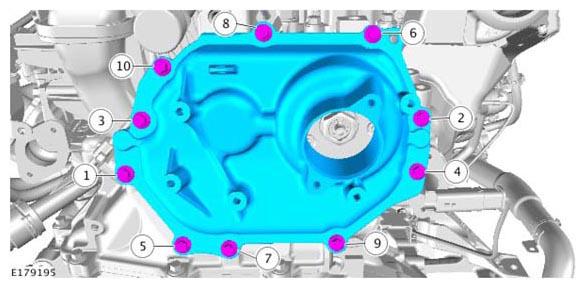

Fig 1: Upper Timing Chain Cover Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 5 Nm

Stage 2: 13 Nm

Stage 3 Loosen: 180°

Stage 4: 13 Nm
To install, reverse the removal procedure.
