Engine Vent Module Oil Separator
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

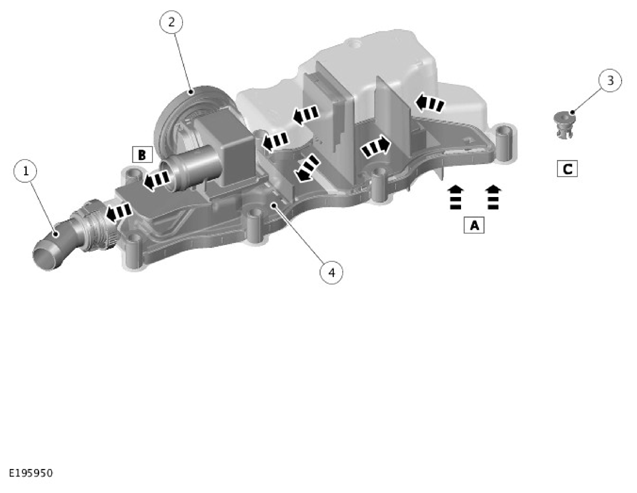

| ITEM | DESCRIPTION |
|---|---|
| A | Gas and oil vapor |
| B | Gas vapor |
| C | Oil |
| 1 | Breather pipe from turbocharger |
| 2 | Positive crankcase ventilation valve |
| 3 | Oil drain valve |
| 4 | Positive crankcase ventilation baffle |
The breather consists of an oil separator, positive crankcase ventilation valve and a flexible hose. The oil separator and the positive crankcase ventilation valve are installed in the top of the engine vent module. The flexible hose connects to the turbocharger input duct connector.
The oil separator is installed in a channel in the top of the camshaft carrier. A baffle plate, which incorporates a gas intake and an oil drain, is installed over the channel.
The gas and oil vapor pass over the separator. The oil drains to the camshaft carrier, and via an oil drain valve into the oil pan. The vapor is drawn into the turbocharger via a flexible hose attached to the turbocharger inlet duct from the camshaft cover.
