Component Location

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

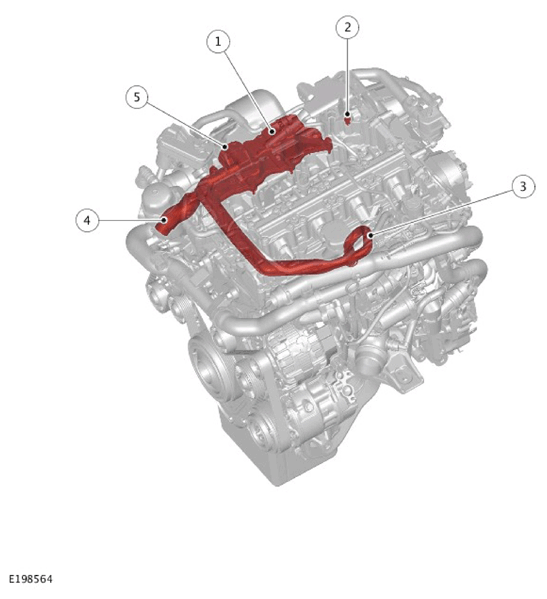

G11308173
ITEM DESCRIPTION
1 Oil separator
2 Oil drain valve
3 Breather pipe - to intake manifold
4 Camshaft cover vent hose
5 Positive crankcase ventilation valve
