Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

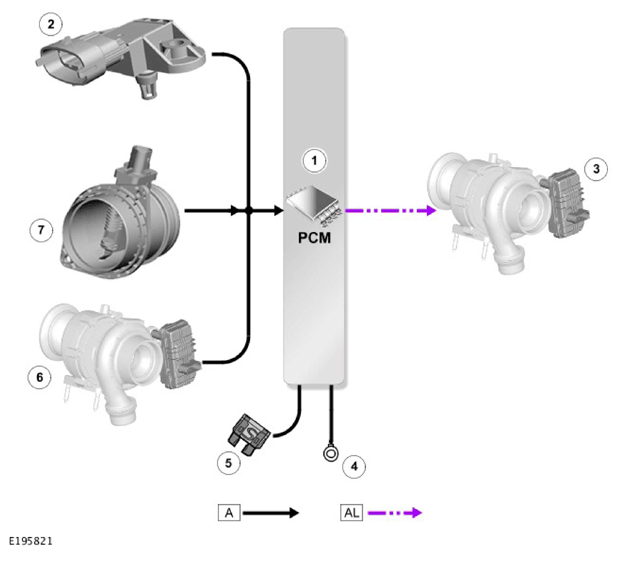

Control Diagram - Vehicles With Ingenium I4 2.0L Diesel 163PS And 180PS Engines
A = HARD WIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 3 | Variable Geometry Turbine (VGT) actuator |
| 4 | Ground |
| 5 | Power supply |
| 6 | Position signal - Variable Geometry Turbine (VGT) actuator |
| 7 | Mass Air Flow and Temperature (MAFT) sensor |

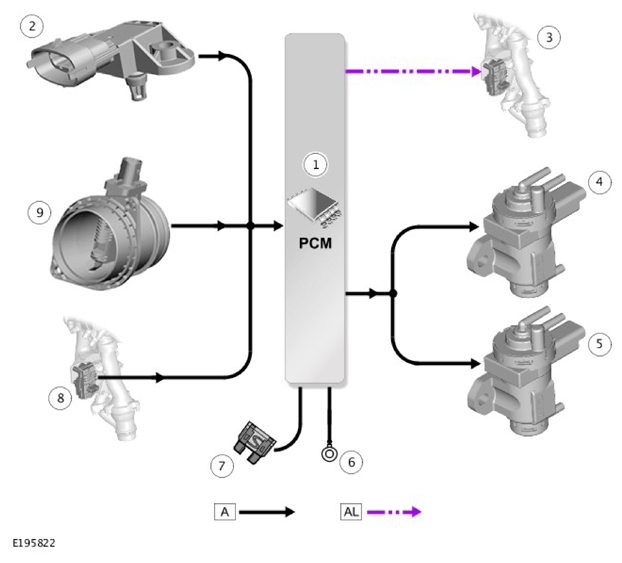

Control Diagram - Vehicles With Ingenium I4 2.0L Diesel 240PS Engine
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 3 | Variable Geometry Turbine (VGT) actuator |
| 4 | Electronic Vacuum Regulating Valve (EVRV) - Low Pressure (LP) turbocharger wastegate valve |
| 5 | Electronic Vacuum Regulating Valve (EVRV) - High Pressure (HP) turbocharger Turbine Bypass Valve (TBV) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Position signal - Variable Geometry Turbine (VGT) actuator |
| 9 | Mass Air Flow and Temperature (MAFT) sensor |
