Rear Bumper - Saloon, Standard Wheelbase : Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: Repeat the step for the other side.
    G11312401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. NOTE: Repeat the step for the other side.

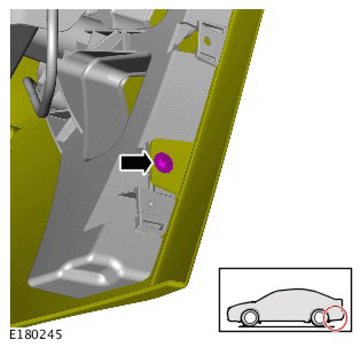

    G11332610Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

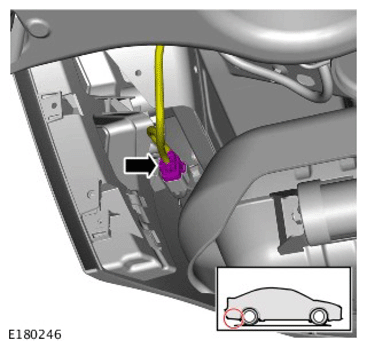

  4. G11332611Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

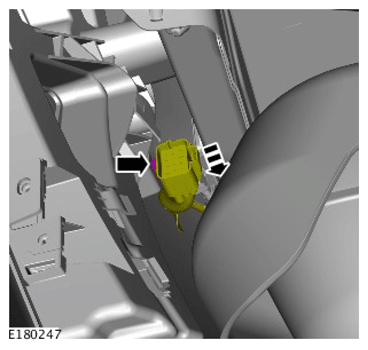

  5. G11332612Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

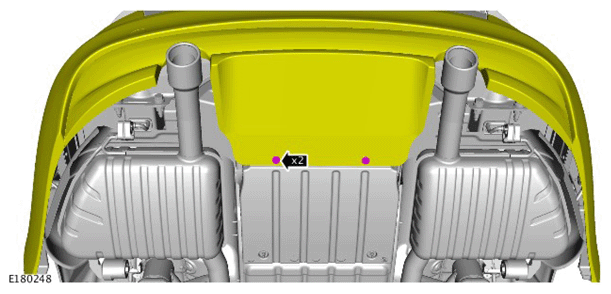

  6. G11332613Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: Repeat the step for the other side.

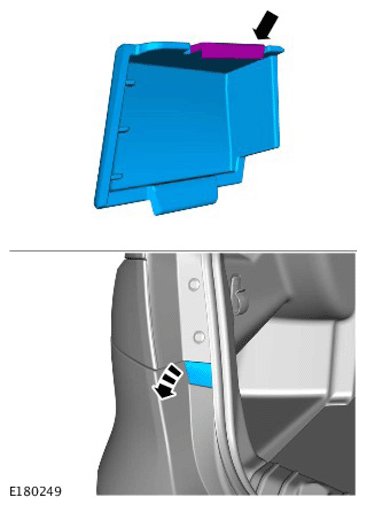

    G11332614Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

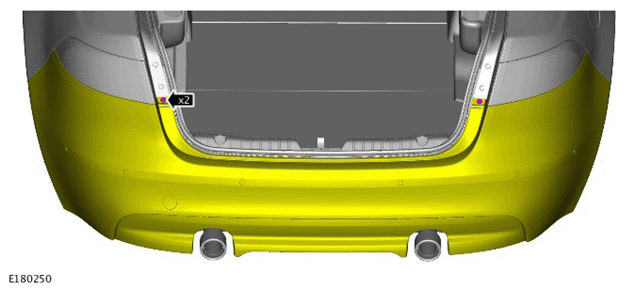

  8. G11332615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

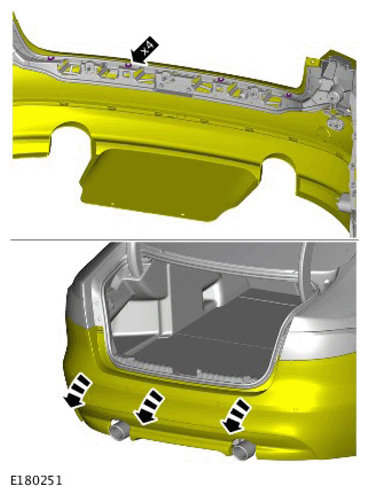

  9. G11332616Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  10. CAUTION: Make sure to protect the paintwork.

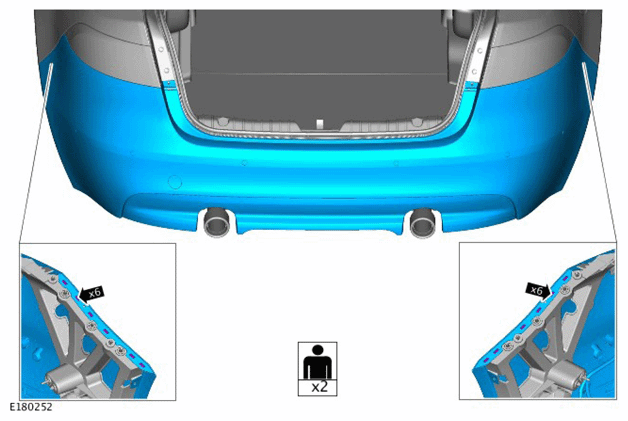

    G11332617Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. NOTE: Do not disassemble further if the component is removed for access only.

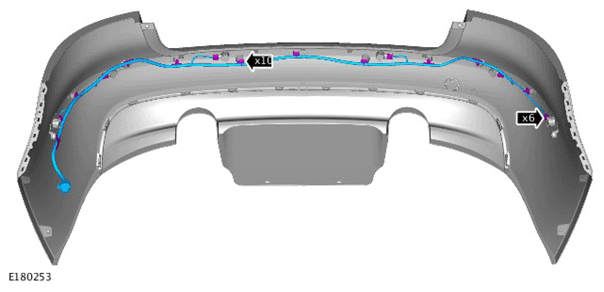

    G11332618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

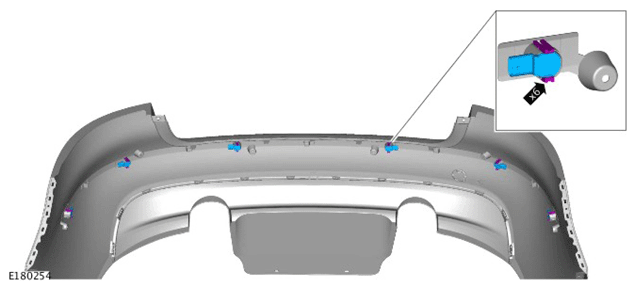

  12. G11332619Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
