Rear Armature - SPORTBRAKE : Removal

1. Raise and support the vehicle on a suitable 2 post lift.

   Refer to: LIFTING

2. Remove the rear bumper.

   Refer to: REAR BUMPER - SPORTBRAKE

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

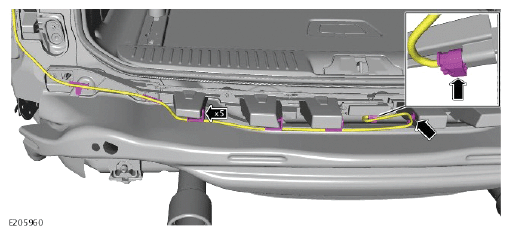

   • Disconnect the electrical connector.
   • Release the electrical harness.

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

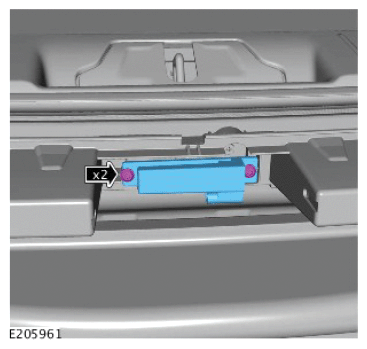

   Remove the keyless vehicle antenna.

5. CAUTION: Take extra care not to damage the clips.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

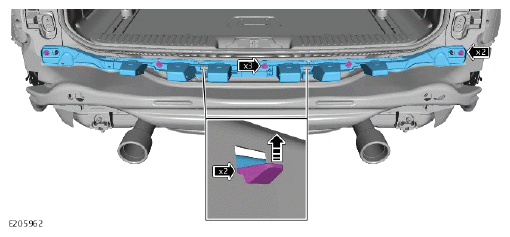

   Remove the rear bumper support bracket.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

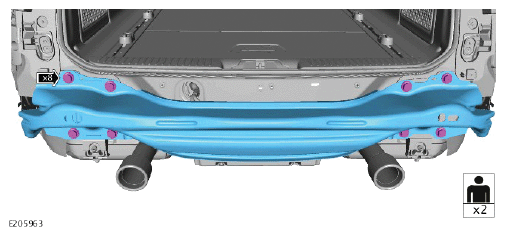

Remove the rear armature.
