Rear Armature - SPORTBRAKE : Notes

76.22.27 REAR ARMATURE - RENEW LONG WHEELBASE 0.80

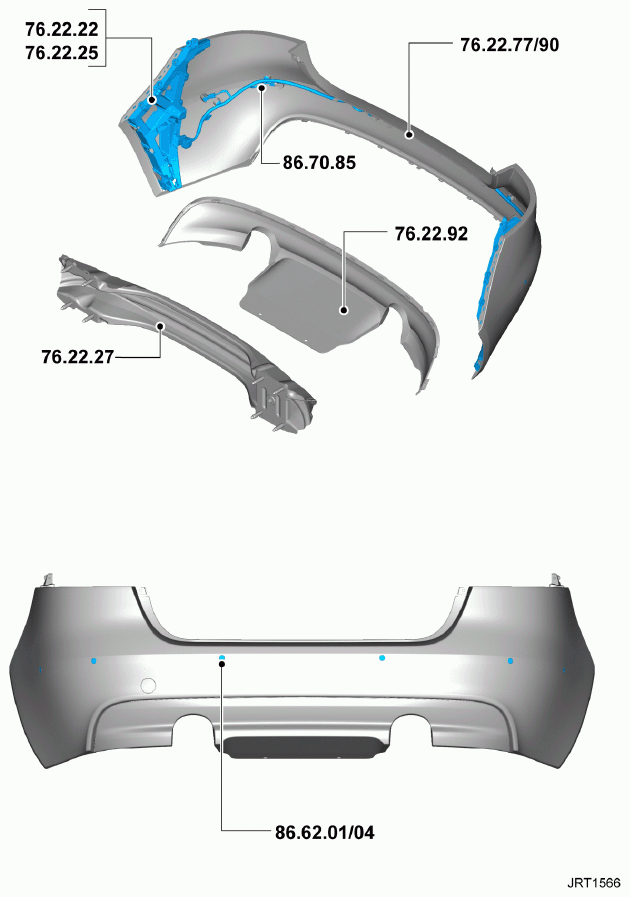

G11346788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
76.22.27 REAR ARMATURE - RENEW SALOON 0.70
G11346788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
76.22.27 REAR ARMATURE - RENEW SPORTBRAKE 1.10
G11346788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
