Front Bumper Cover Insert : Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: FRONT BUMPER

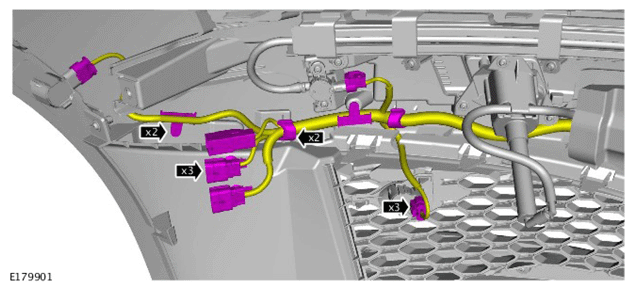

  3. CAUTION: Take extra care not to damage the wiring harnesses.
    G11332576Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

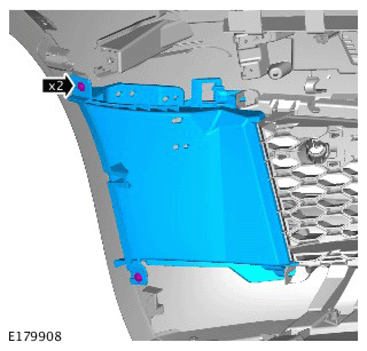

  4. G11332588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 2.5 Nm

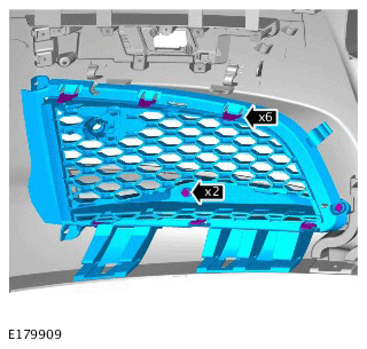

  5. G11332589Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

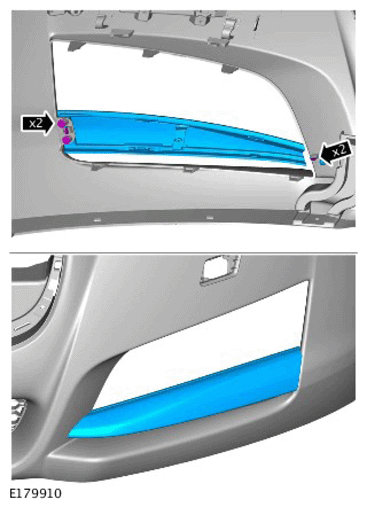

  6. G11332590Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
