Front Bumper : Removal

NOTE:

Removal steps in this procedure may contain installation details.
The ignition must be switched off.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: RADIATOR SPLASH SHIELD (G1817598) .

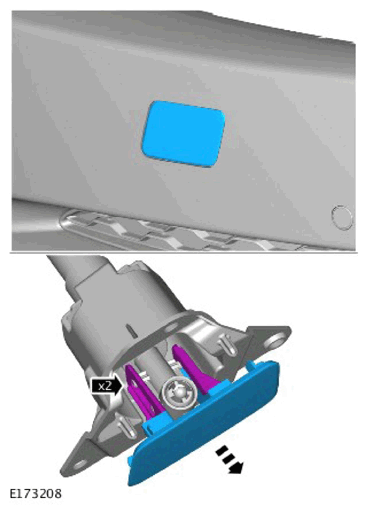

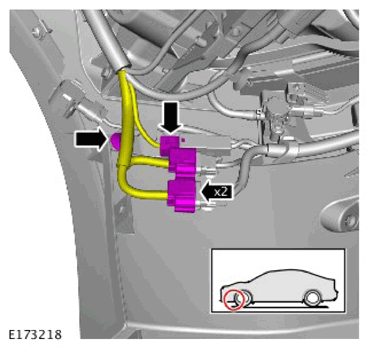

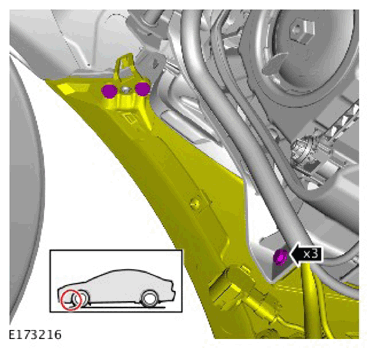

NOTE: Left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

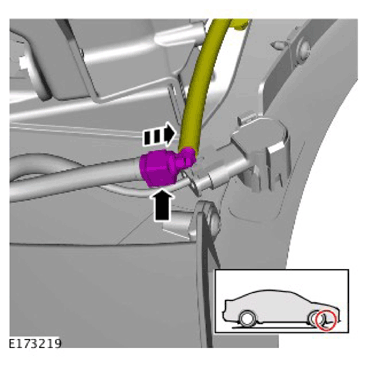

NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

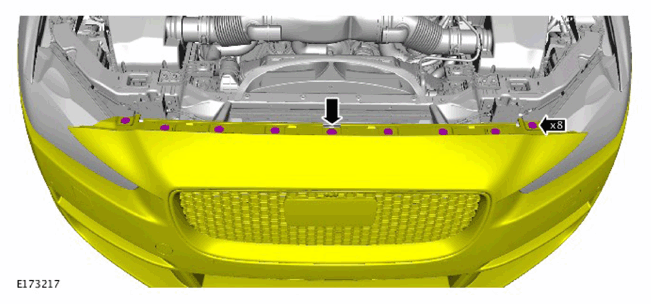

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

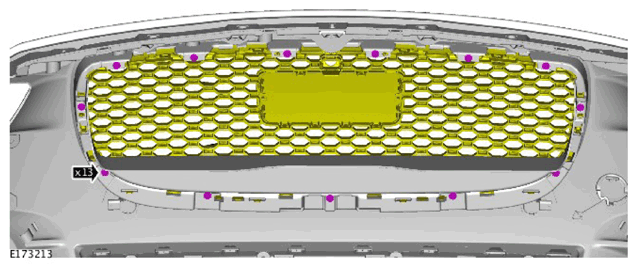

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.7 Nm

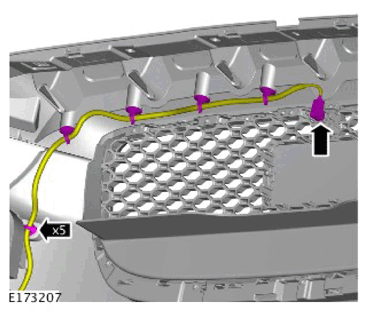

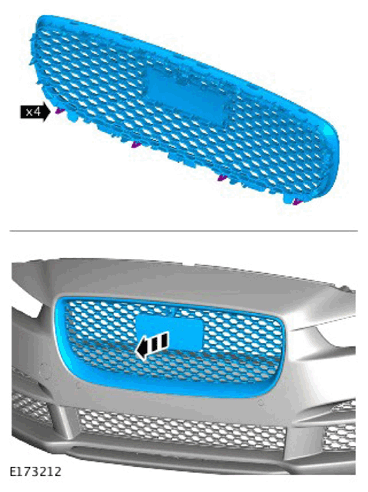

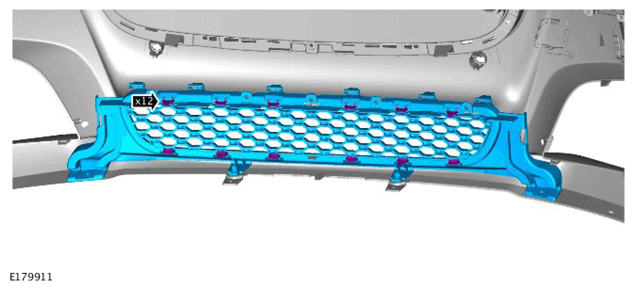

NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

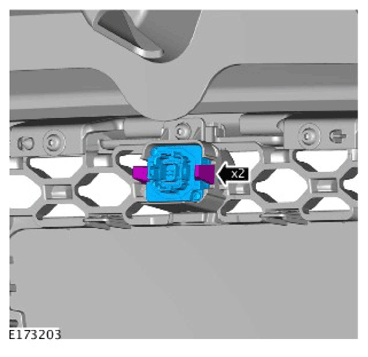

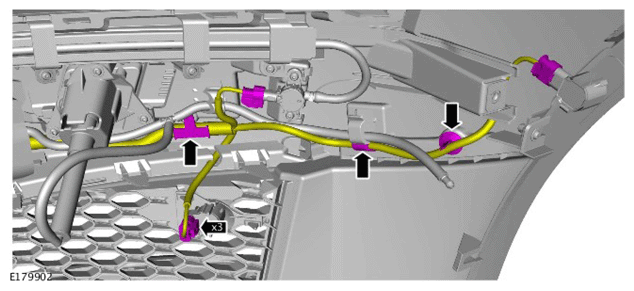

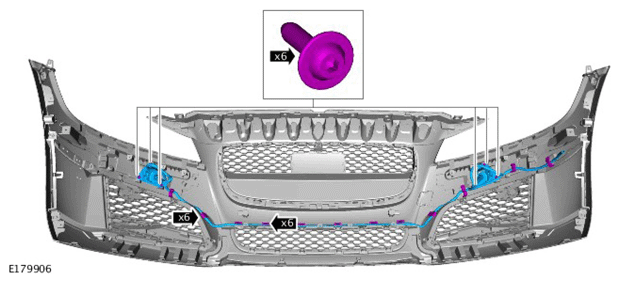

CAUTION: Take extra care not to damage the wiring harnesses.

NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

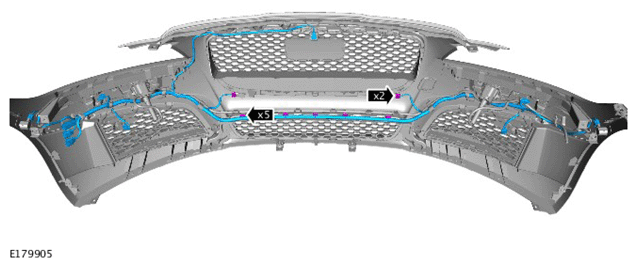

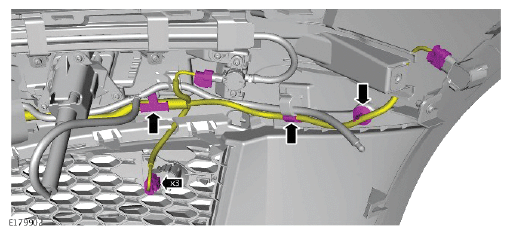

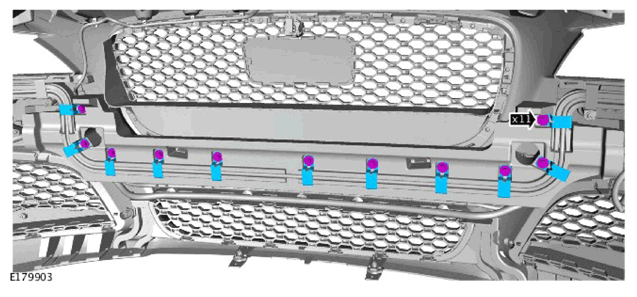

CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

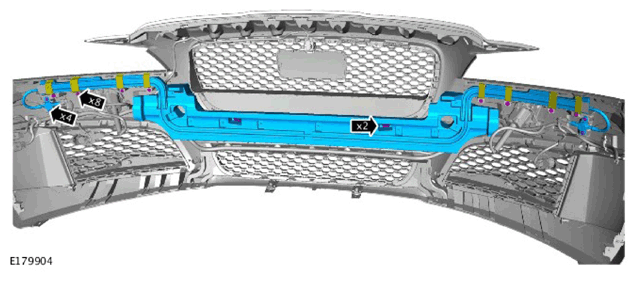

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

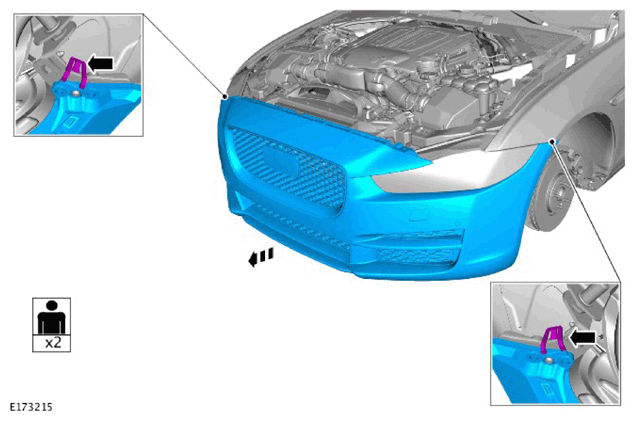

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
