Front Armature : Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
NOTE: Repeat the procedure for the other side.

Refer to: HEADLAMP ASSEMBLY

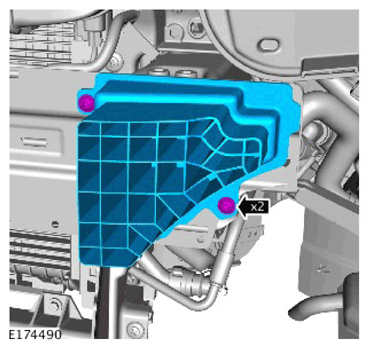

NOTE: Repeat the step for the other side.

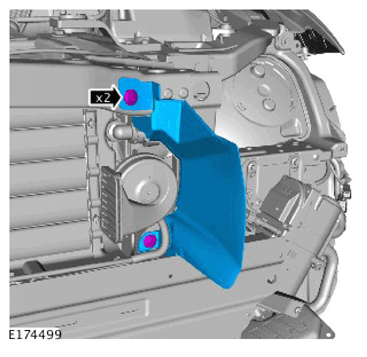

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

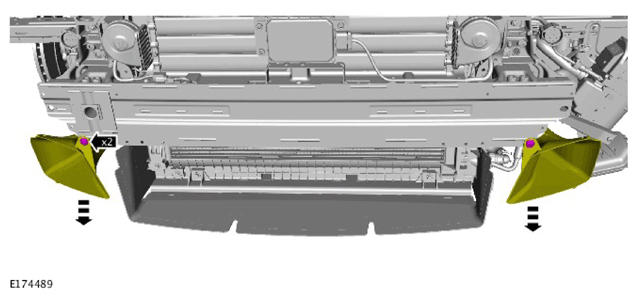

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the component.

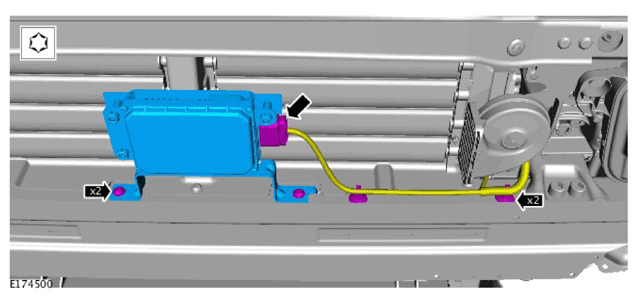

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

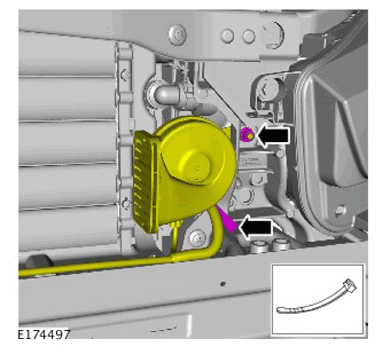

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm

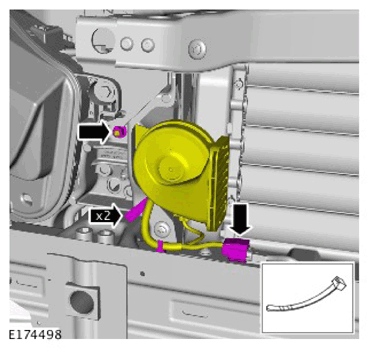

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm

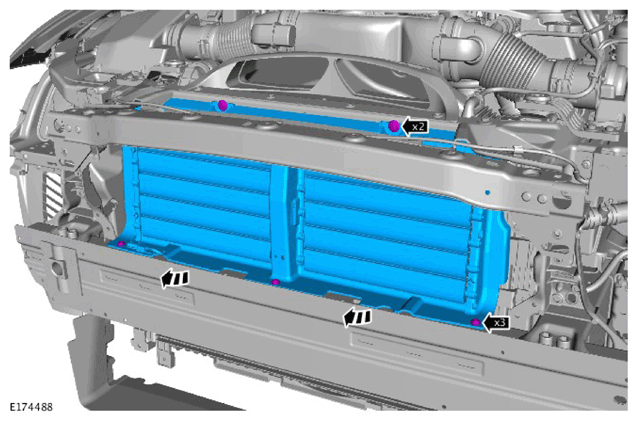

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm

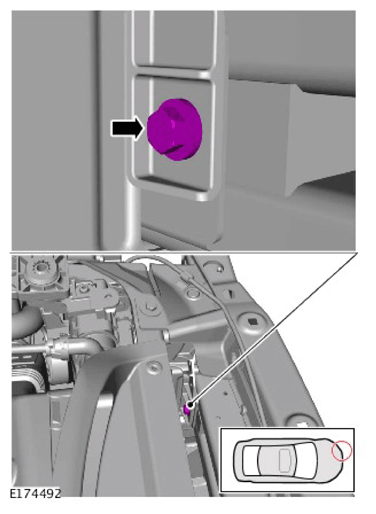

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
CAUTION: Discard the bolts.

NOTE: Repeat the step for the other side.

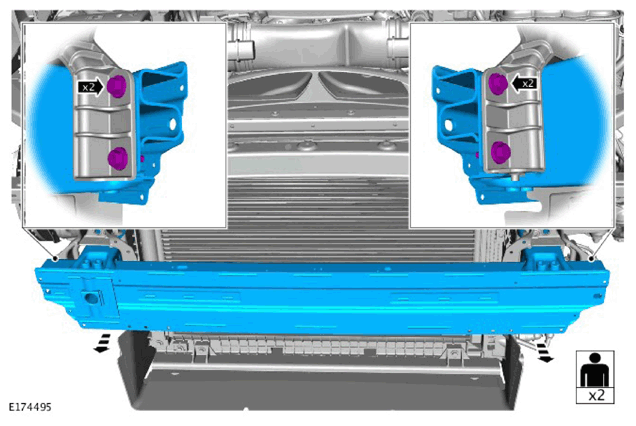

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 110 Nm
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

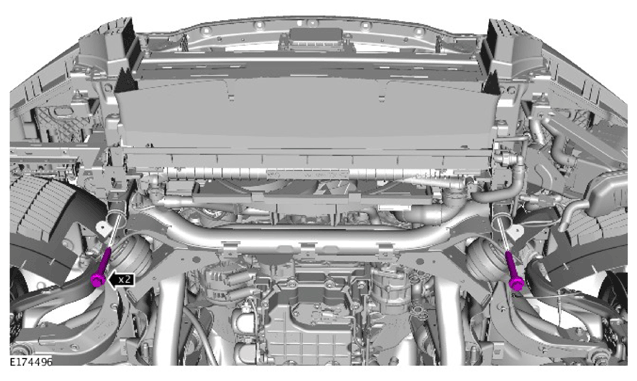

Renew Part: Front subframe to body bolts Quantity: 1 .

Torque

Stage 1: 100 Nm

Stage 2: 180°
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

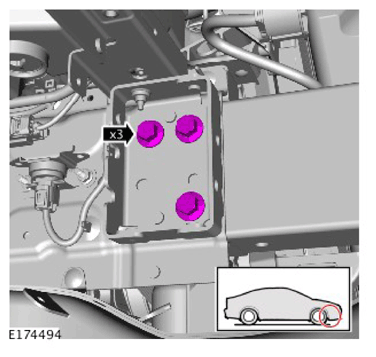

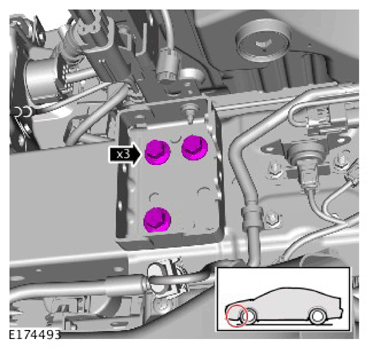

Renew Part: Front armature to front subframe bolt Quantity: 3 .

Torque : 110 Nm
CAUTION: Take extra care not to damage the component.

NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
CAUTION: Discard the bolts.

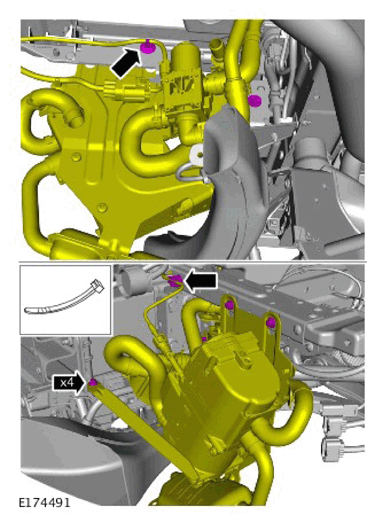

NOTE: Fuel fired booster heater (FFBH) shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Front armature to front subframe bolt Quantity: 3 .

Torque : 110 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
