Front Armature : Installation

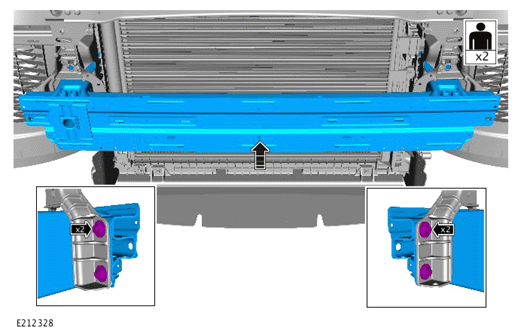

  1. G12507134Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 110 Nm

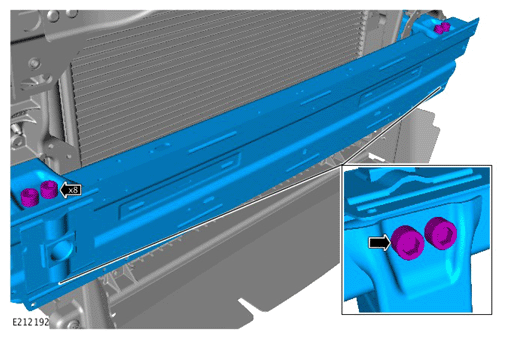

  2. G12507135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 8 bolts.

    Torque  : 110 Nm

  3. To install, reverse the removal procedure.
  4. Refer to appropriate service information.
