Overhead Console (G1857109): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

CAUTION:
1. Using a suitable trim tool release the overhead console clips.
2. Take extra care not to damage the edges of the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Release the 2 clips.
2. Release the overhead console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

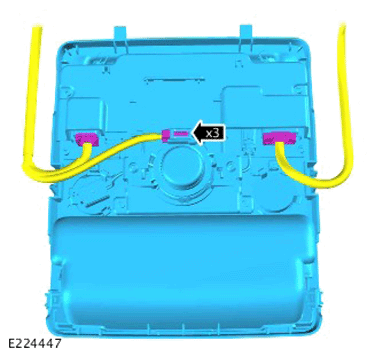

1. Disconnect the 3 electrical connectors.
2. Remove the overhead console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

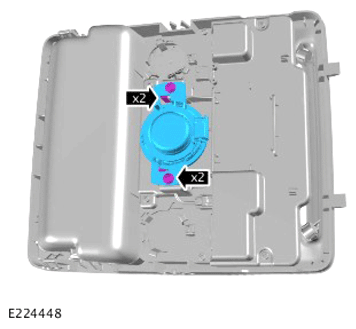

1. Remove the 2 screws.
2. Remove the voice control microphone.
