Instrument Panel Console - [+] Vehicles With Head Up Display (G2262445): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the air bag supplemental restraint system (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: FLOOR CONSOLE
Refer to: PASSENGER AIRBAG MODULE (G1818497)
NOTE: Repeat the procedure for the other side.

Refer to: A-PILLAR TRIM PANEL
Refer to: SUNLOAD SENSOR
Refer to: INSTRUMENT PANEL SPEAKER
Refer to: STEERING WHEEL
Refer to: WINDSHIELD

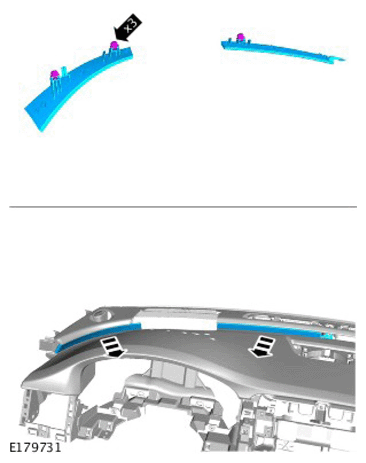

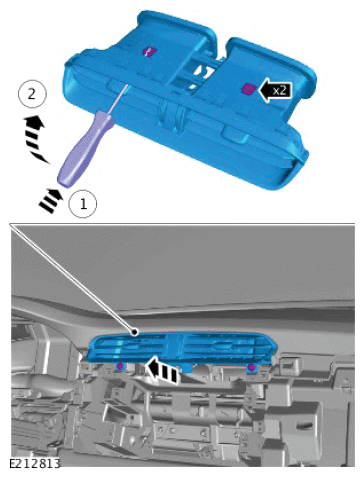

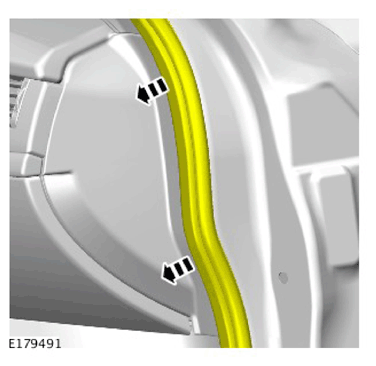

NOTE: Repeat the step for the other side.

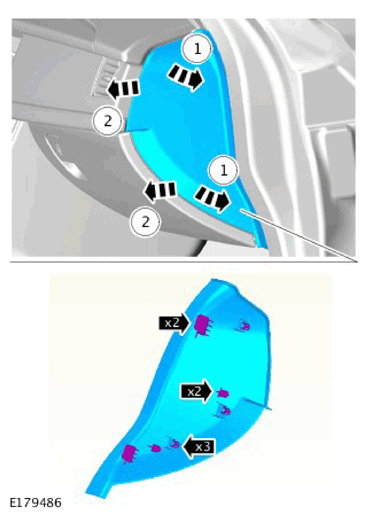

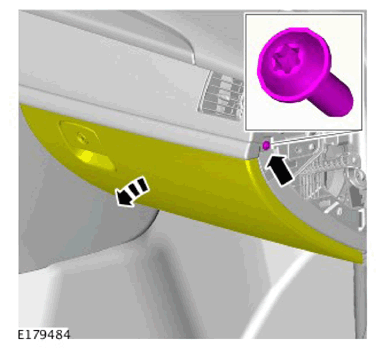

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

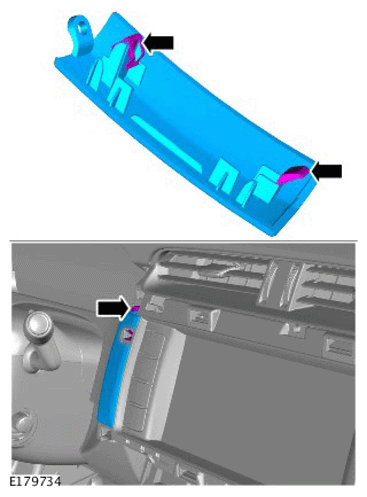

NOTE: Repeat the step for the other side.

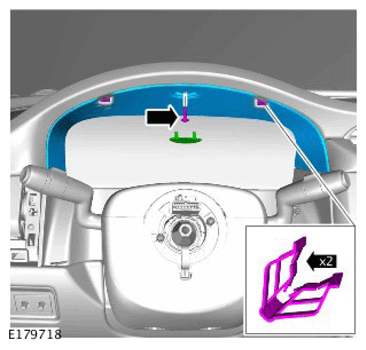

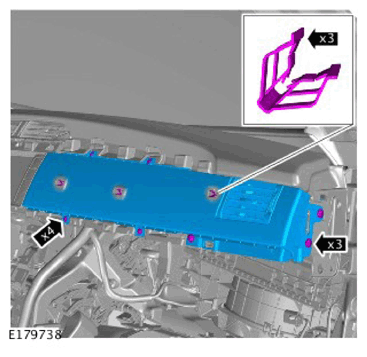

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

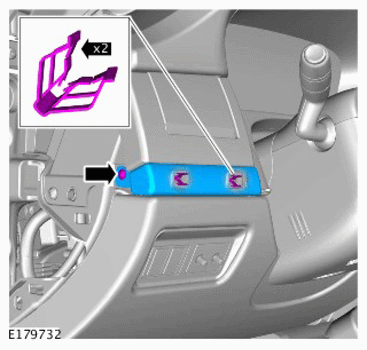

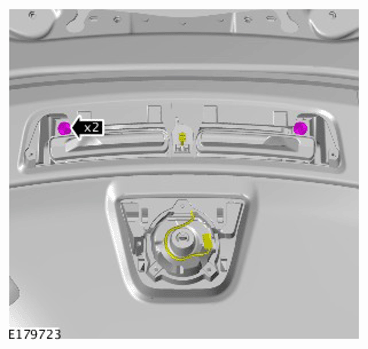

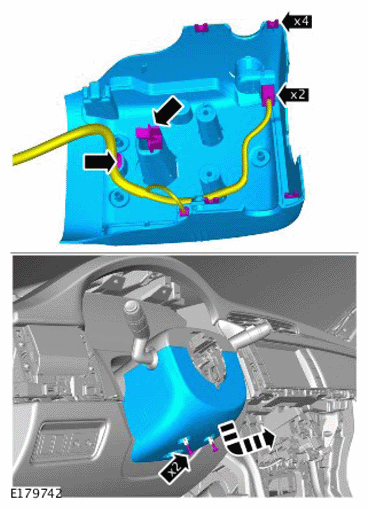

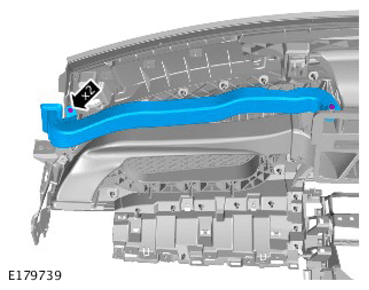

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

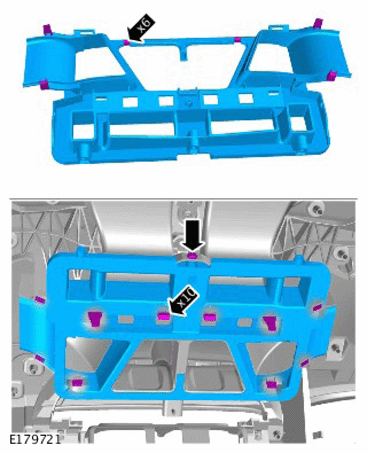

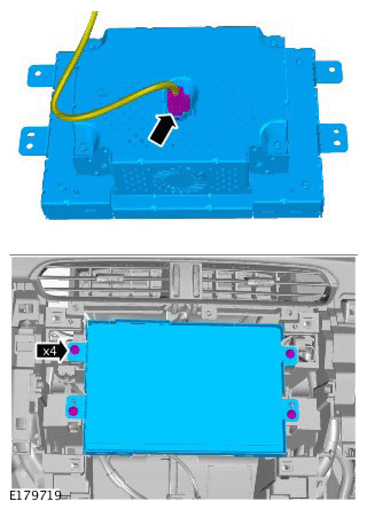

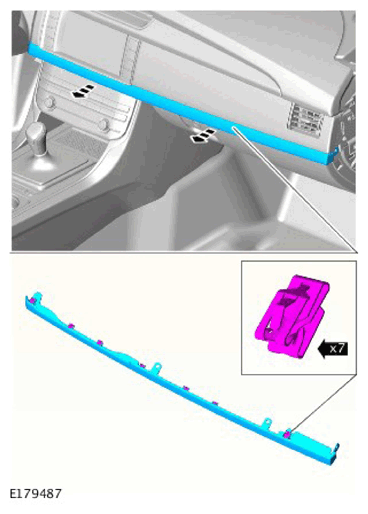

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

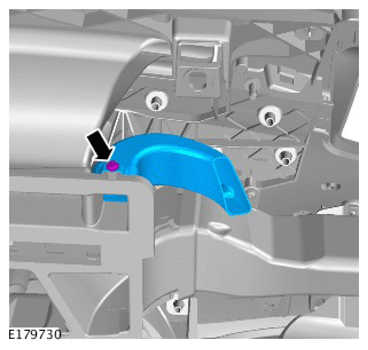

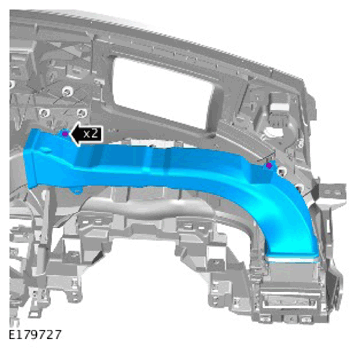

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

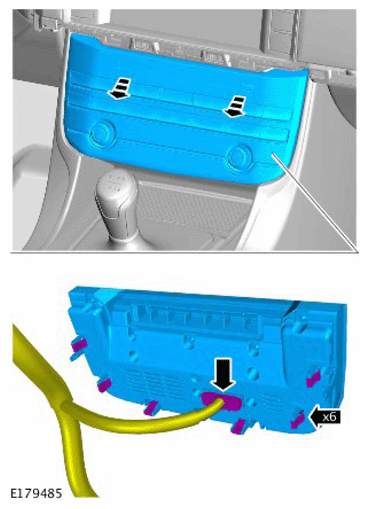

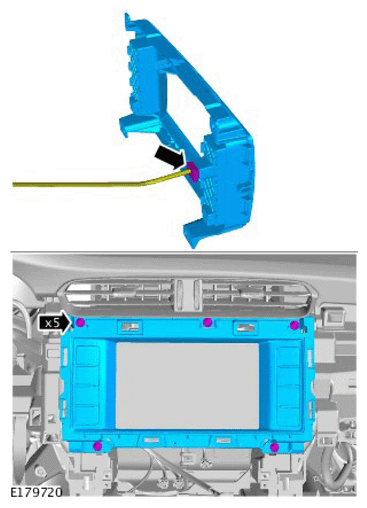

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

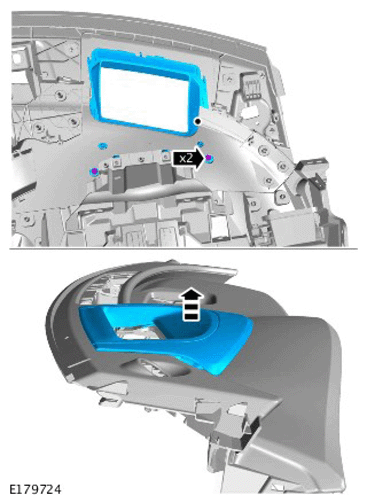

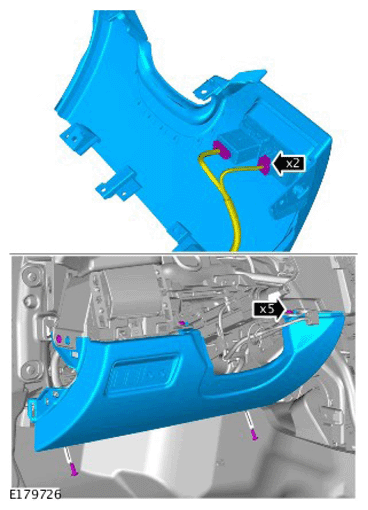

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

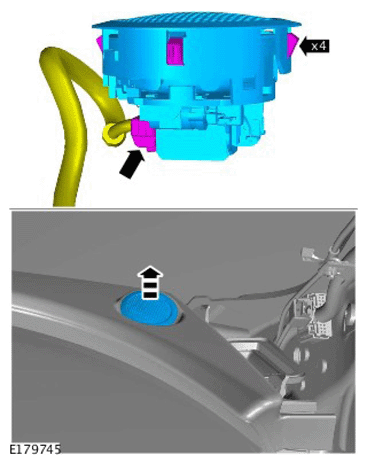

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

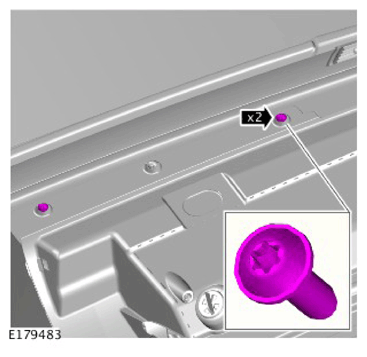

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

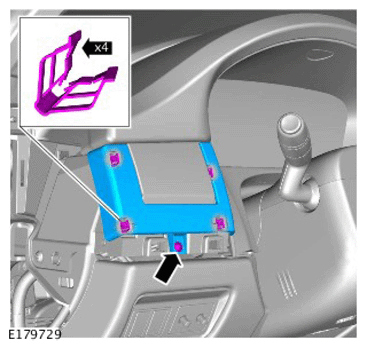

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

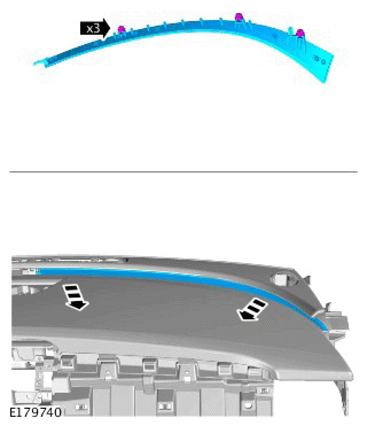

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

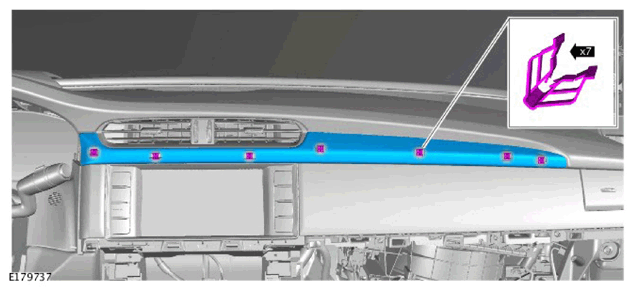

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.5 Nm

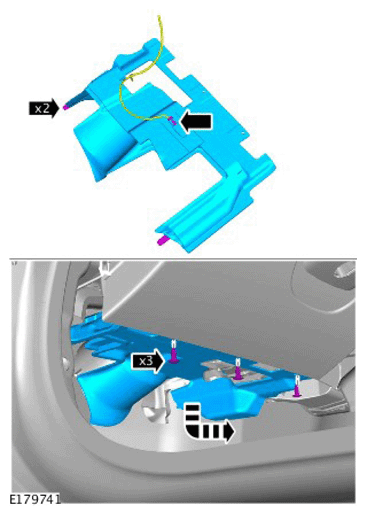

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

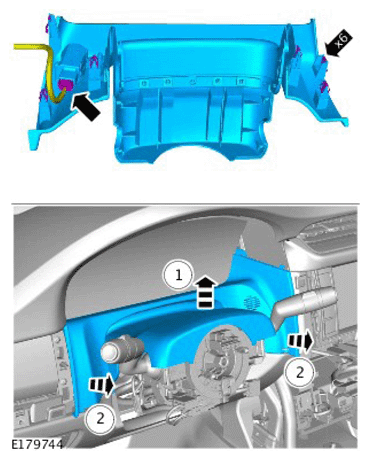

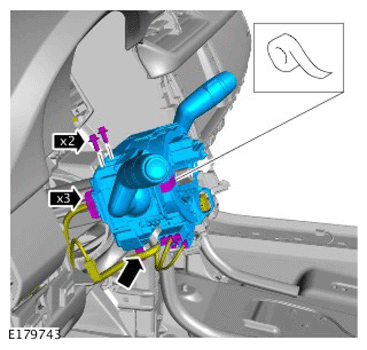

CAUTION: Make sure that the clockspring rotor does not rotate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

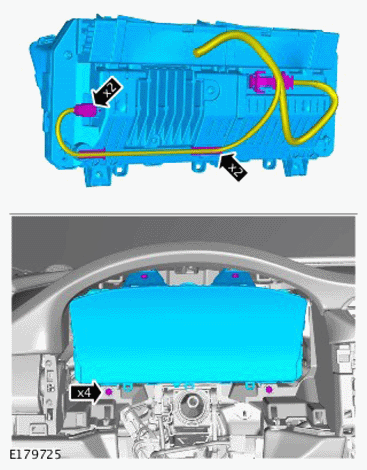

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
NOTE: This step requires the aid of another technician.

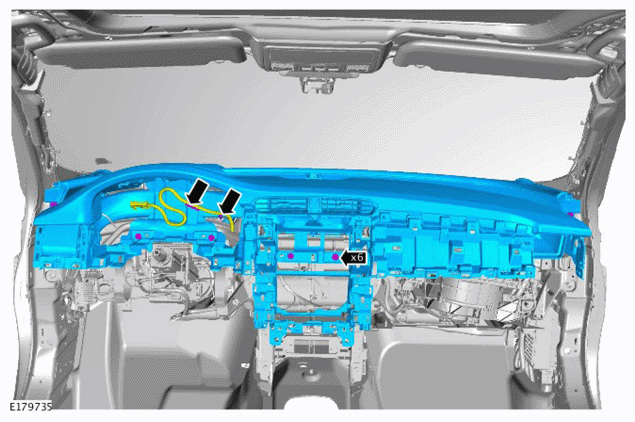

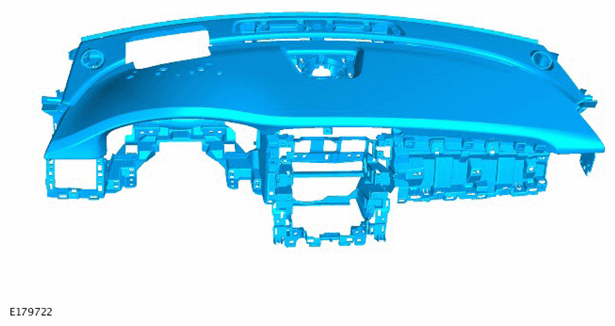

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
NOTE: Do not disassemble further if the component is removed for access only.

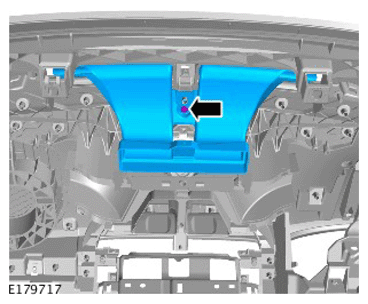

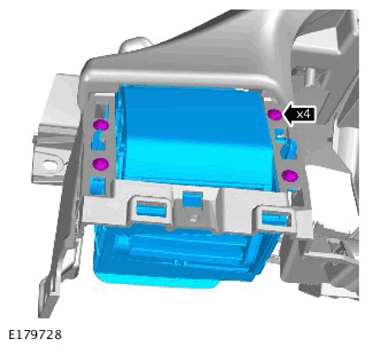

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

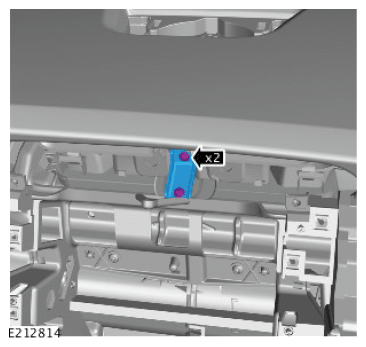

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm

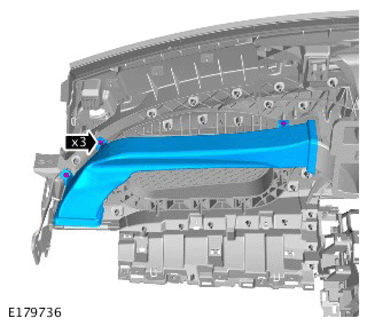

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
