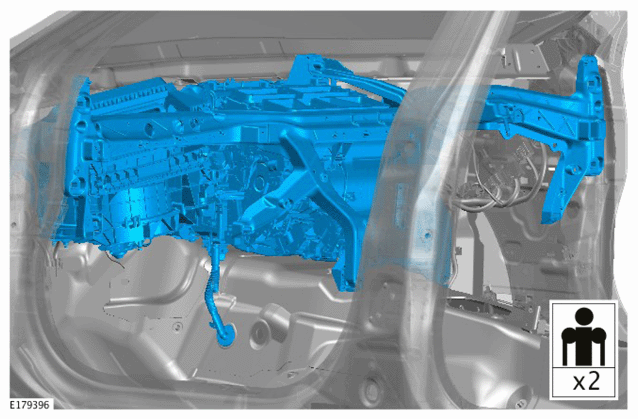

In-Vehicle Crossbeam (G1880591): Removal

CAUTION: Make sure to support the vehicle on axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Repeat the procedure for the other side.
Refer to: FRONT ROW SEAT
Refer to: INSTRUMENT PANEL CONSOLE - [+] VEHICLES WITHOUT HEAD UP DISPLAY
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL

Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL

Refer to: SECONDARY BULKHEAD RIGHT PANEL - TDV6 3.0L DIESEL
CAUTION: Be prepared to catch the escaping coolant.

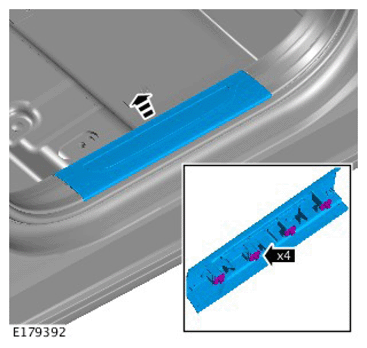

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

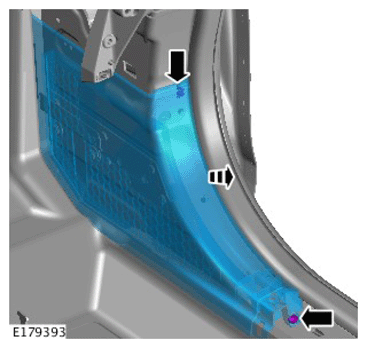

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M6 bolt: 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.

Torque : 1.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

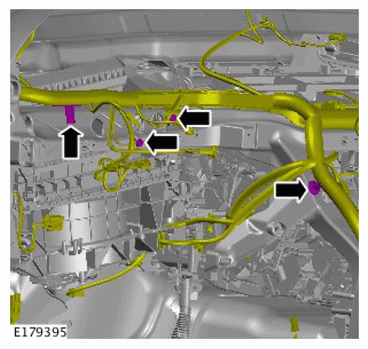

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Take extra care when removing the clips.

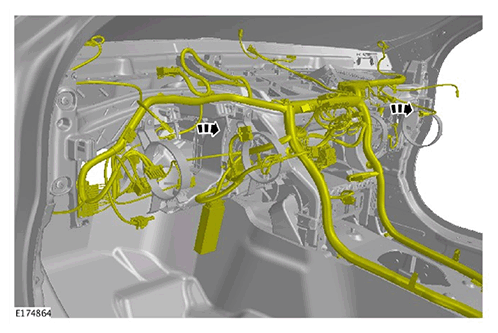

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.

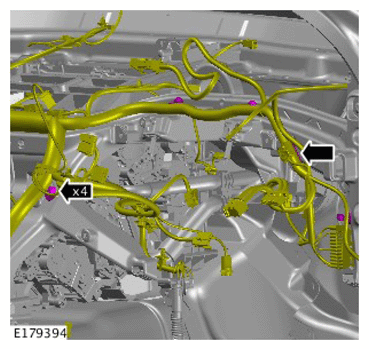

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the step for the other side.

Torque : 9 Nm

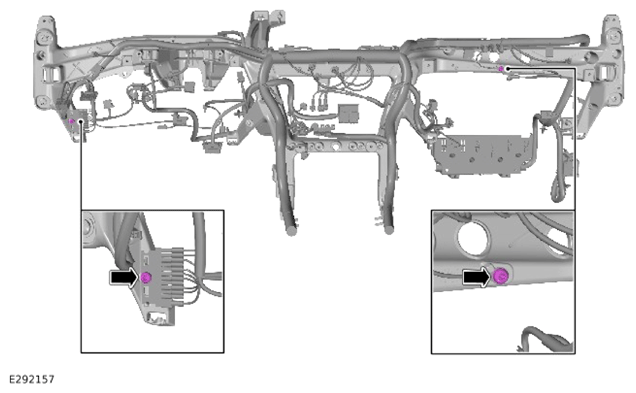

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20 Nm

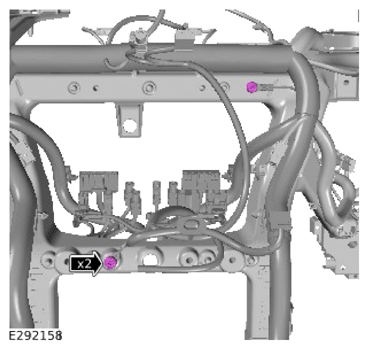

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

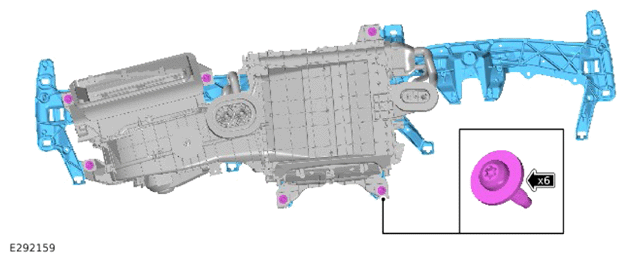

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
