Glove Compartment (G1889021): Removal

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Remove the 3 fasteners.
2. Remove the instrument panel lower trim.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Release the 3 clips.
2. Release the 2 retaining lugs.
3. Remove the side panel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

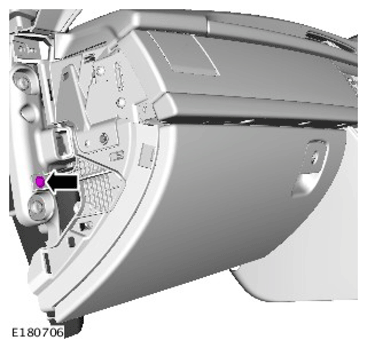

Remove the screw.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

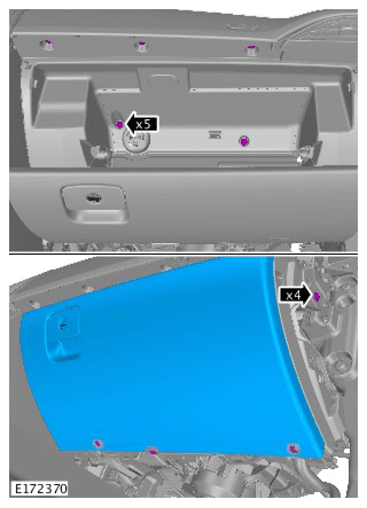

1. Remove the 9 screws.
2. Remove the glove compartment.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

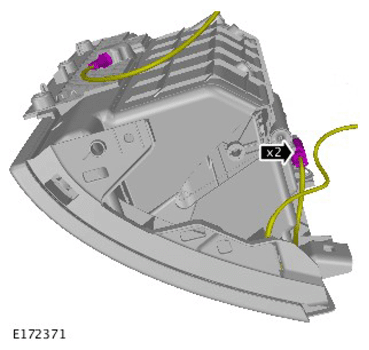

Disconnect the 2 electrical connectors.
