Instrument Cluster: Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- 19MY onward vehicles and non-NAS markets only - if a new instrument cluster is to be installed, a new Remote Function Actuator (RFA) may be required. All vehicle keys must be presented to complete the RFA renewal.
-
NOTE: Only complete this step if a new instrument cluster is to be installed.
Use the Jaguar Land Rover approved diagnostic equipment to collect information from the instrument cluster.
General Equipment: Jaguar diagnostic equipment
-
CAUTION: If the software number is K8D2-14C104-AC or L8B2-14C104-AC, a new RFA will be required.NOTE:
- This step is only applicable to 19MY onward vehicles.
- Non-NAS Markets only.
Using the Jaguar diagnostic equipment, read the RFA software number.
General Equipment: Jaguar diagnostic equipment
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

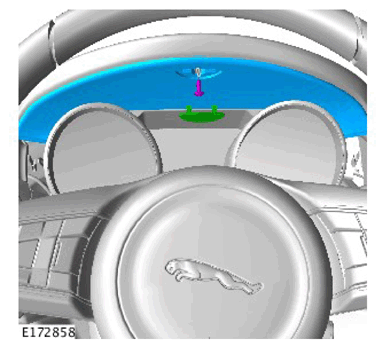

- Fully extend and lower the steering column for access.
-

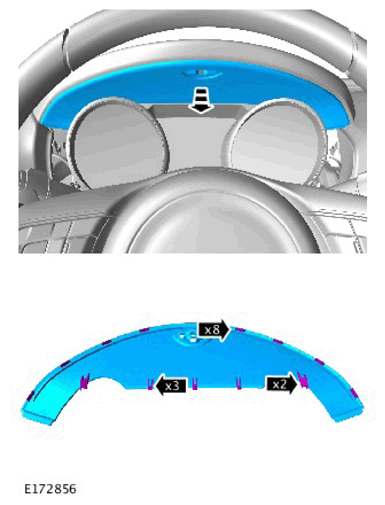

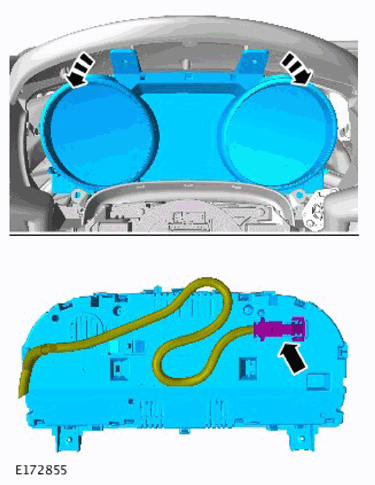

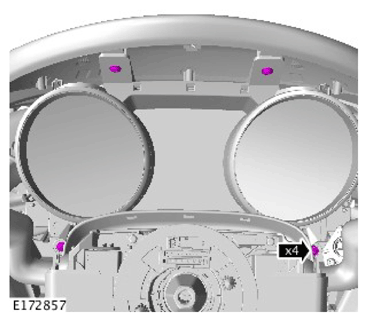

CAUTION: Take extra care not to damage the instrument cluster face.
