Headlamp Adjustment (G1225247)
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
-
- Make sure to check and adjust the tyre pressures to the correct level.
- Park the vehicle on a horizontally level surface.
-
- Align the headlamp beam setting equipment to one headlamp. Headlamp beam setter
-
NOTE: The headlamp setting is 1 % below horizontal and parallel.
- Check the headlamp beam alignment.
- Open the hood.

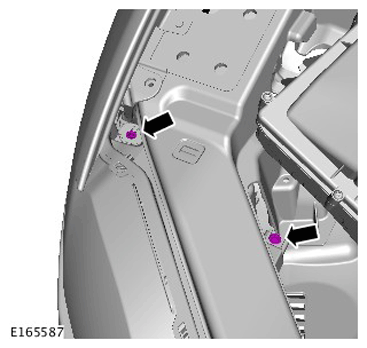

- Adjust the headlamps with an Allen Key.
-
- To adjust the second headlamp, repeat the above procedure.
