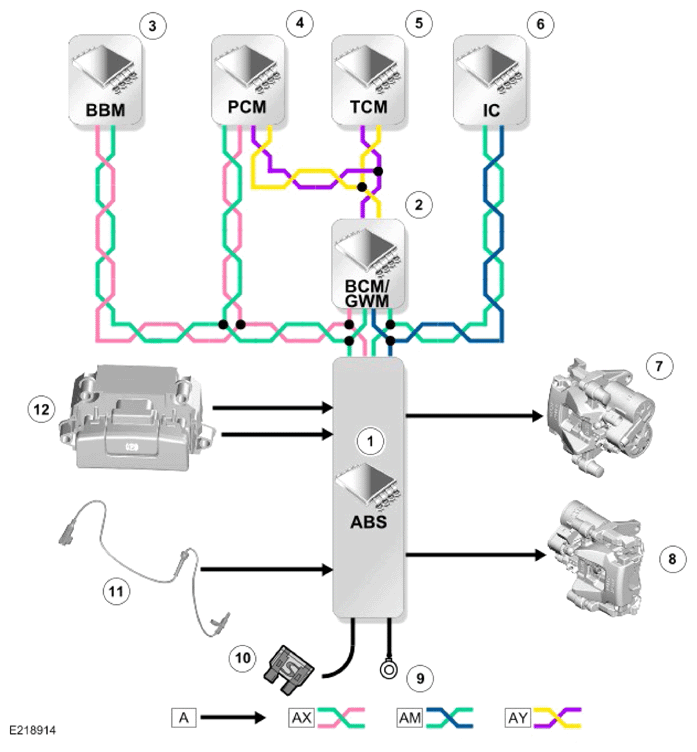

Control Diagram
A = HARDWIRED: AX = FLEXRAY: AM = HIGH SPEED (HS) CONTROLLER ARE A NETWORK (CAN) CHASSIS SYSTEMS BUS: AY = HS CAN POWER MODE ZERO (PMZ) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-Lock Brake System (ABS) control module |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Brake Booster Module (BBM) |
| 4 | Powertrain Control Module (PCM) |
| 5 | Transmission Control Module (TCM) |
| 6 | Instrument Cluster (IC) |
| 7 | Restraints Control Module (RCM) |
| 8 | Electric Park Brake (EPB) actuator - Left |
| 9 | EPB actuator - Right |
| 10 | Ground |
| 11 | Power supply |
| 12 | Wheel speed sensors (quantity 4) |
| 13 | EPB switch |
