Wheel Hub (G22248834): Removal

NOTE:

This procedure contains illustrations for right side components, left side components are similar.
Some variation in the illustrations may occur, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
To renew the rear wheel hub a new wheel bearing will be required.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel knuckle.
Refer to: WHEEL KNUCKLE - VEHICLES WITH: COIL SUSPENSION .

Refer to: WHEEL KNUCKLE - VEHICLES WITH: AIR SUSPENSION .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

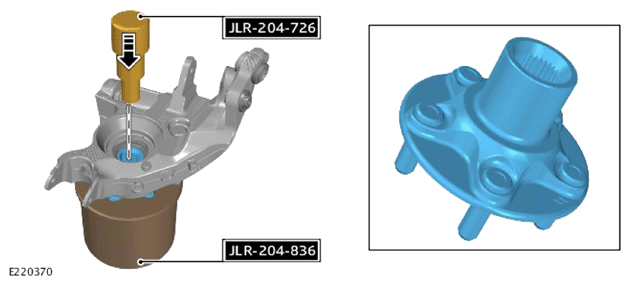

Using the special tools JLR-201-726 and JLR-204-836 remove the wheel hub.

Special Tool(s) : JLR-204-726, JLR-204-836

General Equipment : Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

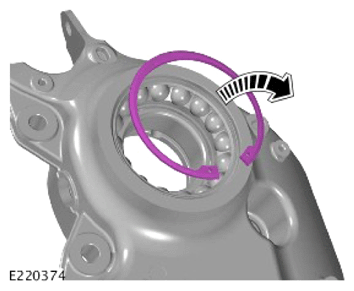

Remove and discard the circlip.
CAUTION: Note the orientation of the rear wheel bearing prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

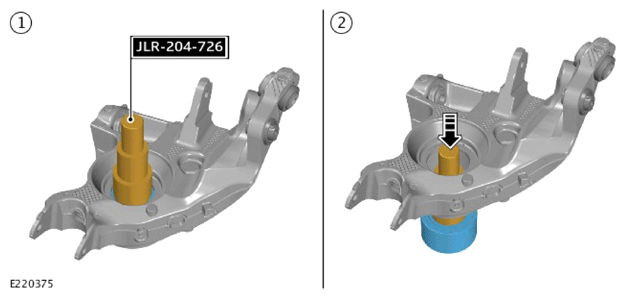

Using the special tool JLR-204-726 remove the wheel bearing.

Special Tool(s) : JLR-204-726

General Equipment : Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

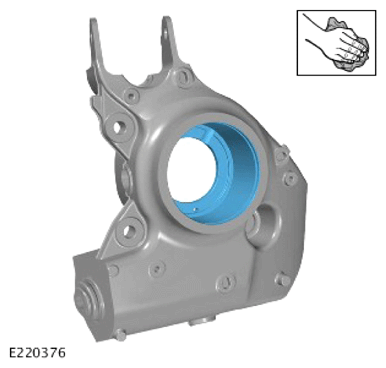

Clean and inspect the wheel knuckle for damage or deterioration.
