605-02 Drive Control: Starting

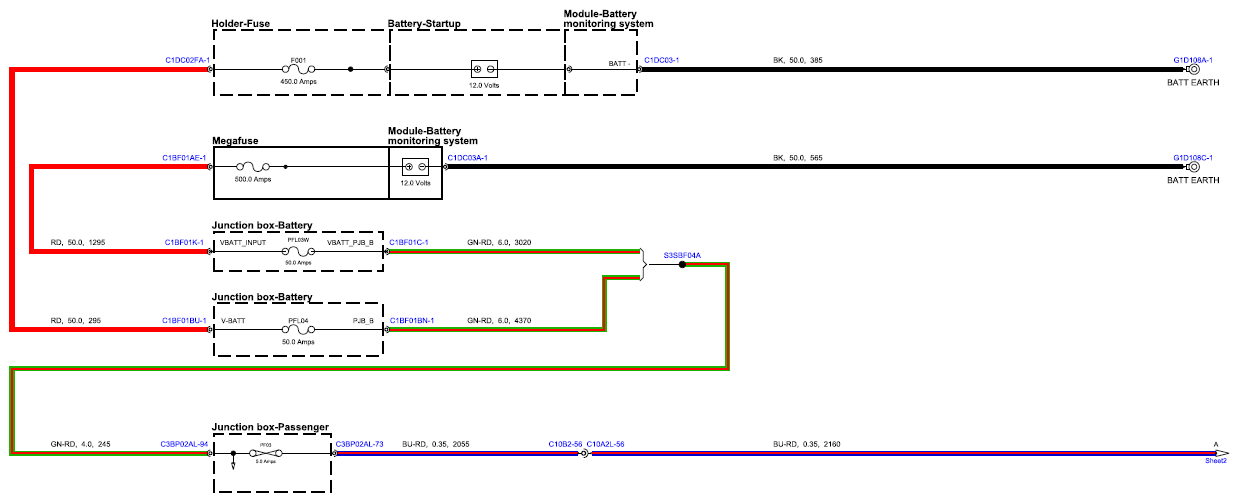

Fig 1: Drive Control Circuit Diagram - Starting (Sheet 1)
G15680814Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

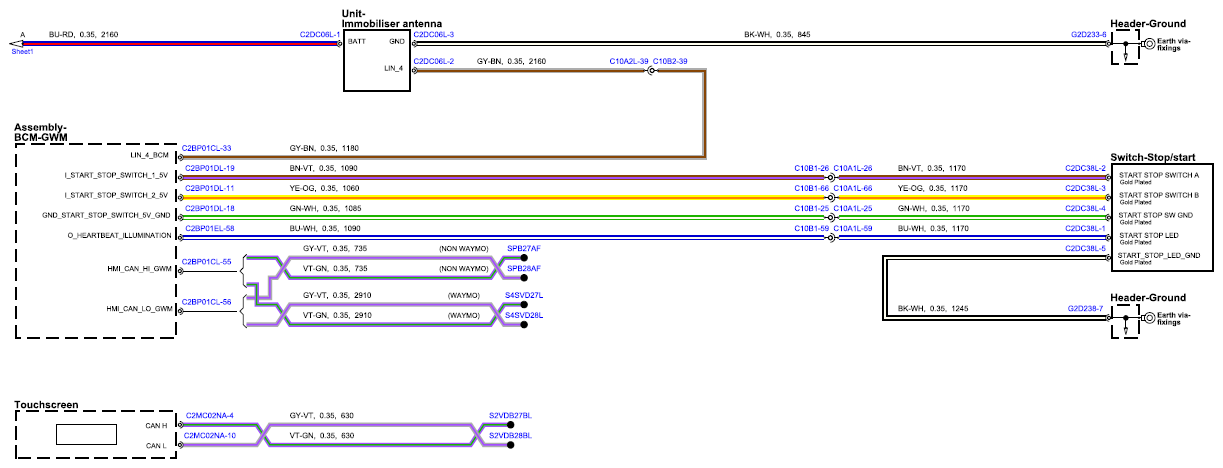

Fig 2: Drive Control Circuit Diagram - Starting (Sheet 2)
G15680815Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
