601-01 Electric Drive Unit: Front

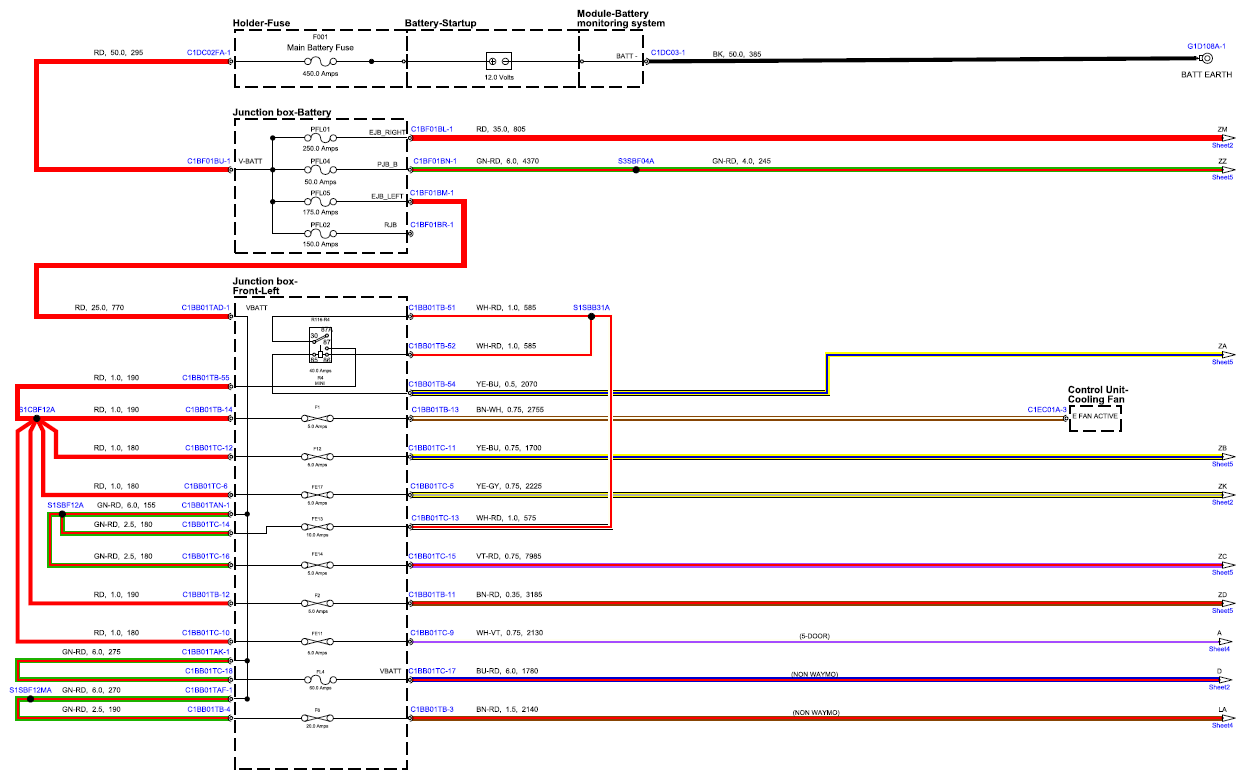

Fig 1: Electric Drive Unit Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

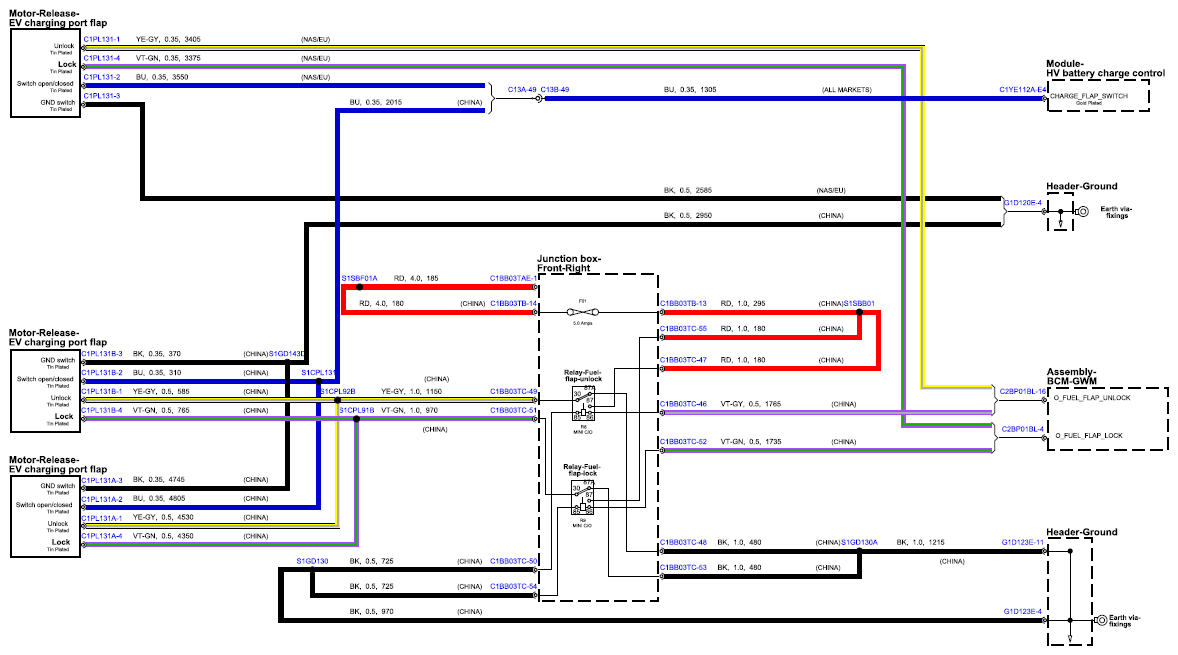

Fig 2: Electric Drive Unit Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

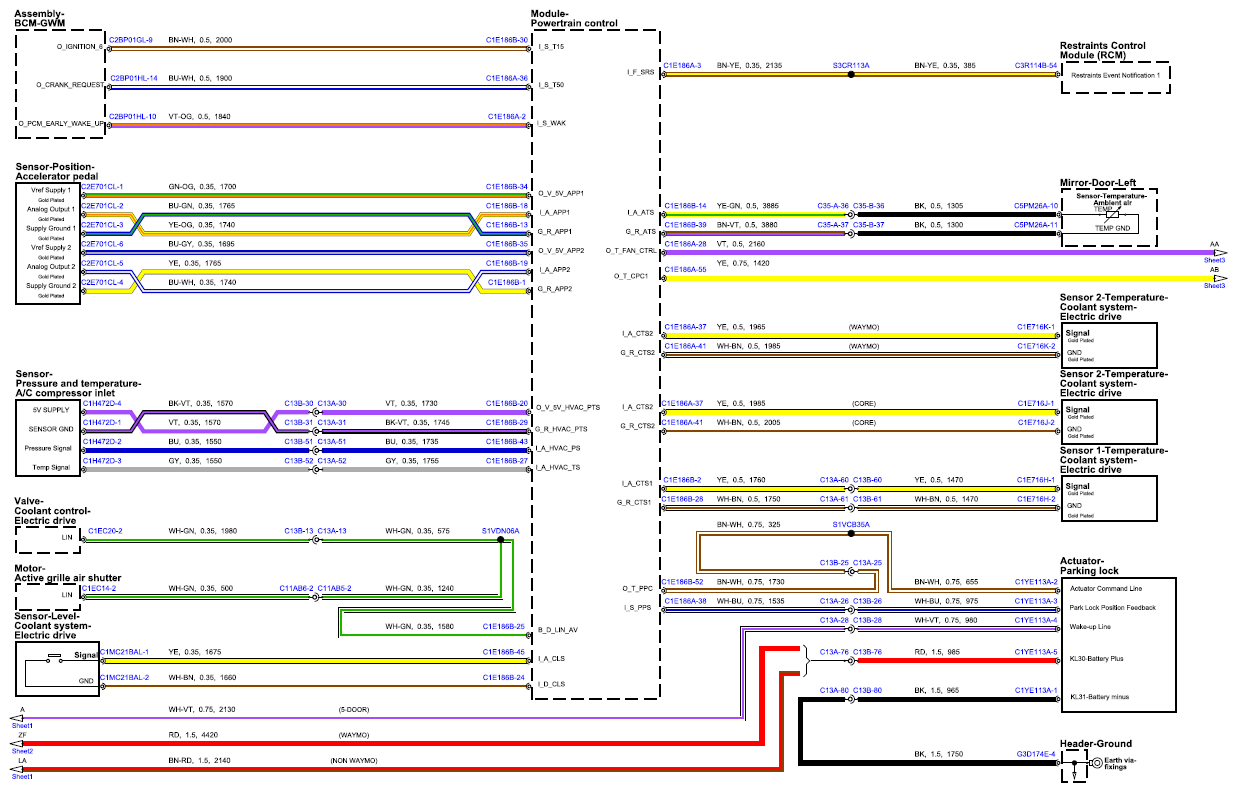

Fig 3: Electric Drive Unit Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

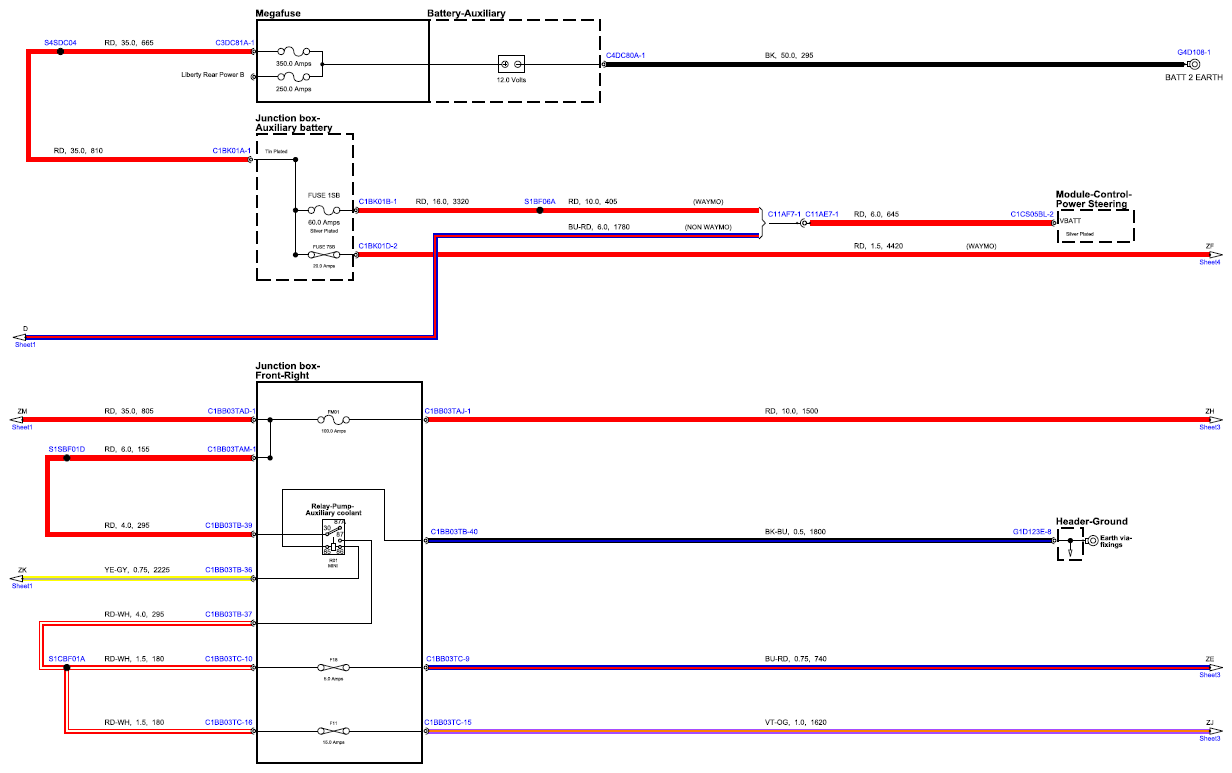

Fig 4: Electric Drive Unit Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

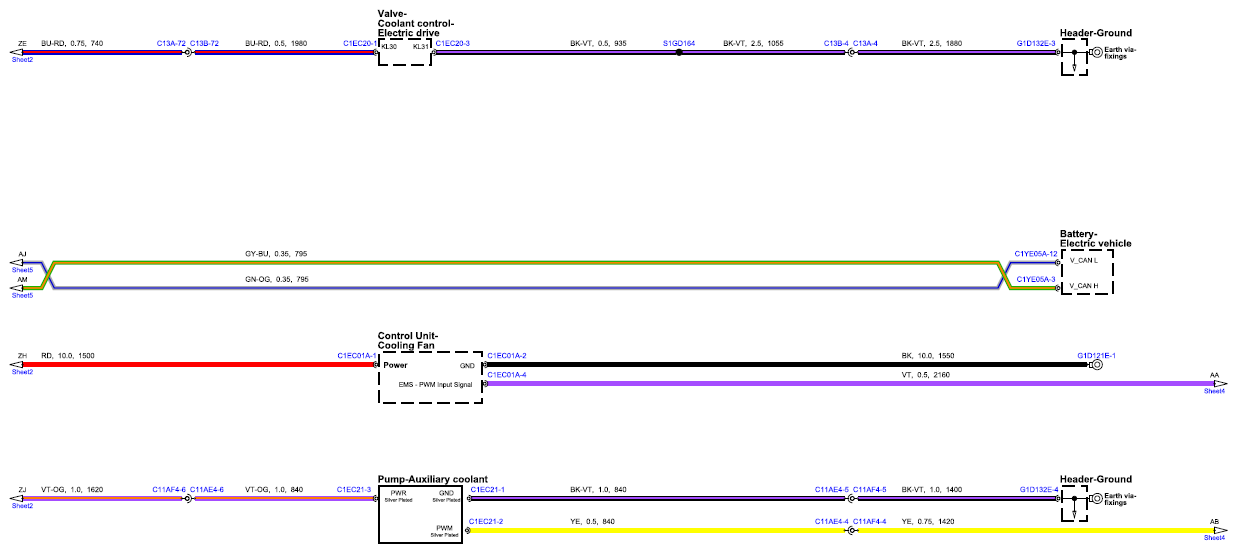

Fig 5: Electric Drive Unit Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

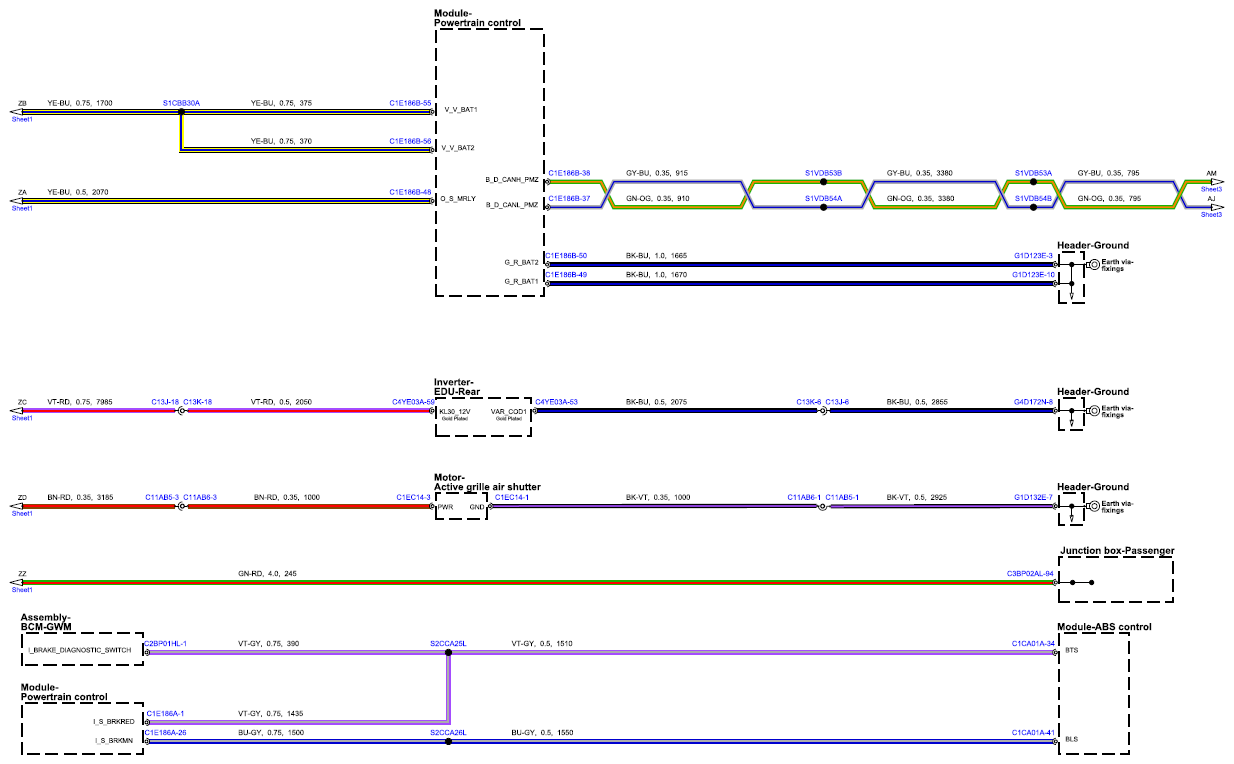

Fig 6: Electric Drive Unit Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
