501-16 Wipers And Washers

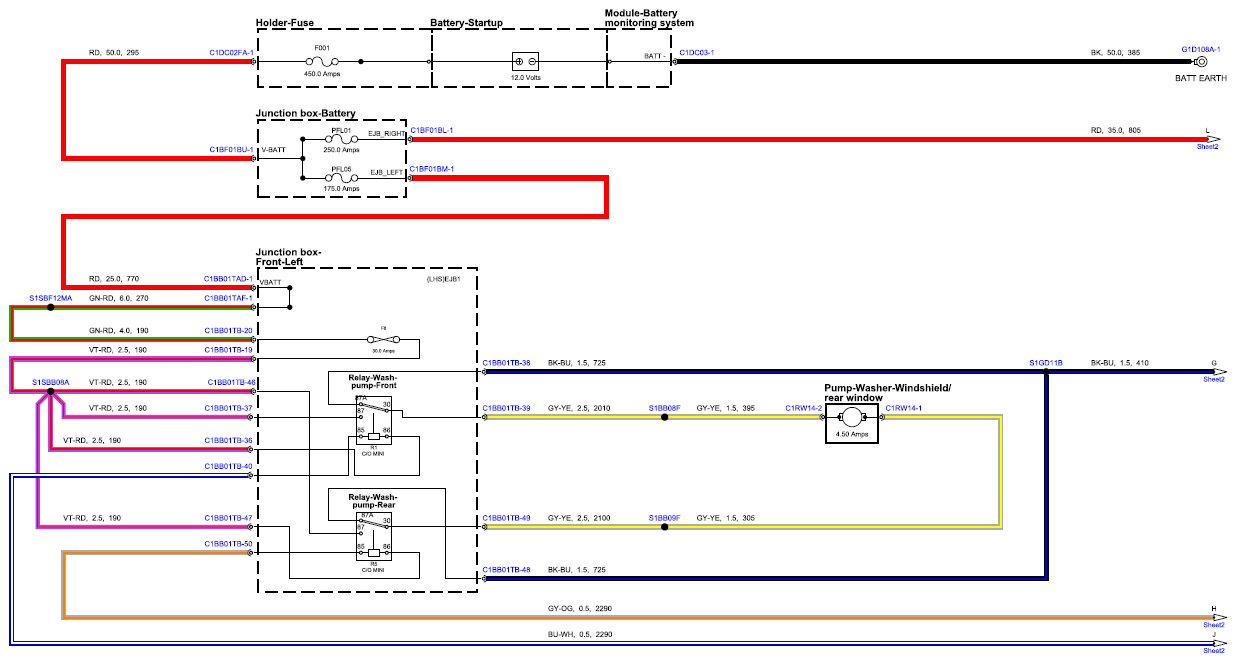

Fig 1: Wipers And Washers Circuit Diagram - Sheet 1
G15680787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

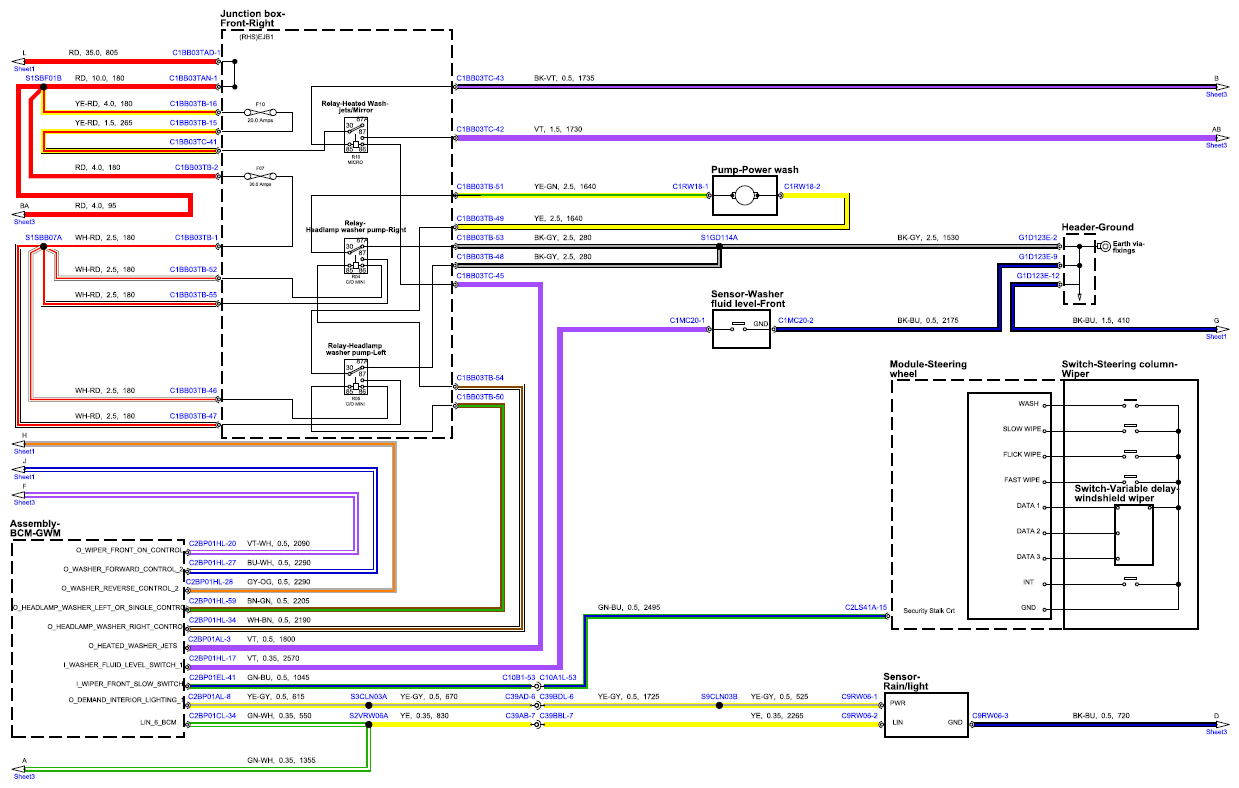

Fig 2: Wipers And Washers Circuit Diagram - Sheet 2
G15680788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

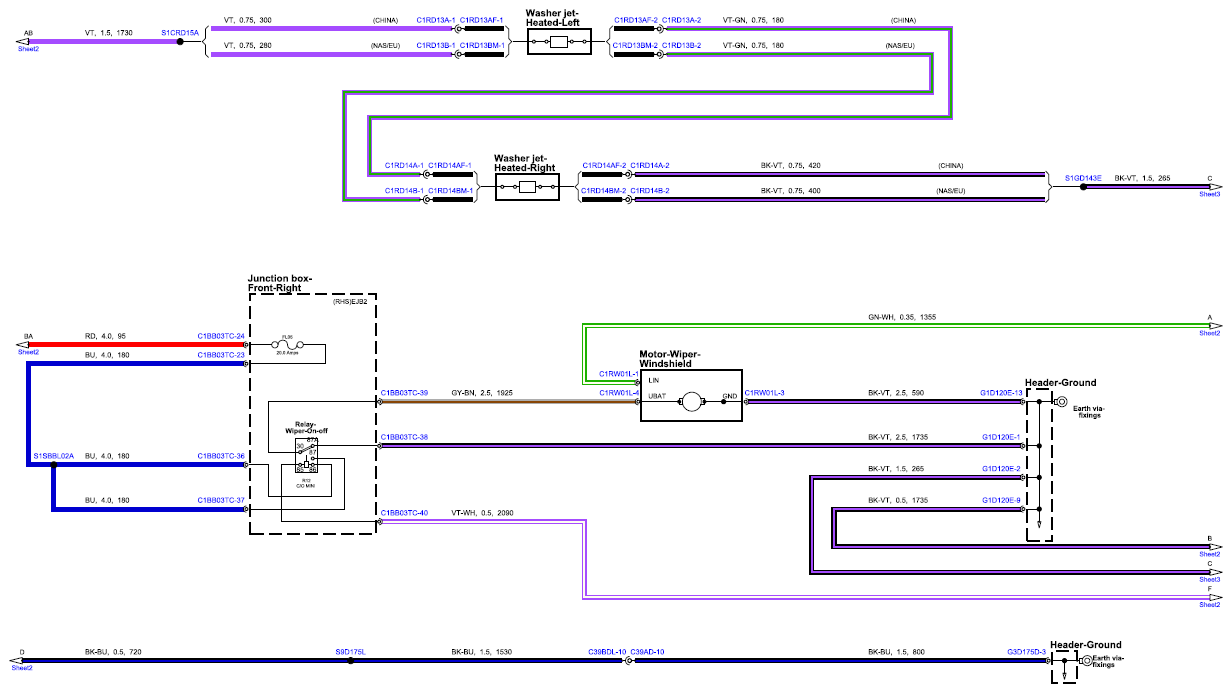

Fig 3: Wipers And Washers Circuit Diagram - Sheet 3
G15680789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
