OEM Wiring Diagrams -- I-Pace X590
>>
501-14 Handles, Locks, Latches And Entry Systems
>>
Tailgate - Powered
Tailgate - Powered

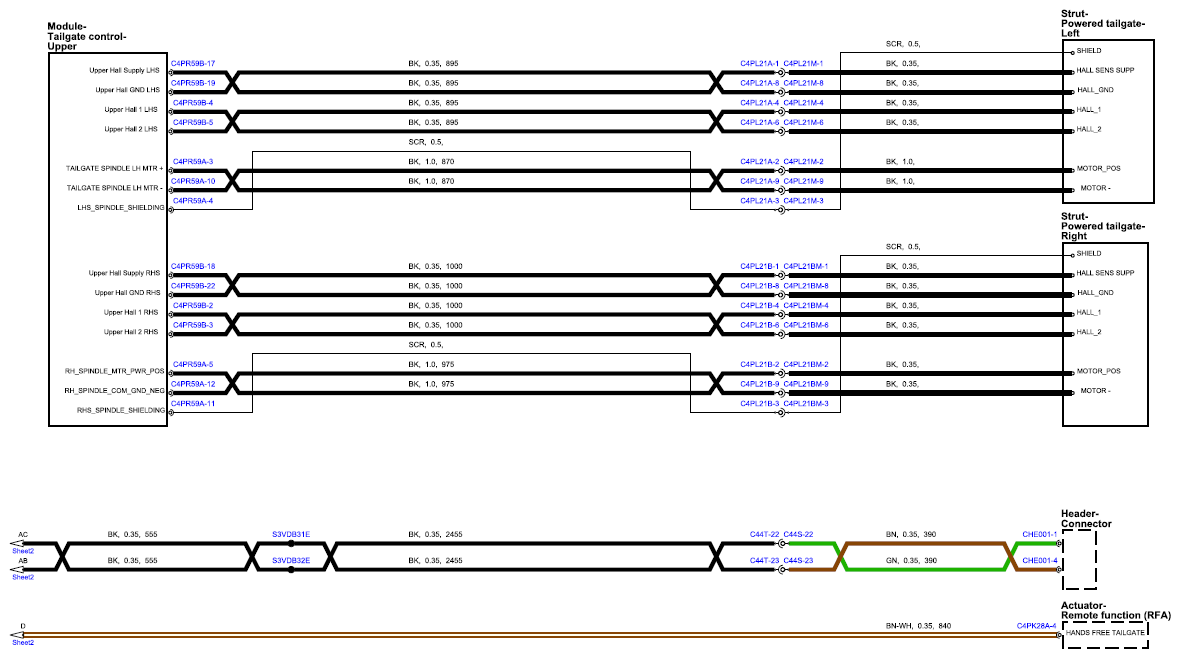

Fig 1: Tailgate Circuit Diagram - Powered (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

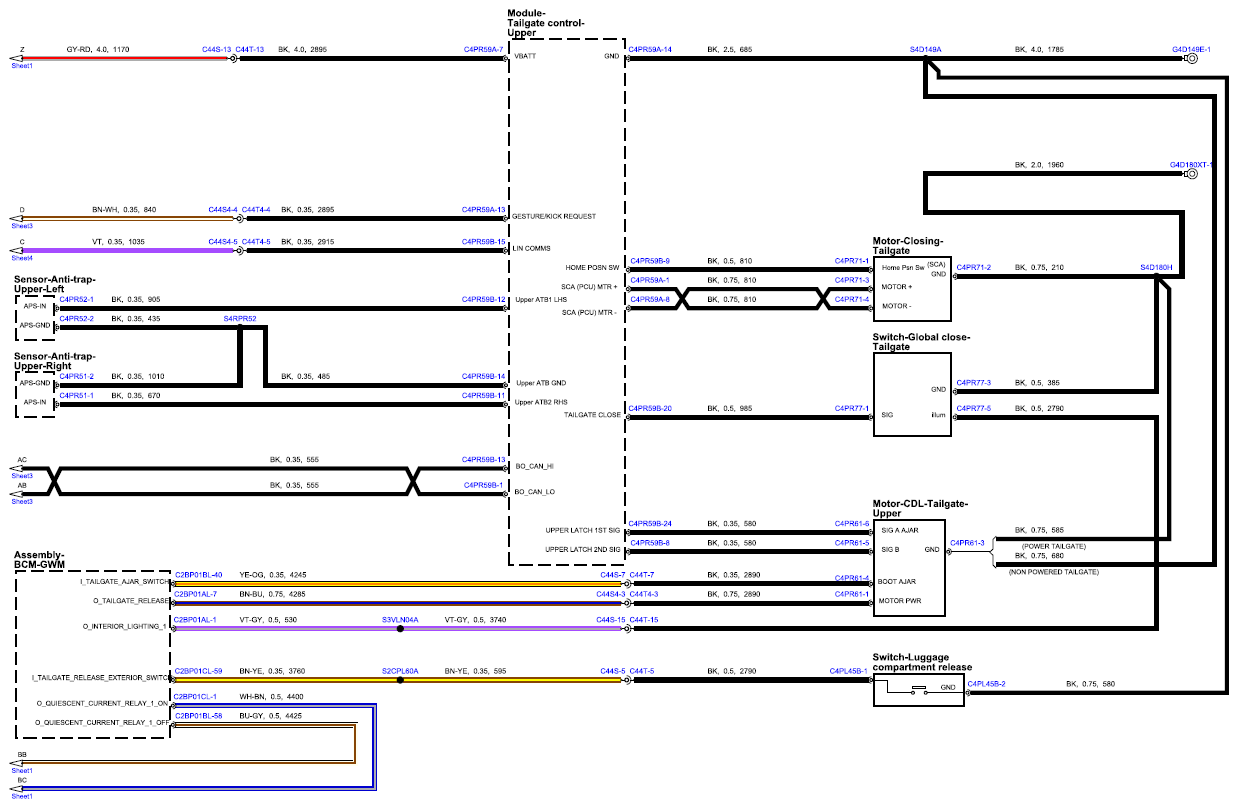

Fig 2: Tailgate Circuit Diagram - Powered (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

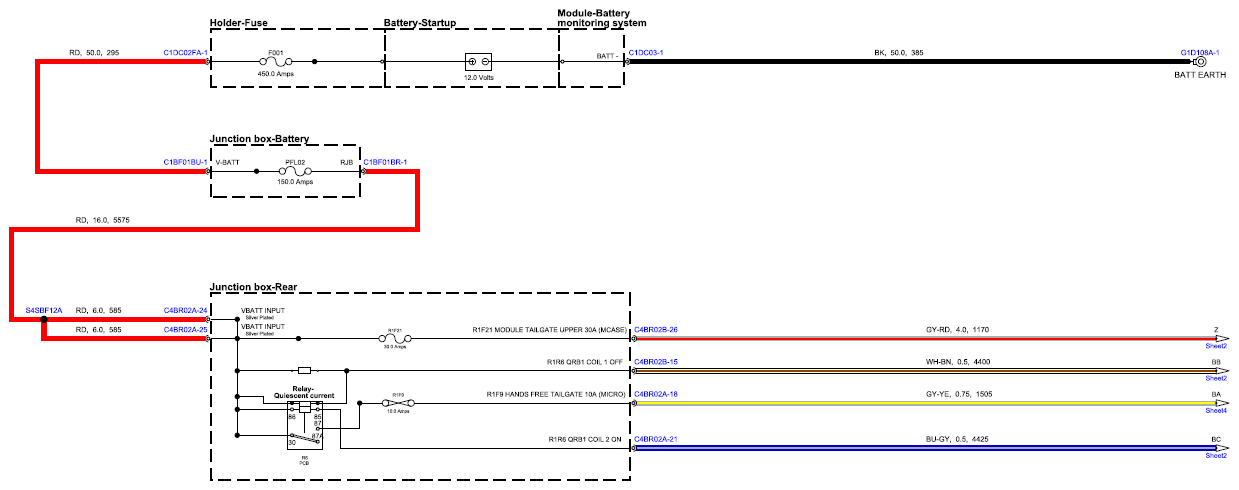

Fig 3: Tailgate Circuit Diagram - Powered (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

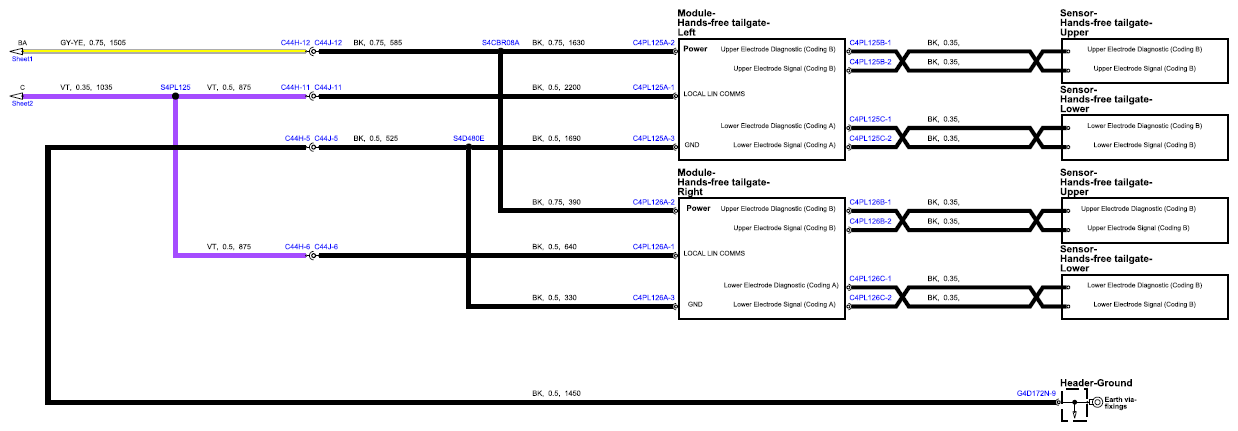

Fig 4: Tailgate Circuit Diagram - Powered (Sheet 4)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
