Doors, windows, mirrors

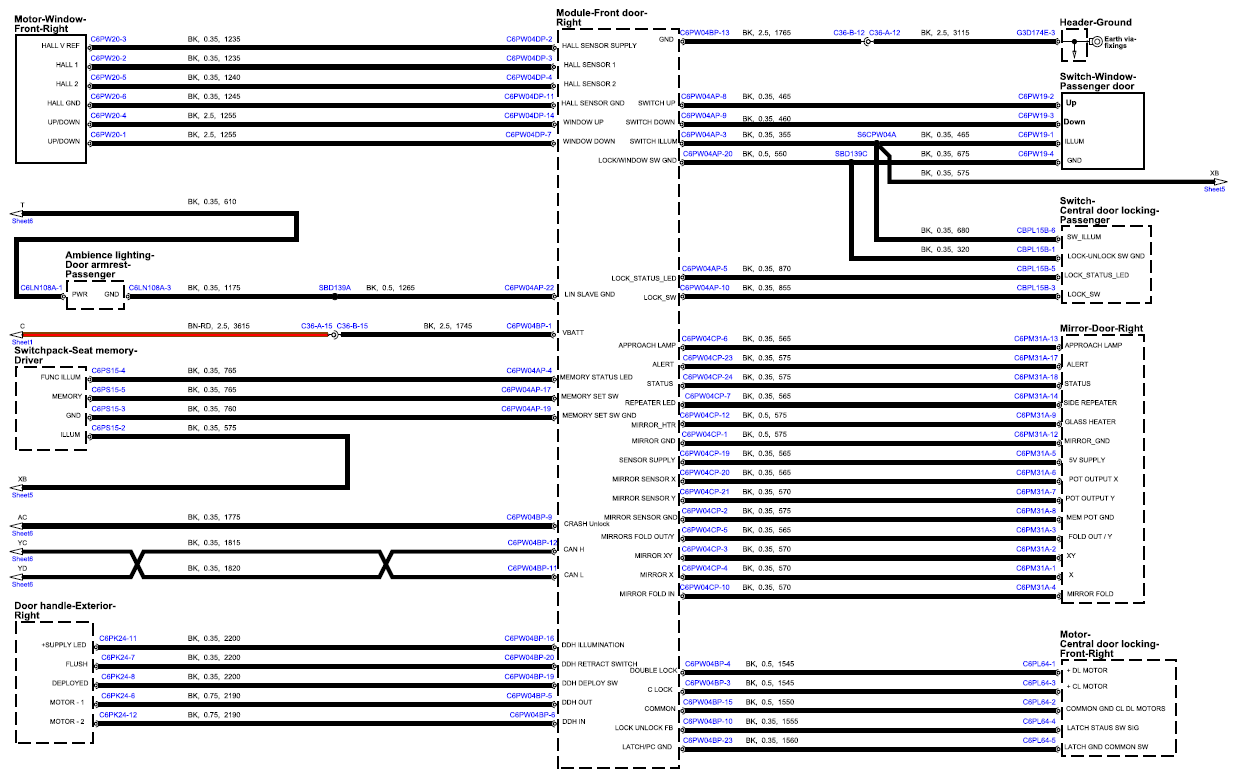

Fig 1: Doors, Windows, Mirrors Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

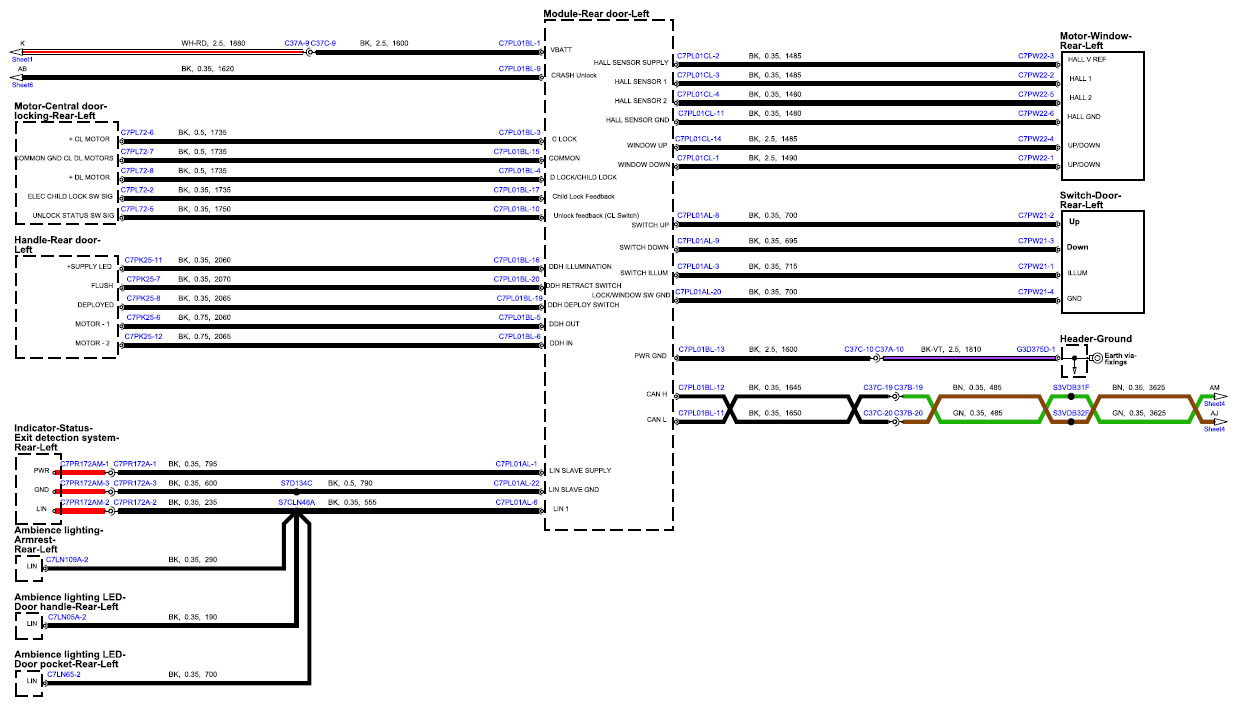

Fig 2: Doors, Windows, Mirrors Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

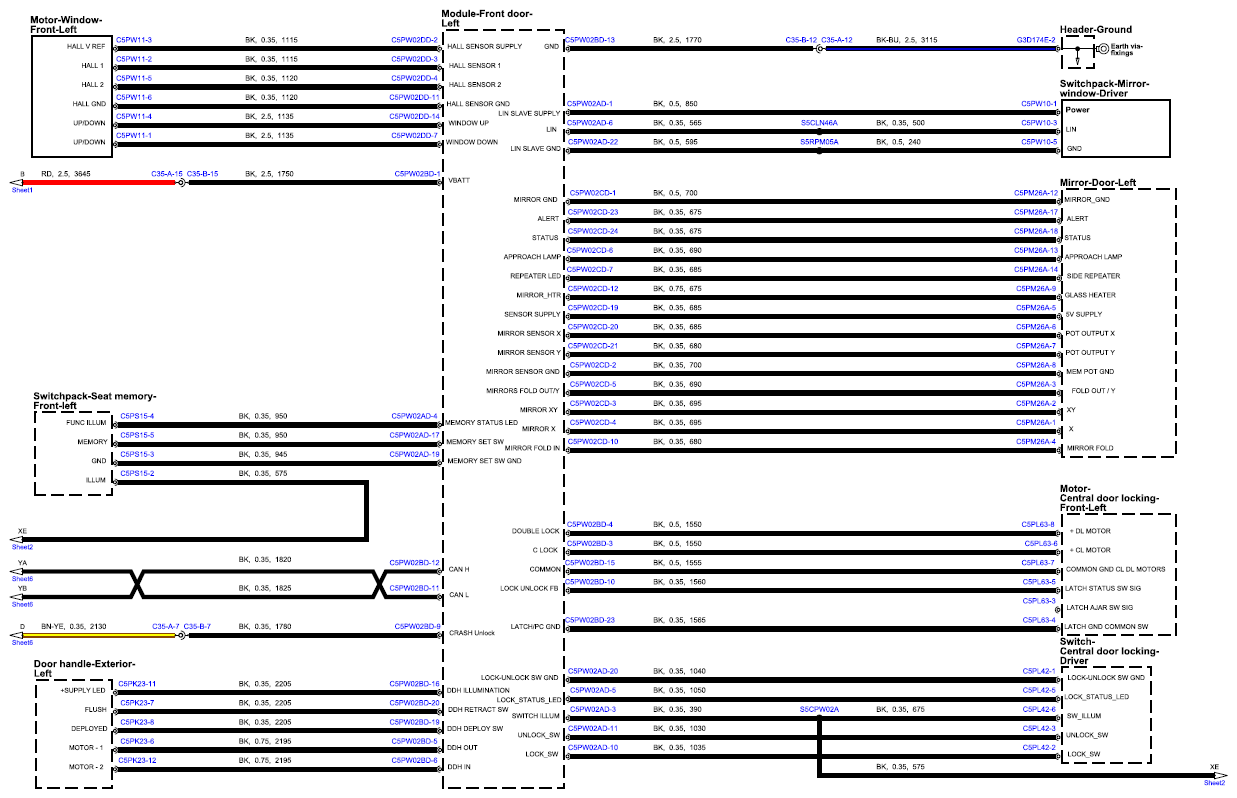

Fig 3: Doors, Windows, Mirrors Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

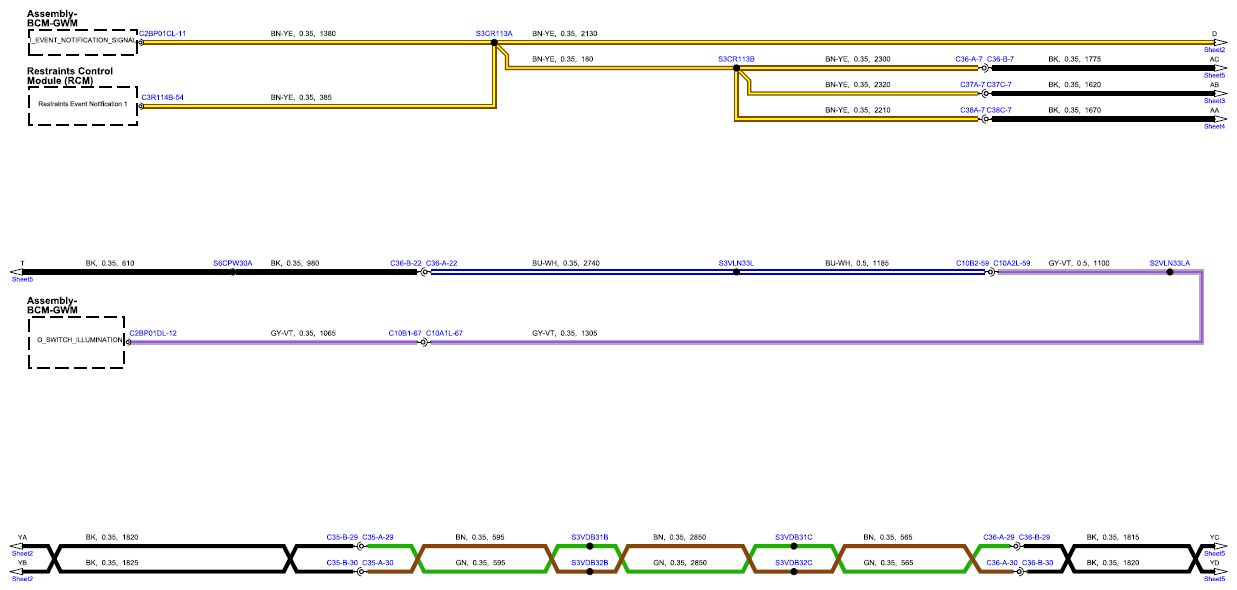

Fig 4: Doors, Windows, Mirrors Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

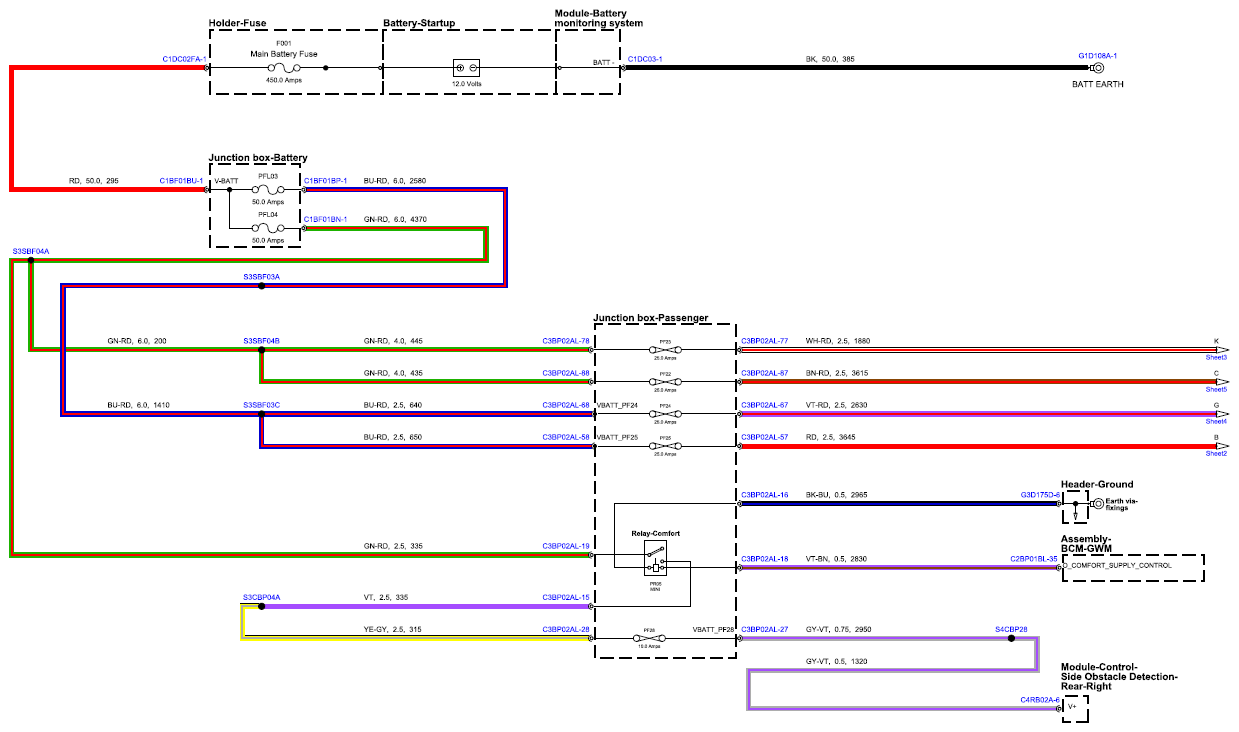

Fig 5: Doors, Windows, Mirrors Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

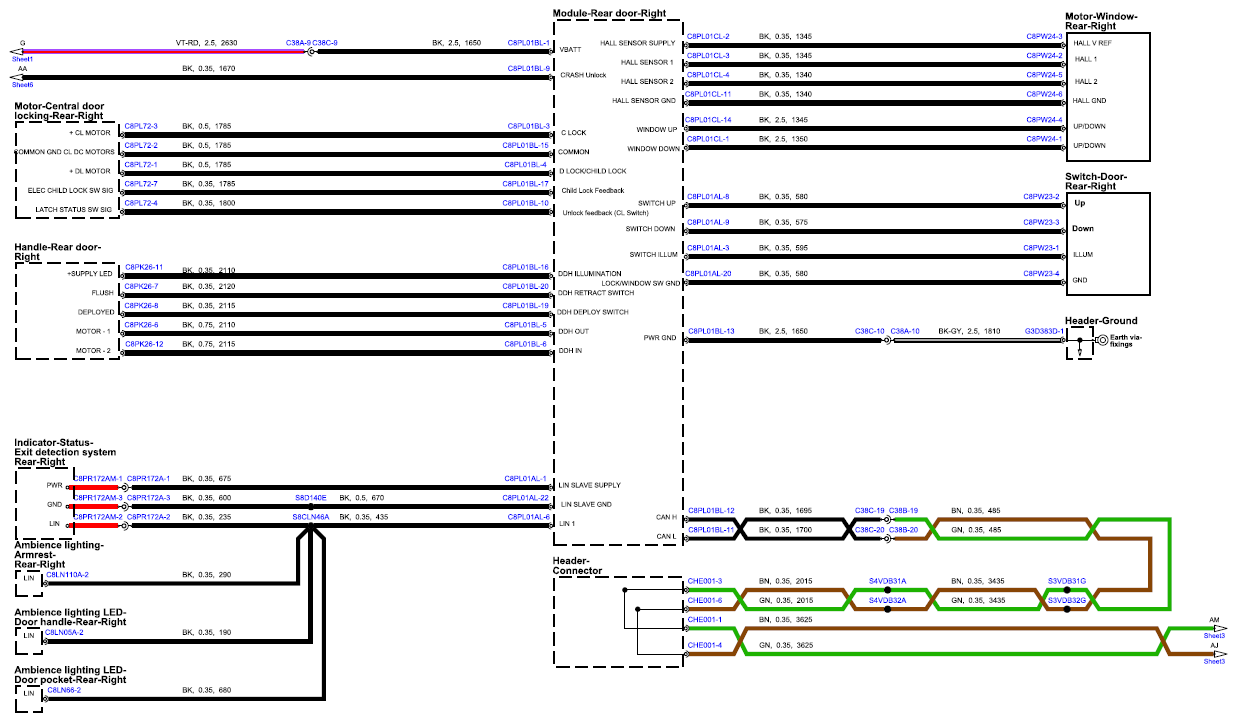

Fig 6: Doors, Windows, Mirrors Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
