Accessory socket(s)

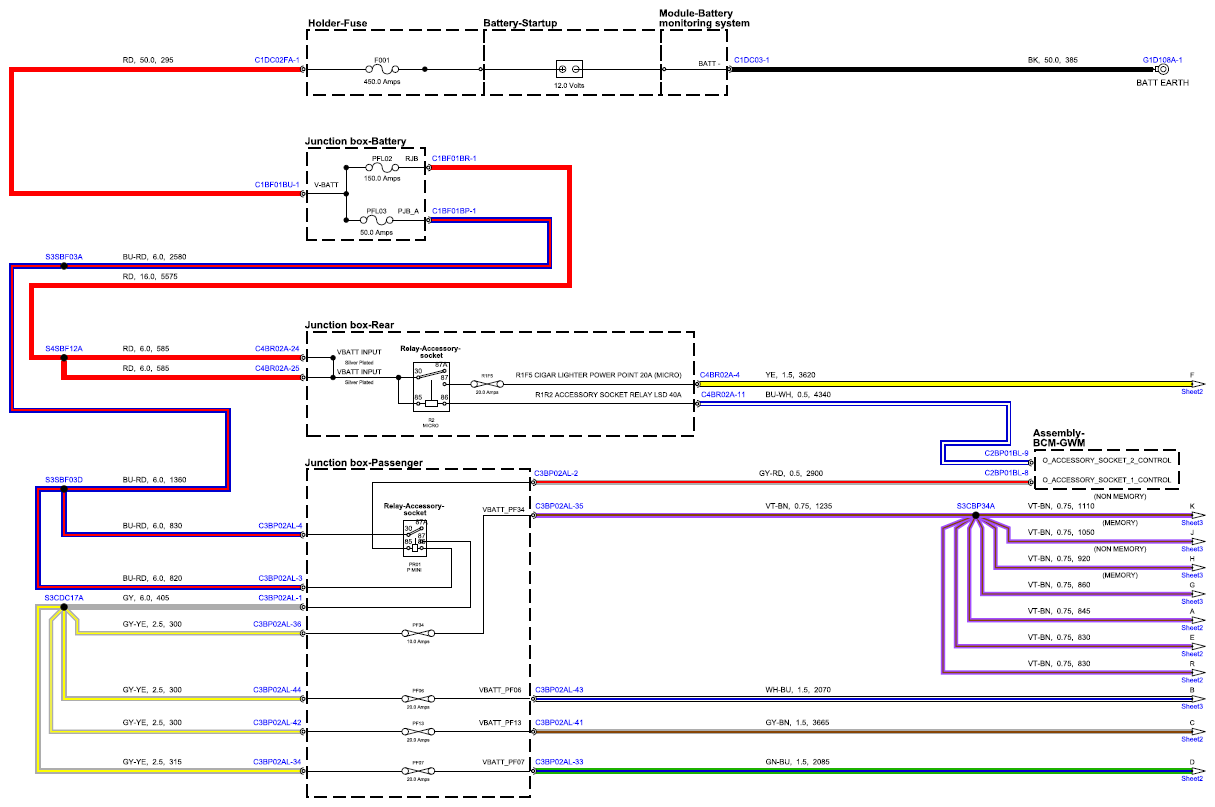

Fig 1: Accessory Socket(s) Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

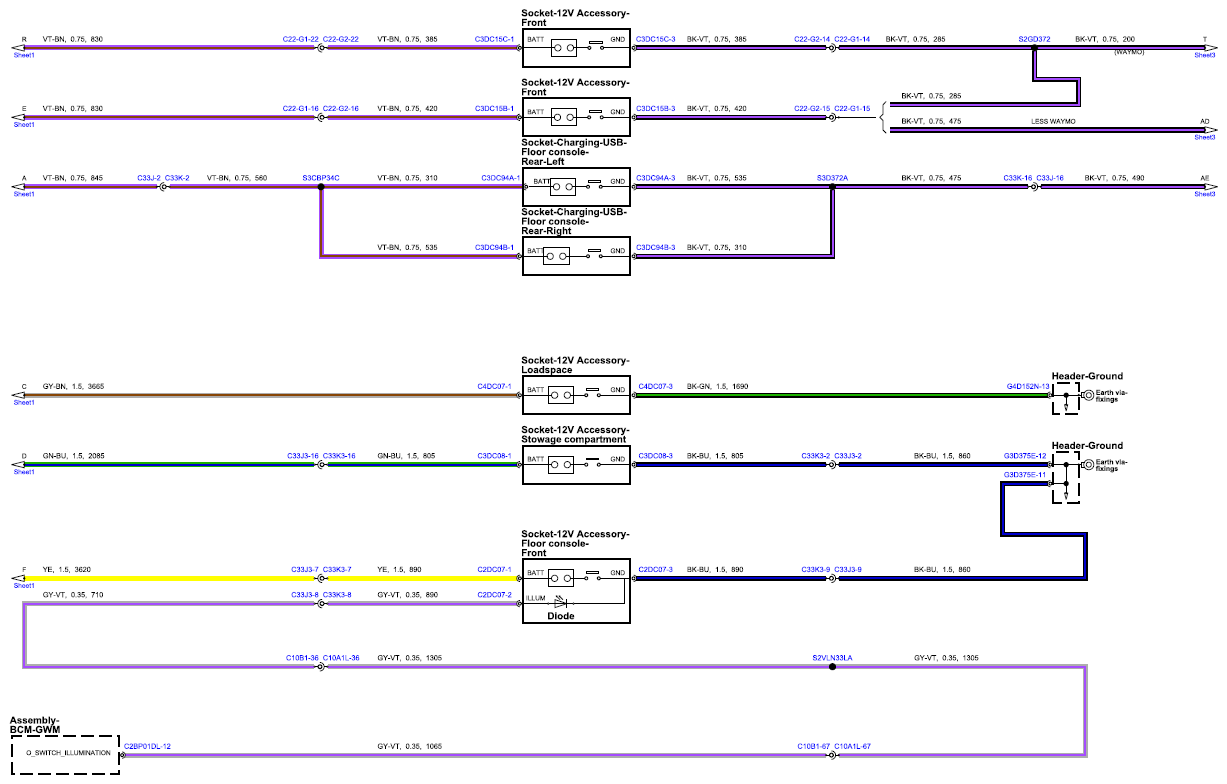

Fig 2: Accessory Socket(s) Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

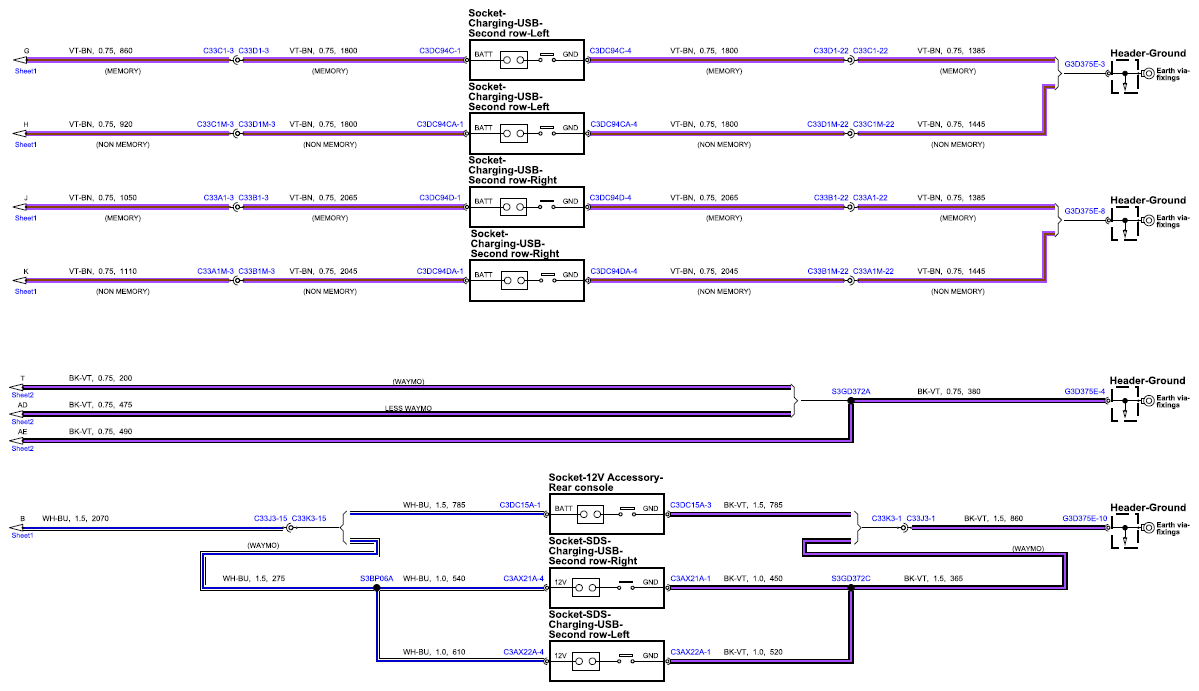

Fig 3: Accessory Socket(s) Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
