OEM Wiring Diagrams -- I-Pace X590
>>
501-11 Glass, Frames And Mechanisms
>>
Window lift
Window lift

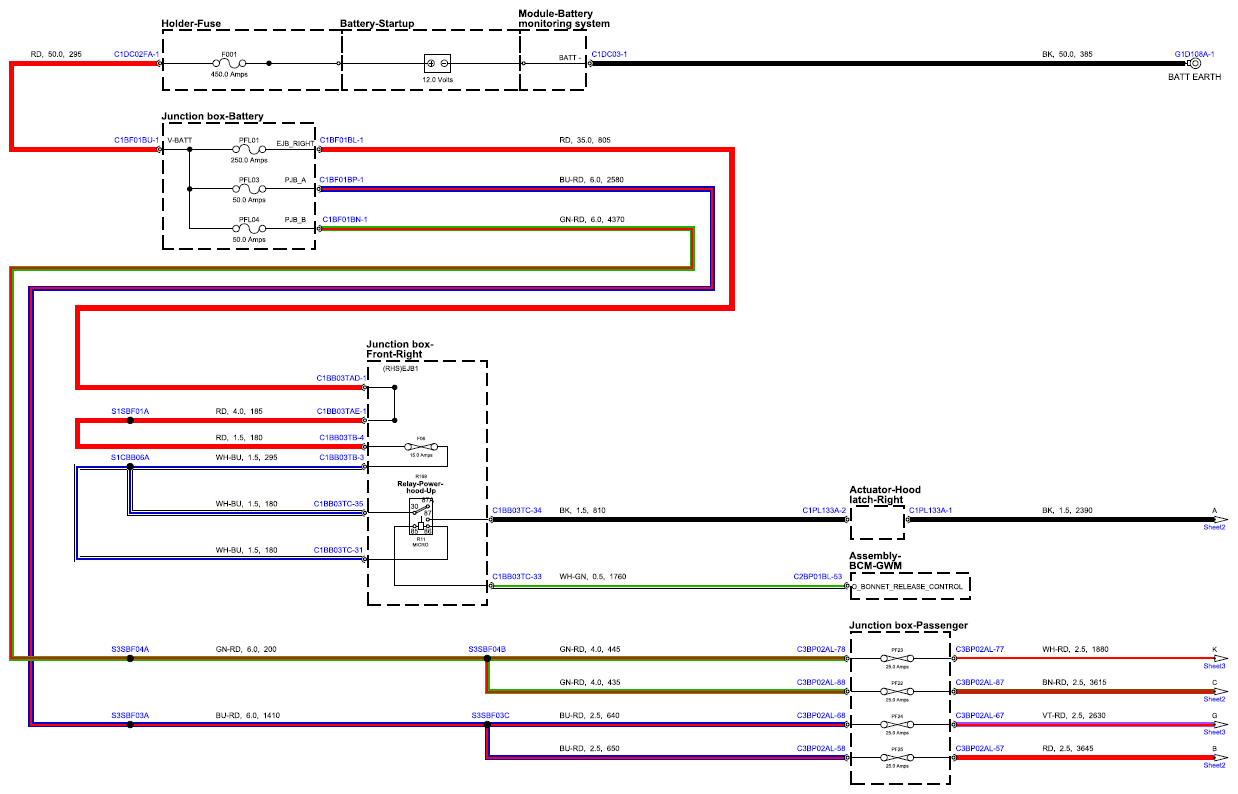

Fig 1: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

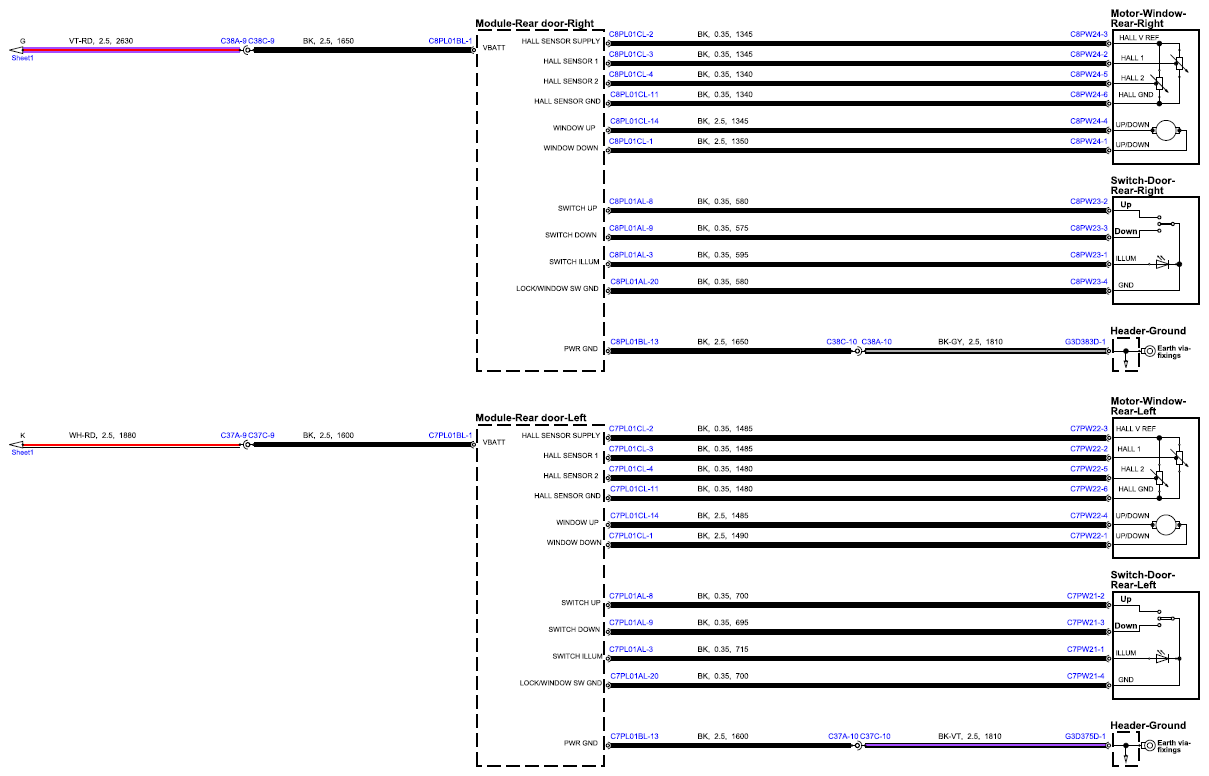

Fig 2: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

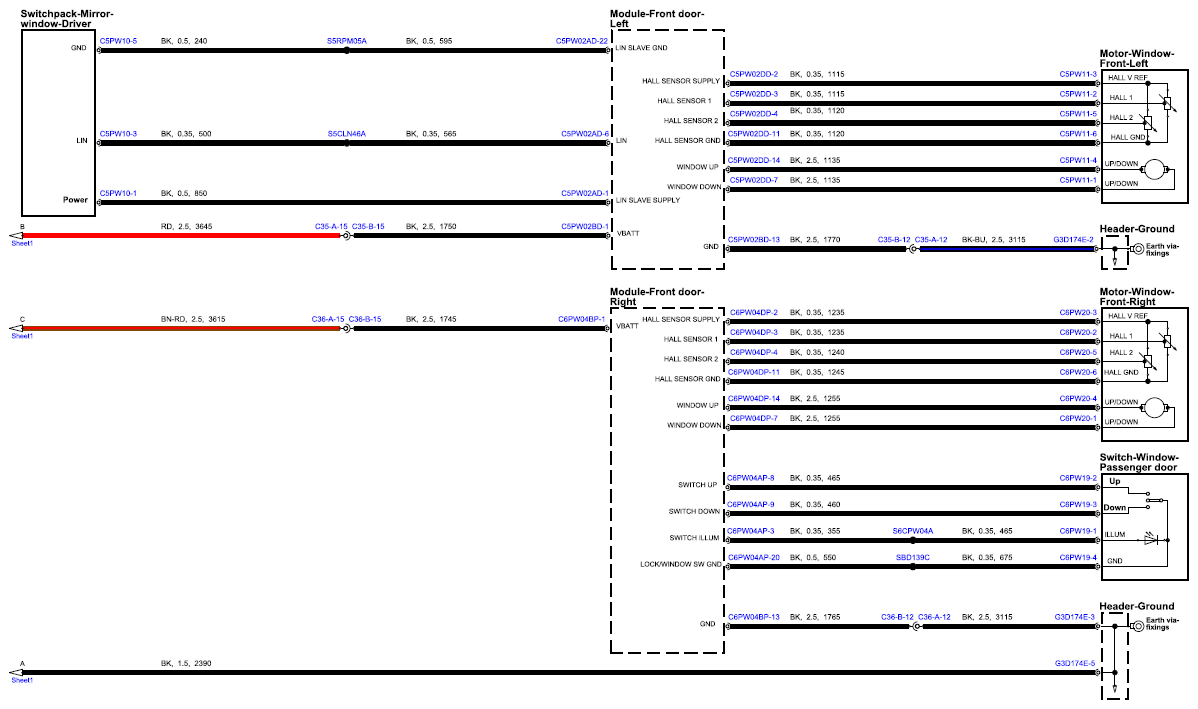

Fig 3: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
