Jaguar
>>
2021
>>
I-Pace S
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- I-Pace X590
>>
501-10 Seating
>>
Non-memory - 2 Way
Non-memory - 2 Way

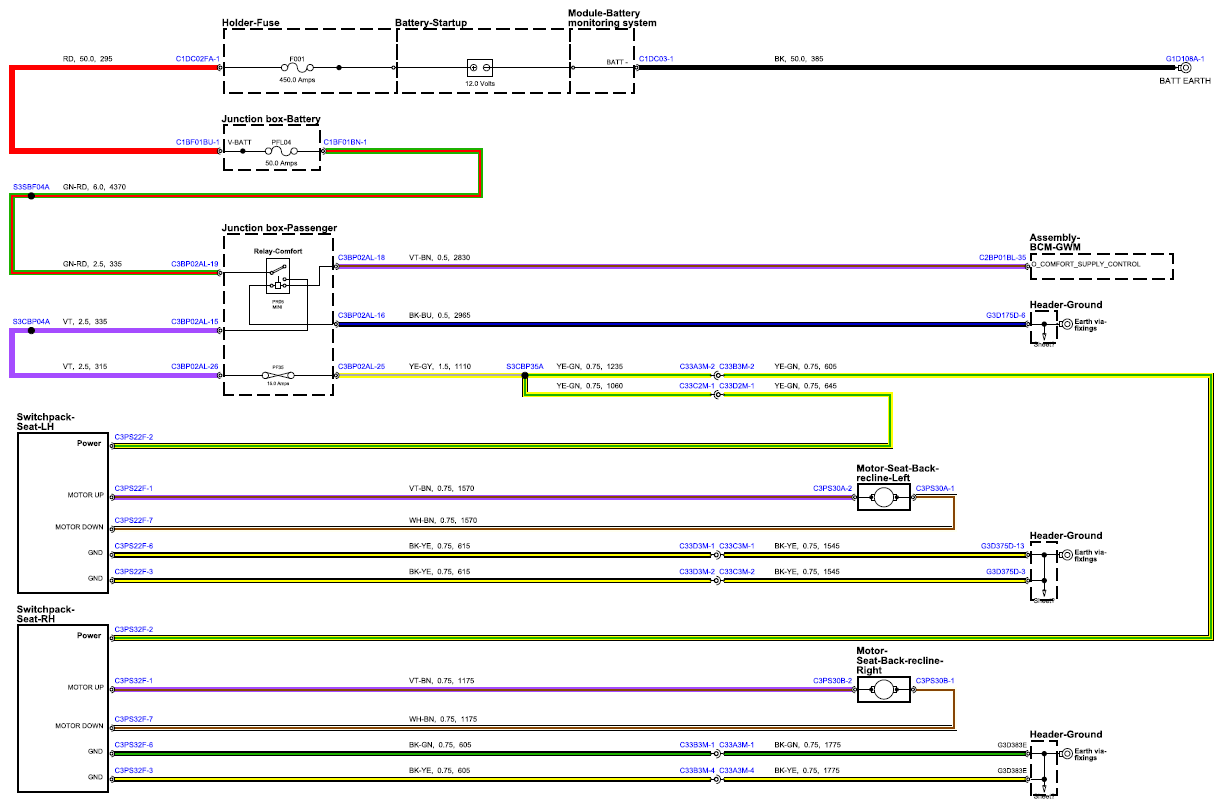

Fig 1: Seating Circuit Diagram - Non-Memory (2 Way)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
