OEM Wiring Diagrams -- I-Pace X590
>>
501-10 Seating
>>
Heated - Power positioning
Heated - Power positioning

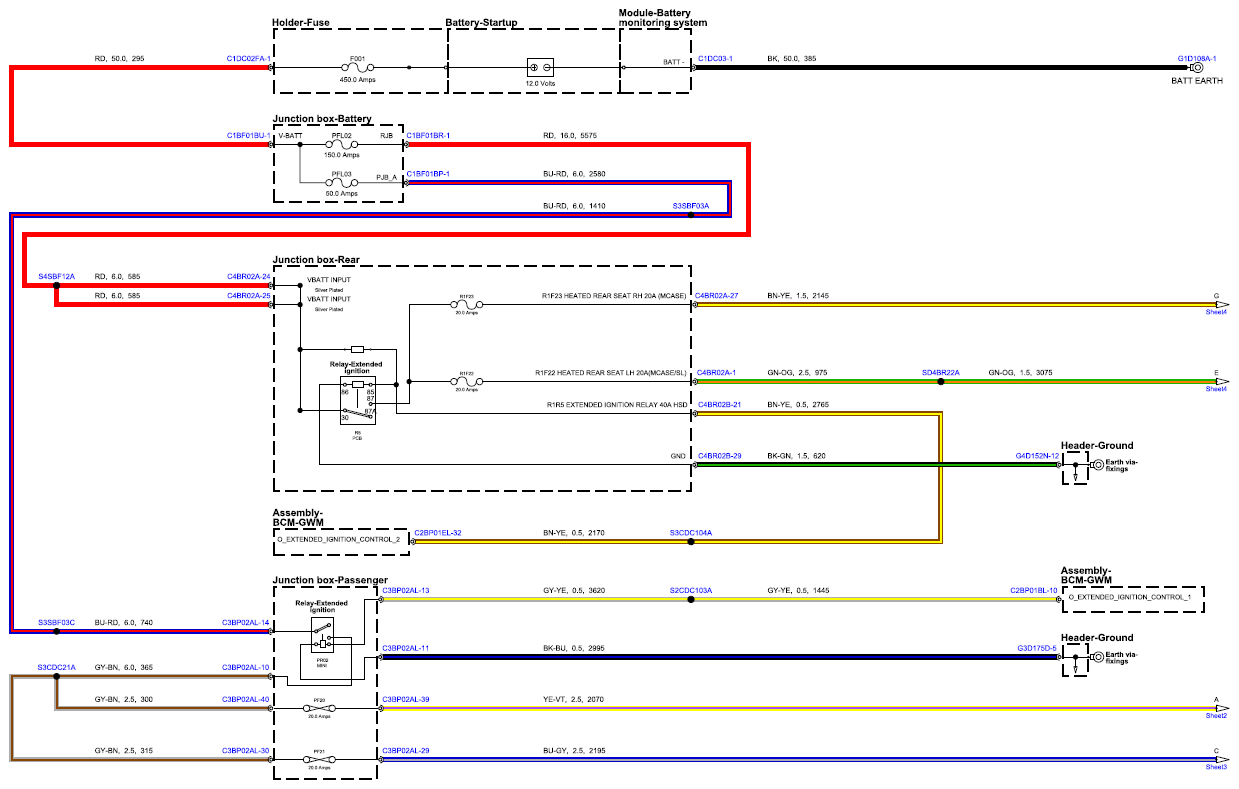

Fig 1: Seating Circuit Diagram - Heated (Power Positioning - Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

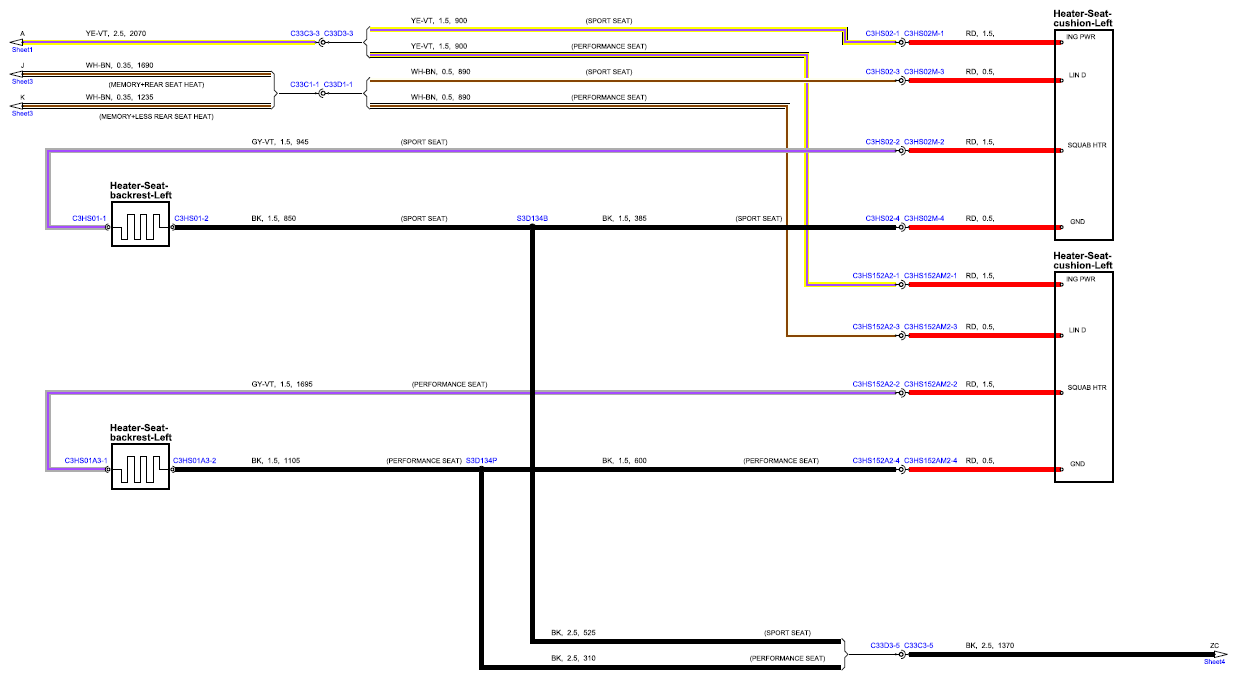

Fig 2: Seating Circuit Diagram - Heated (Power Positioning - Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

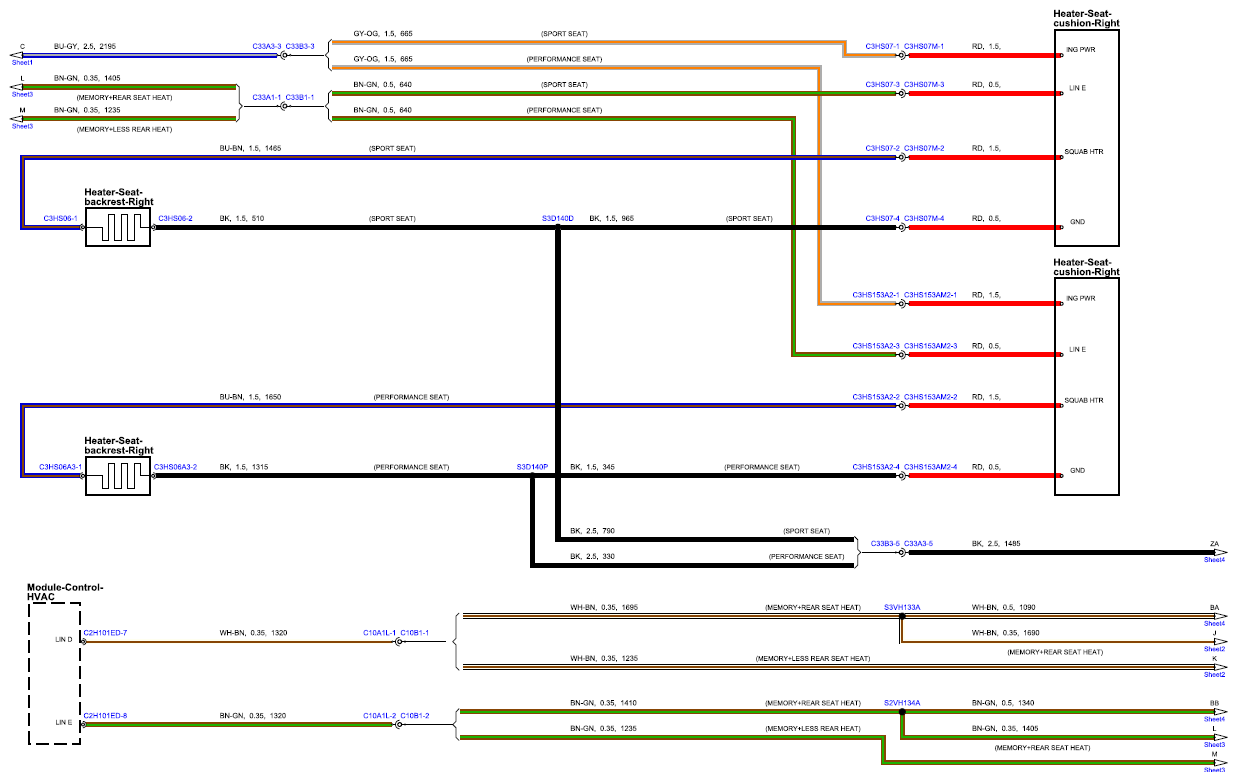

Fig 3: Seating Circuit Diagram - Heated (Power Positioning - Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

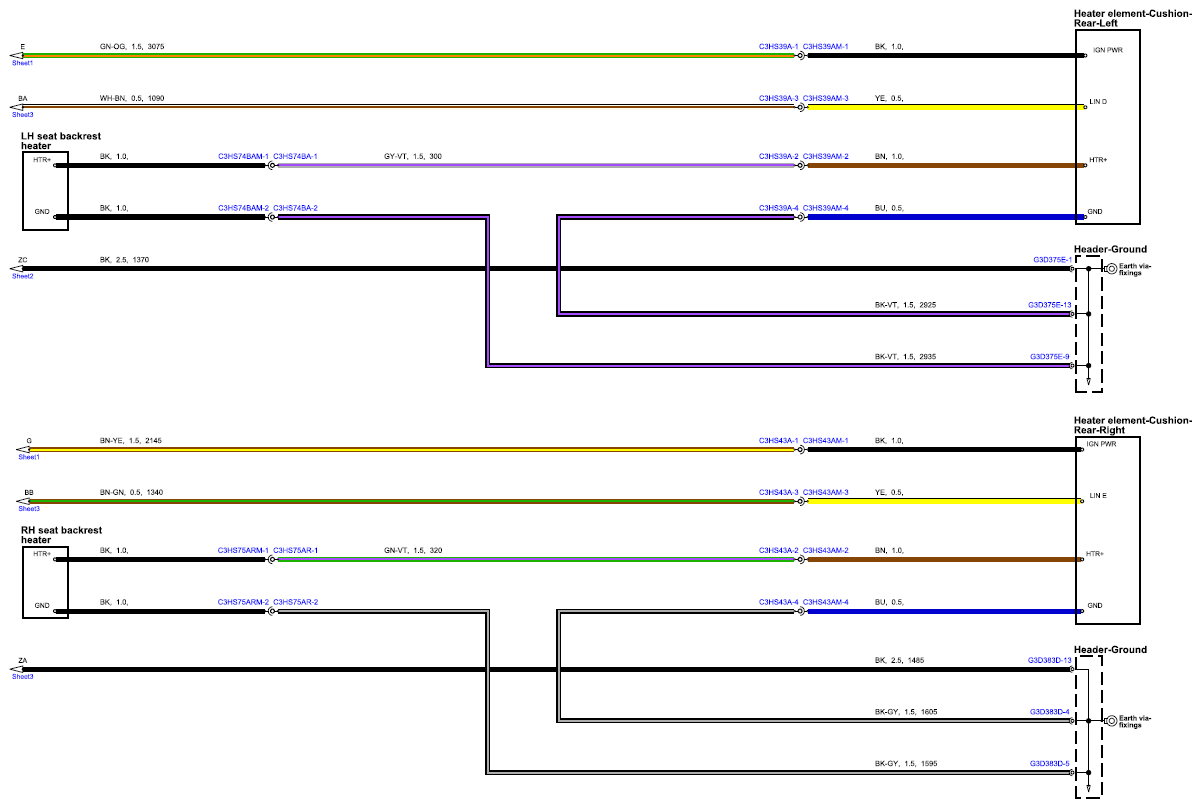

Fig 4: Seating Circuit Diagram - Heated (Power Positioning - Sheet 4)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
