OEM Wiring Diagrams -- I-Pace X590
>>
501-10 Seating
>>
Heated - Manual positioning
Heated - Manual positioning

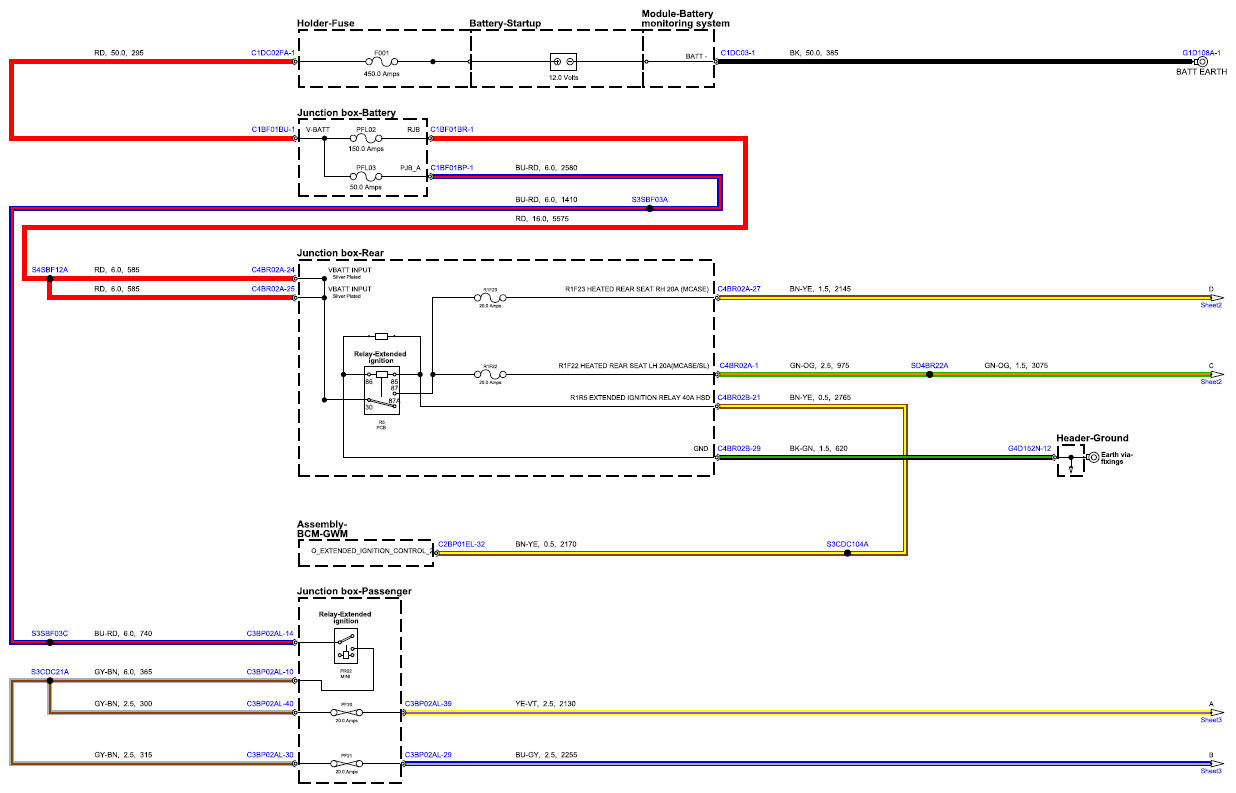

Fig 1: Seating Circuit Diagram - Heated (Manual Positioning - Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

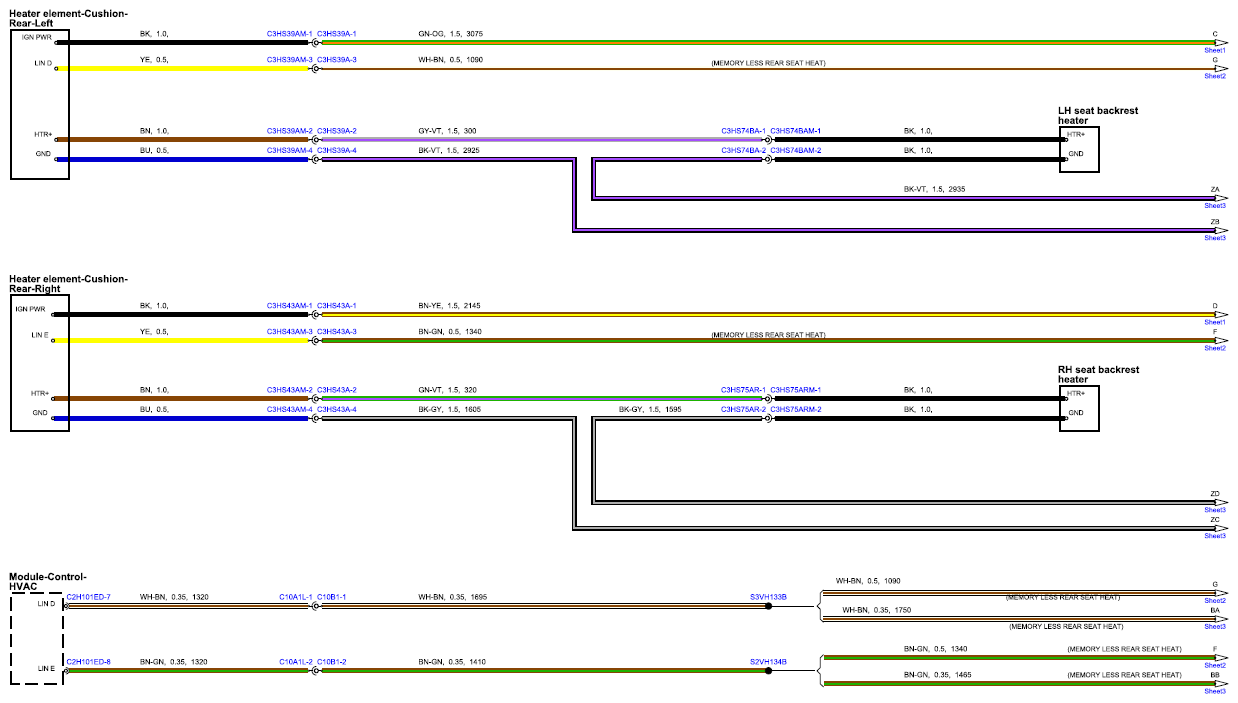

Fig 2: Seating Circuit Diagram - Heated (Manual Positioning - Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

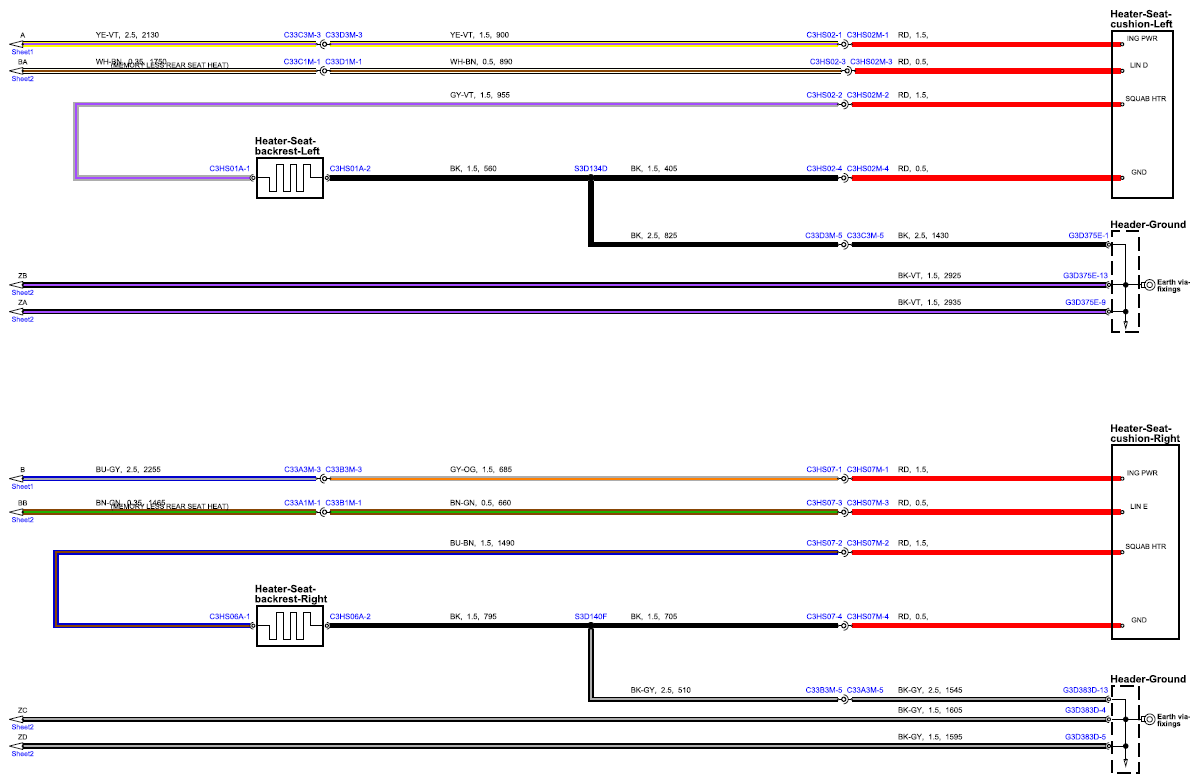

Fig 3: Seating Circuit Diagram - Heated (Manual Positioning - Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
