14 way memory

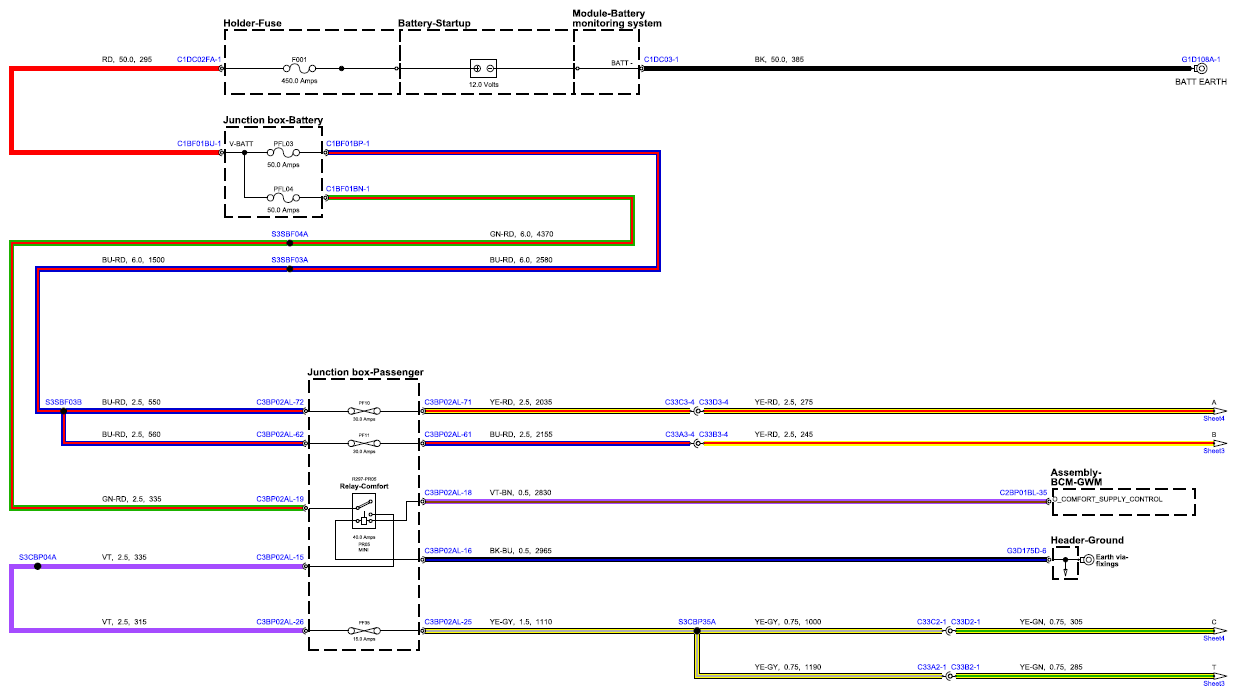

Fig 1: Seating Circuit Diagram - 14 Way Memory (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

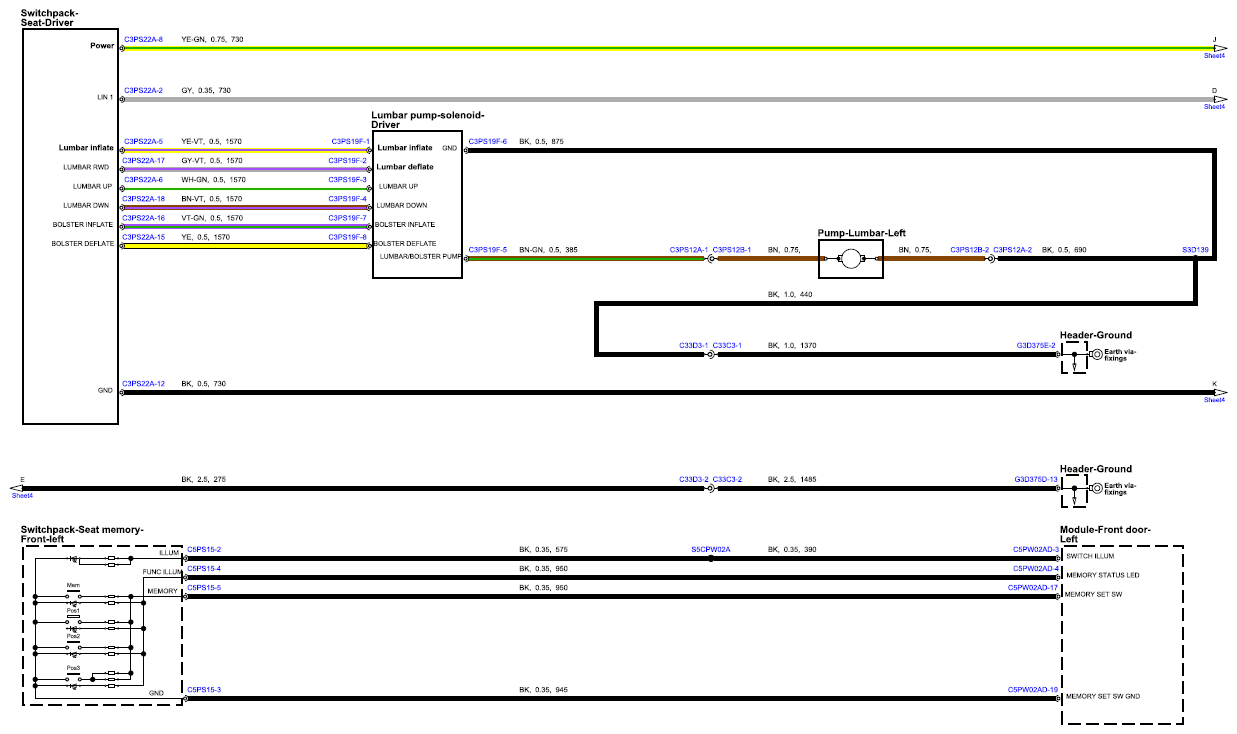

Fig 2: Seating Circuit Diagram - 14 Way Memory (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

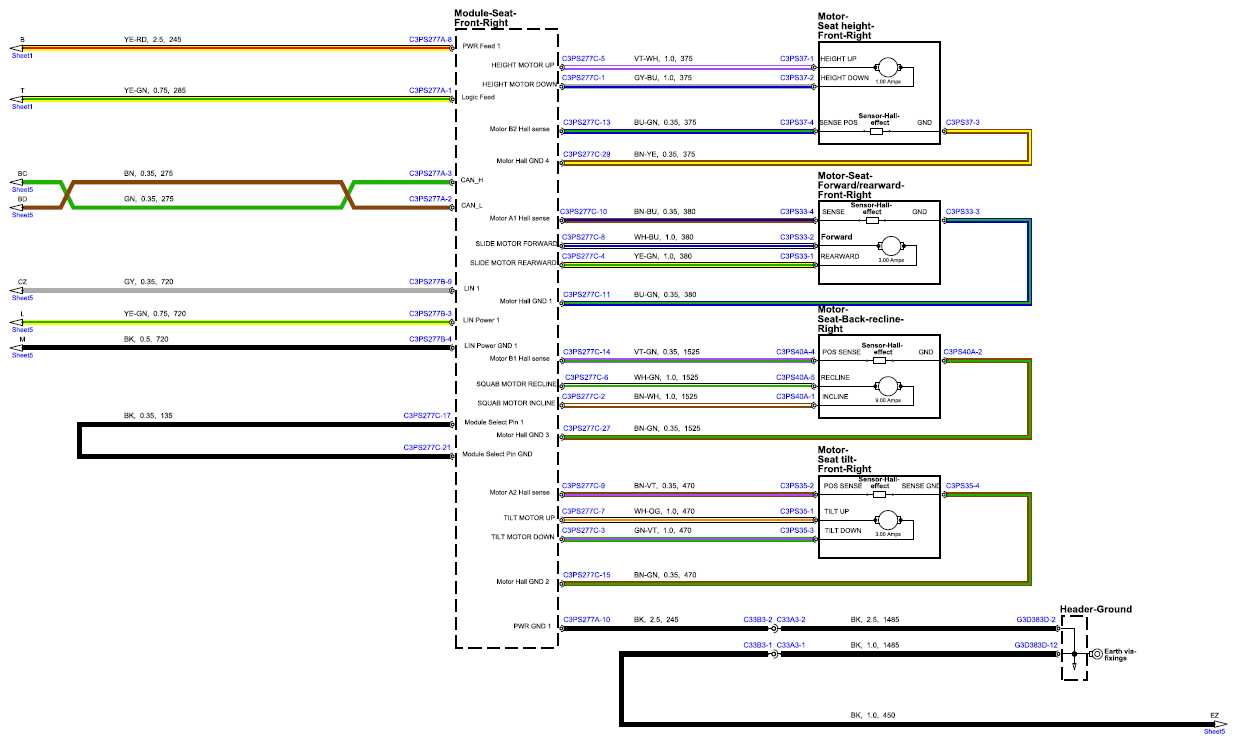

Fig 3: Seating Circuit Diagram - 14 Way Memory (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

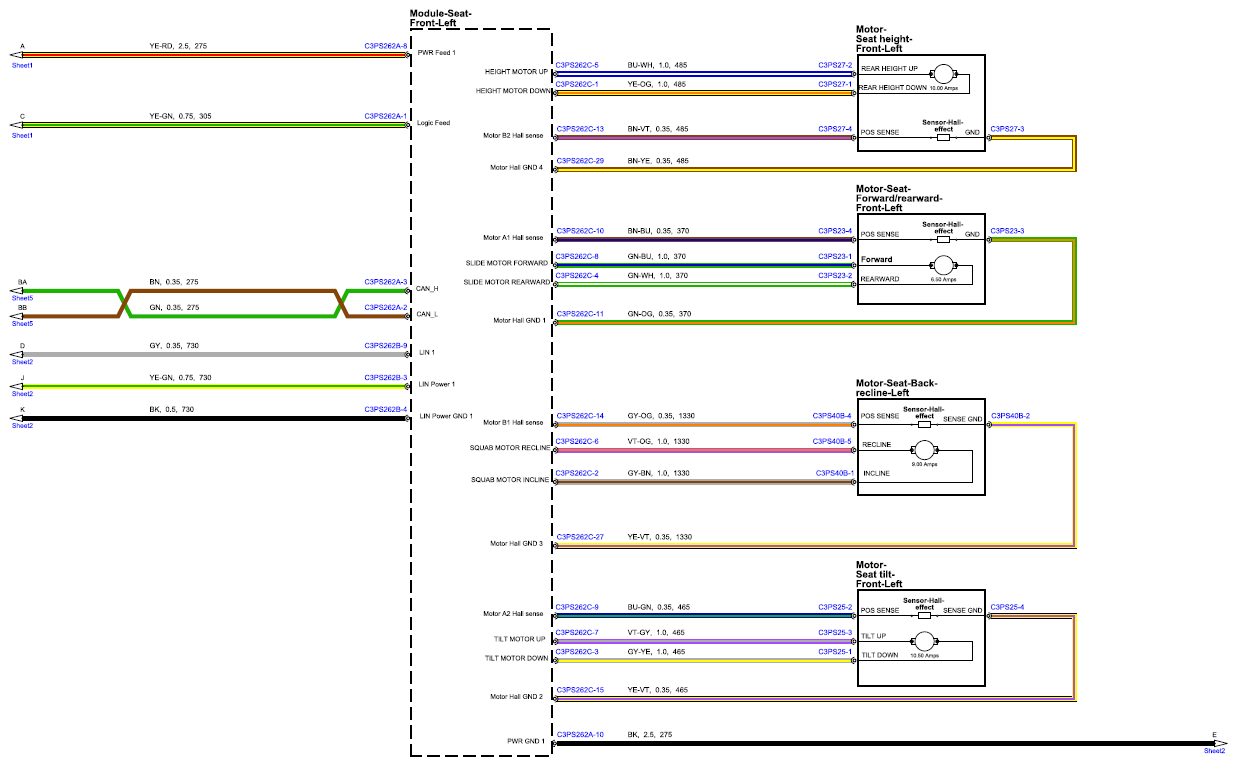

Fig 4: Seating Circuit Diagram - 14 Way Memory (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

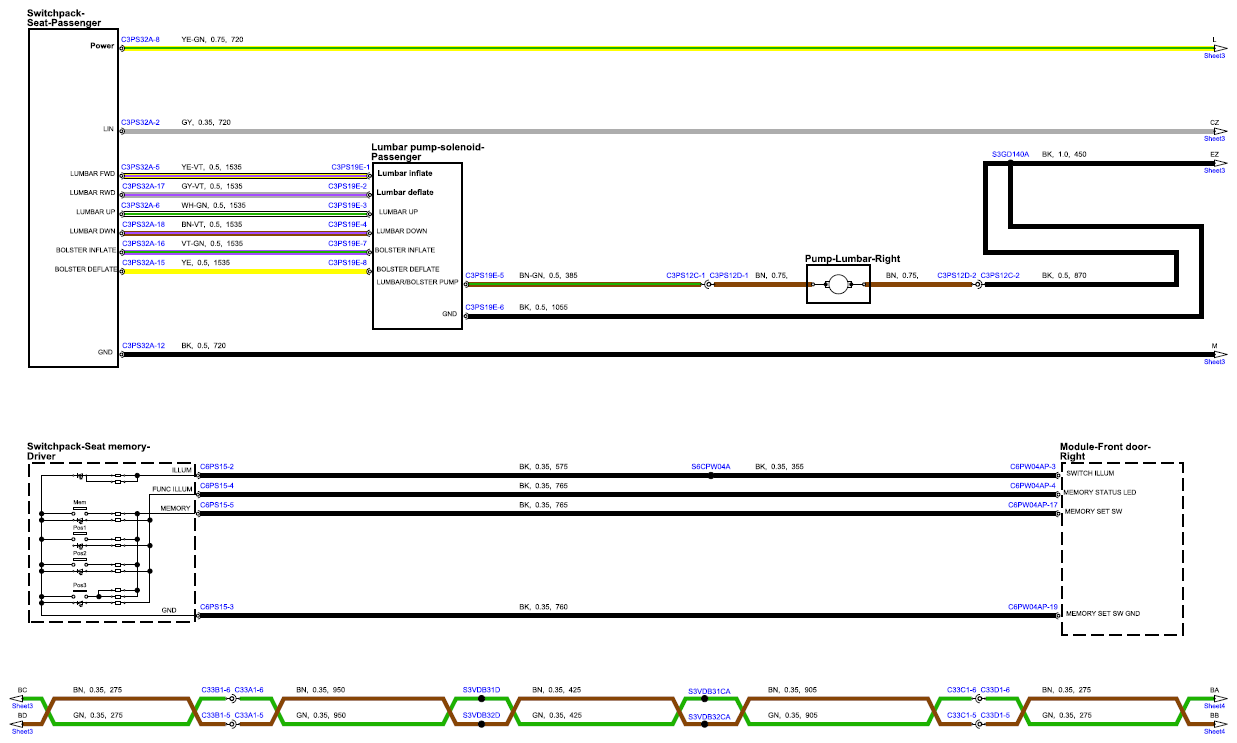

Fig 5: Seating Circuit Diagram - 14 Way Memory (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
