Jaguar
>>
2021
>>
I-Pace S
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- I-Pace X590
>>
501-09 Rear View Mirrors
>>
Mirror movement
Mirror movement

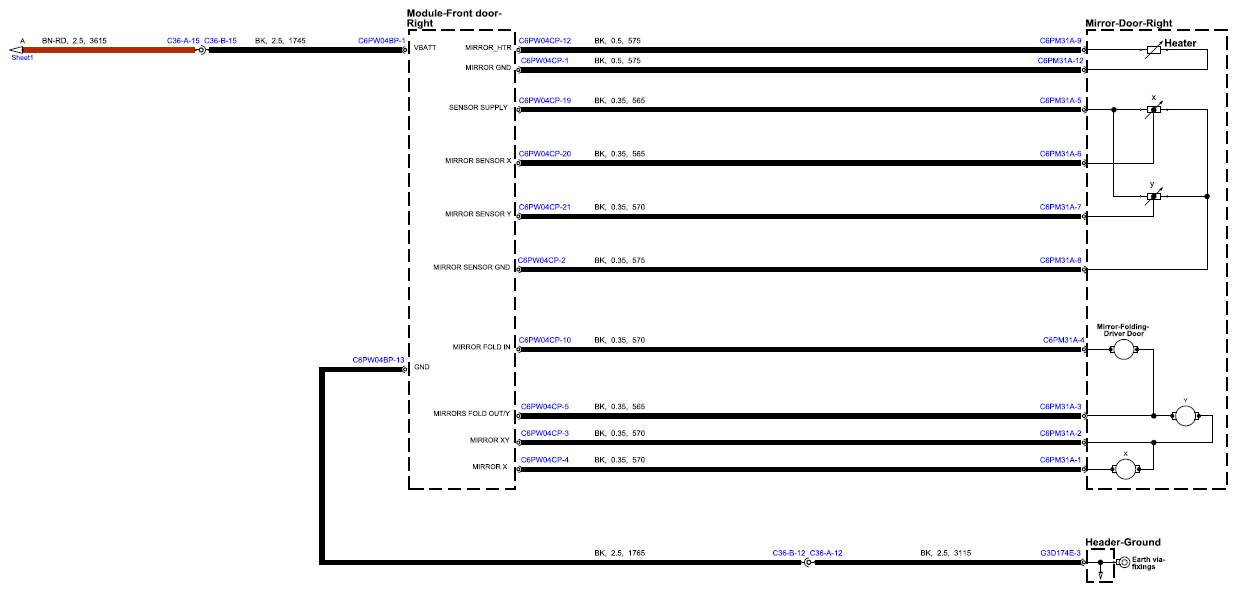

Fig 1: Rear View Mirrors Circuit Diagram - Mirror Movement (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

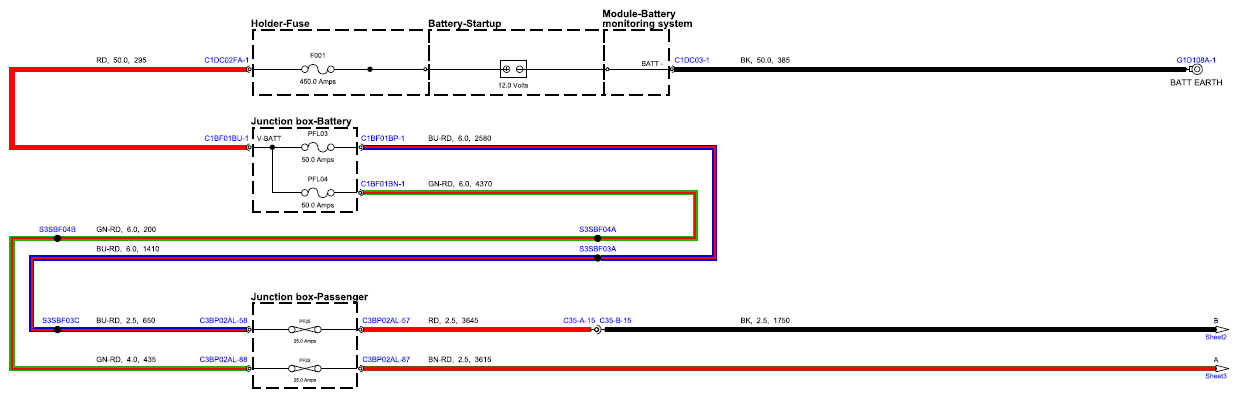

Fig 2: Rear View Mirrors Circuit Diagram - Mirror Movement (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

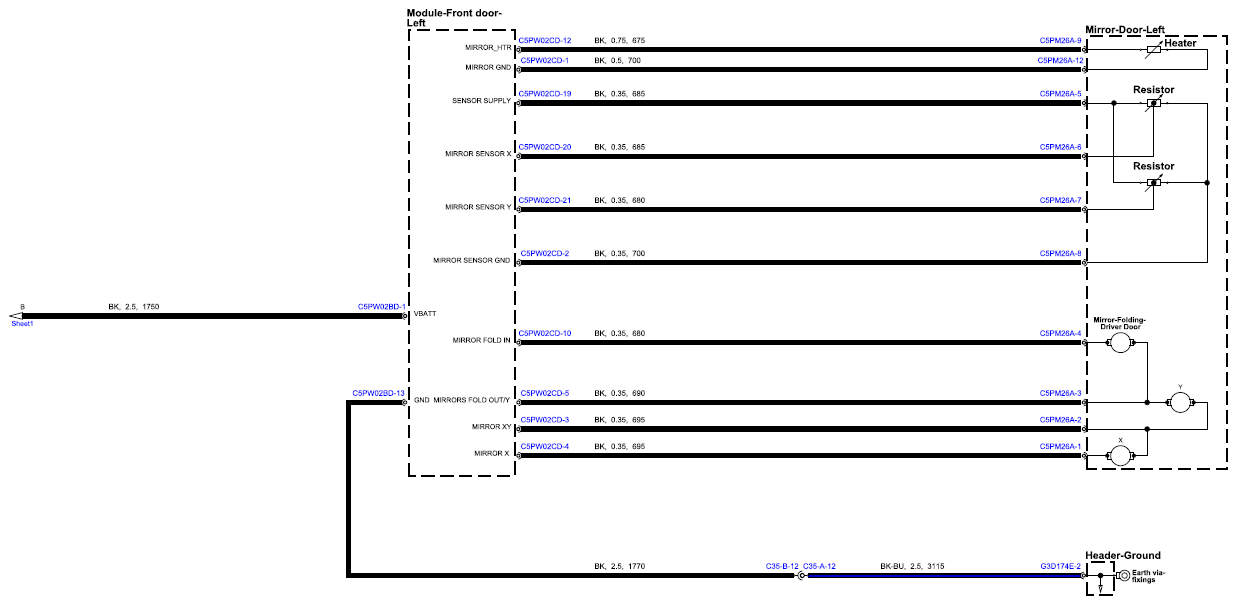

Fig 3: Rear View Mirrors Circuit Diagram - Mirror Movement (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
