OEM Wiring Diagrams -- I-Pace X590
>>
419-01 Anti-Theft System
>>
Passive start
Passive start

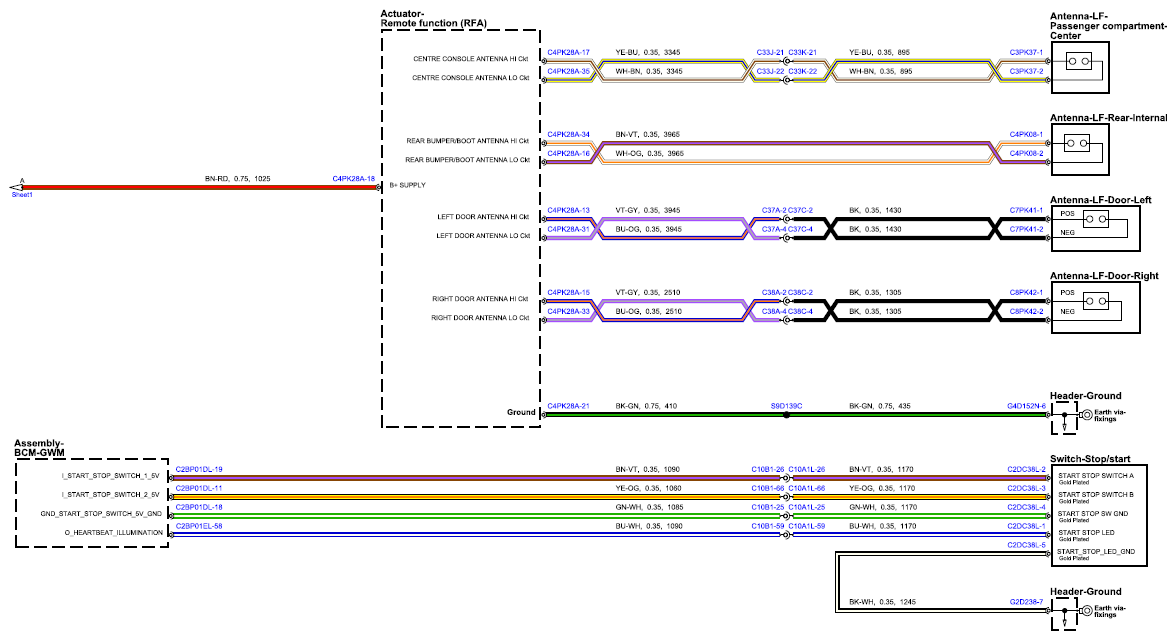

Fig 1: Anti-Theft System Circuit Diagram - Passive Start (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

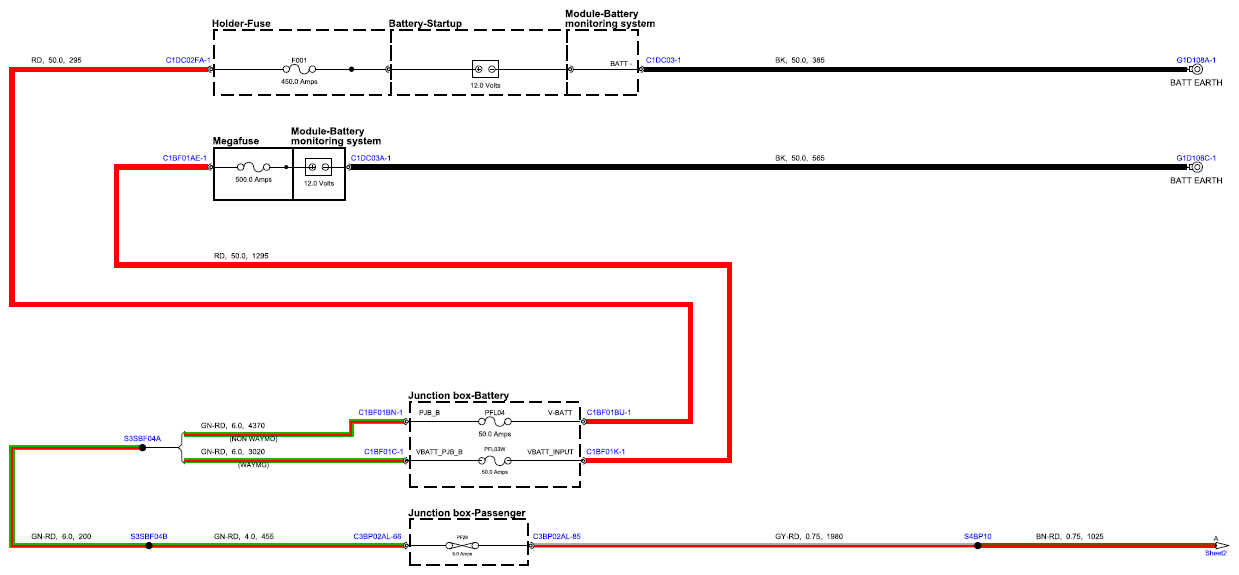

Fig 2: Anti-Theft System Circuit Diagram - Passive Start (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
