419-01 Anti-Theft System: Active

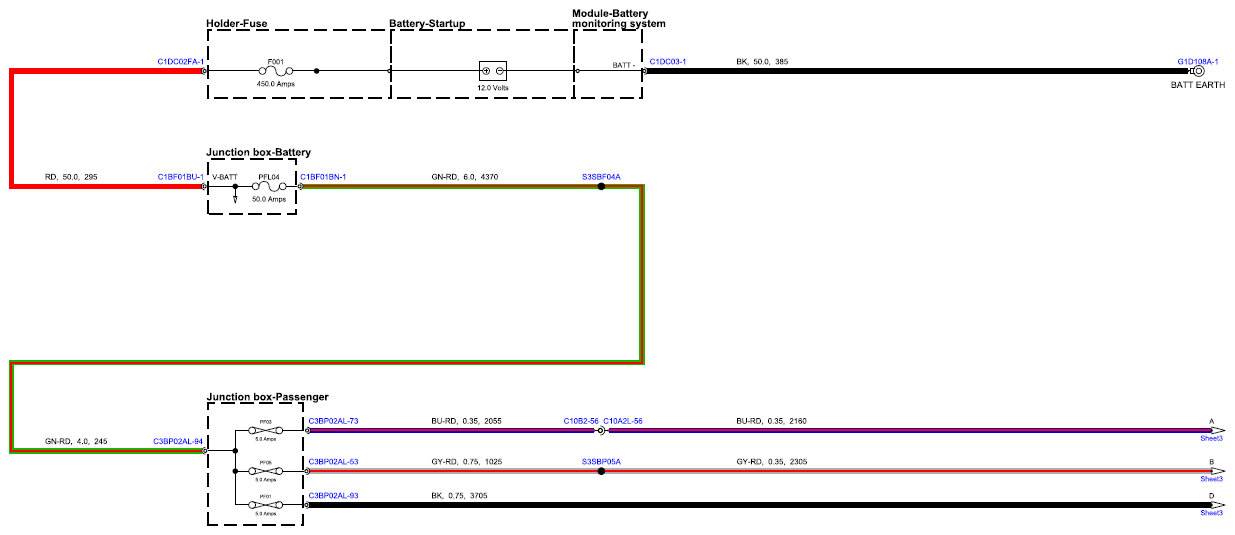

Fig 1: Anti-Theft System Circuit Diagram - Active (Sheet 1)
G15680724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

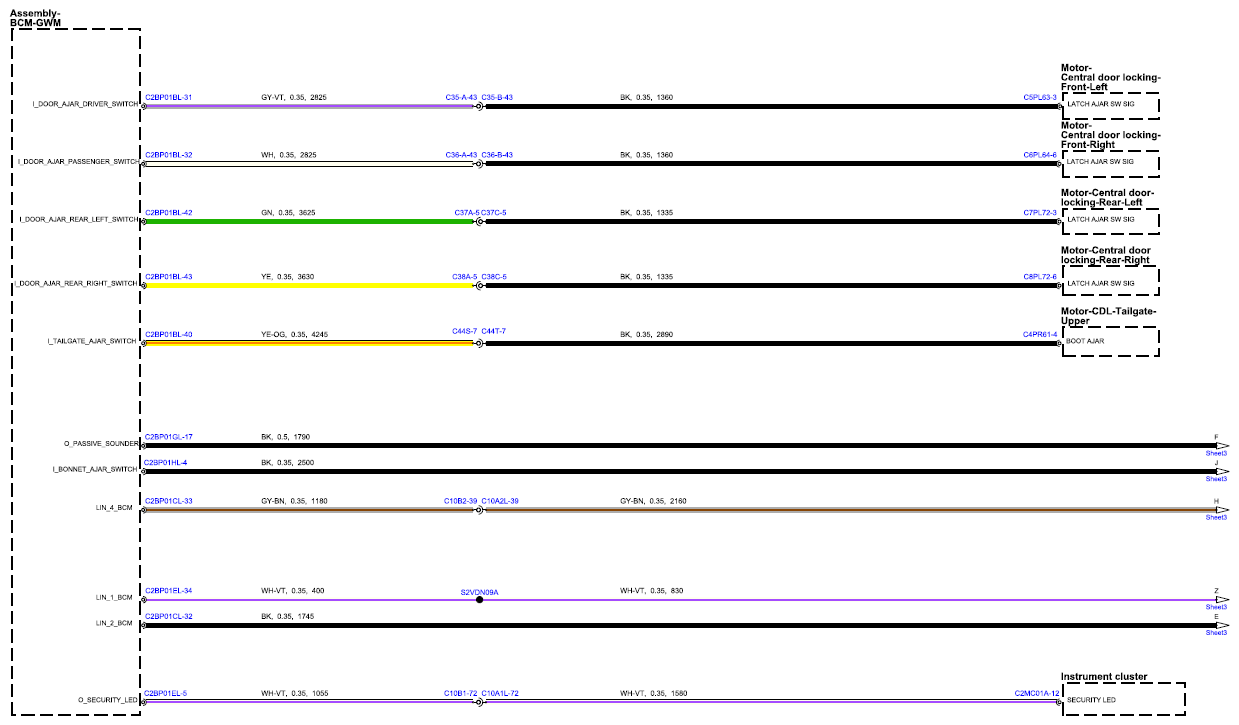

Fig 2: Anti-Theft System Circuit Diagram - Active (Sheet 2)
G15680725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

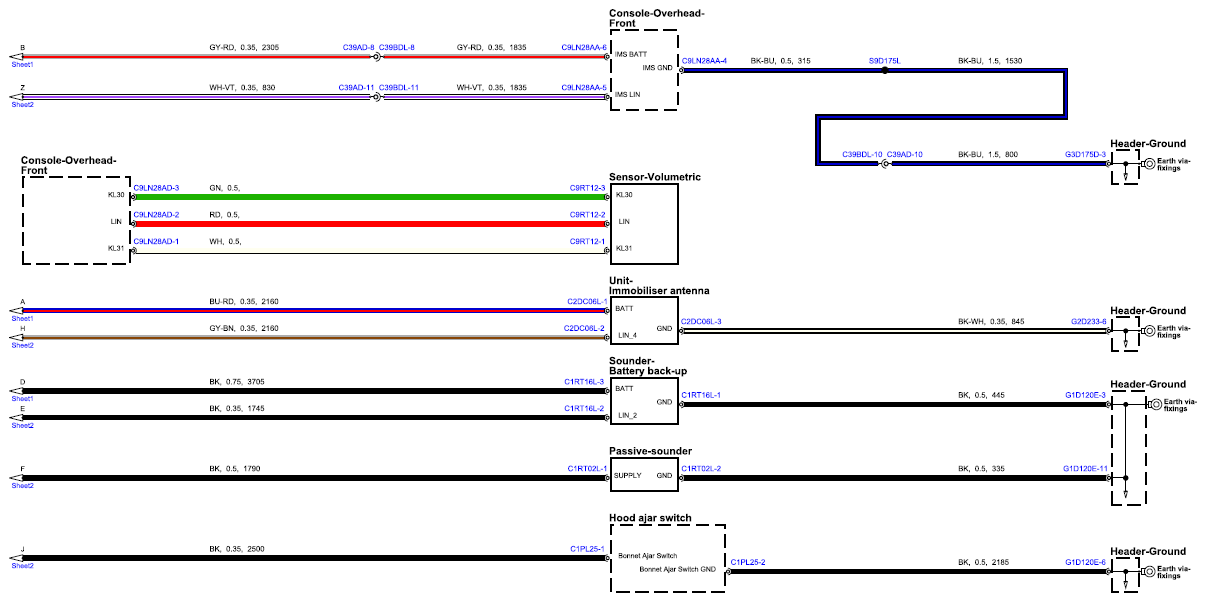

Fig 3: Anti-Theft System Circuit Diagram - Active (Sheet 3)
G15680726Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
