Jaguar
>>
2021
>>
I-Pace S
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- I-Pace X590
>>
418-00 Module Communications Network
>>
CAN bus - High speed - HMI systems
CAN bus - High speed - HMI systems

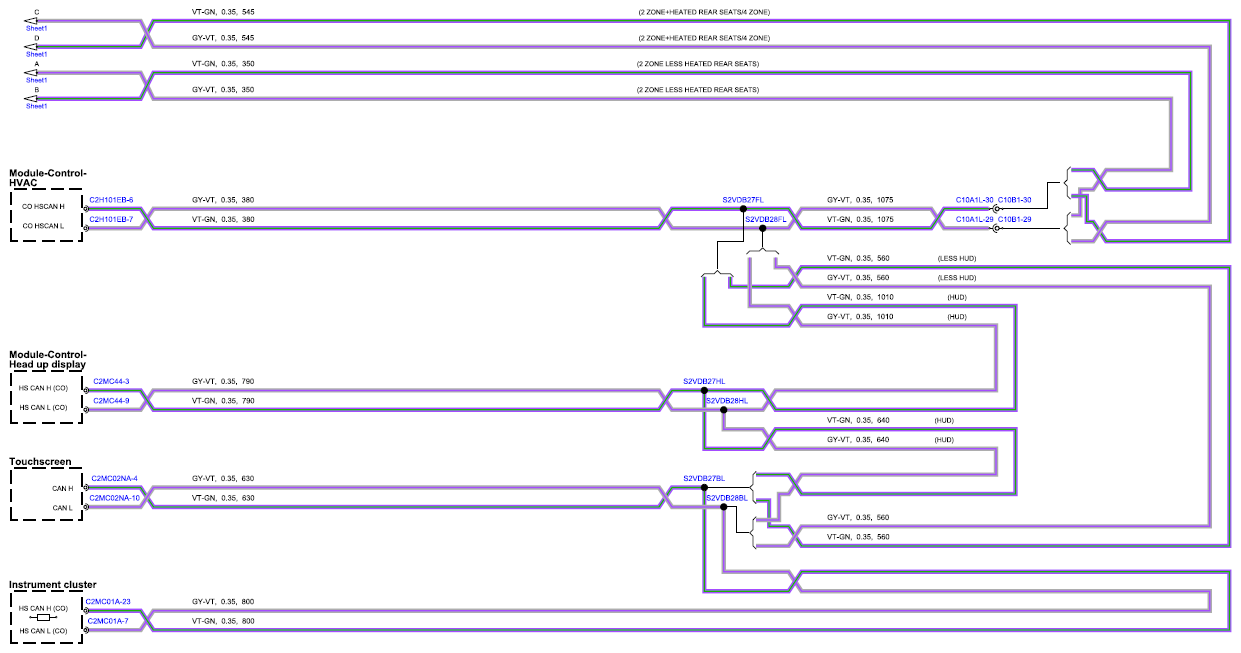

Fig 1: CAN Bus - High Speed - HMI Systems Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

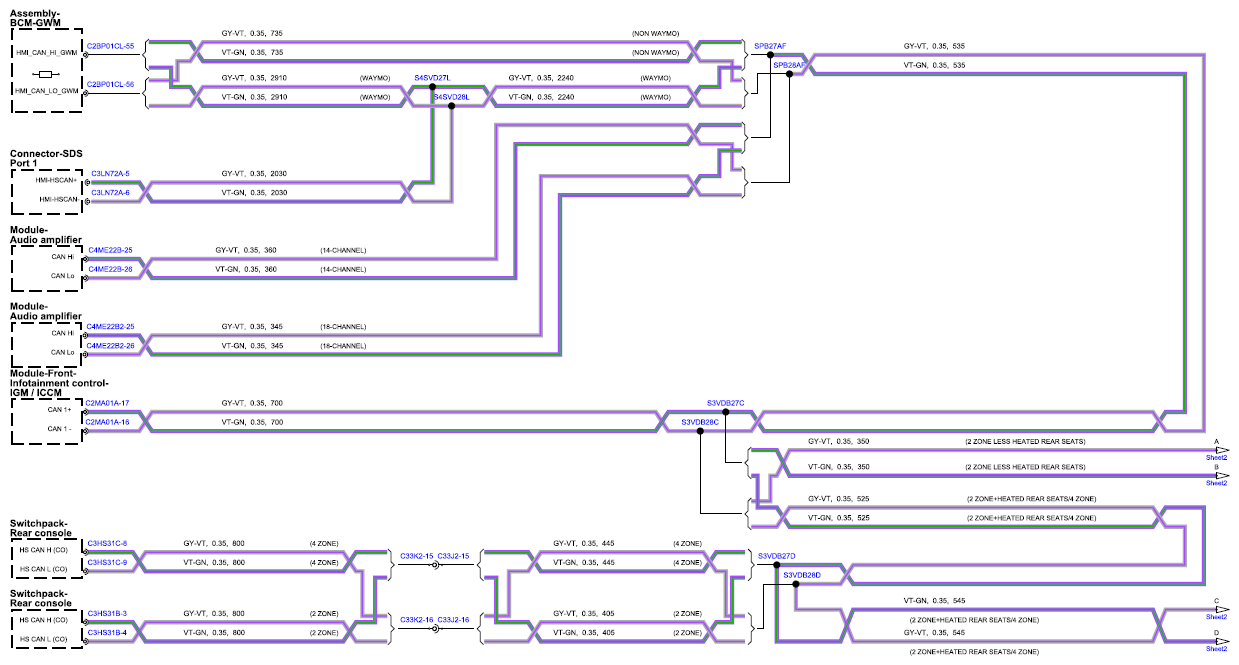

Fig 2: CAN Bus - High Speed - HMI Systems Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
