Wireless Device Charger

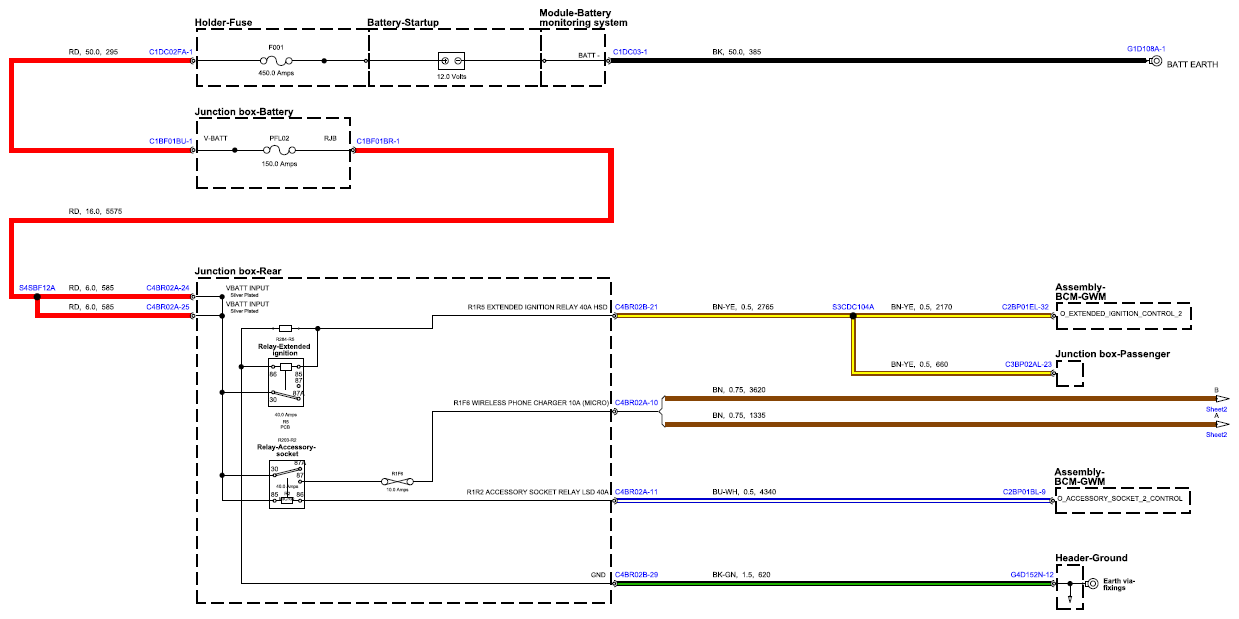

Fig 1: Wireless Device Charger Circuit Diagram (Sheet 1)
G15680681Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

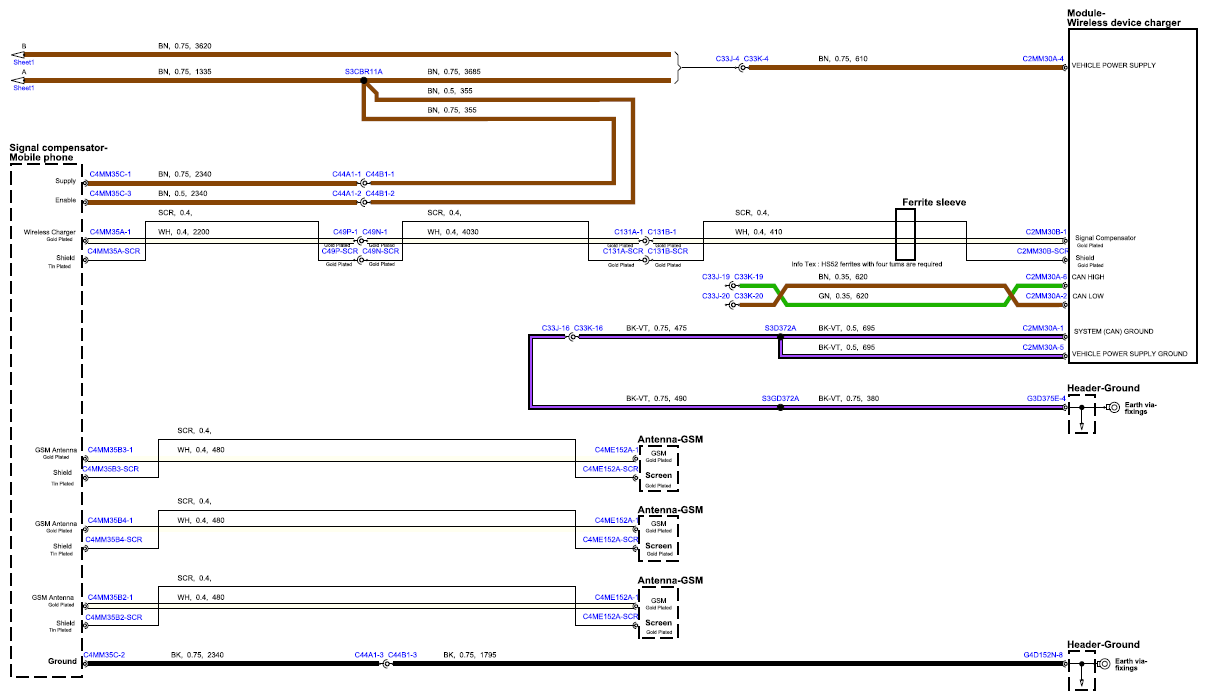

Fig 2: Wireless Device Charger Circuit Diagram (Sheet 2)
G15680682Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
