415-00 Information And Entertainment System: Waymo

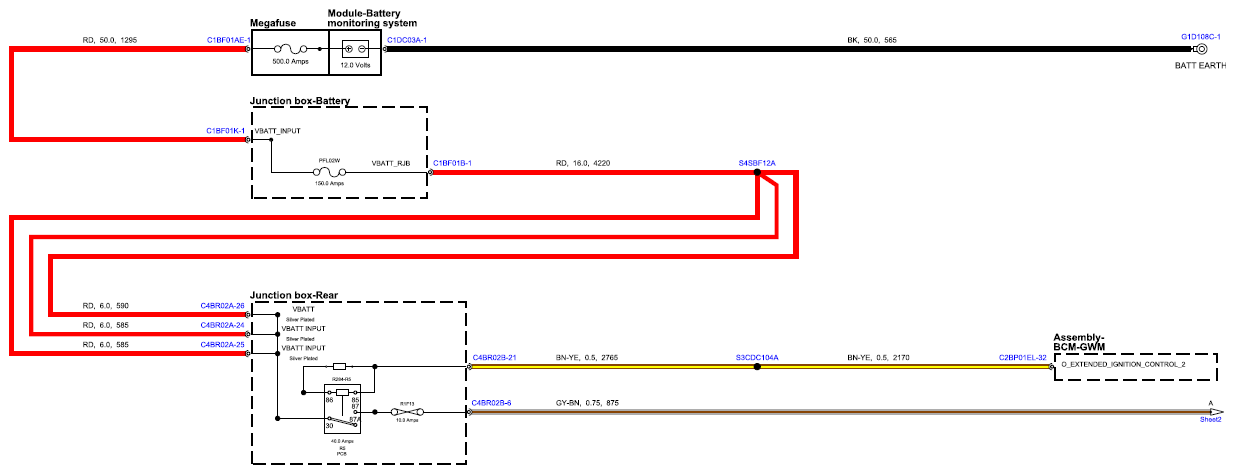

Fig 1: Information And Entertainment System Circuit Diagram - Waymo (Sheet 1)
G15680683Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

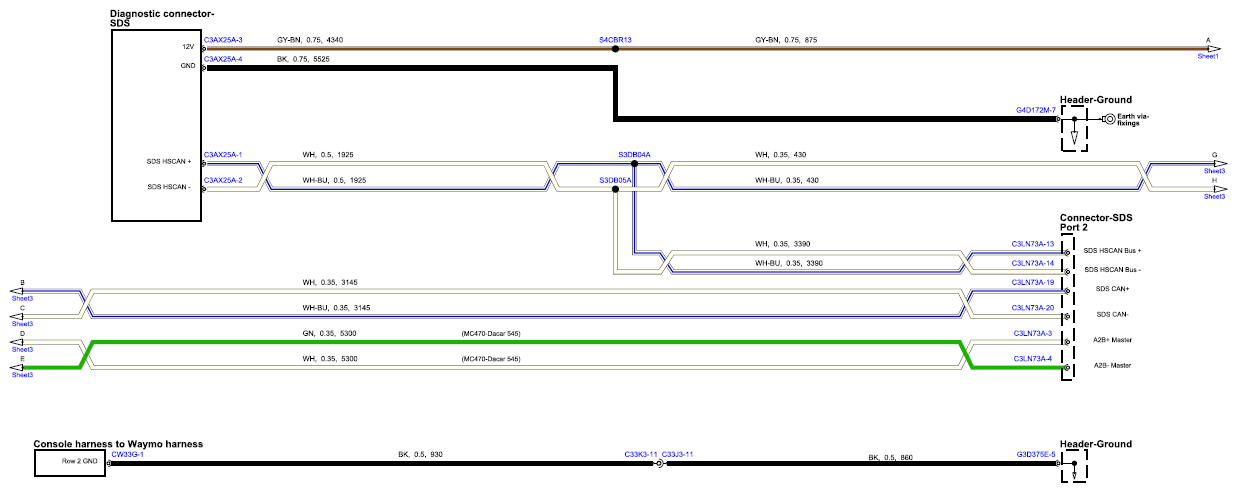

Fig 2: Information And Entertainment System Circuit Diagram - Waymo (Sheet 2)
G15680684Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

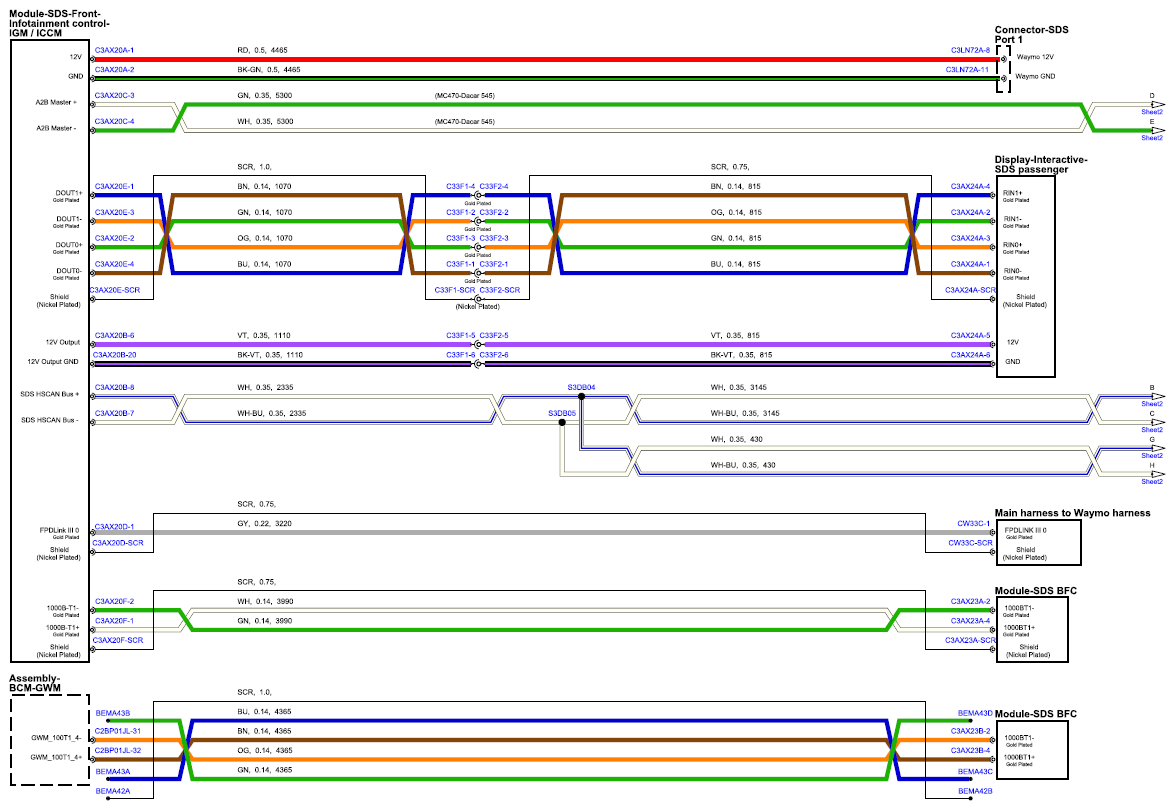

Fig 3: Information And Entertainment System Circuit Diagram - Waymo (Sheet 3)
G15680685Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
