Interior Engine Noise Cancellation

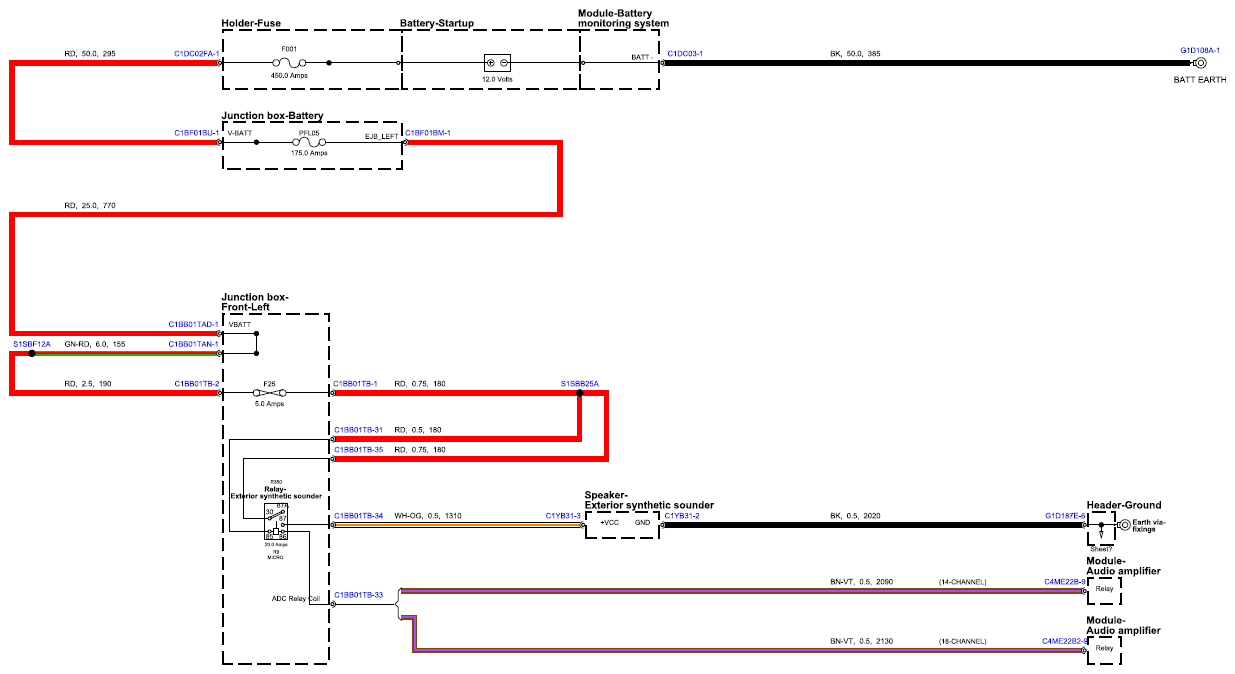

Fig 1: Interior Engine Noise Cancellation Circuit Diagram (Sheet 1)
G15492936Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

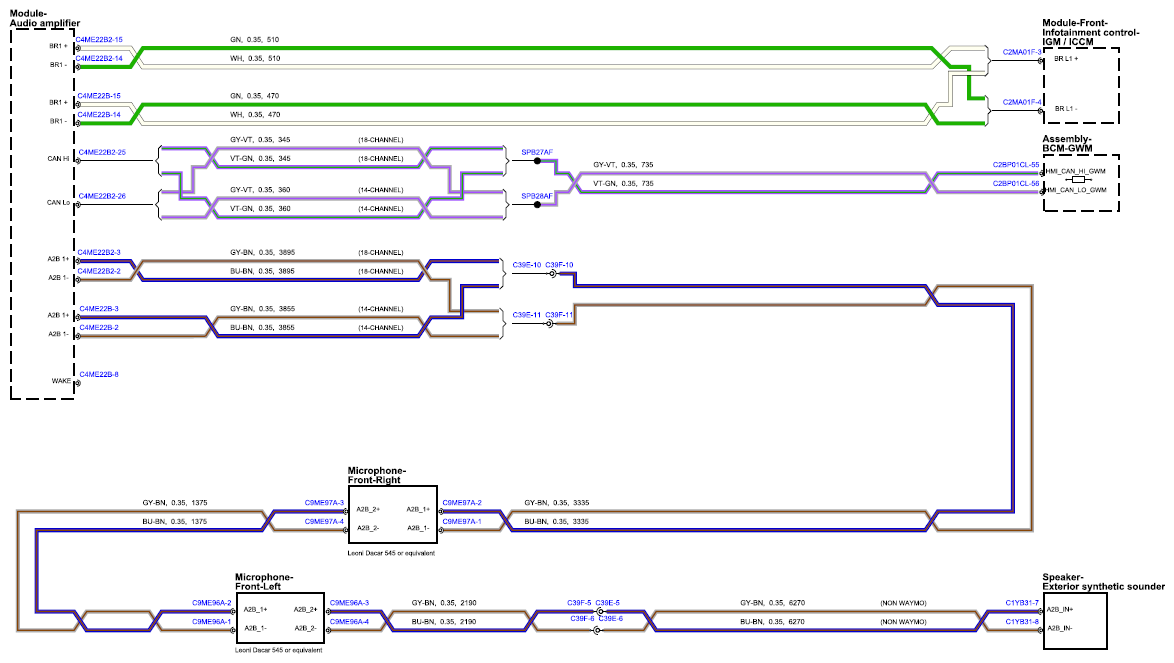

Fig 2: Interior Engine Noise Cancellation Circuit Diagram (Sheet 2)
G15680680Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
