Audio system

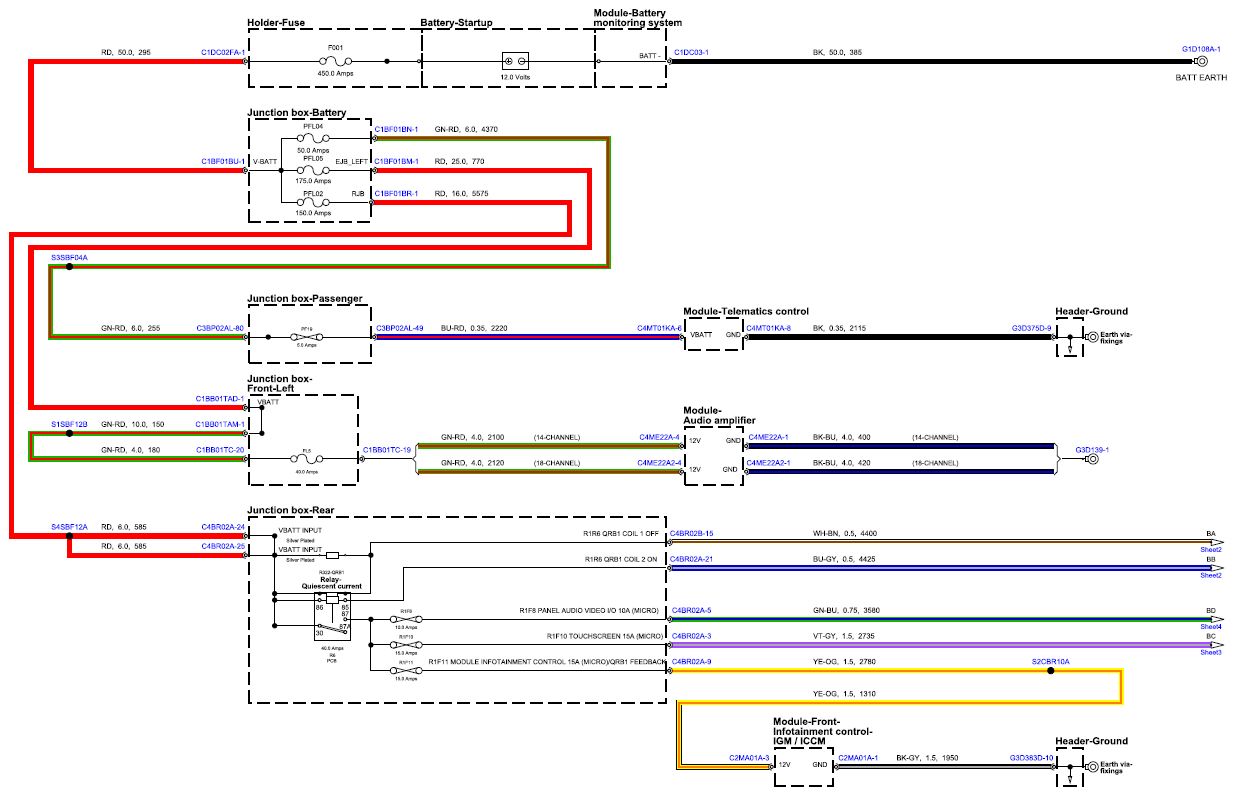

Fig 1: Audio System Circuit Diagram (Sheet 1)

G15680664

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

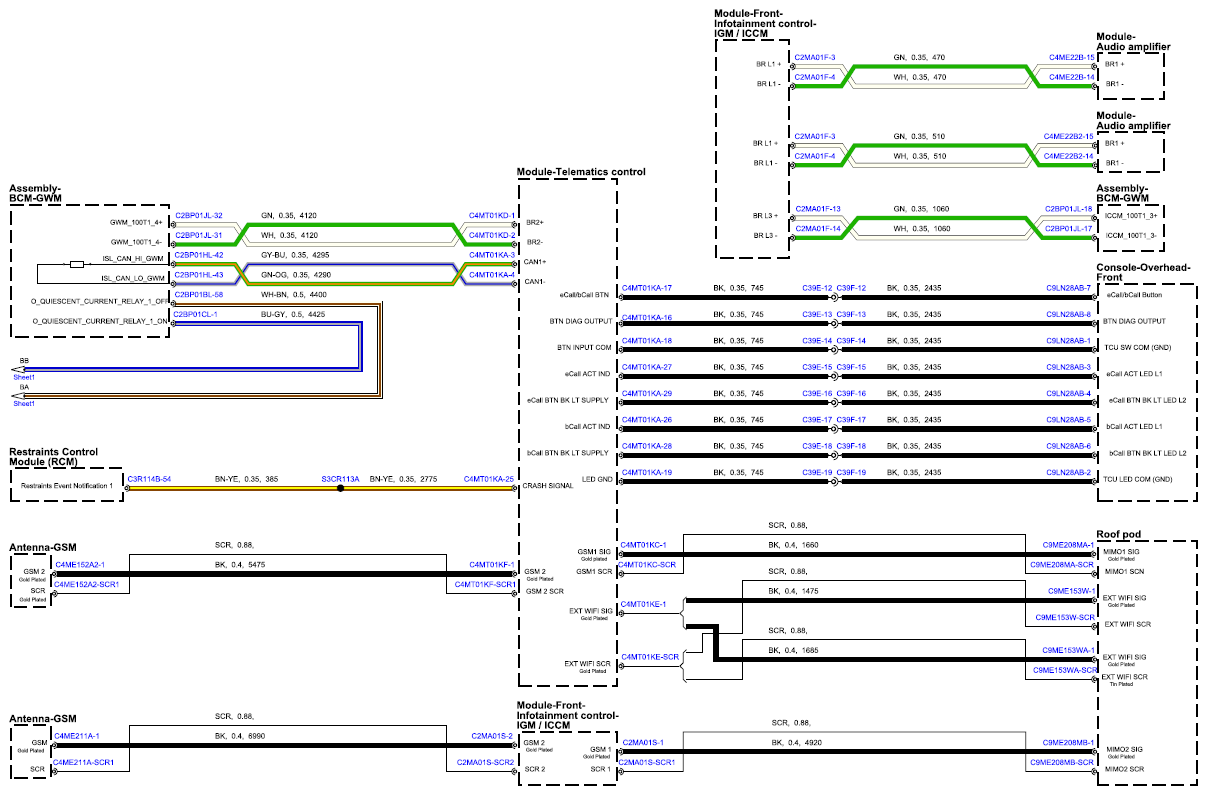

Fig 2: Audio System Circuit Diagram (Sheet 2)

G15680665

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 3: Audio System Circuit Diagram (Sheet 3)

G15680666

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

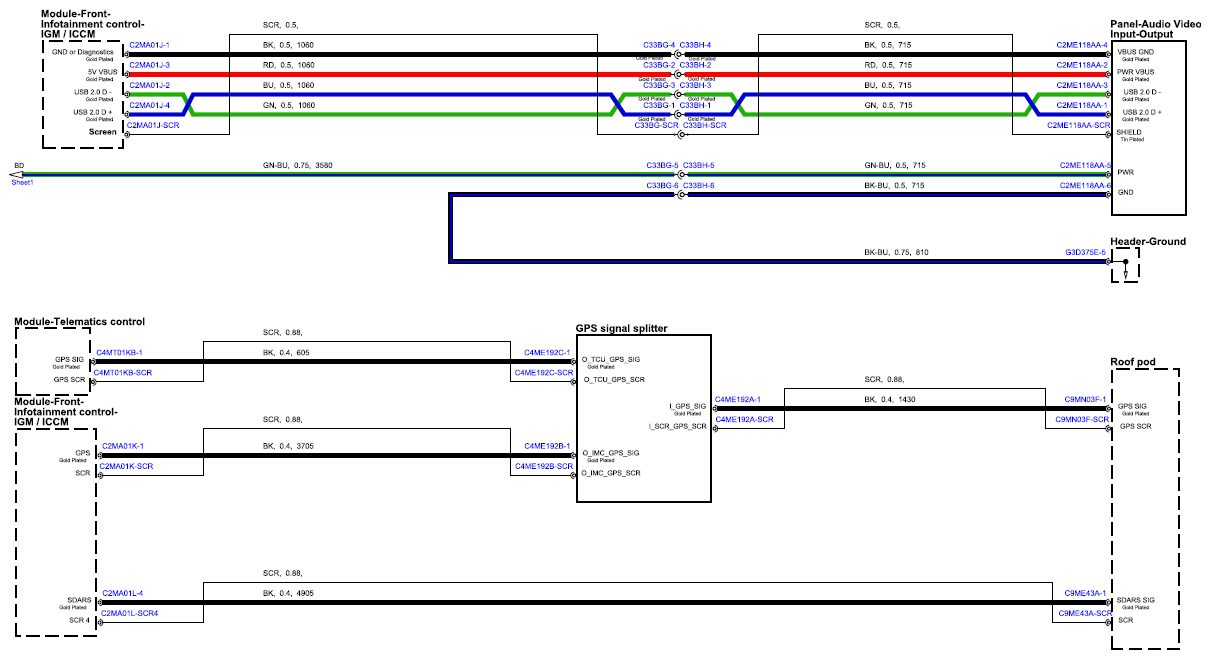

Fig 4: Audio System Circuit Diagram (Sheet 4)

G15680667

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

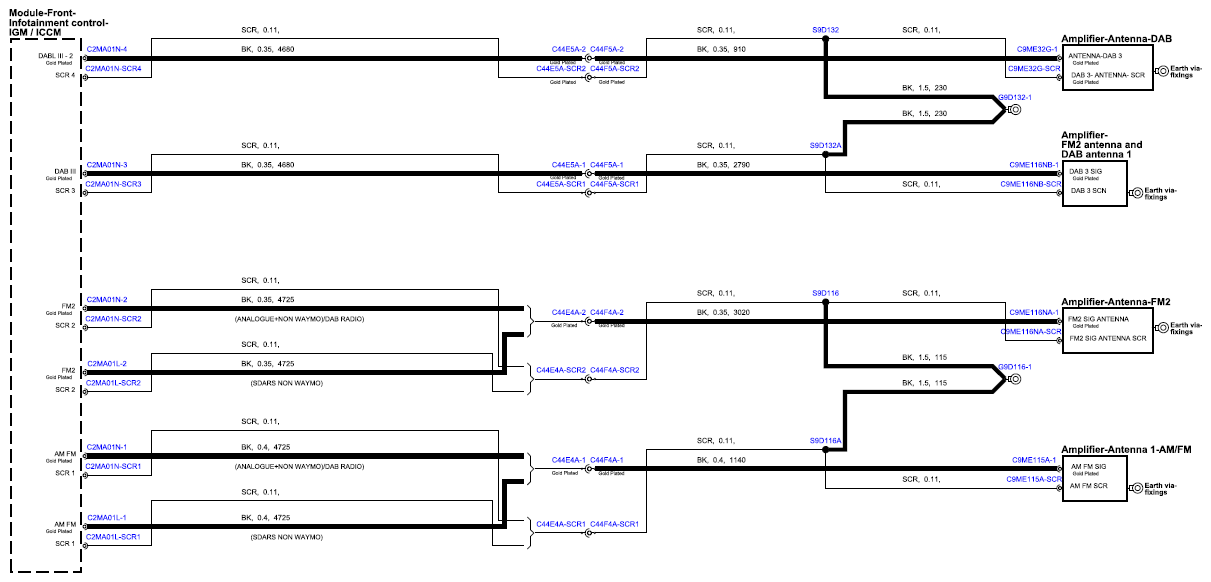

Fig 5: Audio System Circuit Diagram (Sheet 5)

G15680668

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

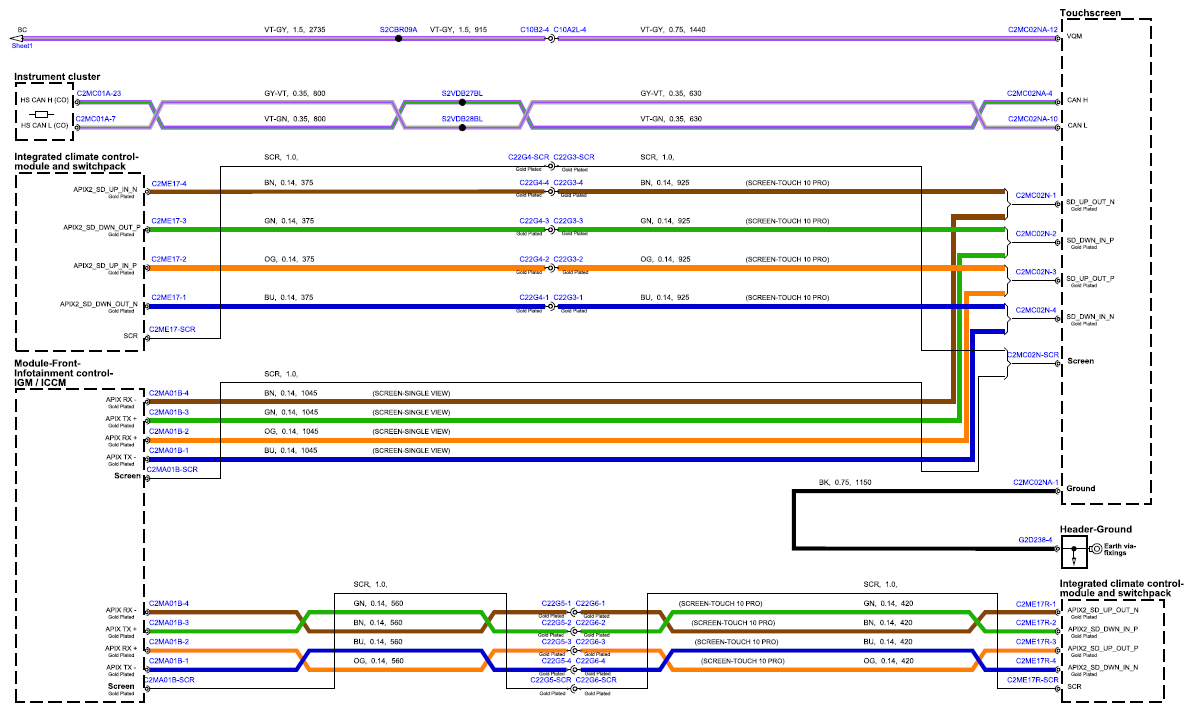

Fig 6: Audio System Circuit Diagram (Sheet 6)

G15680669

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

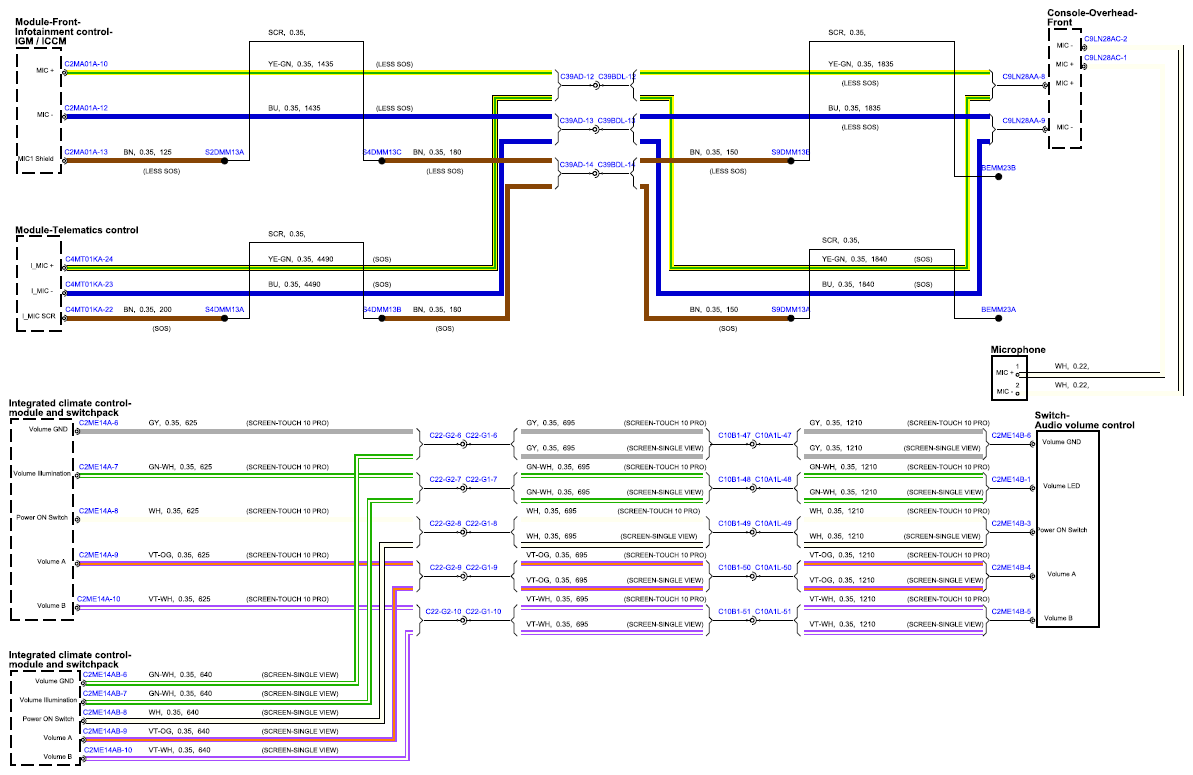

Fig 7: Audio System Circuit Diagram (Sheet 7)

G15680670

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
