OEM Wiring Diagrams -- I-Pace X590
>>
415-00 Information And Entertainment System
>>
12-Speaker system
12-Speaker system

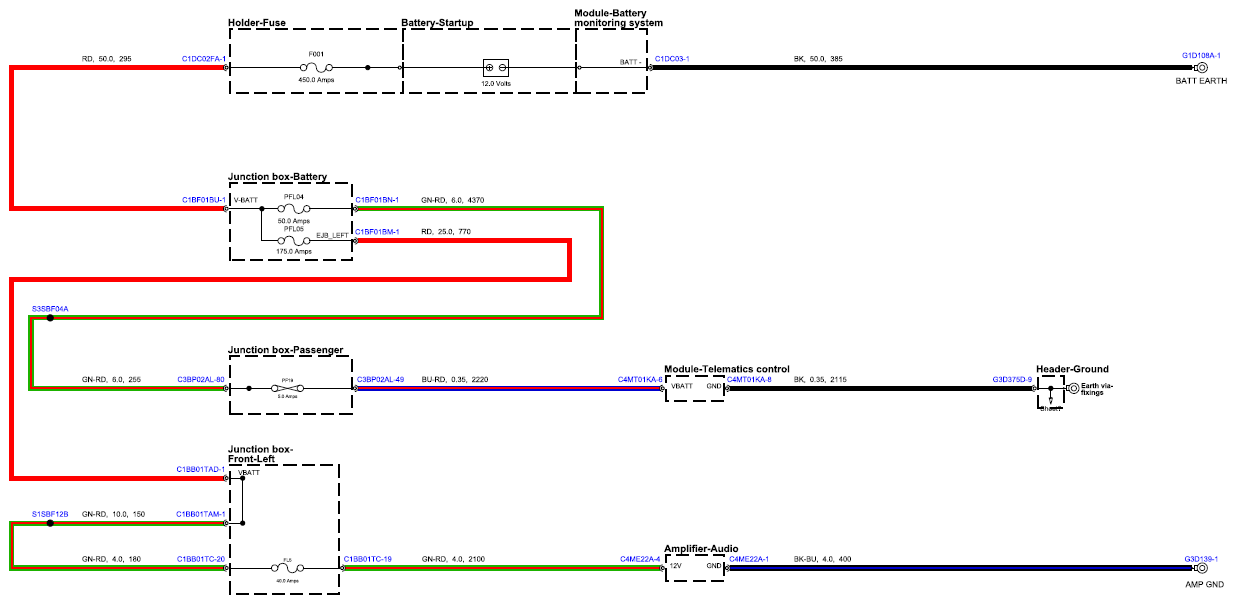

Fig 1: 12-Speaker System Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

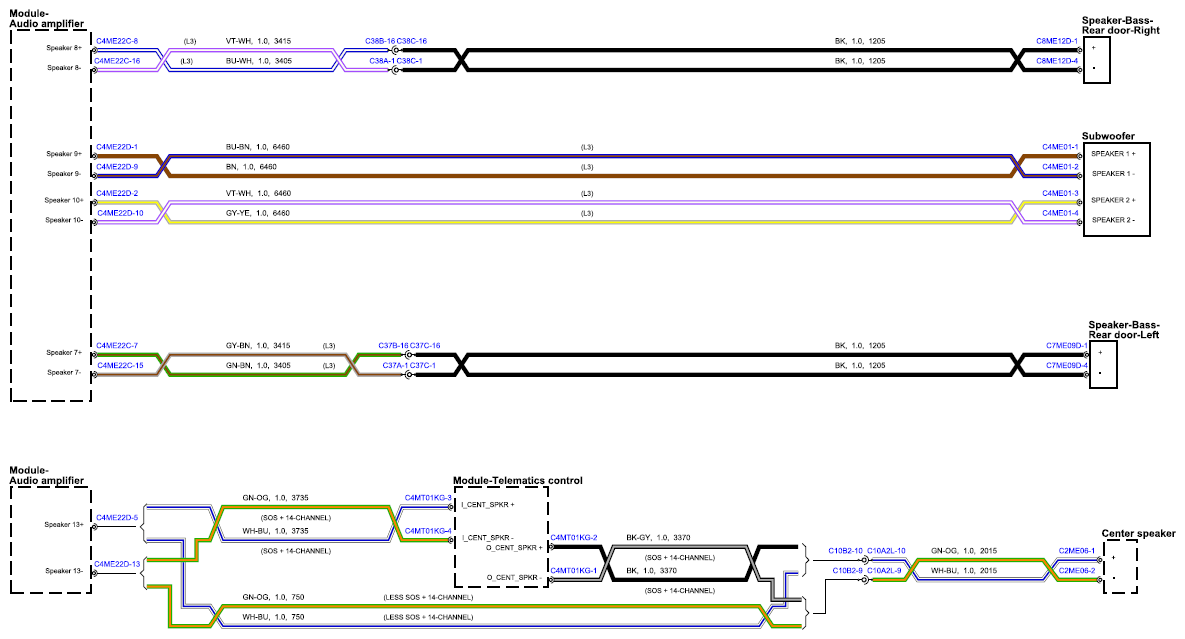

Fig 2: 12-Speaker System Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

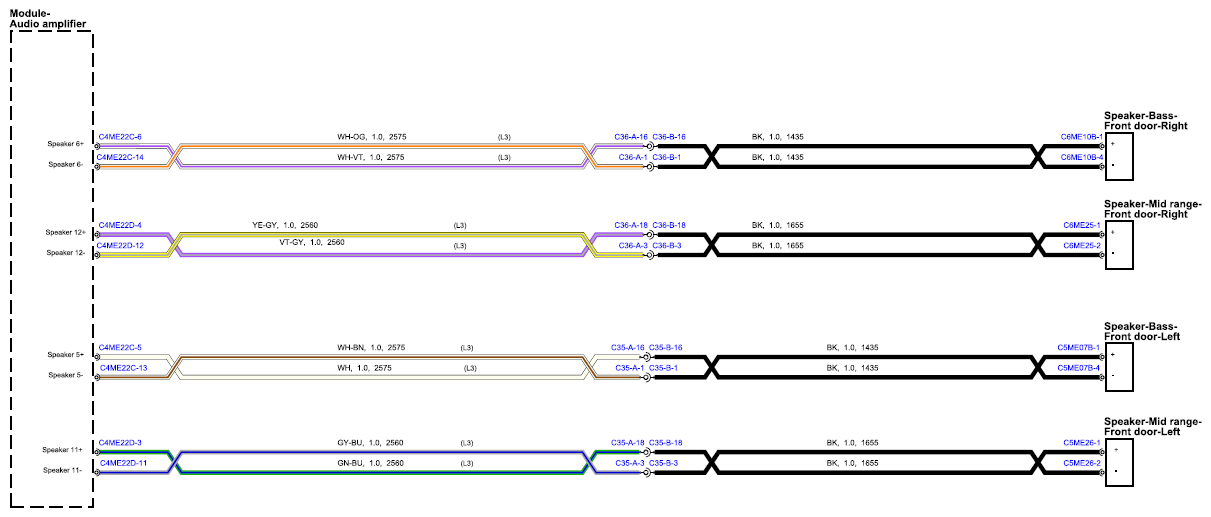

Fig 3: 12-Speaker System Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

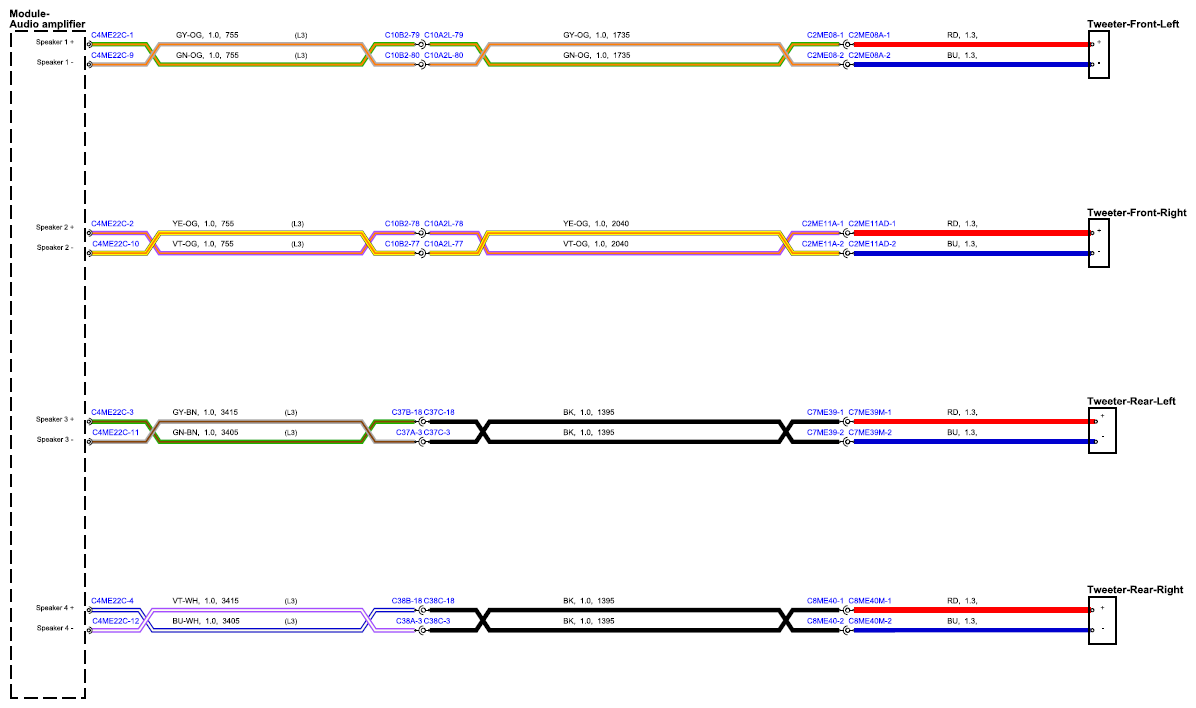

Fig 4: 12-Speaker System Circuit Diagram (Sheet 4)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
