414-03 Battery Charging: NAS

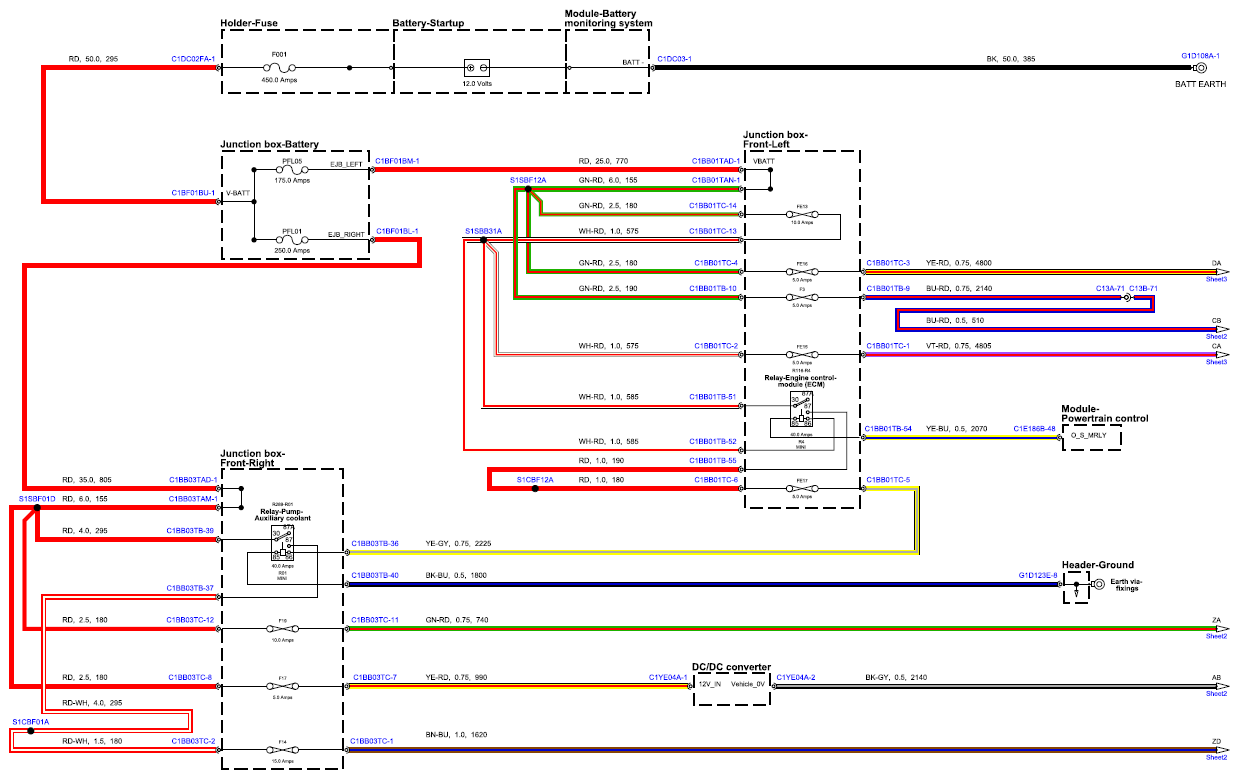

Fig 1: Battery Charging Circuit Diagram - NAS (Sheet 1)
G15680649Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

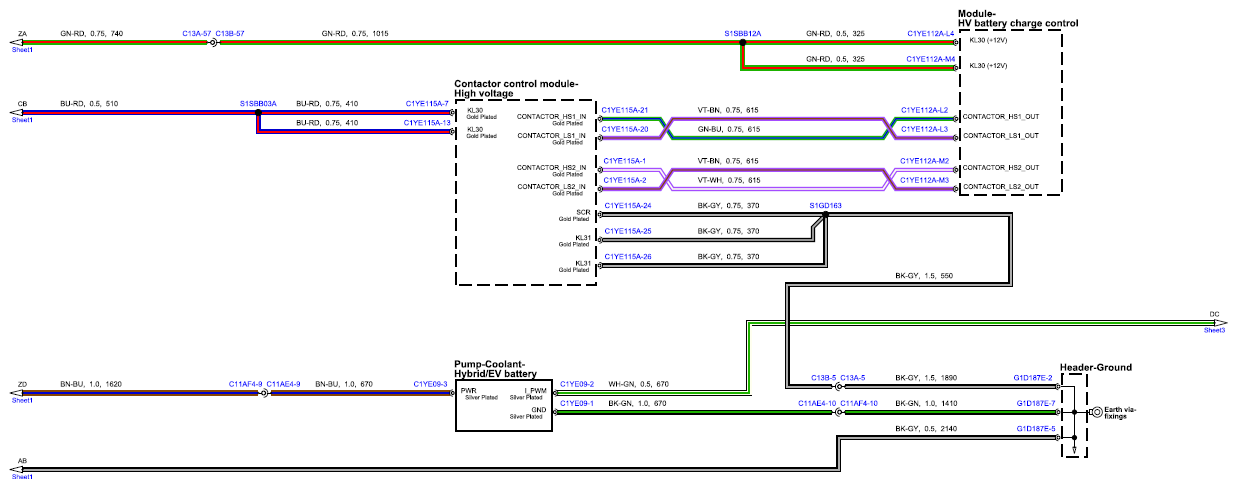

Fig 2: Battery Charging Circuit Diagram - NAS (Sheet 2)
G15680650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

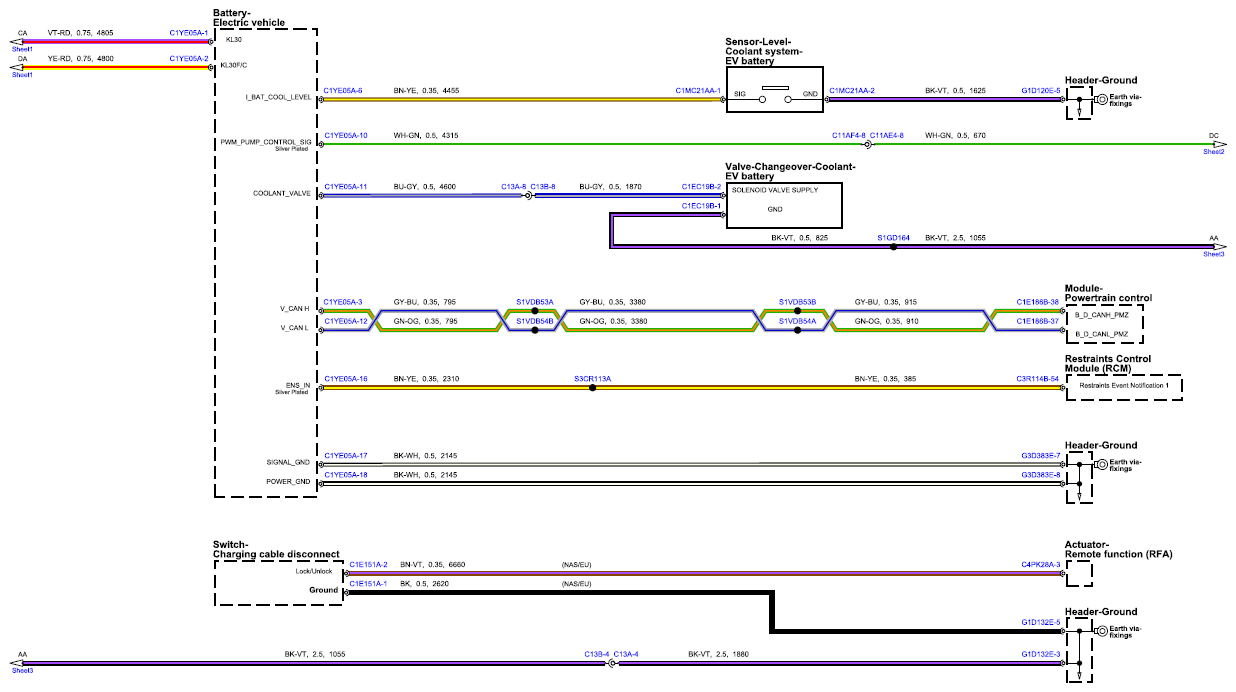

Fig 3: Battery Charging Circuit Diagram - NAS (Sheet 3)
G15680651Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

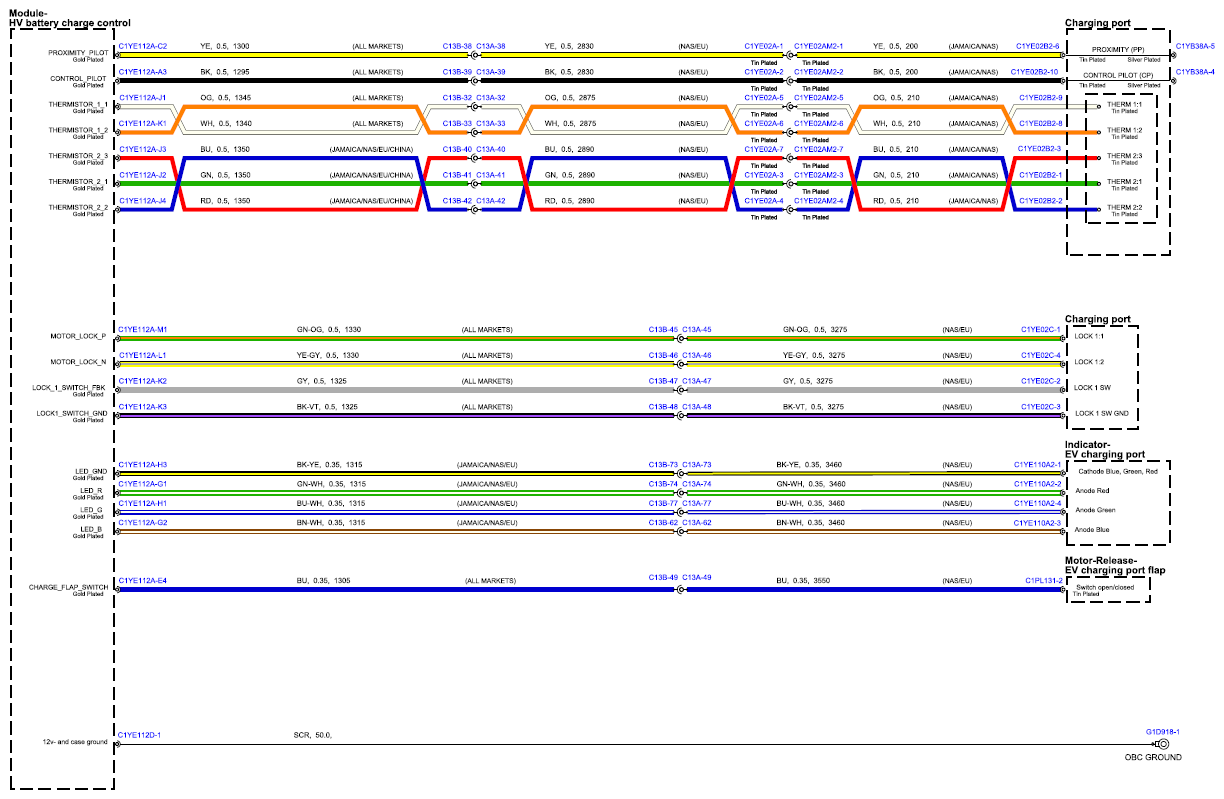

Fig 4: Battery Charging Circuit Diagram - NAS (Sheet 4)
G15680652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

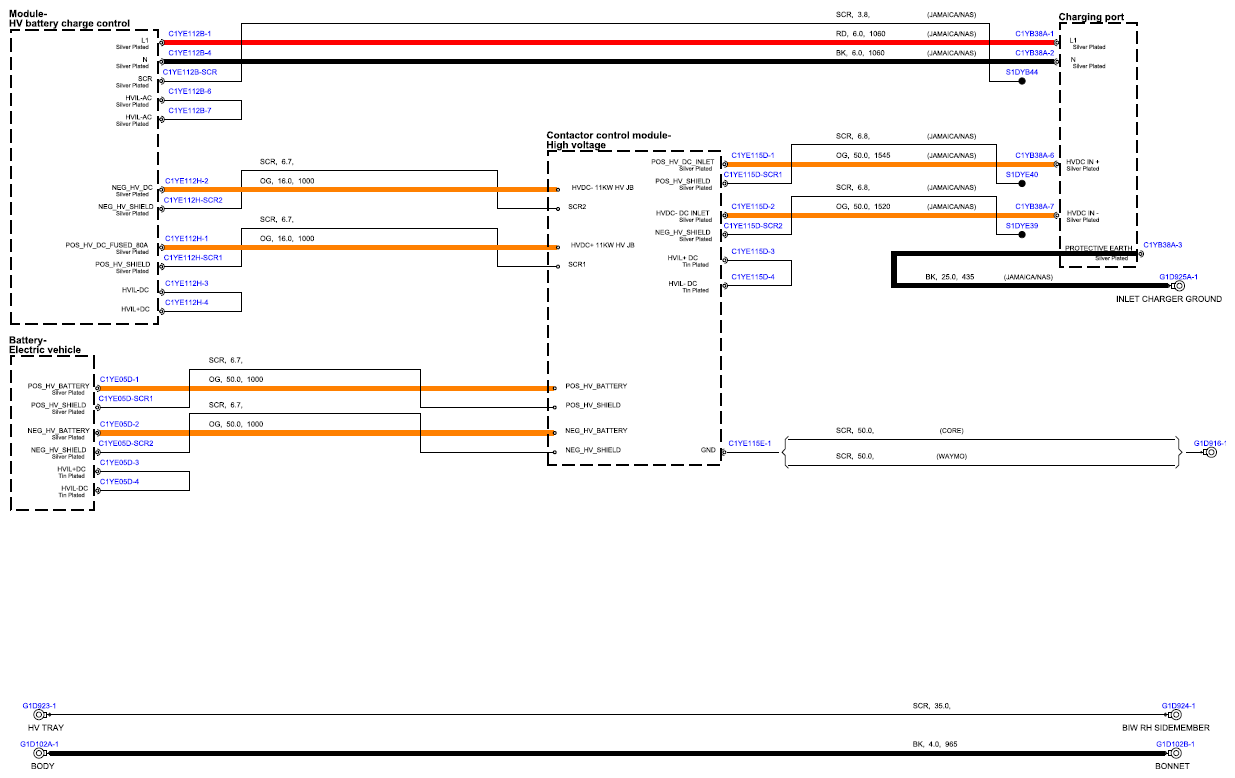

Fig 5: Battery Charging Circuit Diagram - NAS (Sheet 5)
G15680653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
