EV battery

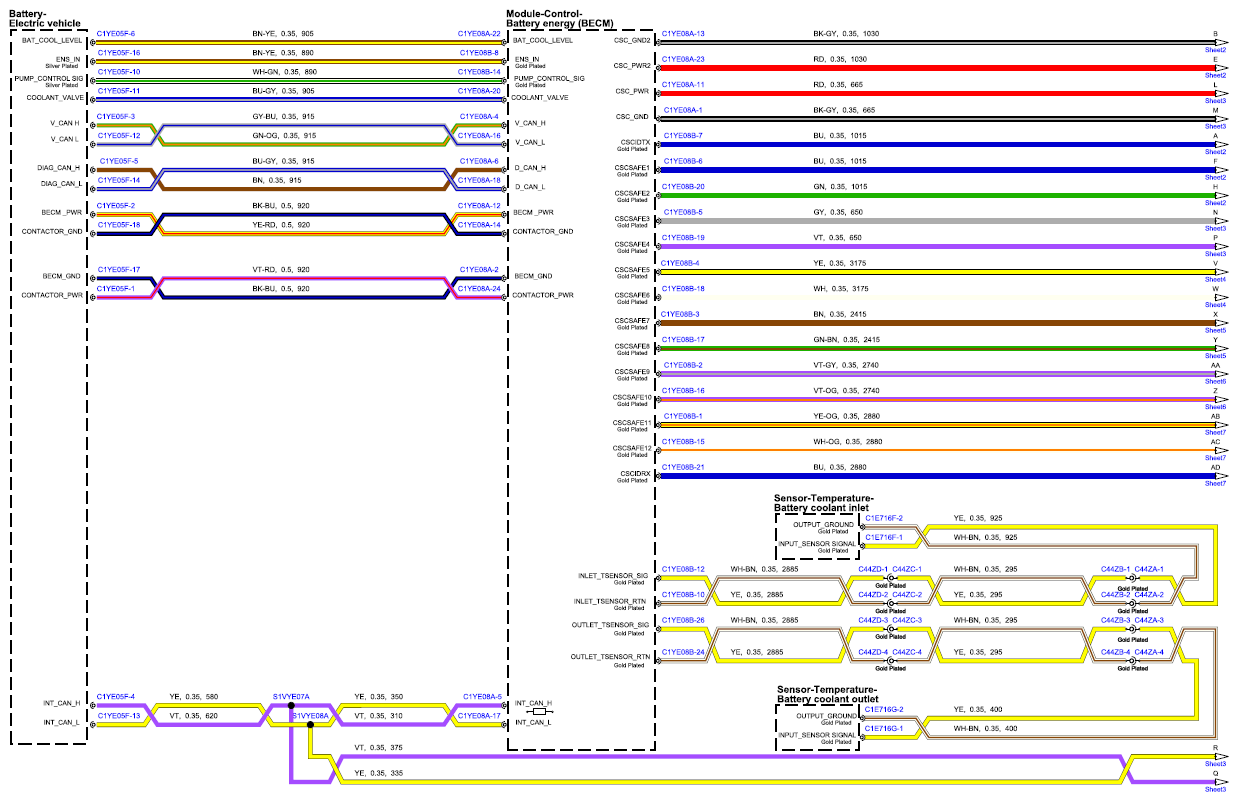

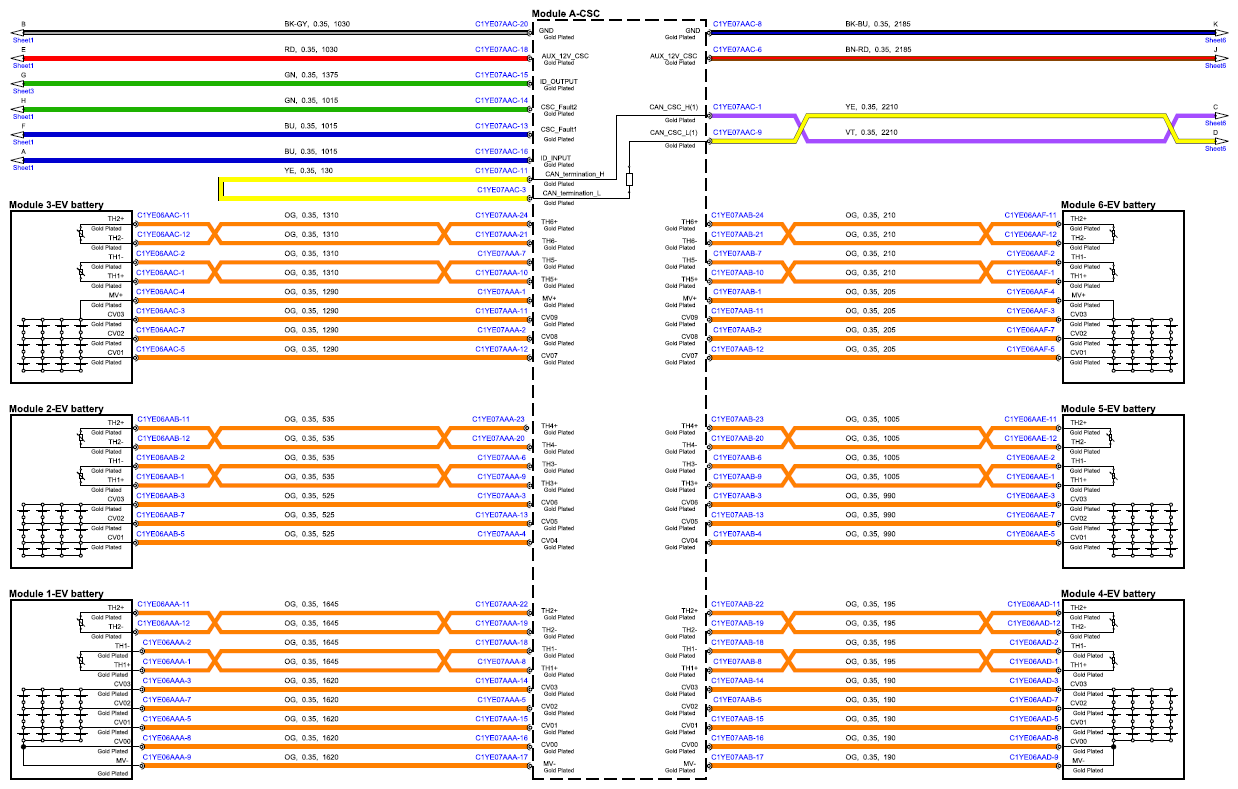

Fig 1: Battery Charging Circuit Diagram - EV Battery (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

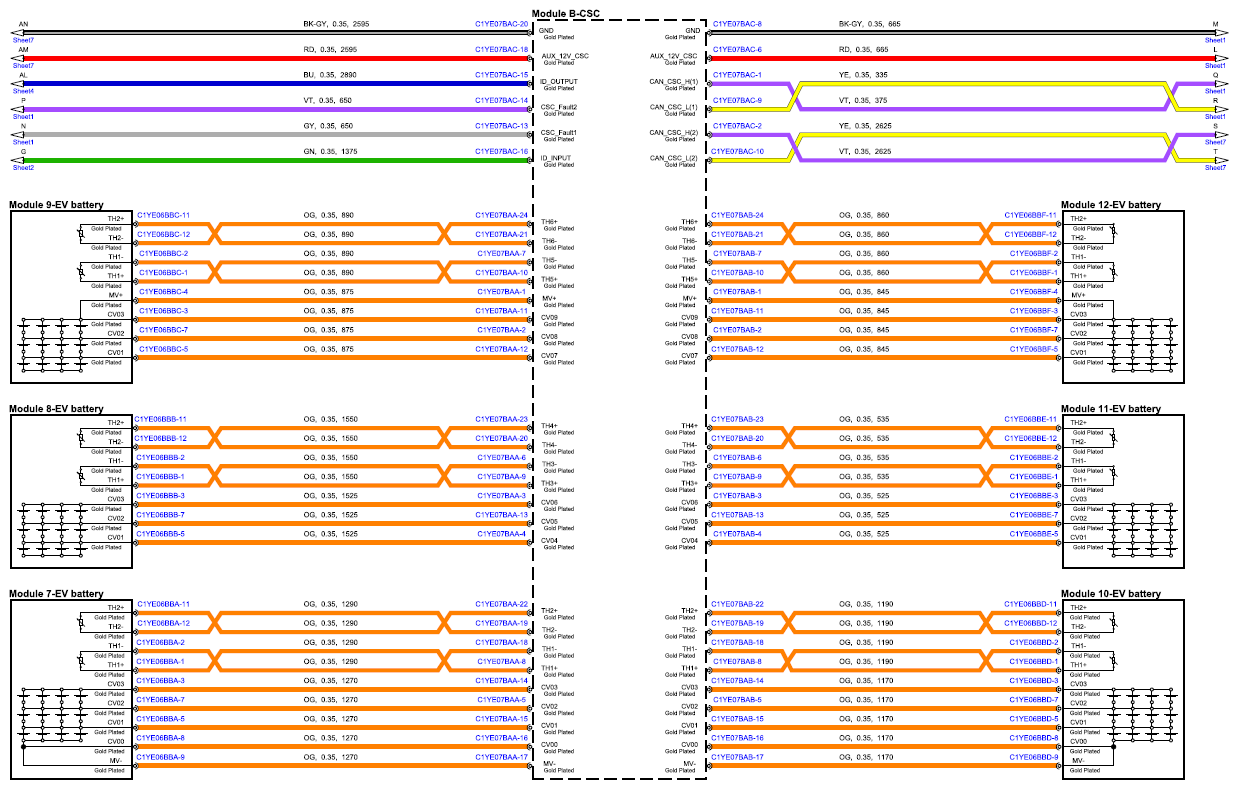

Fig 2: Battery Charging Circuit Diagram - EV Battery (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

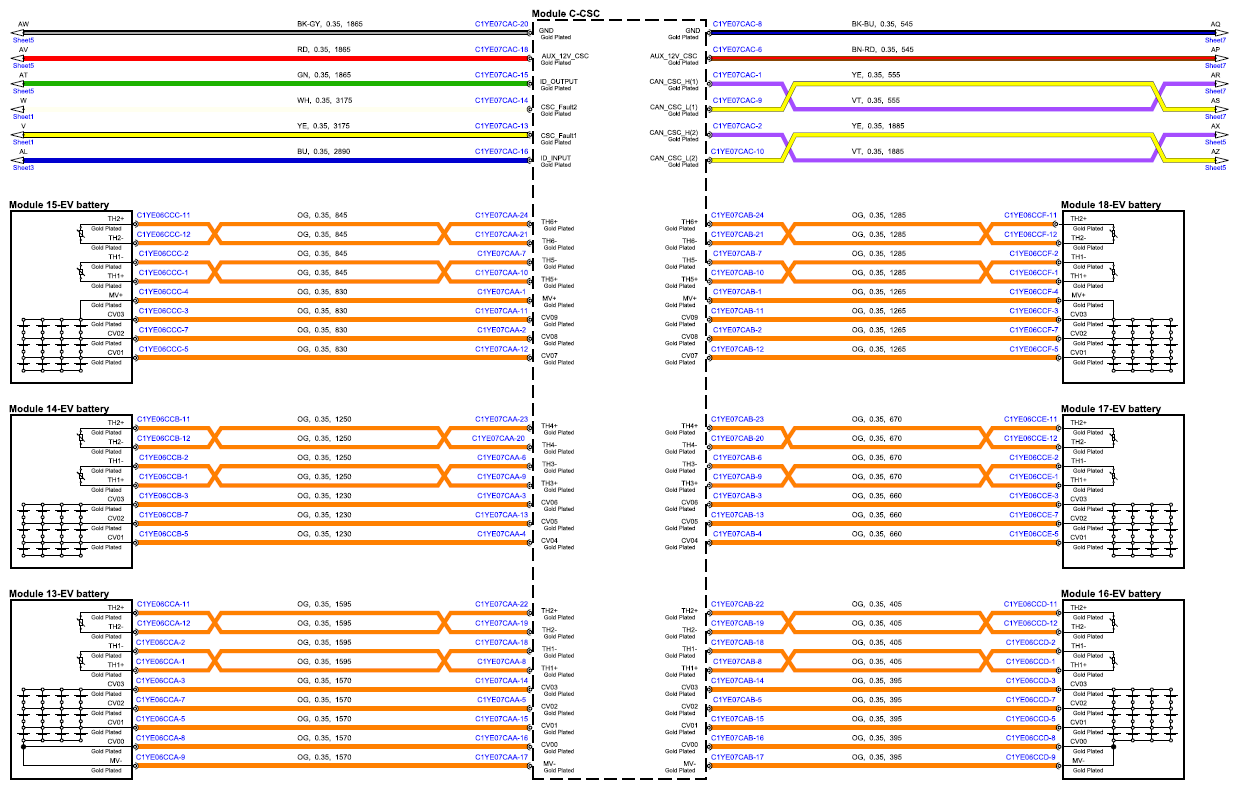

Fig 3: Battery Charging Circuit Diagram - EV Battery (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 4: Battery Charging Circuit Diagram - EV Battery (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 5: Battery Charging Circuit Diagram - EV Battery (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

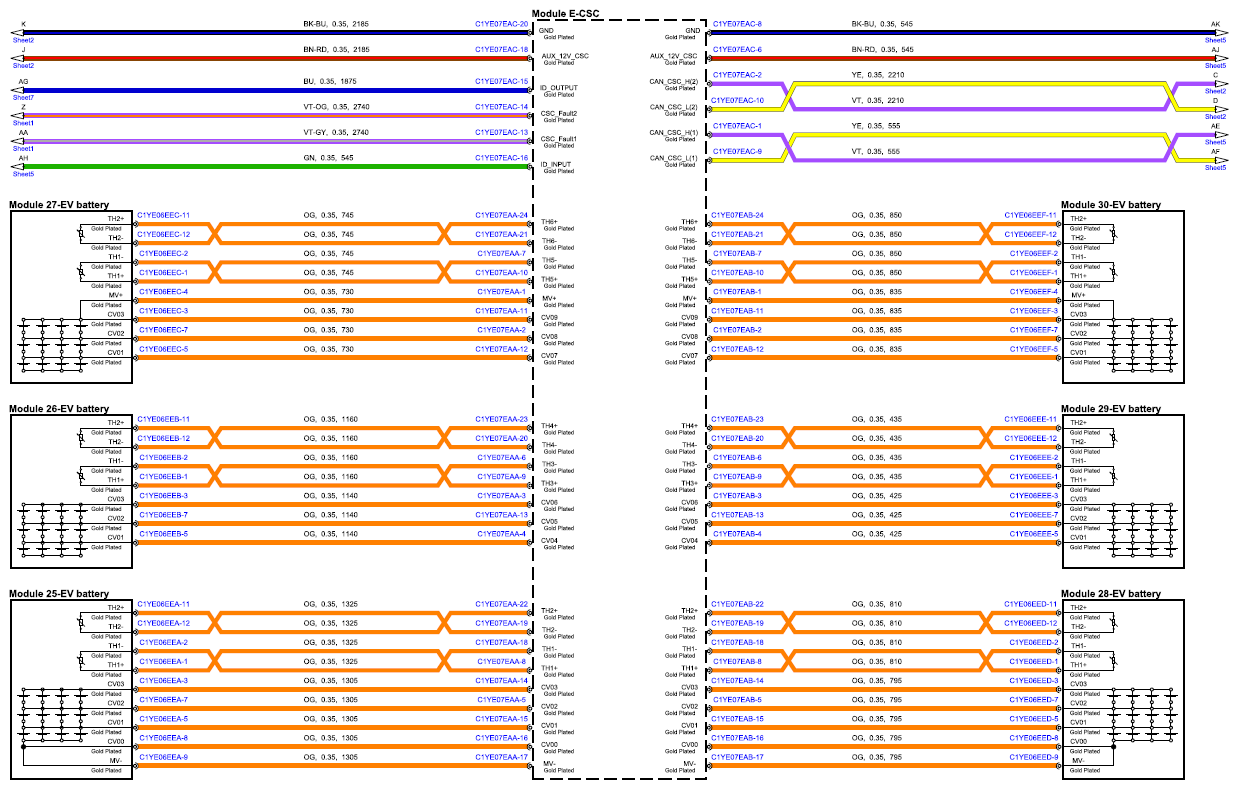

Fig 6: Battery Charging Circuit Diagram - EV Battery (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

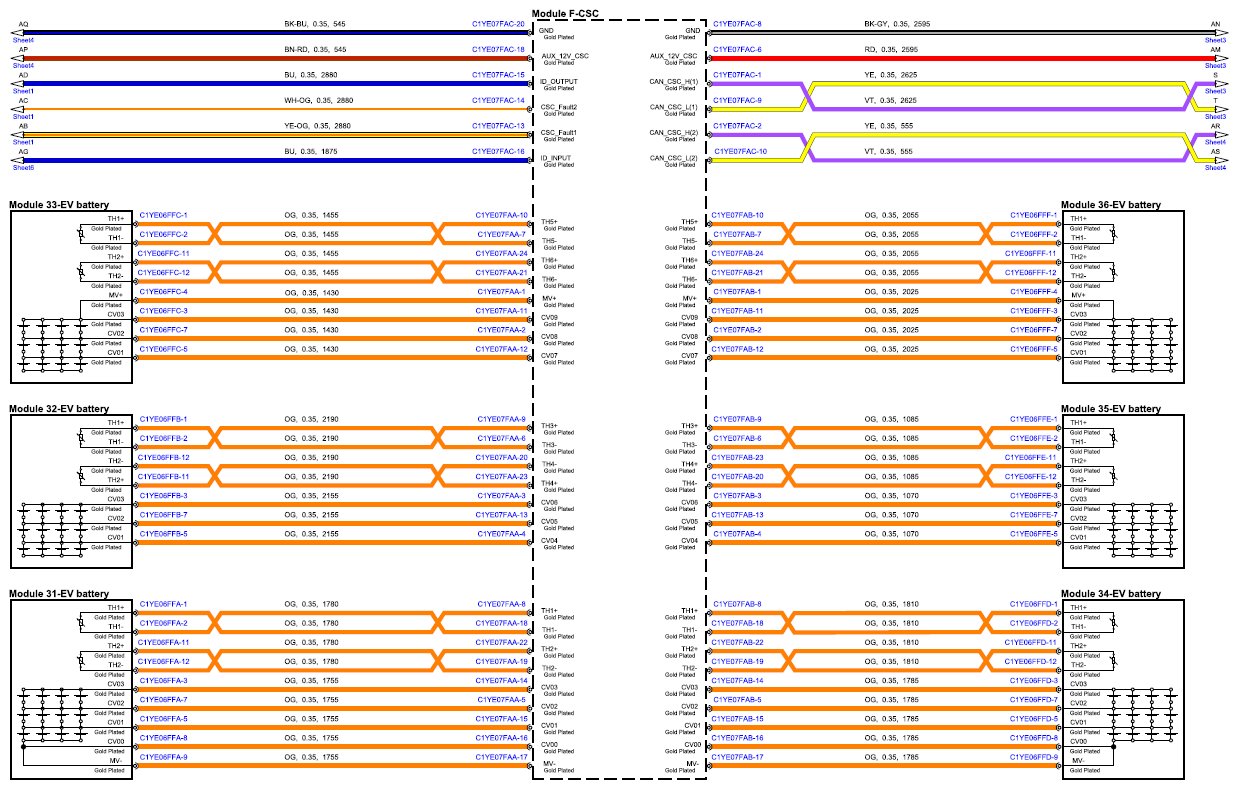

Fig 7: Battery Charging Circuit Diagram - EV Battery (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

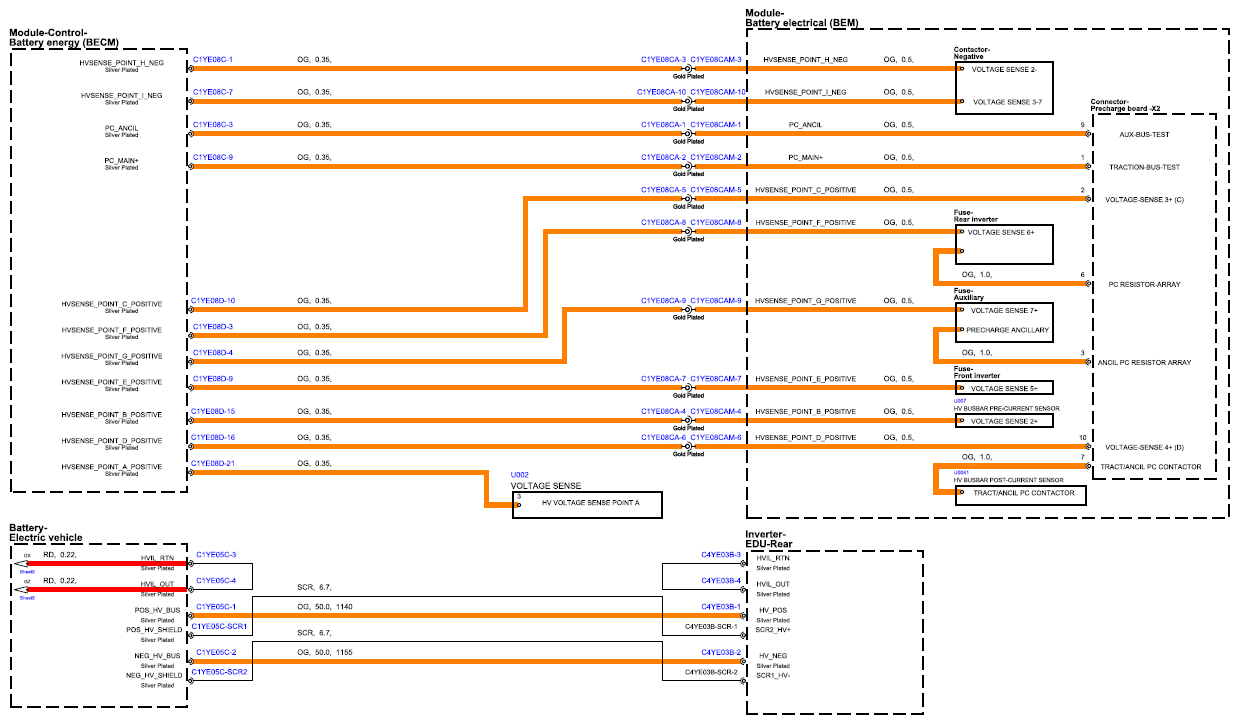

Fig 8: Battery Charging Circuit Diagram - EV Battery (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

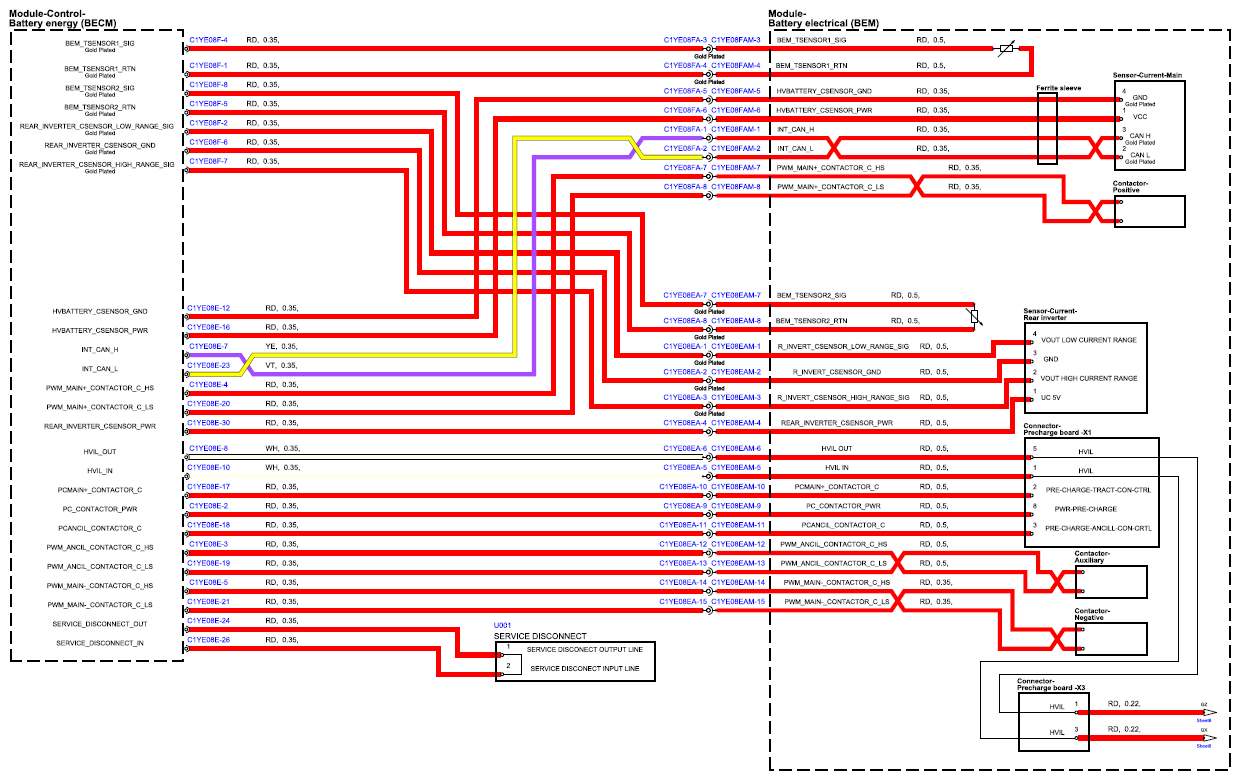

Fig 9: Battery Charging Circuit Diagram - EV Battery (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
