414-03 Battery Charging: Auxiliary

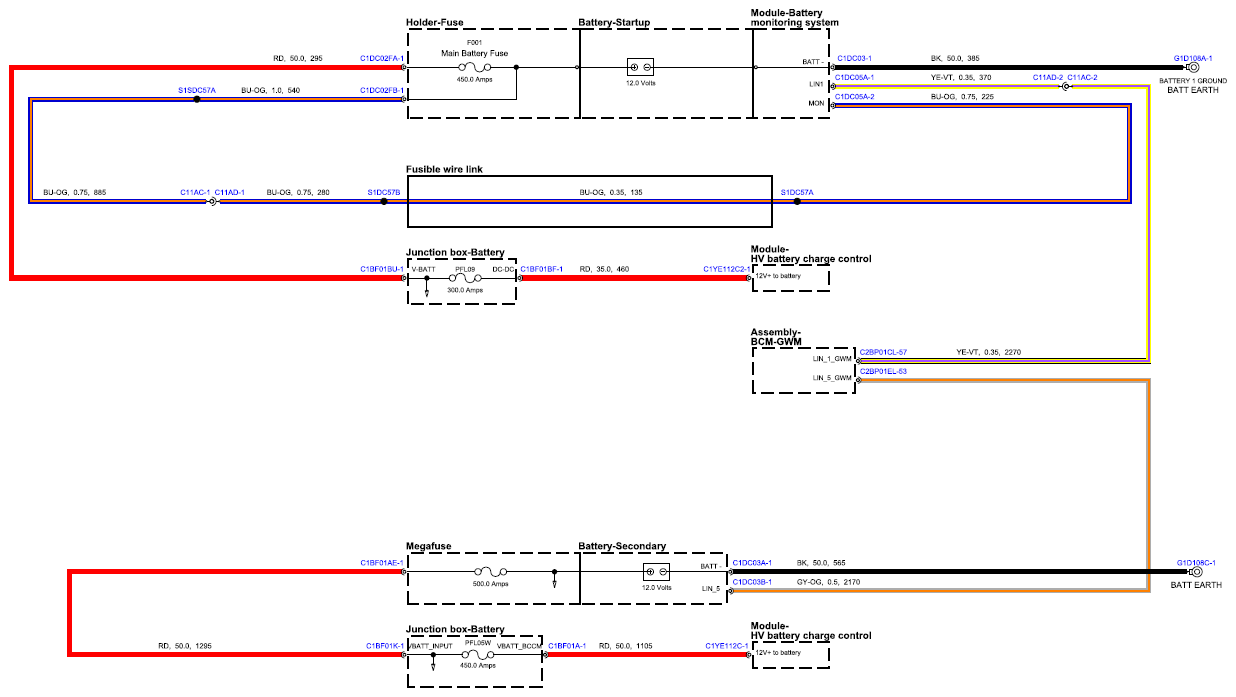

Fig 1: Battery Charging Circuit Diagram - Auxiliary

G15680639

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
