Rear junction box

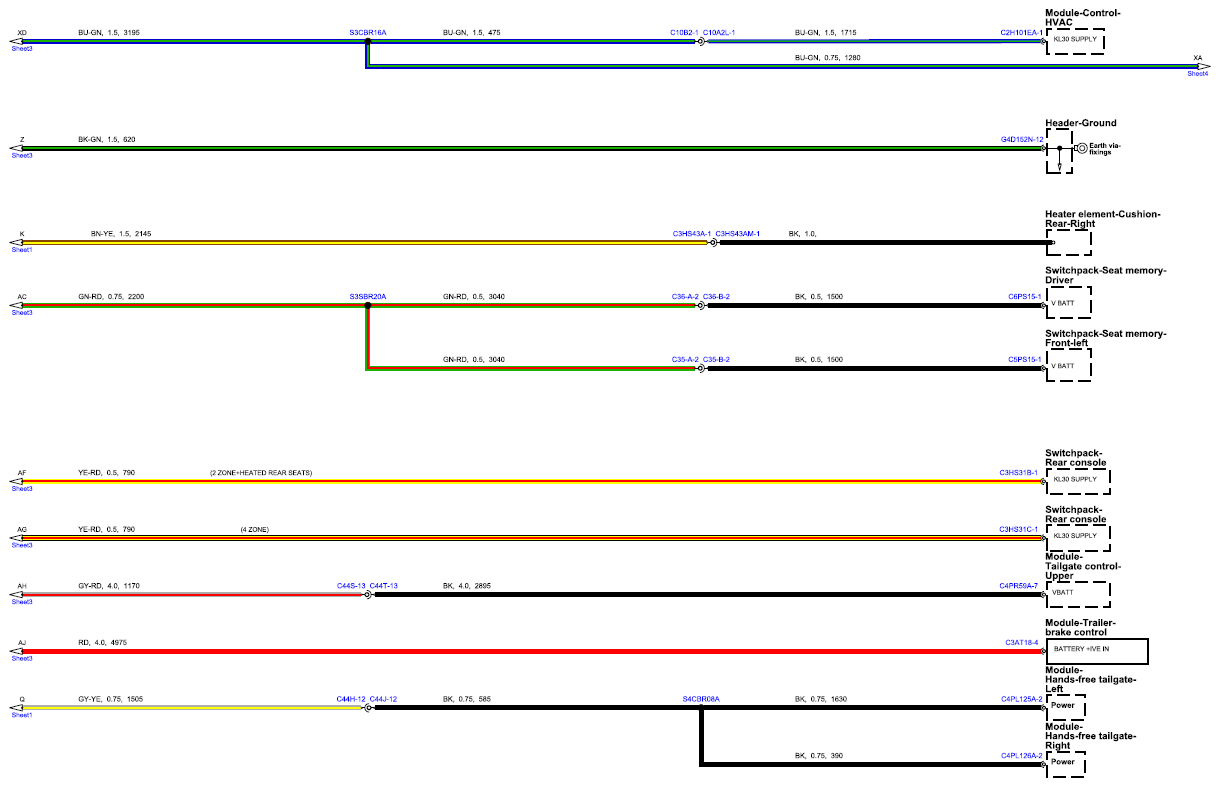

Fig 1: Rear Junction Box Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

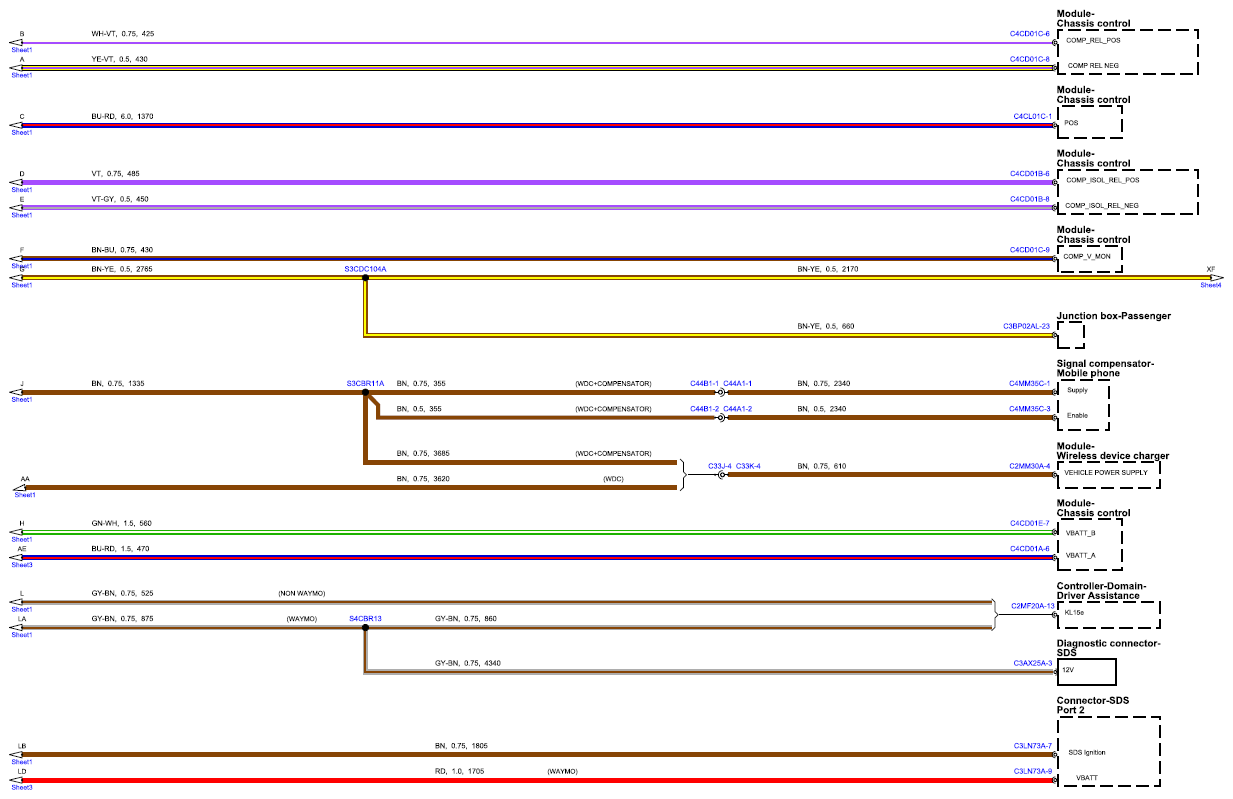

Fig 2: Rear Junction Box Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

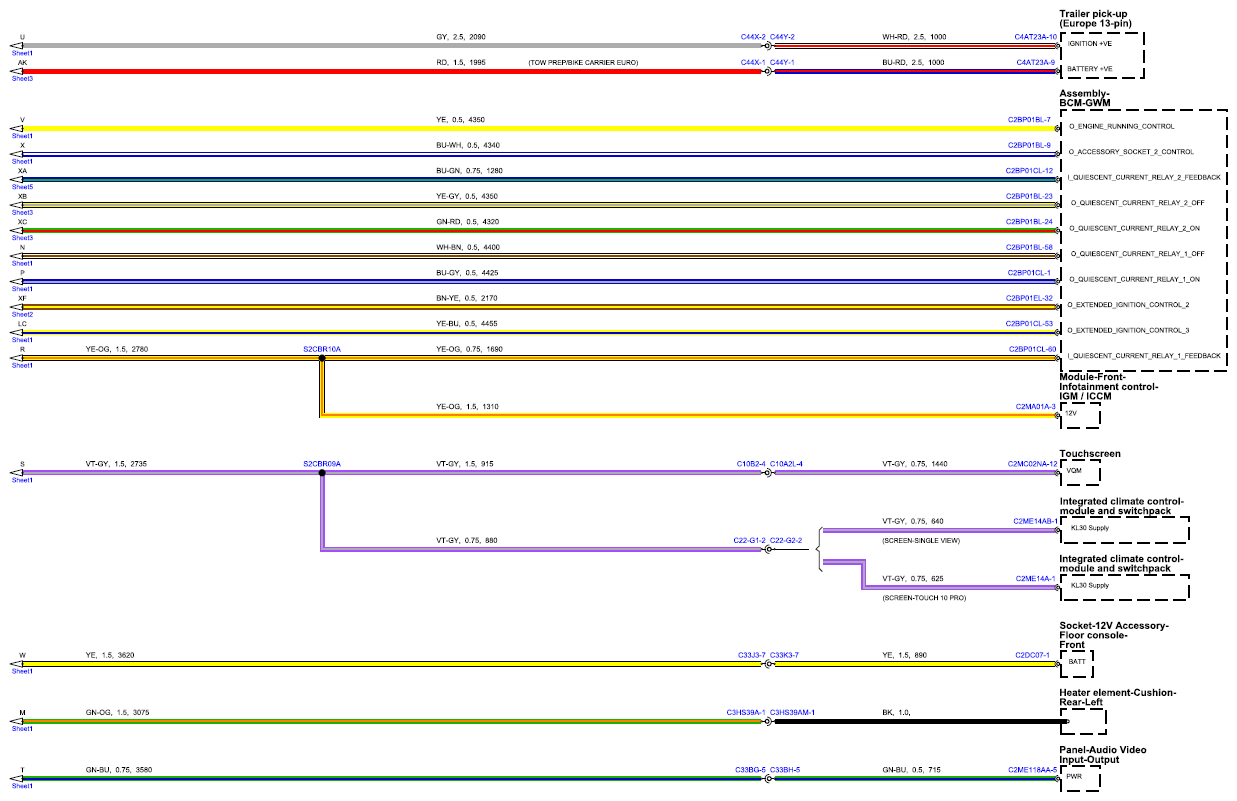

Fig 3: Rear Junction Box Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

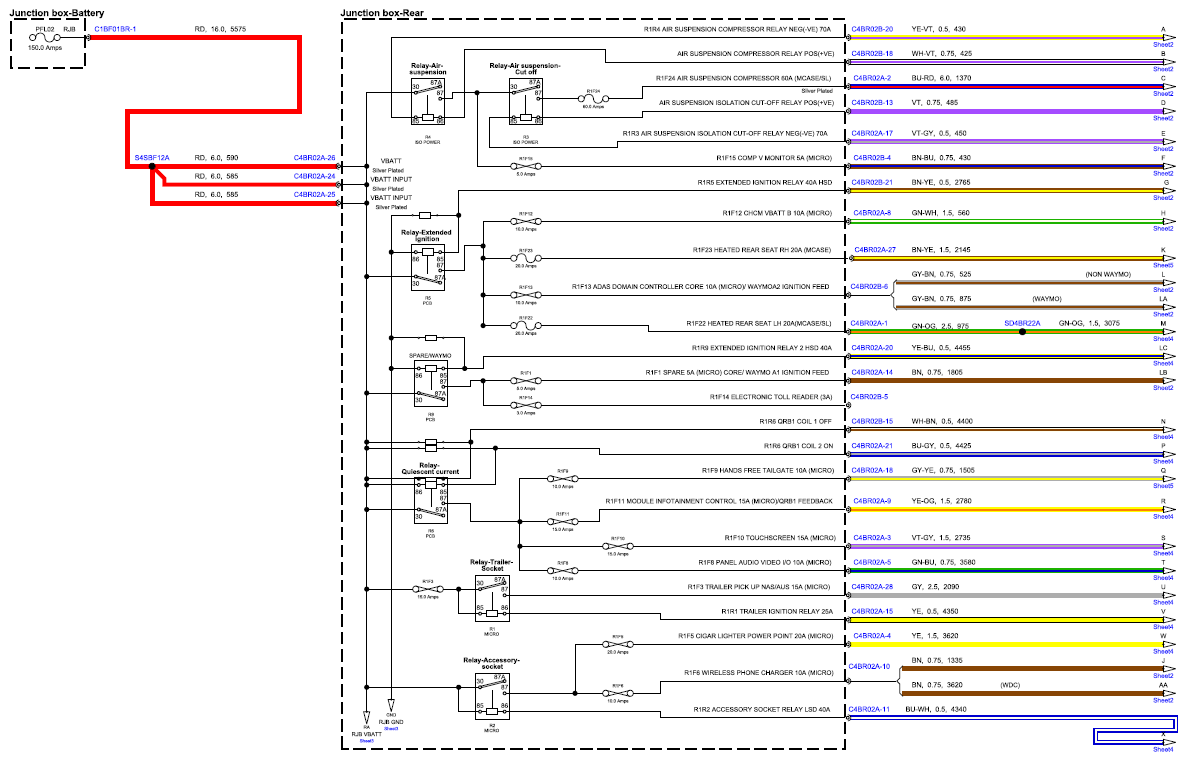

Fig 4: Rear Junction Box Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

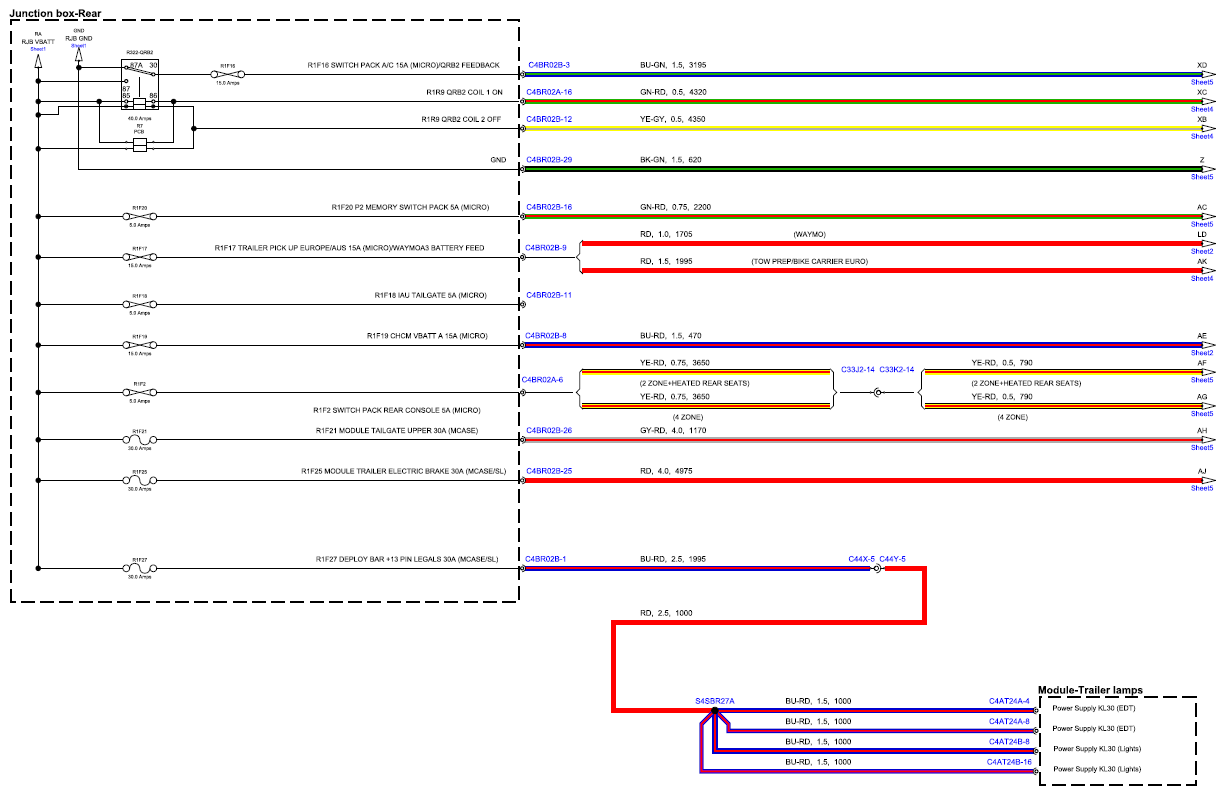

Fig 5: Rear Junction Box Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
