Ground distribution

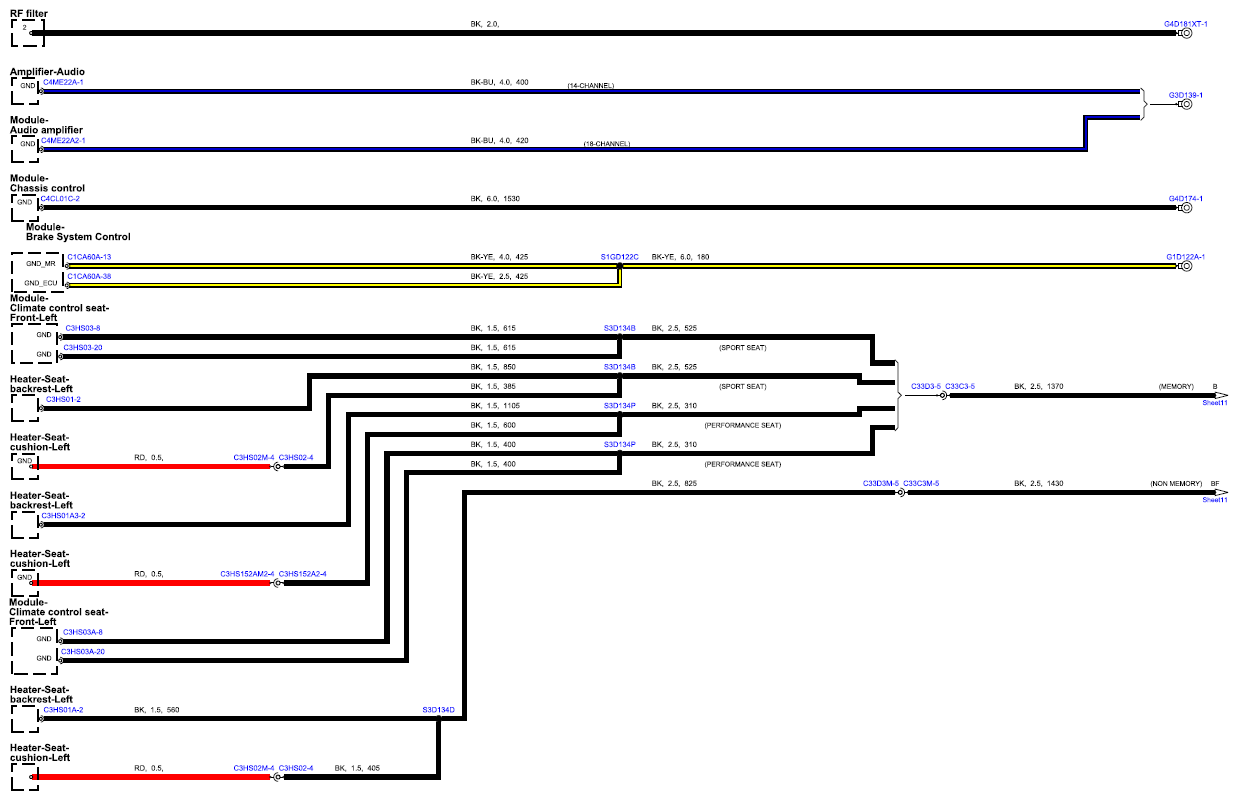

Fig 1: Ground Distribution Circuit Diagram - Sheet 1

G15680617

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

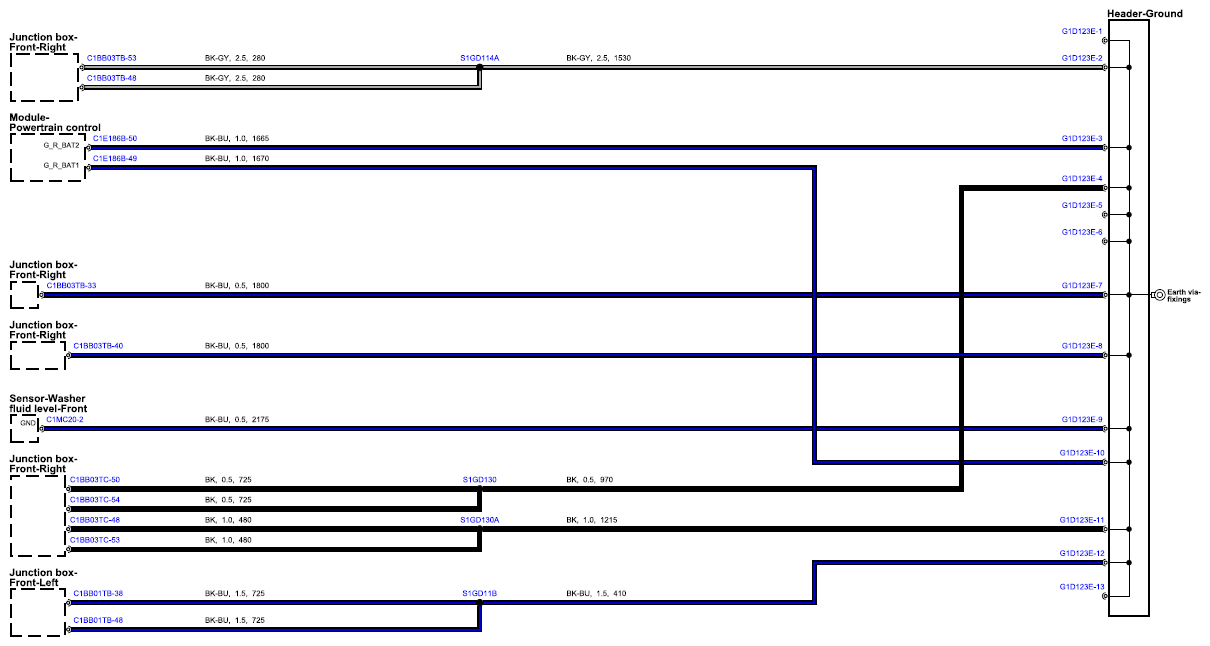

Fig 2: Ground Distribution Circuit Diagram - Sheet 2

G15680618

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

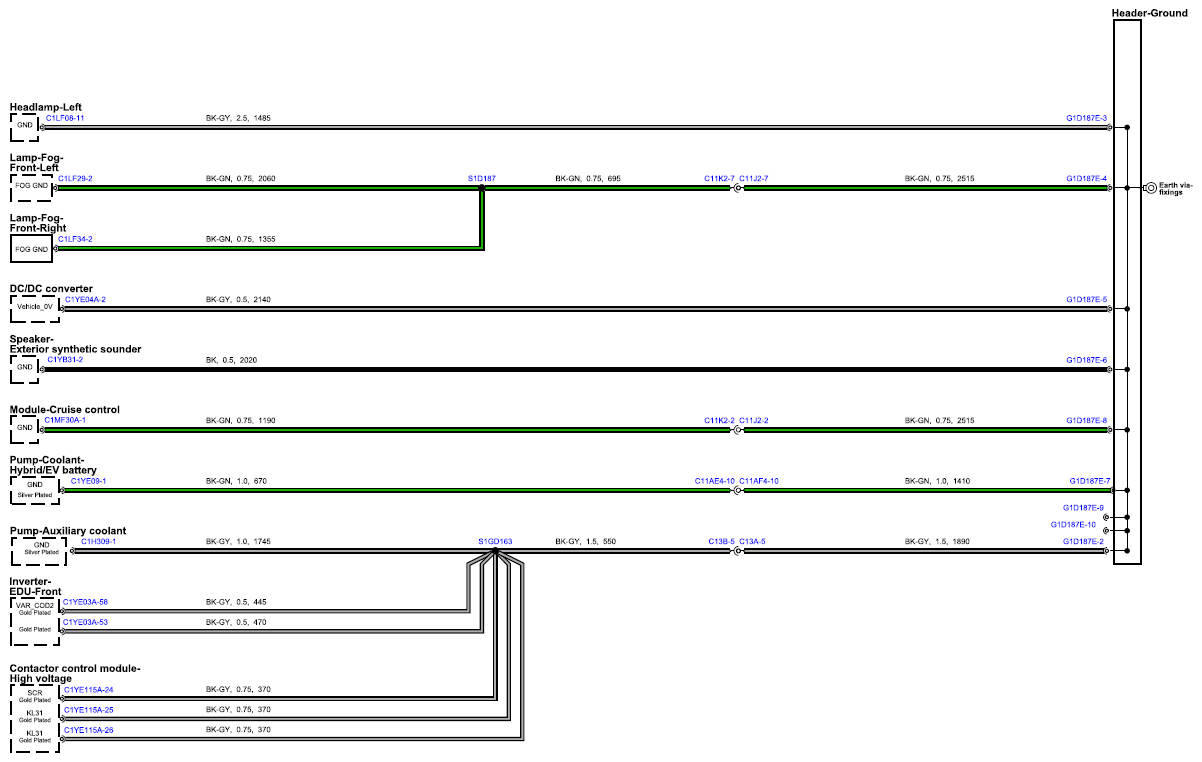

Fig 3: Ground Distribution Circuit Diagram - Sheet 3

G15680619

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

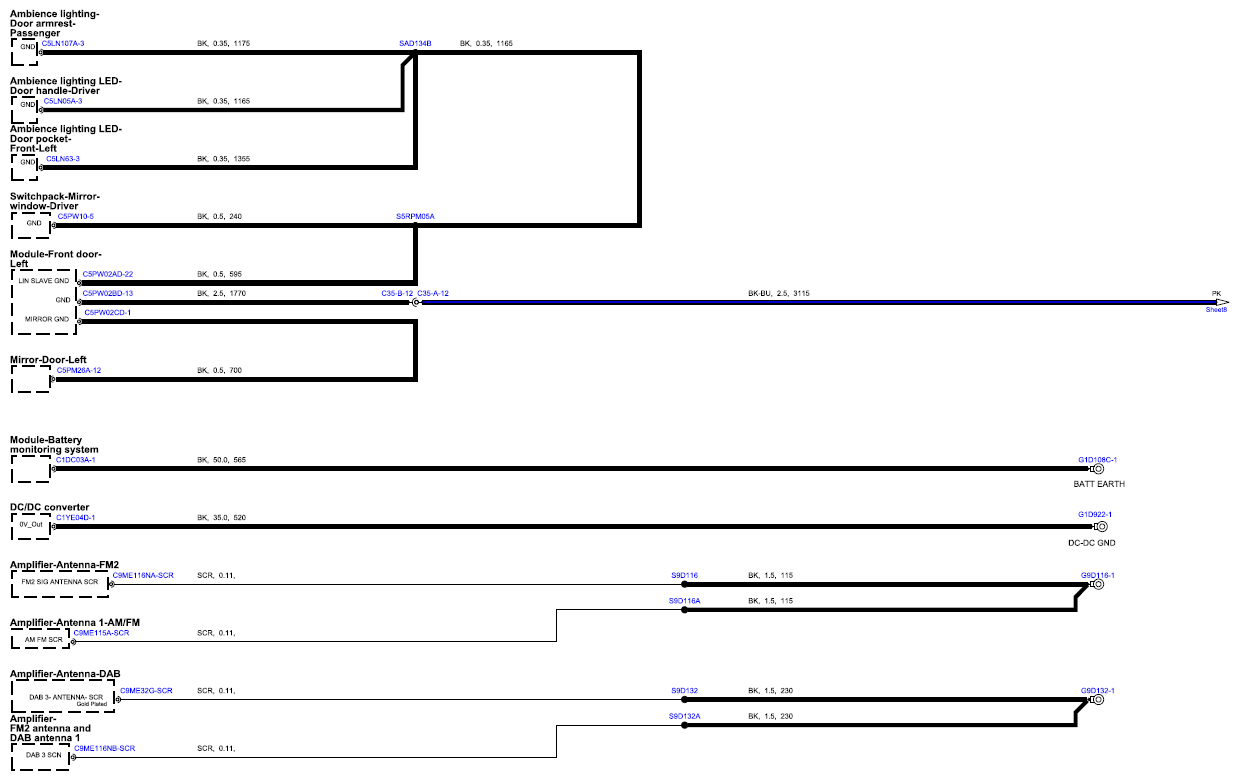

Fig 4: Ground Distribution Circuit Diagram - Sheet 4

G15680620

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

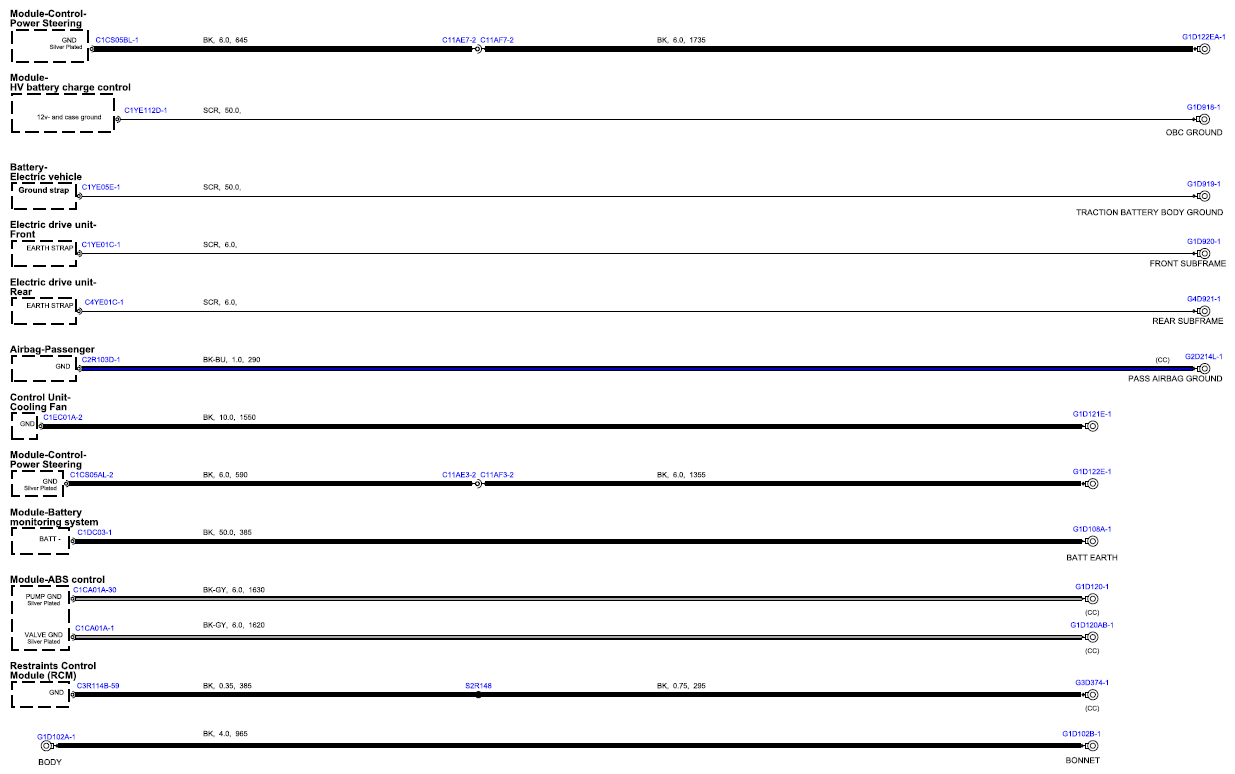

Fig 5: Ground Distribution Circuit Diagram - Sheet 5

G15680621

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

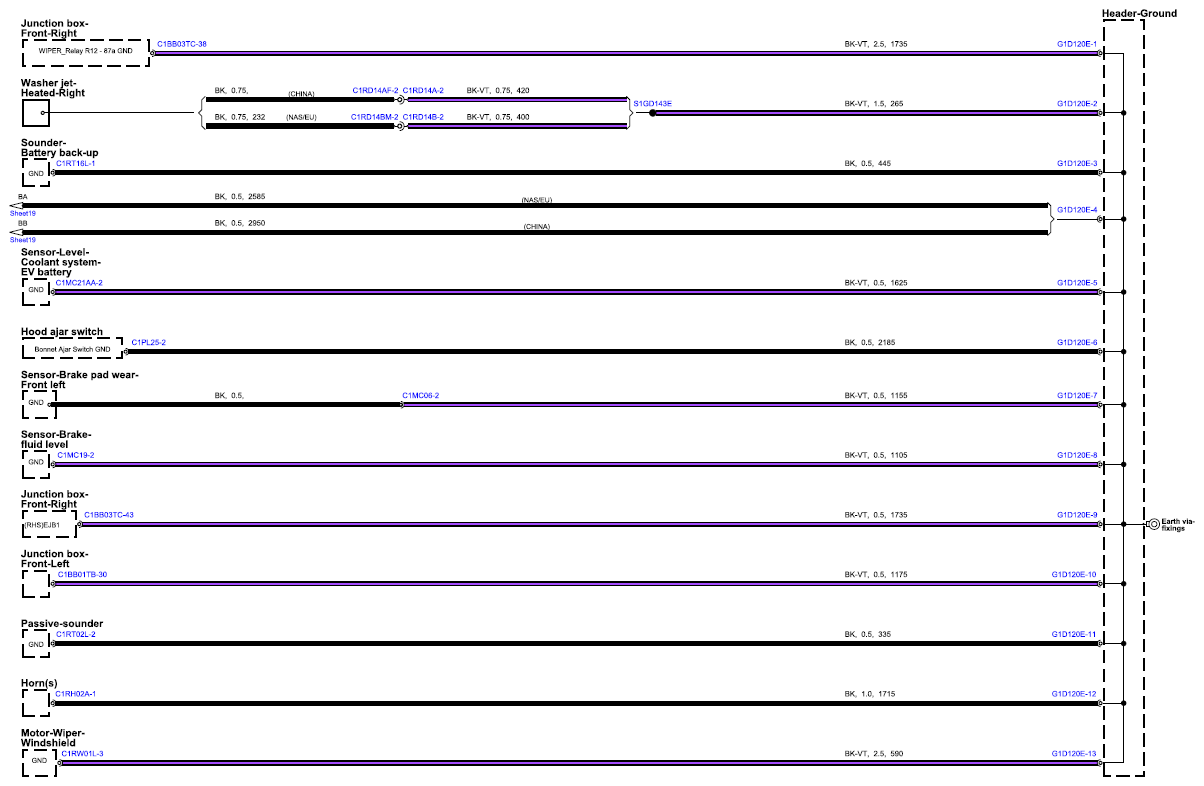

Fig 6: Ground Distribution Circuit Diagram - Sheet 6

G15680622

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

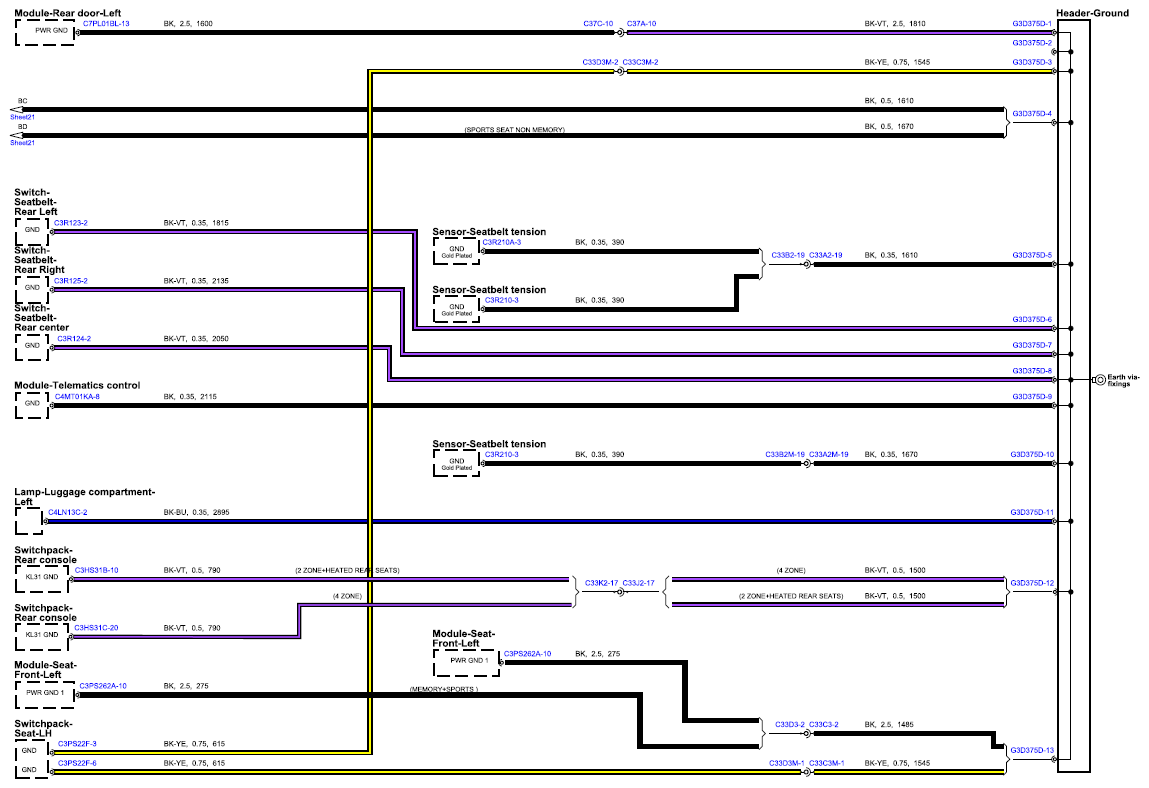

Fig 7: Ground Distribution Circuit Diagram - Sheet 7

G15680623

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

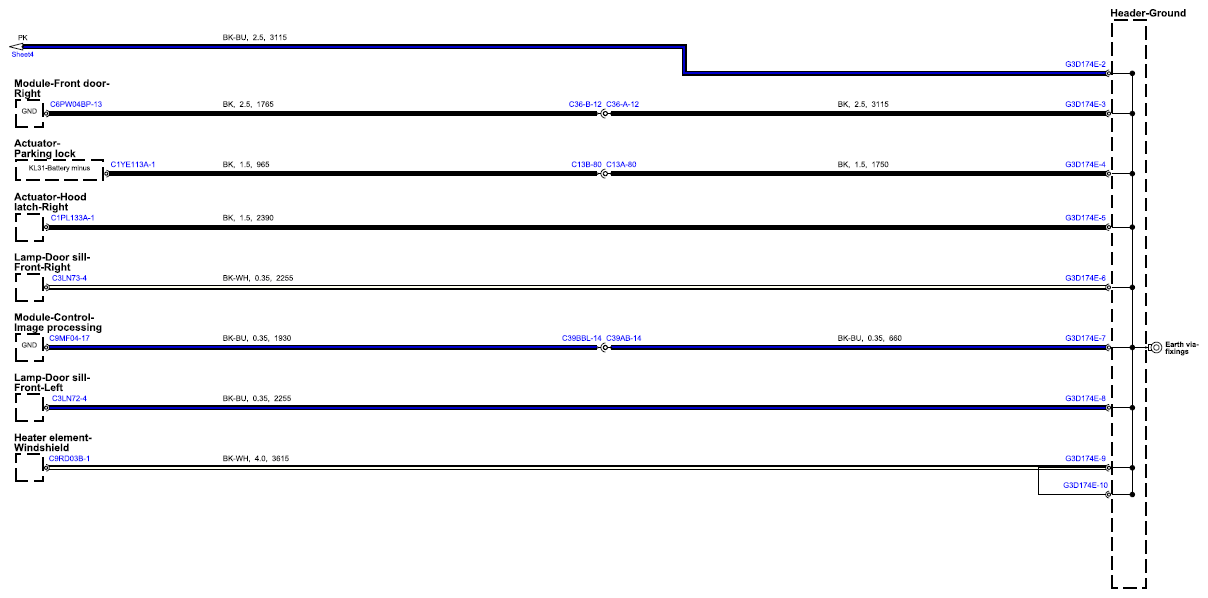

Fig 8: Ground Distribution Circuit Diagram - Sheet 8

G15680624

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

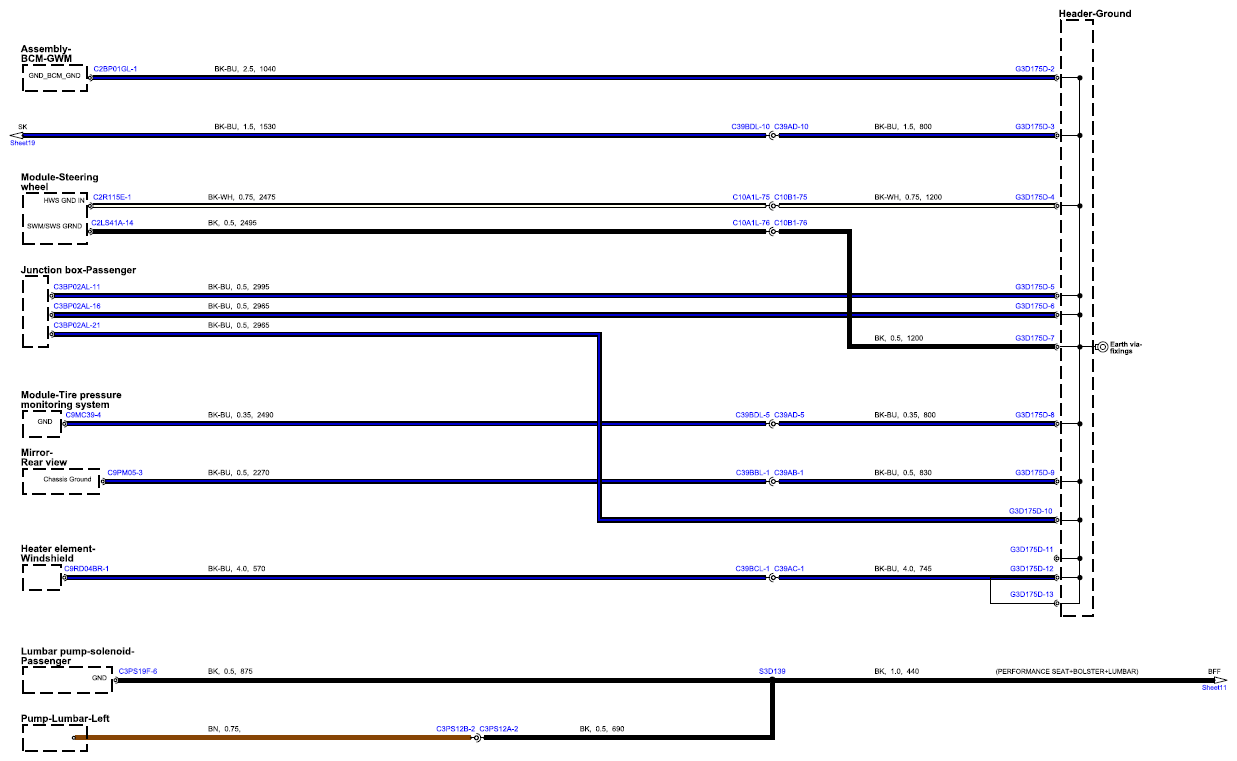

Fig 9: Ground Distribution Circuit Diagram - Sheet 9

G15680625

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

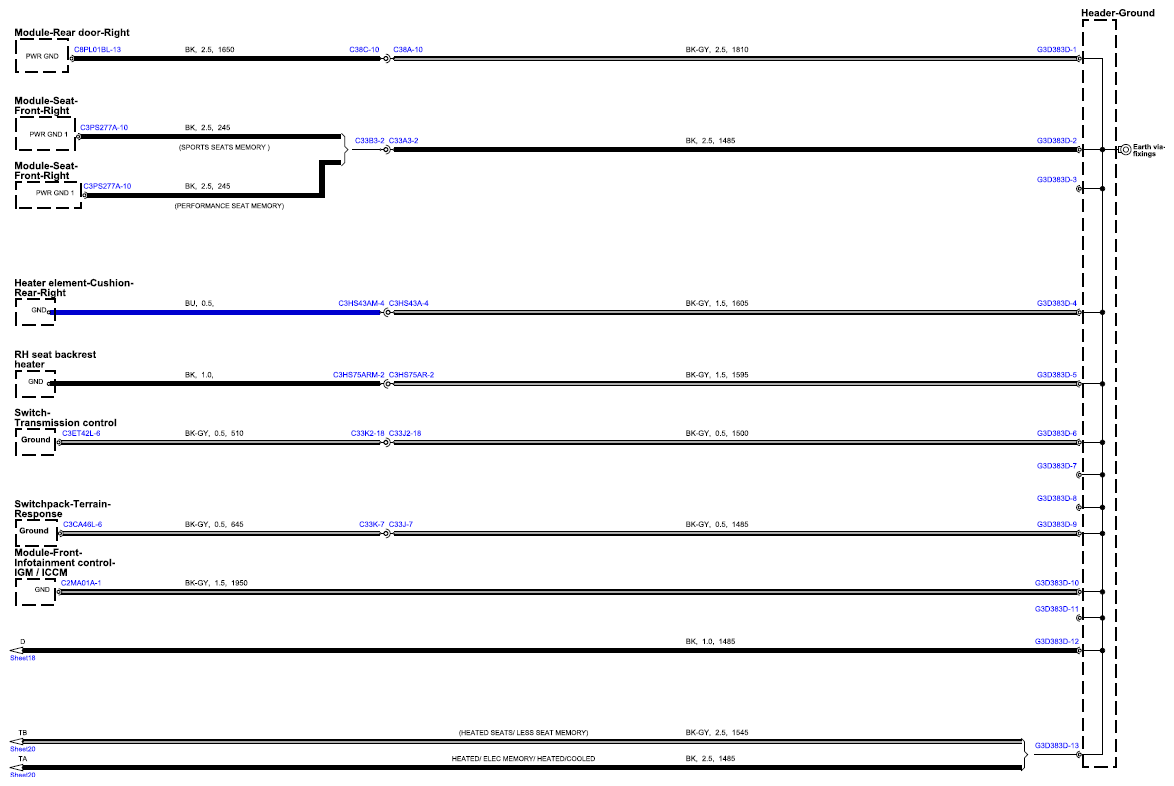

Fig 10: Ground Distribution Circuit Diagram - Sheet 10

G15680626

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

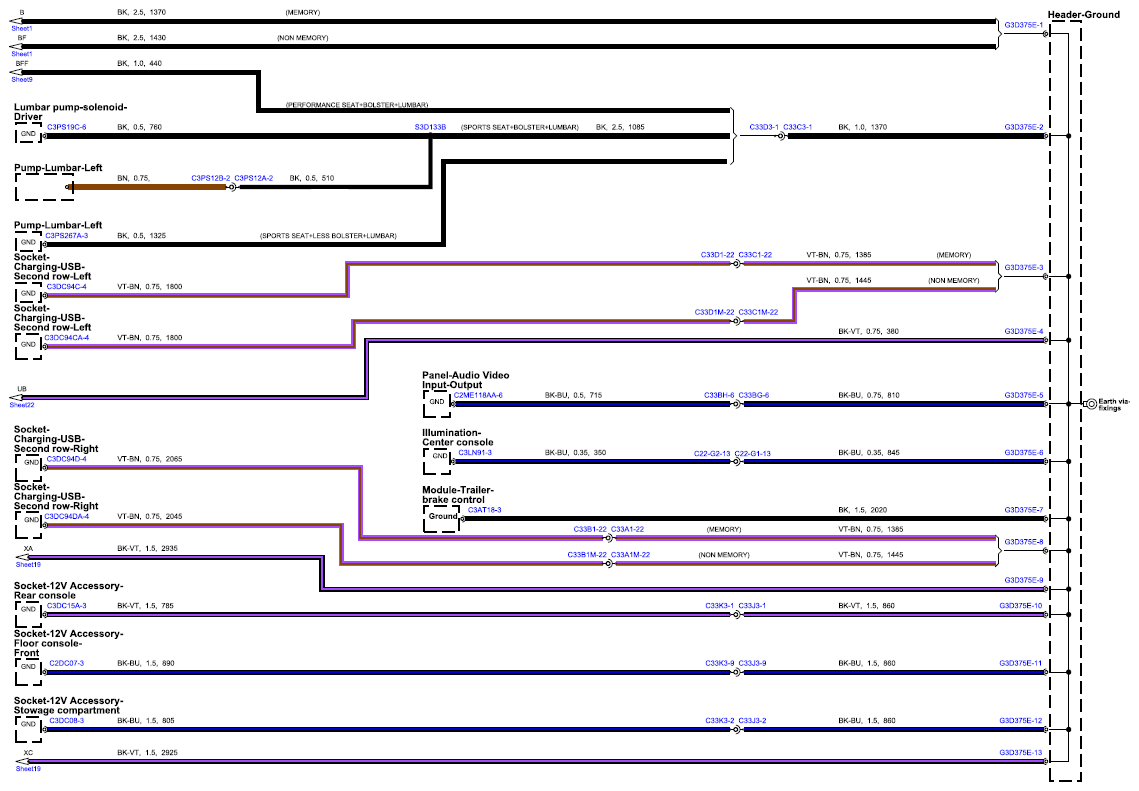

Fig 11: Ground Distribution Circuit Diagram - Sheet 11

G15680627

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

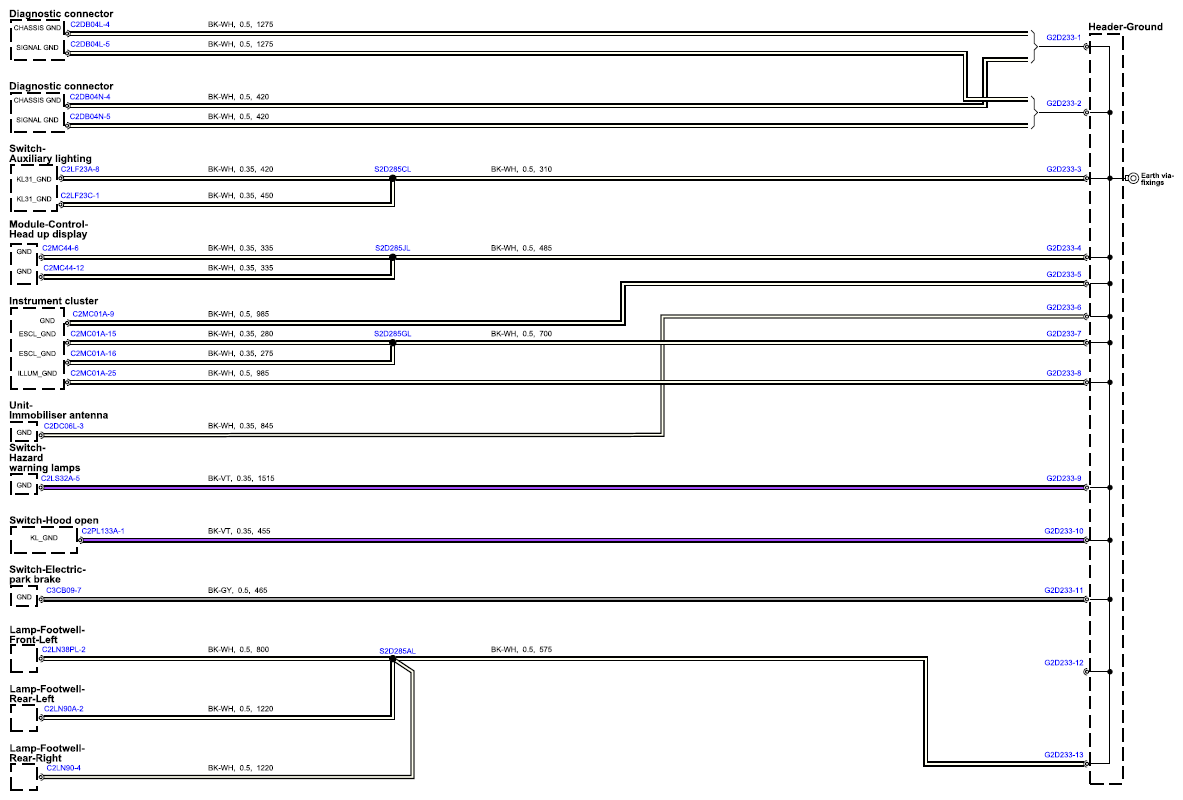

Fig 12: Ground Distribution Circuit Diagram - Sheet 12

G15680628

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

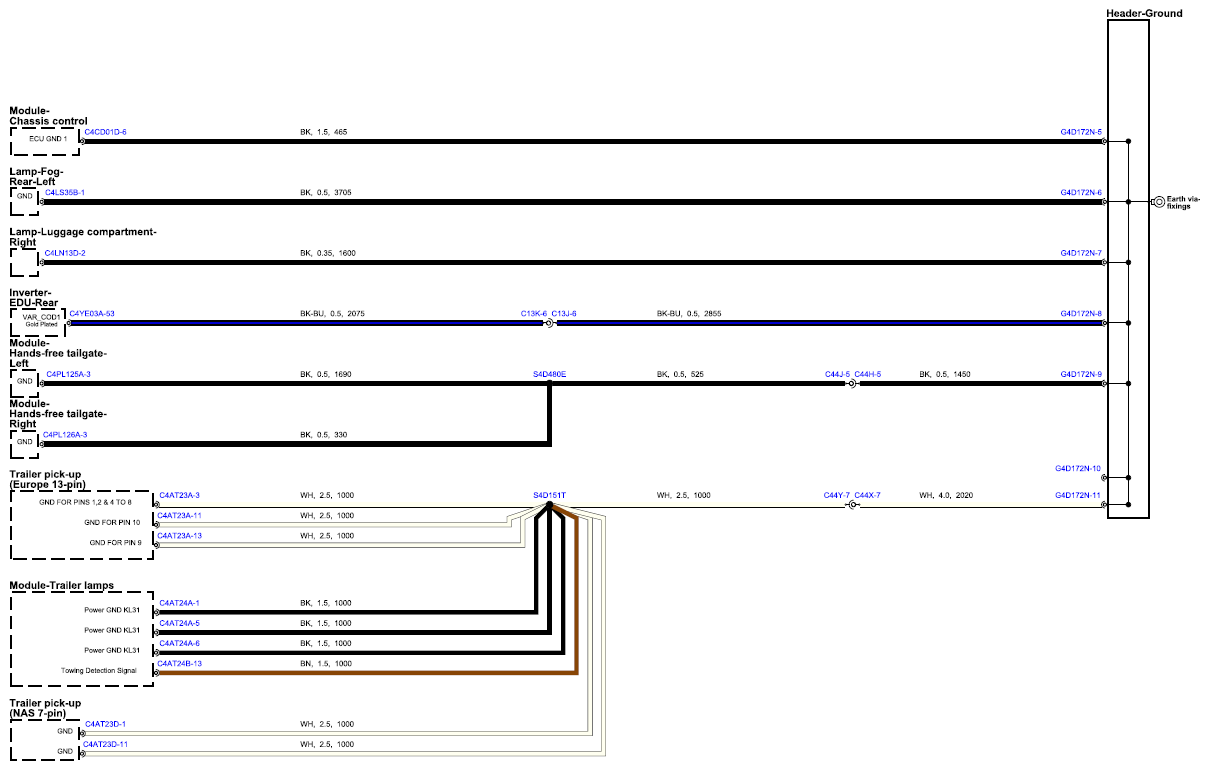

Fig 13: Ground Distribution Circuit Diagram - Sheet 13

G15680629

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 14: Ground Distribution Circuit Diagram - Sheet 14

G15680630

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

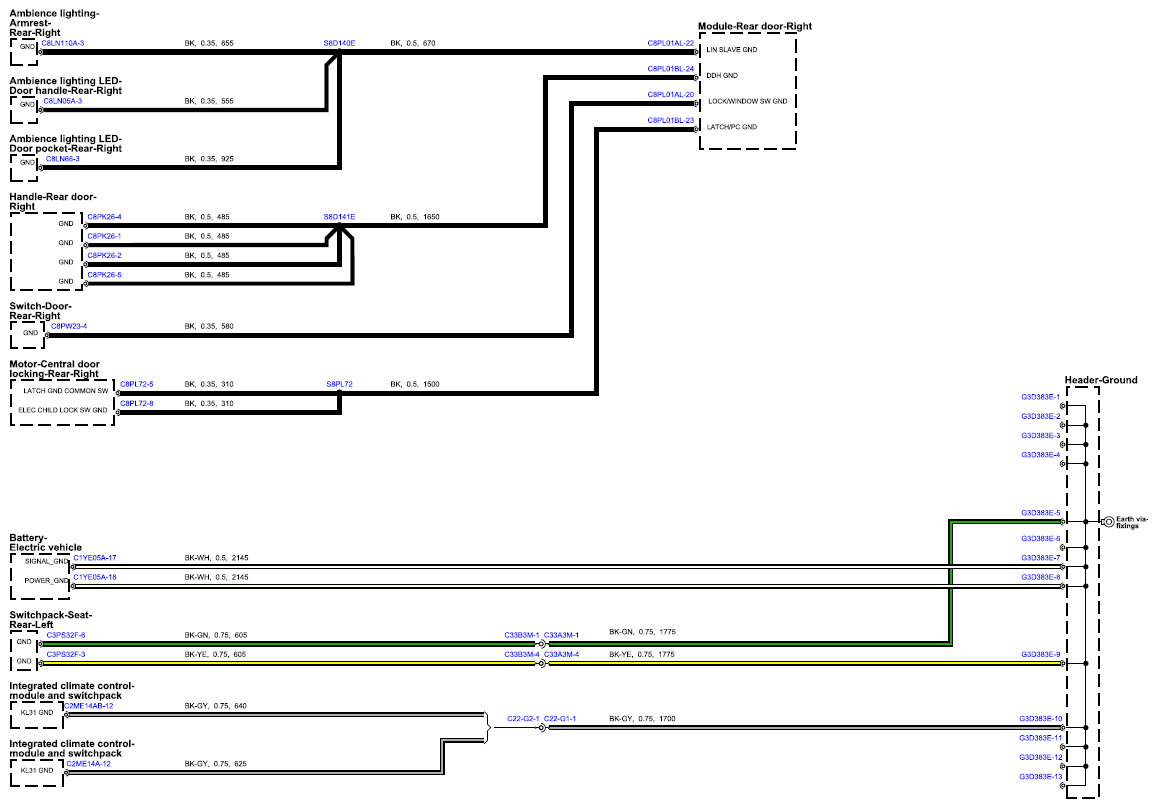

Fig 15: Ground Distribution Circuit Diagram - Sheet 15

G15680631

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

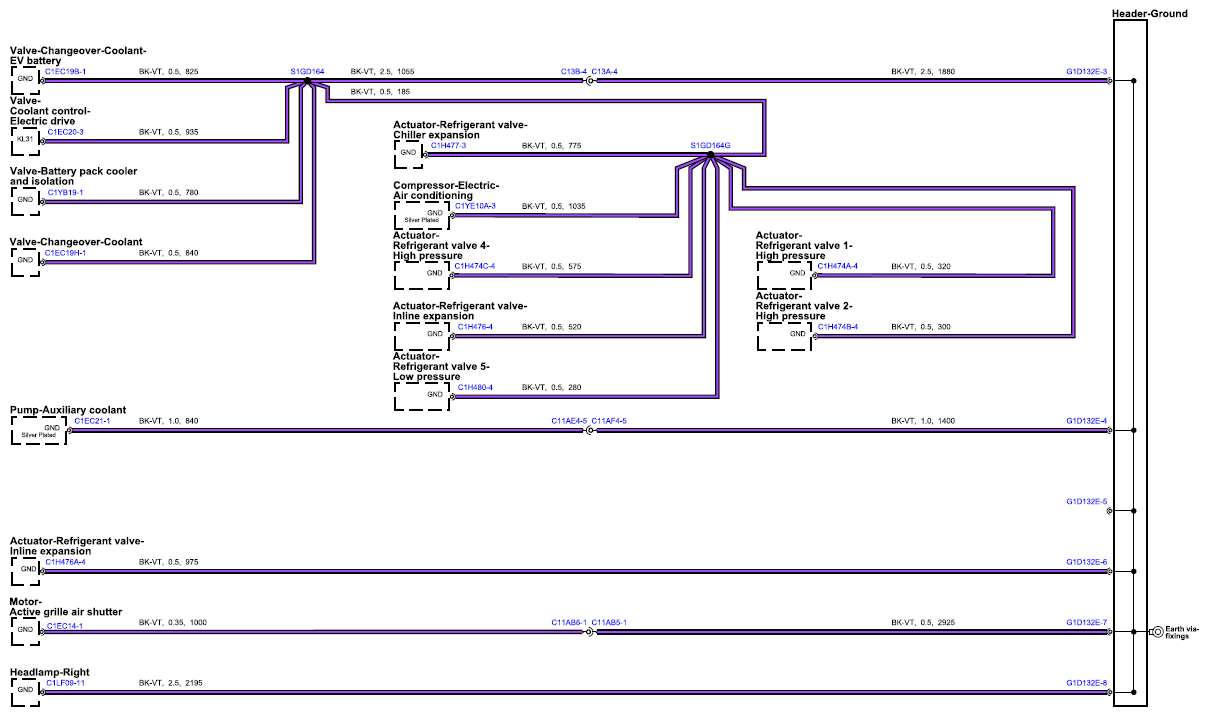

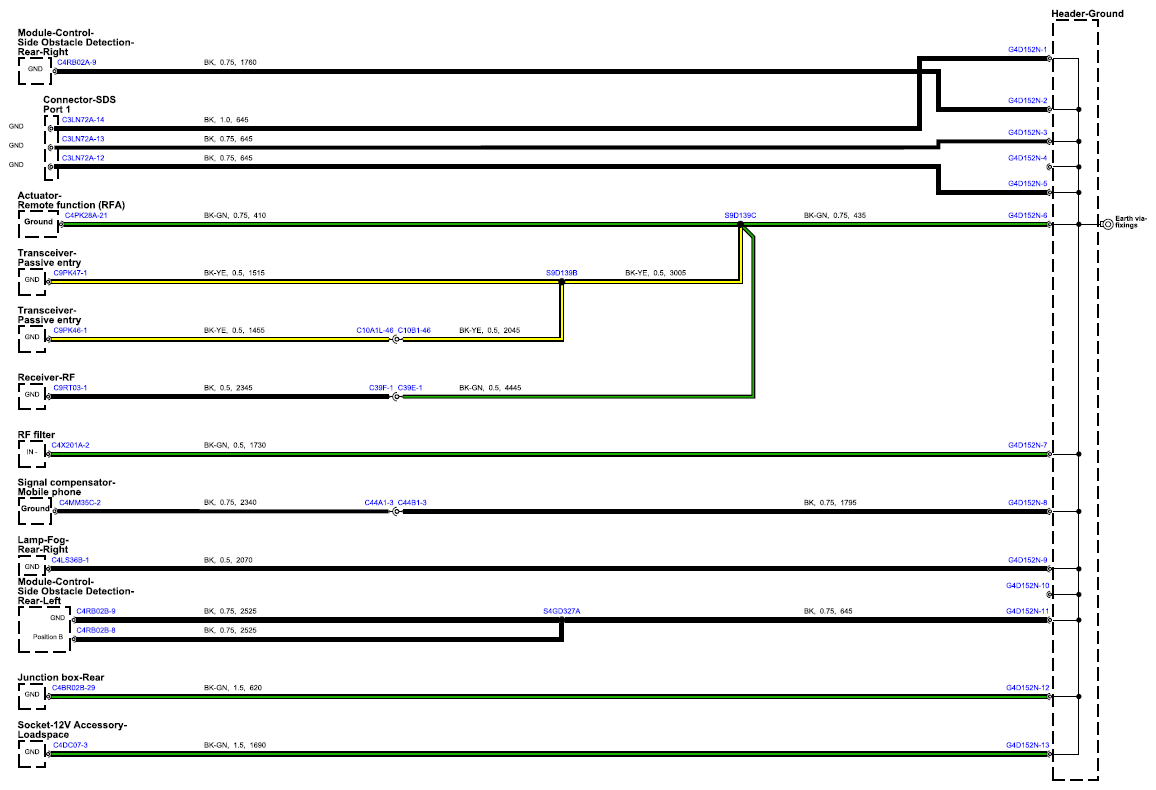

Fig 16: Ground Distribution Circuit Diagram - Sheet 16

G15680632

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

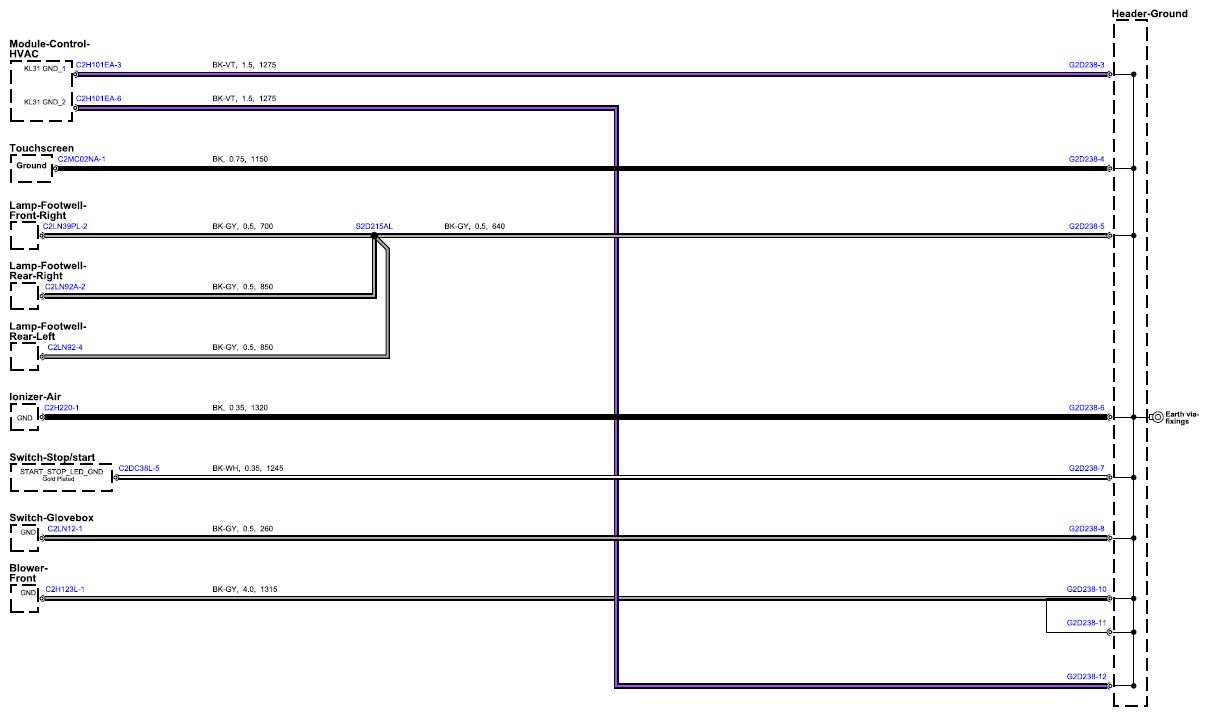

Fig 17: Ground Distribution Circuit Diagram - Sheet 17

G15680633

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

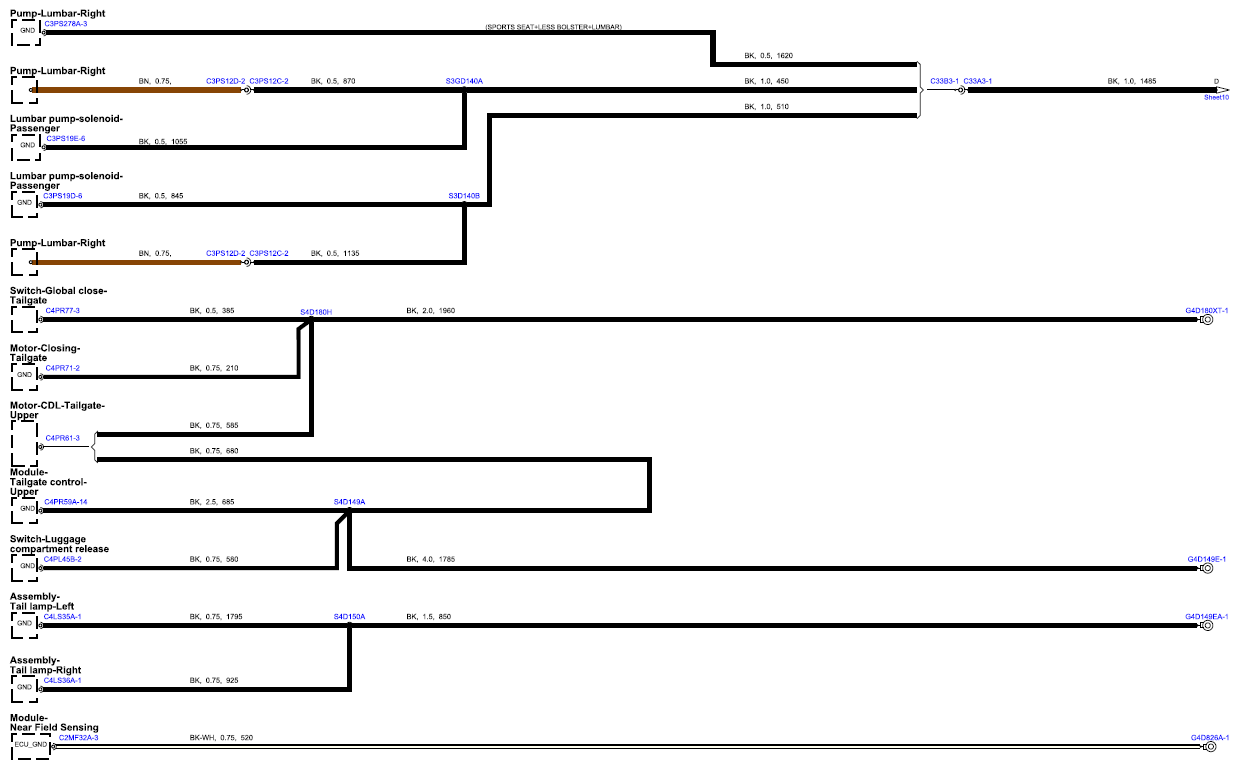

Fig 18: Ground Distribution Circuit Diagram - Sheet 18

G15680634

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

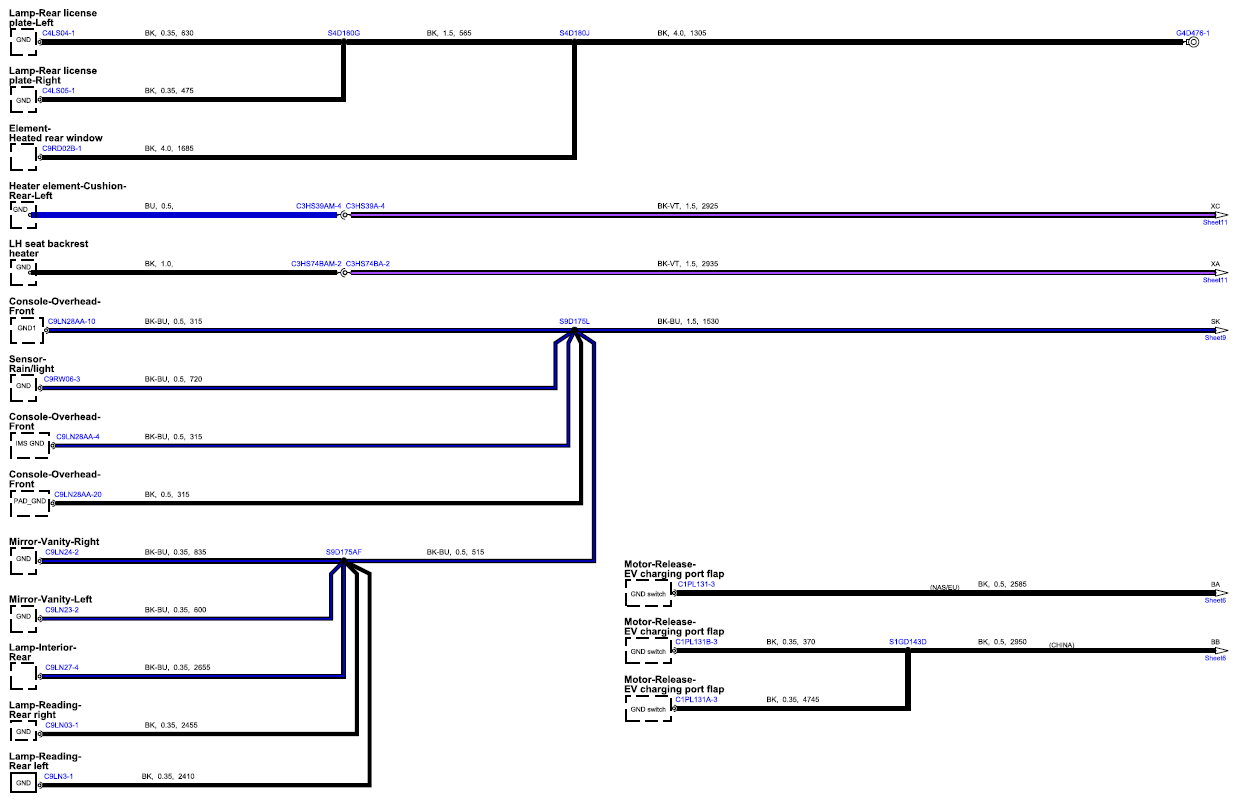

Fig 19: Ground Distribution Circuit Diagram - Sheet 19

G15680635

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

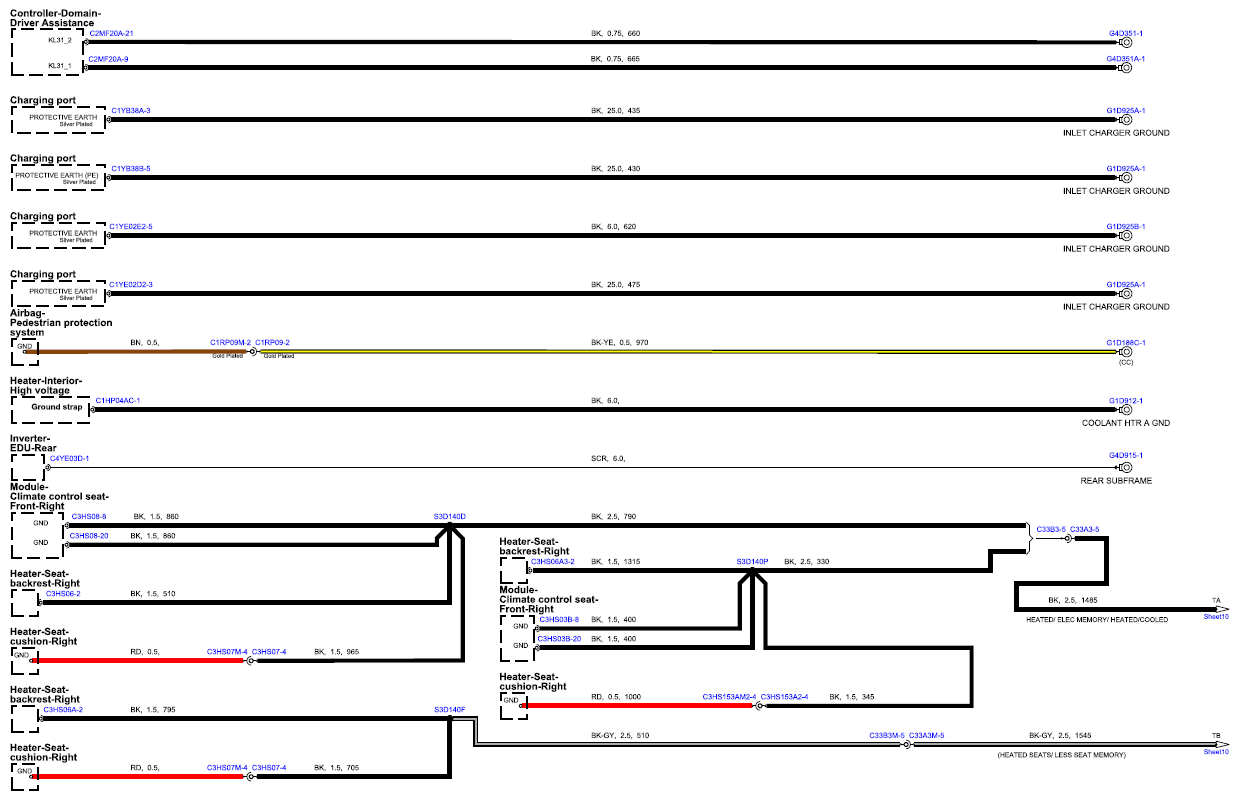

Fig 20: Ground Distribution Circuit Diagram - Sheet 20

G15680636

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

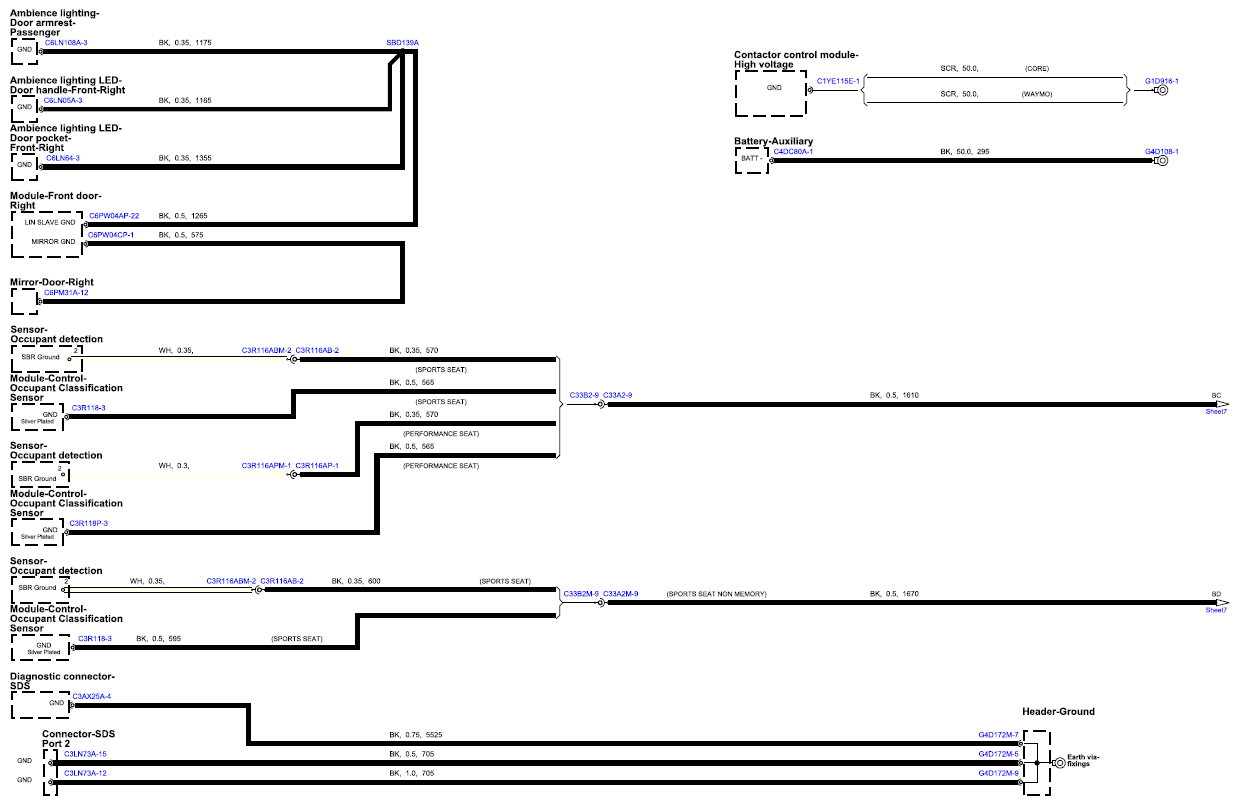

Fig 21: Ground Distribution Circuit Diagram - Sheet 21

G15680637

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

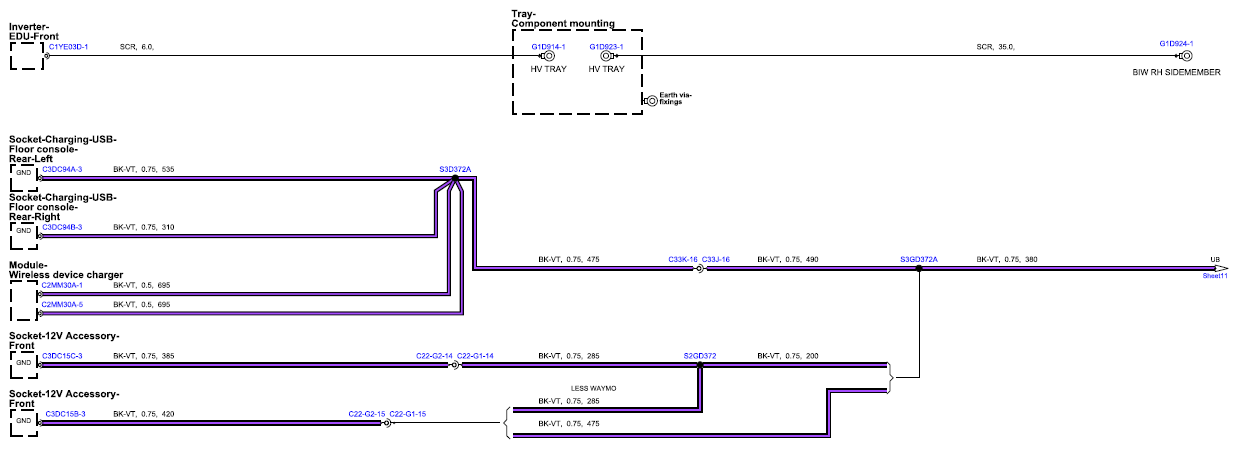

Fig 22: Ground Distribution Circuit Diagram - Sheet 22

G15680638

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
