Front junction box

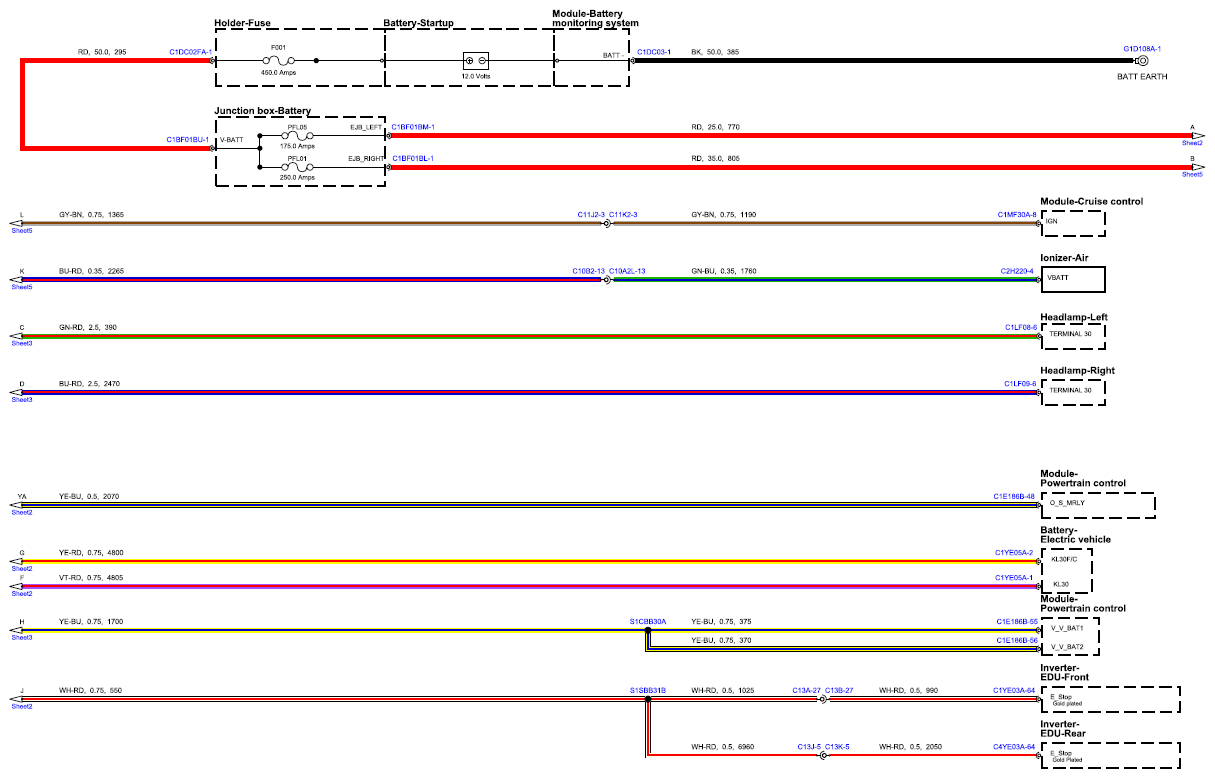

Fig 1: Front Junction Box Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

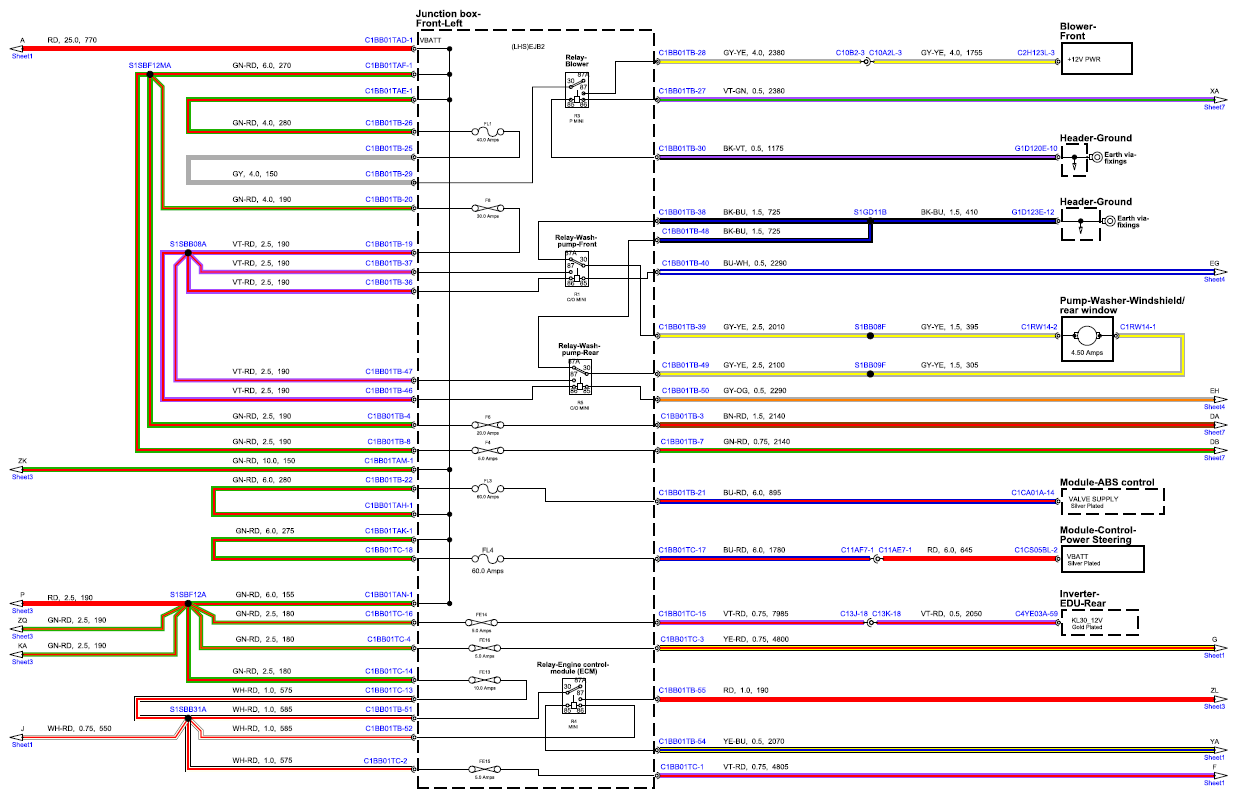

Fig 2: Front Junction Box Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

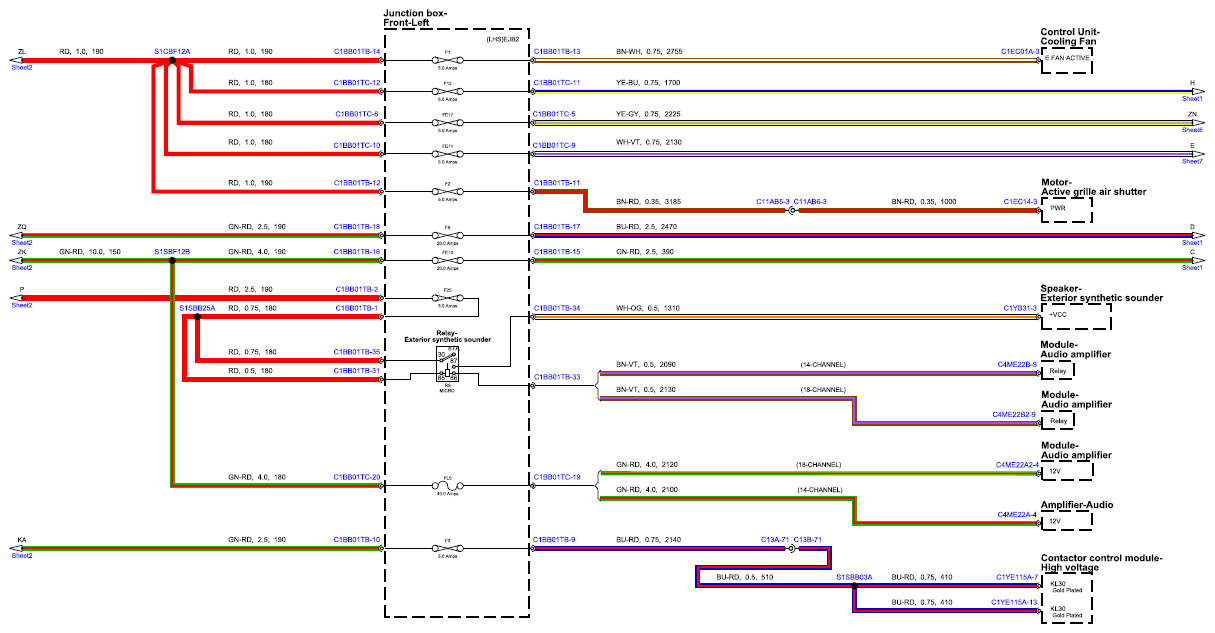

Fig 3: Front Junction Box Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

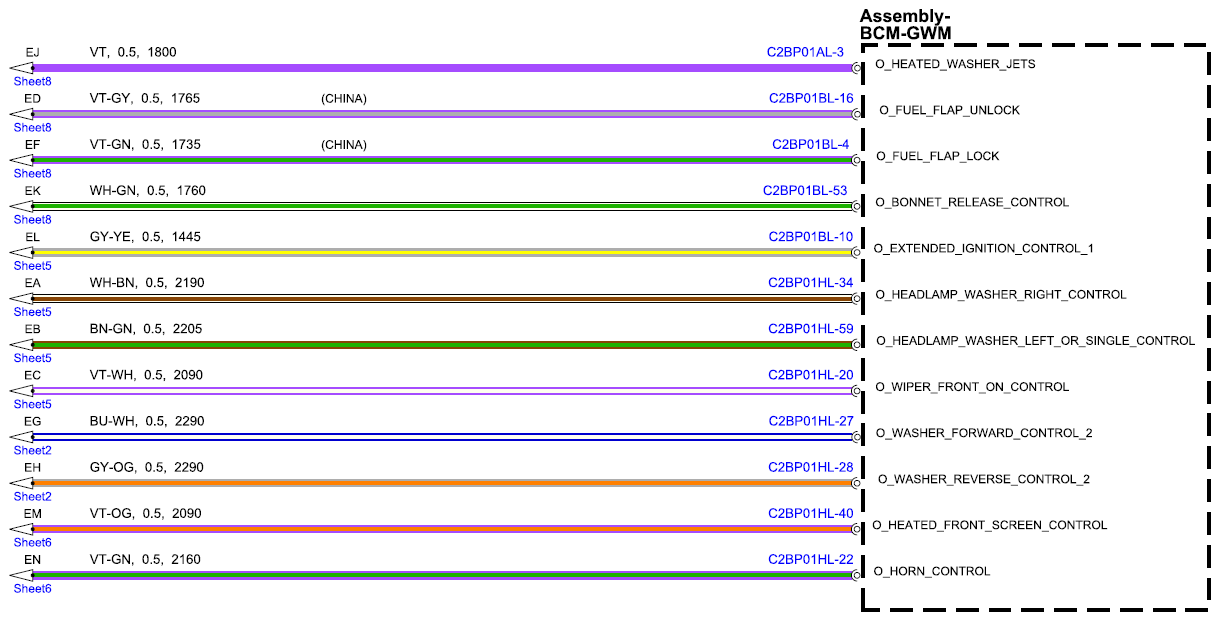

Fig 4: Front Junction Box Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

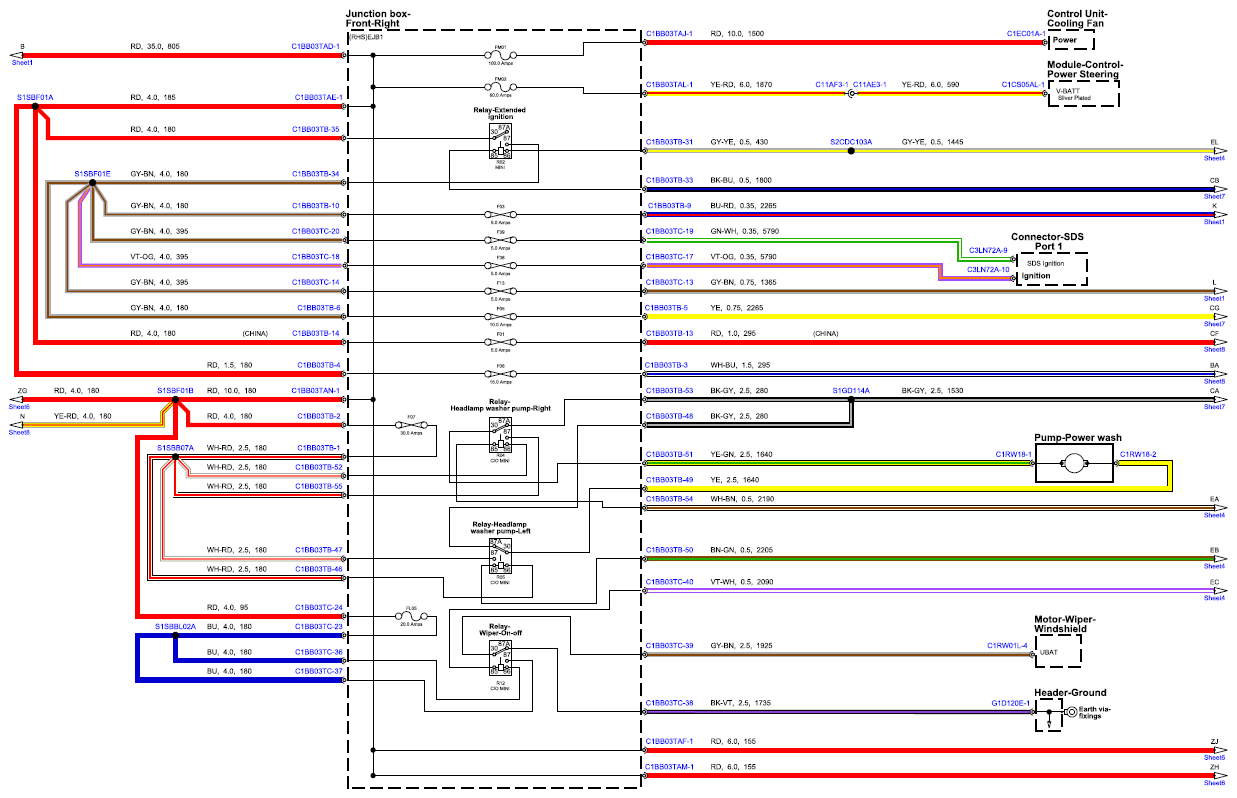

Fig 5: Front Junction Box Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

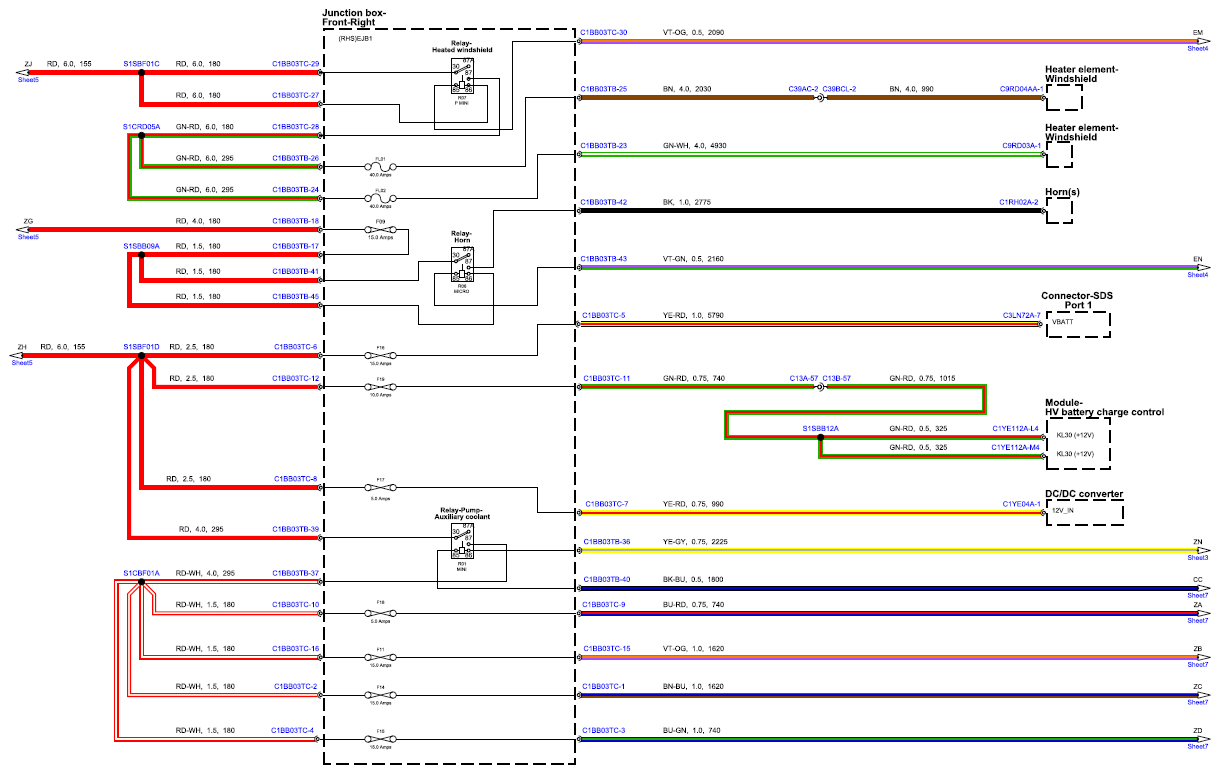

Fig 6: Front Junction Box Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

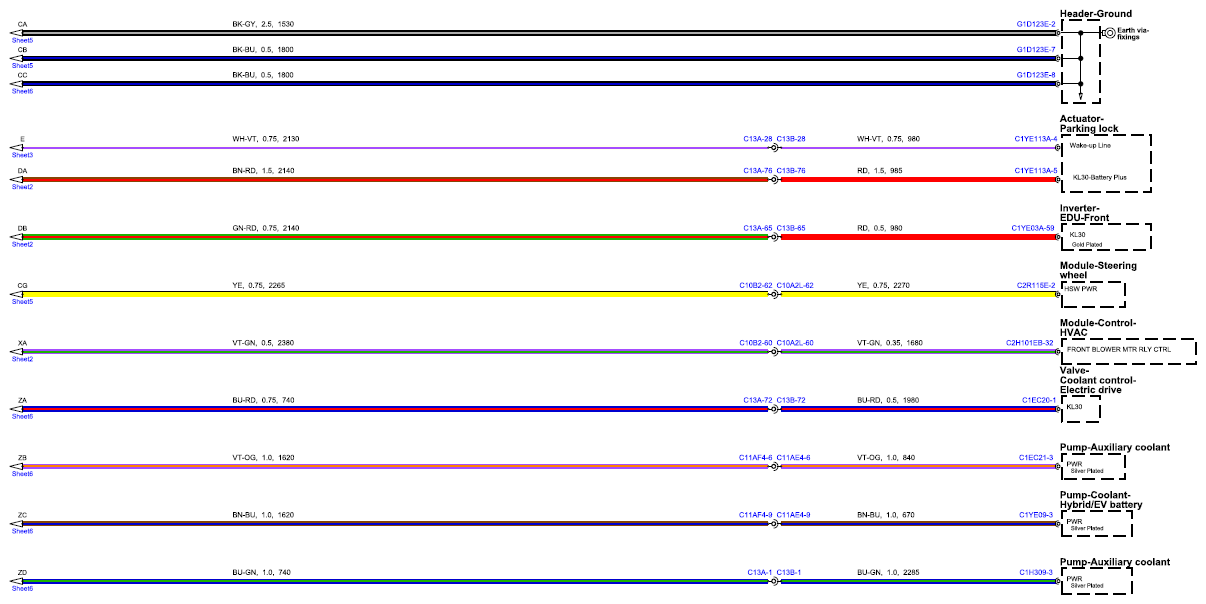

Fig 7: Front Junction Box Circuit Diagram - Sheet 7

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

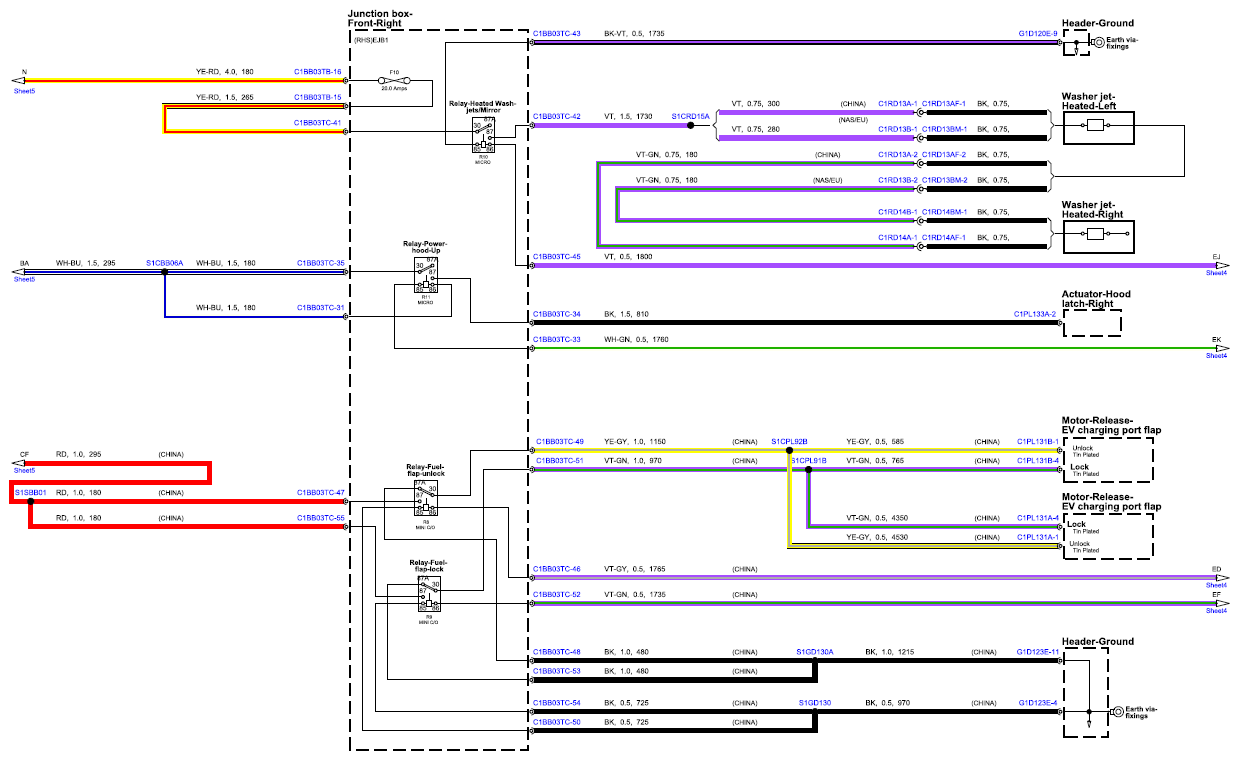

Fig 8: Front Junction Box Circuit Diagram - Sheet 8

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
