Proximity camera system

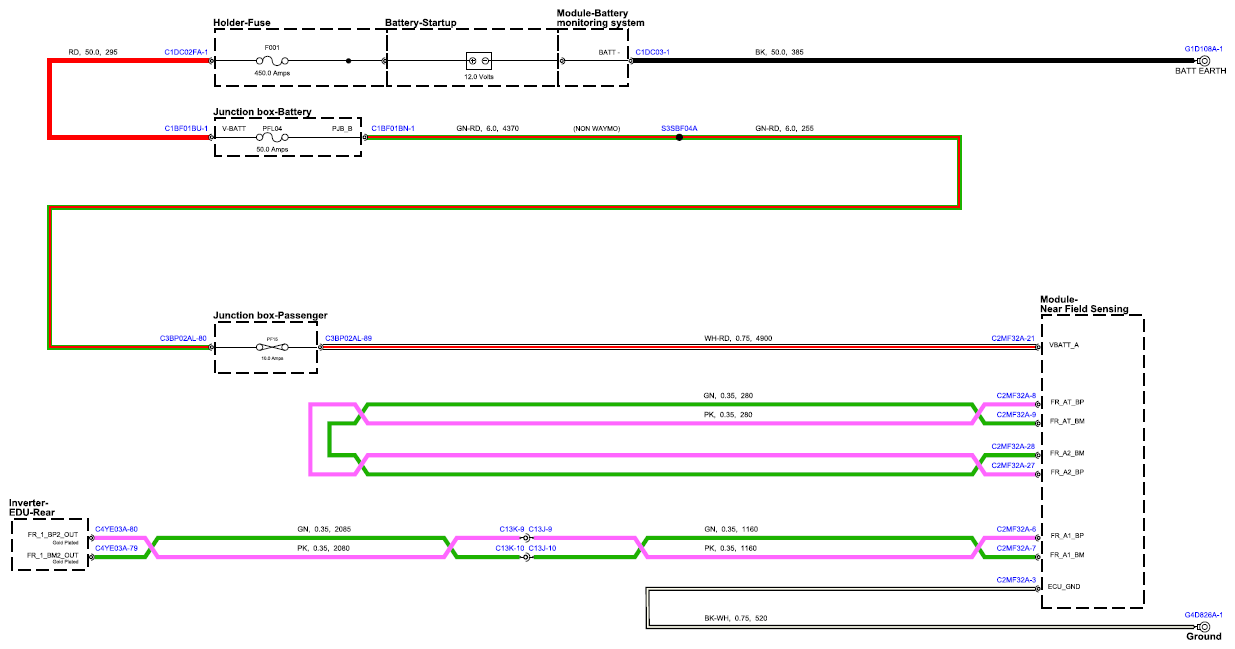

Fig 1: Proximity Camera System Circuit Diagram - Sheet 1
G15680588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

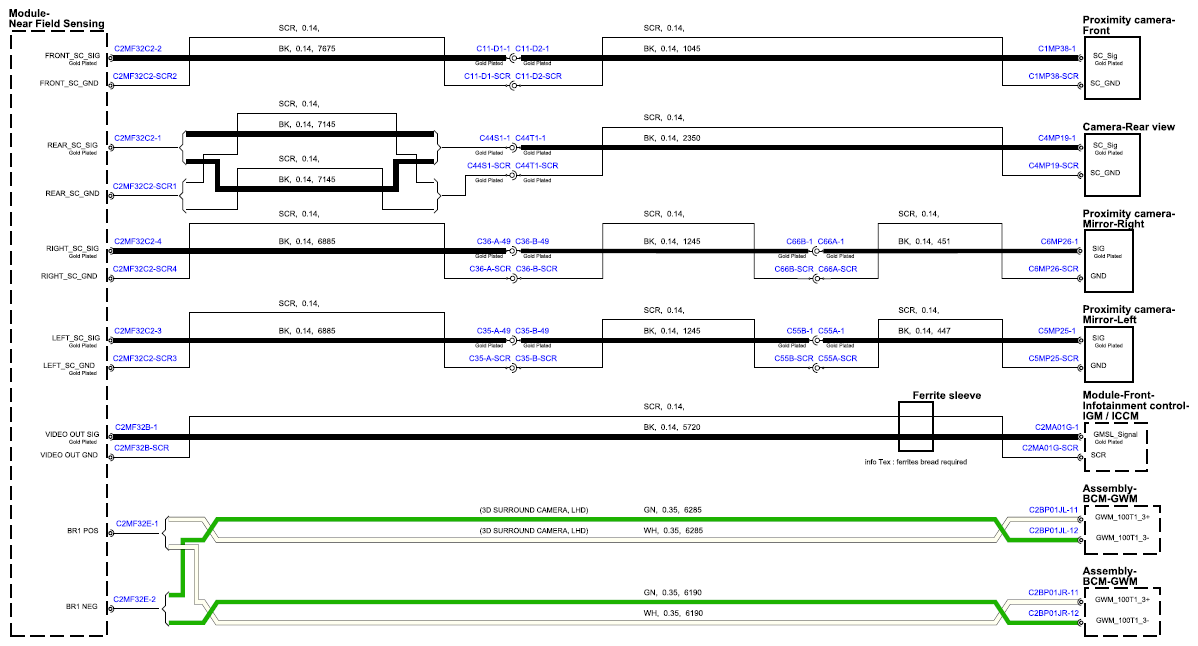

Fig 2: Proximity Camera System Circuit Diagram - Sheet 2
G15680589Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
