413-13 Parking Aid: Notes

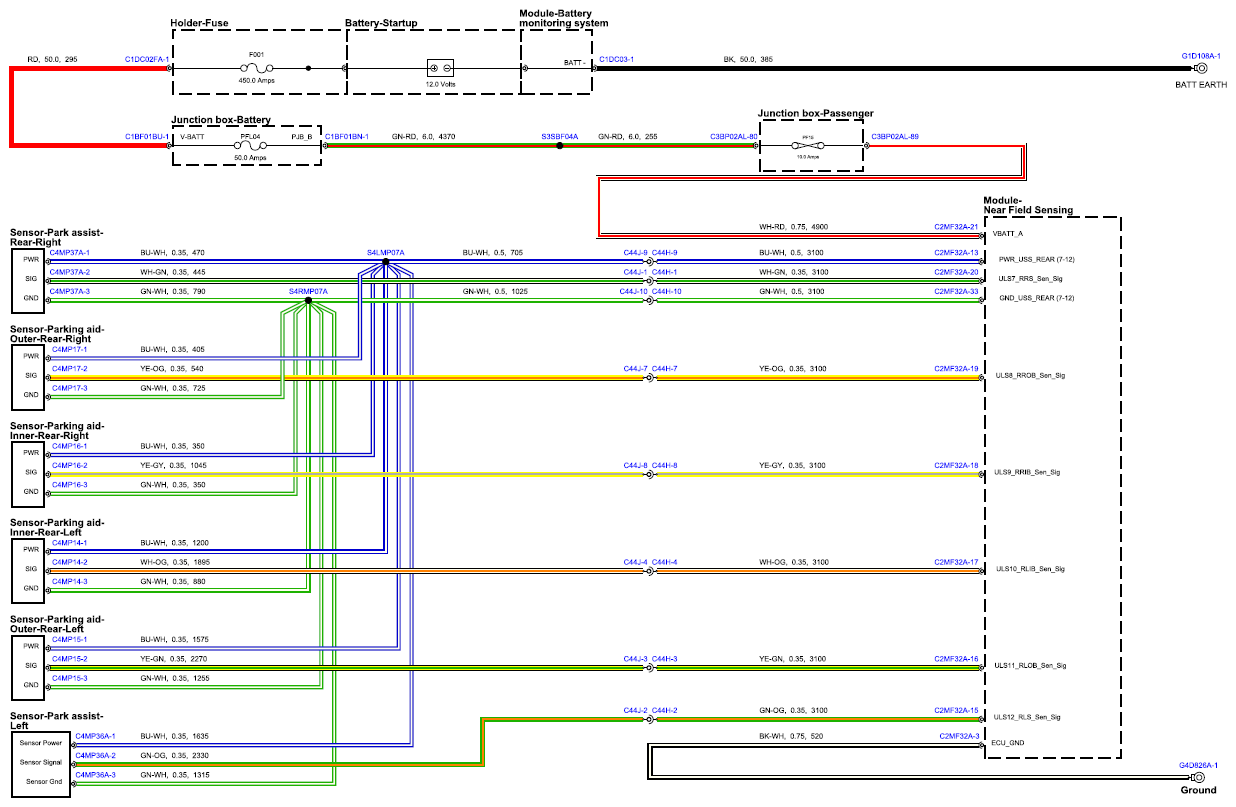

Fig 1: Parking Aid Circuit Diagram - Sheet 1
G15680586Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

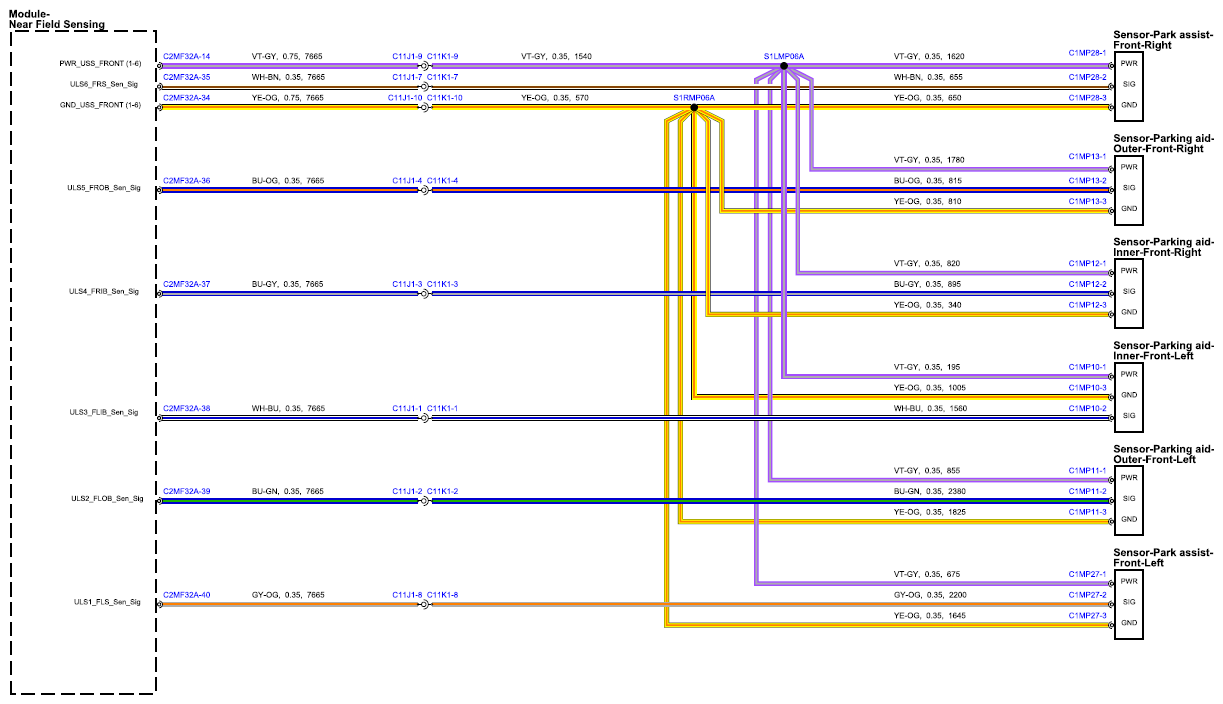

Fig 2: Parking Aid Circuit Diagram - Sheet 2
G15680587Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
