Blind spot monitoring system

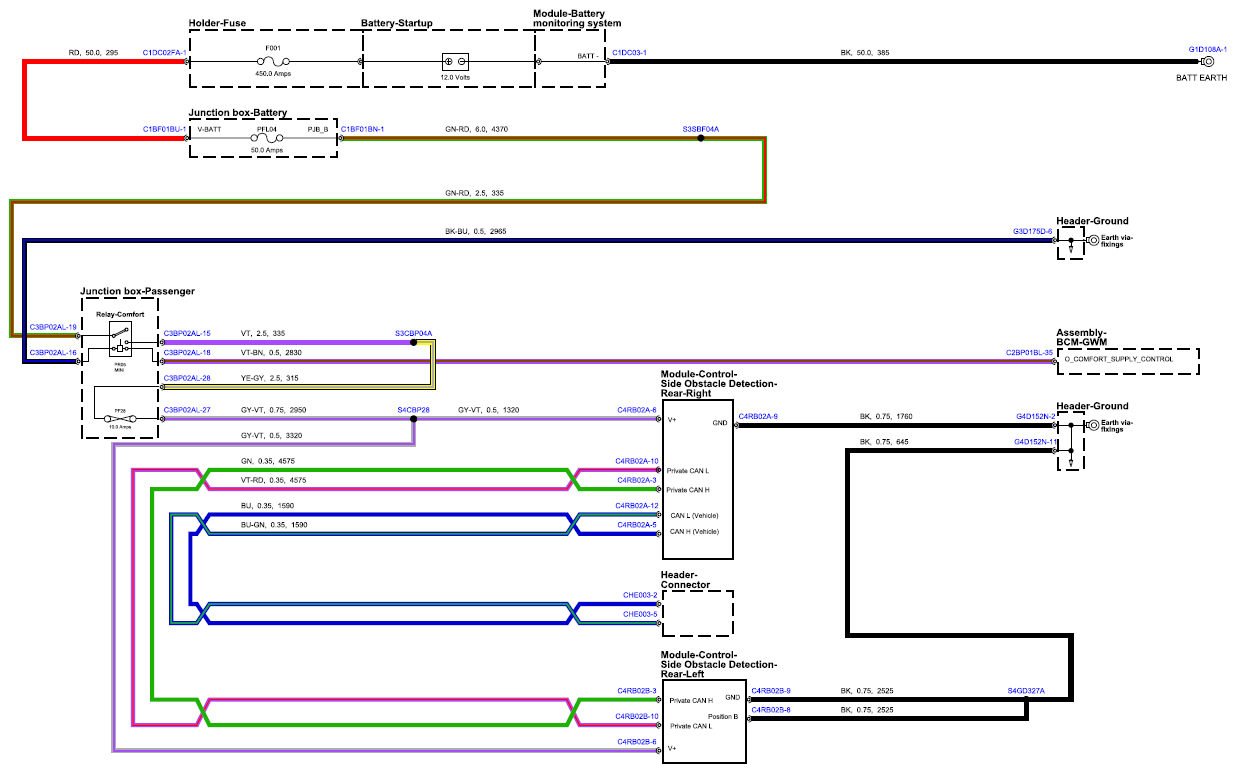

Fig 1: Blind Spot Monitoring System Circuit Diagram - Sheet 1
G15680581Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

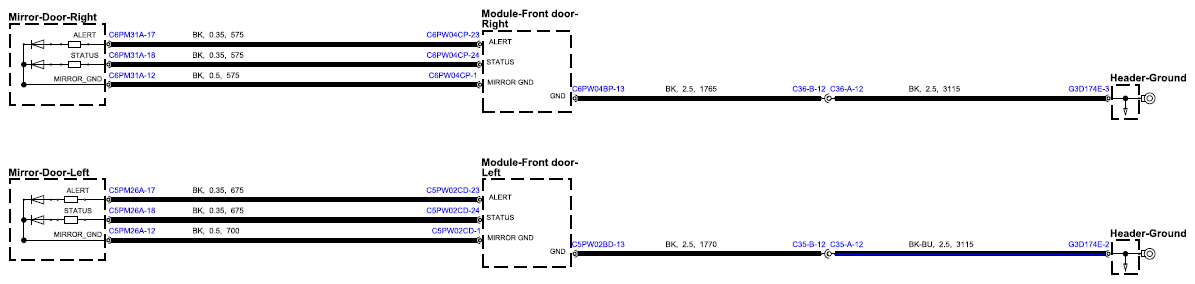

Fig 2: Blind Spot Monitoring System Circuit Diagram - Sheet 2
G15680582Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
